2005 NISSAN X-TRAIL Engine cooling system

CATALYST
EM-149
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

CATALYSTPFP:20905
Removal and InstallationEBS00LRG
REMOVAL
1. Remove engine undercover.
2. Drain engine coolant. Refer to CO-32, "
Changing Engine Coolant" .
3. Remove radiator hose (upper and lower). Refer to CO-35, "
RADIATOR" .
4. Remove cooling fan assembly. Refer to CO-37, "
DISASSEMBLY AND ASSEMBLY" .
5. Remove radiator mounting bracket and radiator. Refer to CO-35, "
Removal and Installation" .
6. Remove water inlet pipe. Refer to CO-45, "
THERMOSTAT AND WATER PIPING" .
7. Remove catalyst insulators.
8. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
9. Remove catalyst.
CAUTION:
Do not disassemble.
NOTE:
Install two locking pins into both sides of the catalyst. Be careful not to confuse locking pins with insulator
mounting bolts.

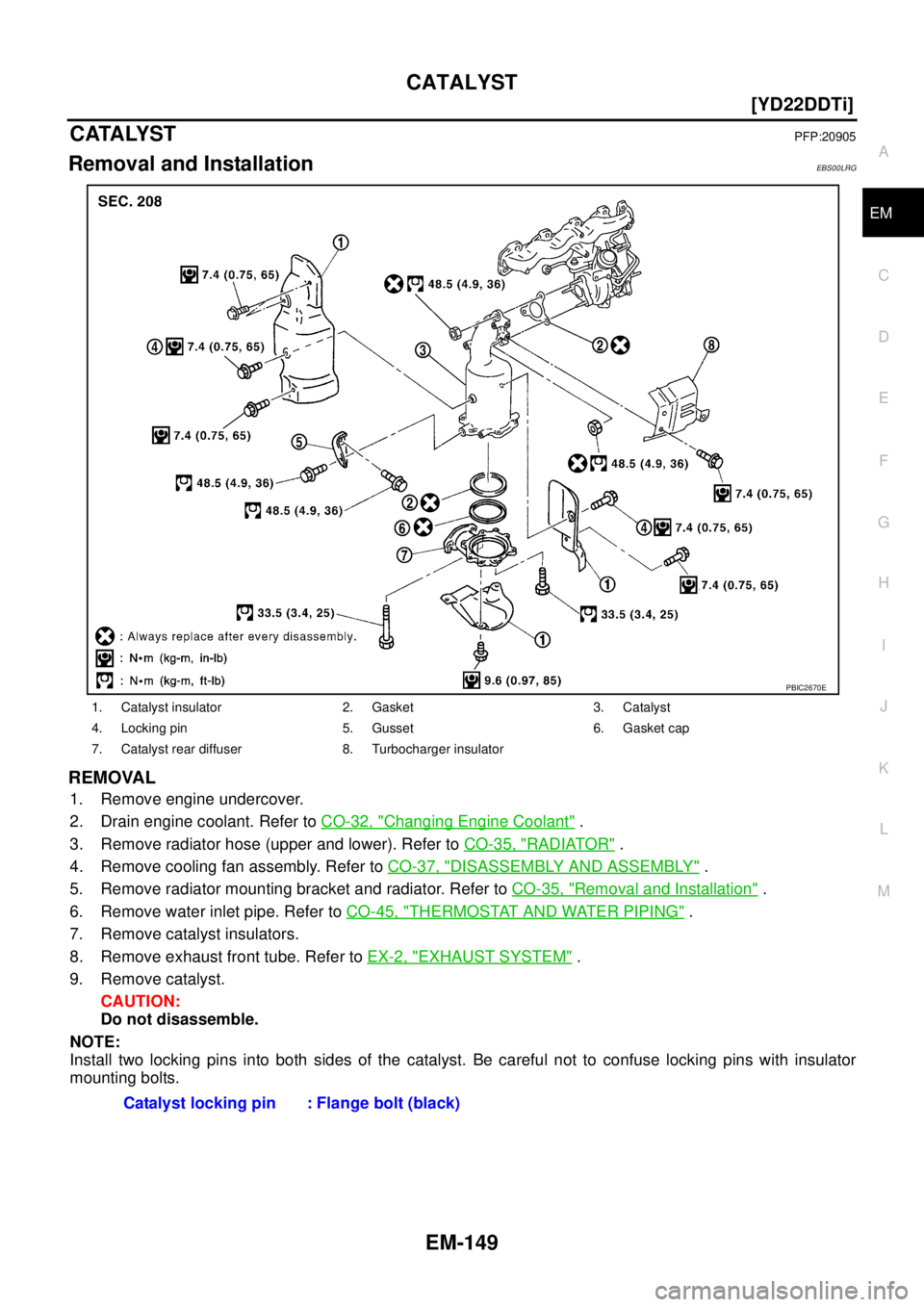

1. Catalyst insulator 2. Gasket 3. Catalyst
4. Locking pin 5. Gusset 6. Gasket cap
7. Catalyst rear diffuser 8. Turbocharger insulator
PBIC2670E
Catalyst locking pin : Flange bolt (black)

EM-214
[YD22DDTi]
CYLINDER HEAD

c. Tighten 180 degrees in numerical order as shown (angle tight-
ening).
d. Loosen completely in reverse order of that shown in the figure.
e. Tighten all bolts in numerical order as shown.
f. Tighten 90 degrees in numerical order as shown (angle tighten-
ing).
g. Tighten another 90 degrees in numerical order as shown (angle
tightening).
CAUTION:

When the angle wrench (special service tool) is not used, paint an alignment mark on the head
of cylinder head bolt and cylinder head surface before tightening. Check the angle with a pro-
tractor.
4. Install glow plug.
CAUTION:

To avoid damage, glow plugs should be removed only when required.

Handle with care to avoid applying shock. When dropped from approx. 10 cm (3.94 in) or higher,
always replace with a new one.

Before installing, remove carbon depositing on mounting hole of glow plug with a reamer.
5. Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Before starting engine, bleed air from fuel piping. Refer to FL-18, "Air Bleeding" .

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.
: 0 N·m (0 kg-m, 0 ft-lb)
:39.2 N·m (4.0 kg-m, 29 ft-lb)
JEM166G
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

ENGINE ASSEMBLY
EM-225
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Before starting engine, bleed air from fuel piping. Refer to FL-18, "Air Bleeding" .

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

ENGINE ASSEMBLY
EM-229
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

9. Remove power steering oil pump with piping connected from engine. Move it aside on suspension mem-
ber. Refer to PS-37, "
HYDRAULIC LINE" .
10. Remove front engine mounting and rear engine mounting through-bolts to remove suspension member.
11. Remove starter motor. Refer to SC-23, "
STARTING SYSTEM" .
12. Separate engine and transaxle and transfer assembly. Refer to MT-19, "
TRANSAXLE ASSEMBLY" .
INSTALLATION
Install in the reverse order of removal.

Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.

When installation directions are specified, install parts according to the direction marks on them referring
to figure of components. Refer to EM-222, "
ENGINE ASSEMBLY" .

Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Before starting engine, bleed air from fuel piping. Refer to FL-18, "Air Bleeding" .

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION CO
A
CO

ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
OVERHEATING CAUSE ANALYSIS .......................... 5
Troubleshooting Chart .............................................. 5
COOLING SYSTEM .................................................... 7
Cooling Circuit .......................................................... 7
System Chart ........................................................... 8
ENGINE COOLANT .................................................... 9
Inspection ................................................................. 9
LEVEL CHECK ..................................................... 9
LEAK CHECK ....................................................... 9
Changing Engine Coolant ........................................ 9
DRAINING ENGINE COOLANT ........................... 9
REFILLING ENGINE COOLANT ........................ 10
FLUSHING COOLING SYSTEM ......................... 10
RADIATOR ................................................................ 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Checking Radiator Cap .......................................... 13
Checking Radiator .................................................. 13
RADIATOR (ALUMINUM TYPE) .............................. 15
Disassembly and Assembly ................................... 15
PREPARATION ................................................... 15
DISASSEMBLY ................................................... 15
ASSEMBLY ......................................................... 16
INSPECTION ...................................................... 18
COOLING FAN ......................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19INSTALLATION ................................................... 19
Disassembly and Assembly .................................... 20
DISASSEMBLY ................................................... 20
INSPECTION AFTER DISASSEMBLY ................ 20
ASSEMBLY ......................................................... 20
WATER PUMP .......................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSPECTION AFTER REMOVAL ....................... 22
INSTALLATION ................................................... 22
INSPECTION AFTER INSTALLATION ................ 22
THERMOSTAT AND WATER CONTROL VALVE .... 23
Removal and Installation ........................................ 23
REMOVAL ........................................................... 23
INSPECTION AFTER REMOVAL ....................... 24
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 24
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 25
Standard and Limit .................................................. 25
CAPACITY ........................................................... 25
RADIATOR .......................................................... 25
THERMOSTAT .................................................... 25
WATER CONTROL VALVE ................................. 25
Tightening Torque ................................................... 25
YD22DDTi
PRECAUTIONS ........................................................ 26
Precautions For Liquid Gasket ............................... 26
LIQUID GASKET APPLICATION PROCEDURE ... 26
PREPARATION ......................................................... 27
Special Service Tools ............................................. 27
Commercial Service Tools ...................................... 27
OVERHEATING CAUSE ANALYSIS ........................ 28
Troubleshooting Chart ............................................ 28
COOLING SYSTEM .................................................. 30
Cooling Circuit ........................................................ 30
System Chart .......................................................... 31
ENGINE COOLANT .................................................. 32
Inspection ............................................................... 32

CO-2 LEVEL CHECK .................................................... 32
CHECKING RADIATOR SYSTEM FOR LEAKS ... 32
Changing Engine Coolant ....................................... 32
DRAINING ENGINE COOLANT .......................... 32
REFILLING ENGINE COOLANT ......................... 33
FLUSHING COOLING SYSTEM ......................... 34
RADIATOR ................................................................ 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 35
INSTALLATION .................................................... 35
INSPECTION AFTER INSTALLATION ................ 35
Checking Radiator Cap .......................................... 36
Checking Radiator .................................................. 36
COOLING FAN .......................................................... 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION .................................................... 37
DISASSEMBLY AND ASSEMBLY ....................... 37
RADIATOR (ALUMINUM TYPE) ............................... 39
Disassembly and Assembly .................................... 39
PREPARATION ................................................... 39
DISASSEMBLY ................................................... 39
ASSEMBLY ......................................................... 40
INSPECTION ....................................................... 42WATER PUMP ........................................................... 43
Removal and Installation ......................................... 43
REMOVAL ............................................................ 43
INSPECTION AFTER REMOVAL ........................ 44
INSTALLATION .................................................... 44
INSPECTION AFTER INSTALLATION ................ 44
THERMOSTAT AND WATER PIPING ....................... 45
Removal and Installation ......................................... 45
REMOVAL ............................................................ 45
INSPECTION AFTER REMOVAL ........................ 46
INSTALLATION .................................................... 46
INSPECTION AFTER INSTALLATION ................ 46
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 47
Standard and Limit .................................................. 47
CAPACITY ........................................................... 47
THERMOSTAT ..................................................... 47
RADIATOR ........................................................... 47
Tightening Torque ................................................... 47

OVERHEATING CAUSE ANALYSIS
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00KOD
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat and water con-
trol valve stuck closed—
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” range when engine is cool.

Adjust engine coolant level as necessary.
LEAK CHECK

To check for leakage, apply pressure to the cooling system with
a radiator cap tester (commercial service tool) and a radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00KOH
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove the cap. First, turn the cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.

Be careful not to allow engine coolant to contact drive belt.
DRAINING ENGINE COOLANT
1. Remove RH and LH undercovers.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.
When drain all of engine coolant in the system, open water drain plug on cylinder block. Refer to
EM-94, "
ASSEMBLY" .
3. Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC2250E
