2005 NISSAN X-TRAIL Engine cooling system

TROUBLE DIAGNOSIS
EC-1019
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

1 - 5: The numbers refer to the order of inspection.
ENGINE CONTROLCrankshaft position sensor circuit 1 1 1 1EC-1157
Camshaft position sensor circuit11EC-1169
Turbocharger boost sensor circuit 1 1EC-1151
Turbocharger boost control solenoid valve cir-
cuit11EC-1061
Start signal circuitEC-1345
Ignition switch circuitEC-1046
Power supply for ECM circuit11EC-1046
Cooling fan relay circuit 2EC-1124
EGR volume control valve circuit 1EC-1193
Glow relay circuit1EC-1182
ECM relay (Self-shutoff) circuit1EC-1245
ECM, connector circuit 2 2 2 2 2 2 2 2 2 2 2EC-1227,EC-
1303
NATS (Nissan Anti-theft System)1EC-1001
SYSTEM — Basic engine control systemSYMPTOM
Reference page
ROUGH IDLE/HUNTING IDLING VIBRATION
SLOW/NO RETURN TO IDLE OVERHEAT/HIGH ENGINE COOLANT TEMPERATURE EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION ABNORMAL SMOKE COLOR DEAD BATTERY (UNDER CHARGE) Malfunction indicator illuminates. Can be detected by CONSULT-II?
BLACK SMOKE WHITE SMOKE
Warranty symptom code AG AH AJ AK AL AM AP HA

EC-1030
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

36 LG Cooling fan relay (Low)[Engine is running]

Cooling fan is not operating

Cooling fan is operating at high speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is operating at low speedApproximately 0.1V
37 W/R Glow relay Refer to EC-1305, "
GLOW CONTROL SYSTEM" .
39 B/OR Fuel transport pump relay[Engine is running]

Some fuel is in the fuel tankApproximately 0V
[Engine is running]

No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V)
40
41
42
43G/R
GY/L
G/R
GY/LFuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
44 L/WCrankshaft position sen-
sor power supply[Ignition switch ON]Approximately 5.3V
45 G/ORCamshaft position sensor
power supply[Ignition switch ON]Approximately 5.3V
46 L Crankshaft position sensor[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 6V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0881E
MBIB0882E
MBIB0879E
MBIB0880E

TROUBLE DIAGNOSIS
EC-1035
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC


Freeze frame data
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*: This item includes 1st/2nd trip DTCs.
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector, which is located
under the driver side dash panel.
3. Turn ignition switch ON.
ItemDIAGNOSTIC TEST MODE
SELF-DIAG RESULTS
DATA MON-
ITORACTIVE
TEST
DTC*FREEZE
FRAME
DATA
ENGINE CONTROL COMPONENT PARTS
INPUTCrankshaft position sensor×××
Camshaft position sensor×
Engine coolant temperature sensor××××
Vehicle speed sensor×××
Fuel pump temperature sensor××
Accelerator pedal position sensor 1××
Accelerator pedal position sensor 2××
Fuel rail pressure sensor××
Mass air flow sensor×××
Intake air temperature sensor××
Turbocharger boost sensor×××
Battery voltage××
Park/neutral position (PNP) switch×
Power steering pressure switch×
Stop lamp switch×
Barometric pressure sensor (built-into ECM)××
Fuel injector adjustment resistor×
ASCD steering switch××
ASCD brake switch××
ASCD clutch switch××
OUTPUTFuel pump×××
Fuel injector×××
Glow relay×××
Cooling fan relay×××
EGR volume control valve×××
PBIB0376E

EC-1042
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

CONSULT-II Reference Value in Data Monitor ModeEBS0117H
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
MONITOR ITEM CONDITION SPECIFICATION
CKPS-RPM (TDC)

Run engine and compare CONSULT-II value with the tachometer
indication.Almost the same speed as the
tachometer indication
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speed-
ometer indicationAlmost the same speed as the
speedometer indication
FUEL TEMP SEN

Engine: After warming up More than 40°C (104°F)
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
MAS AIR/FL SE*

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1.5 - 2.0V
2,000 rpm 2.2 - 2.7V
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
P/N POSI SW

Ignition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
BRAKE SW2

Ignition switch: ONBrake pedal and clutch pedal:
Fully releasedOFF
Brake pedal and/or clutch pedal:
Slightly depressedON
IGN SW

Ignition switch: ON → OFF ON → OFF
ACT CR PRESS

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer to EC-1305, "
GLOW CONTROL SYSTEM" .
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI

EC-1124
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

DTC P0217 ENGINE OVER TEMPERATUREPFP:21481
System DescriptionEBS0119Y
COOLING FAN CONTROL
*: These signals are sent to the ECM through CAN communication line.

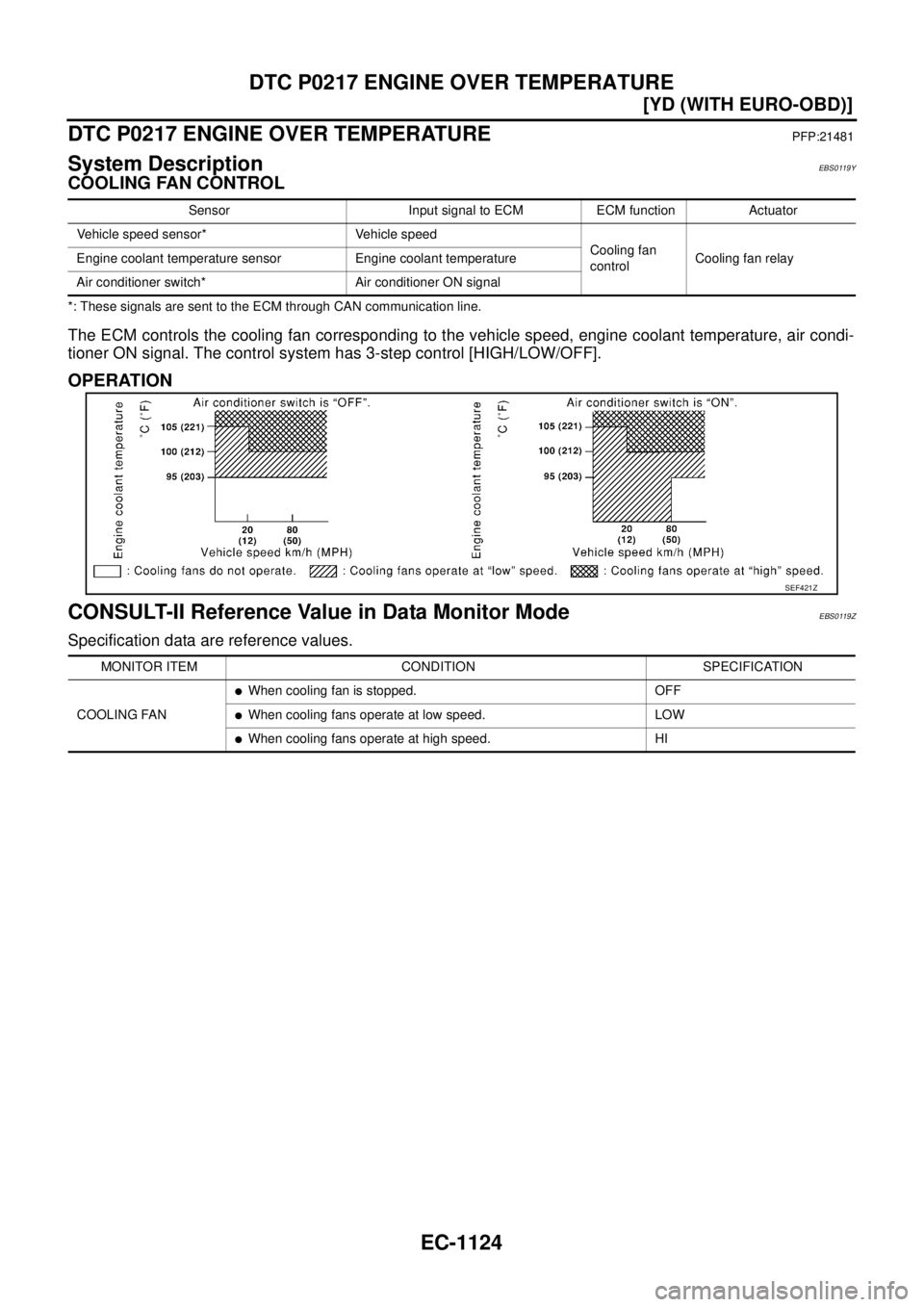

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air condi-
tioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS0119Z
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Vehicle speed sensor* Vehicle speed
Cooling fan
controlCooling fan relay Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch* Air conditioner ON signal
SEF421Z
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI

DTC P0217 ENGINE OVER TEMPERATURE
EC-1125
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

On Board Diagnosis LogicEBS011A0
This self-diagnosis has the one trip detection logic.
Overall Function CheckEBS011A1
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.

Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-
up pressure to escape. Then turn the cap all the way off.

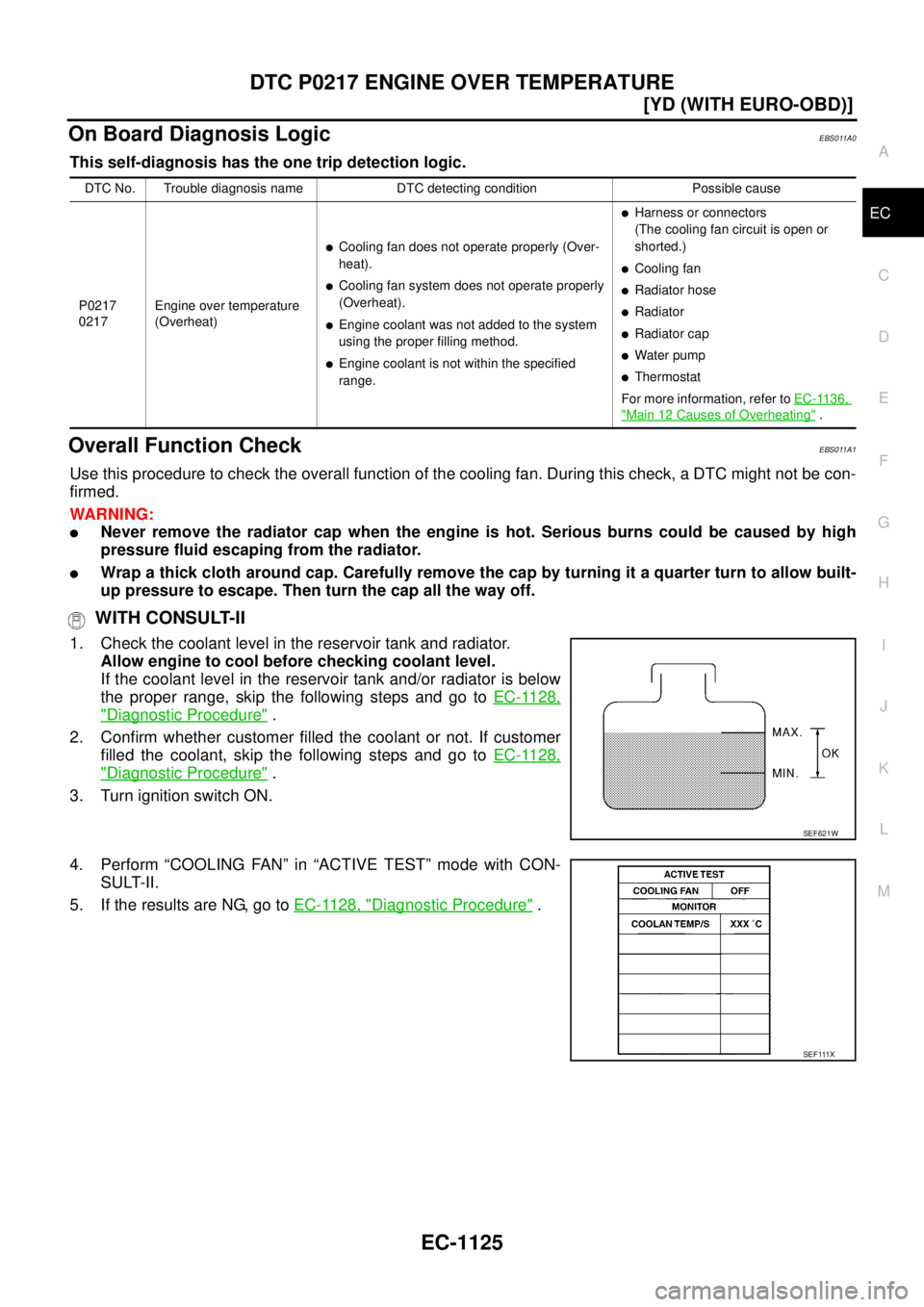

WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1128,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1128,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-1128, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0217
0217Engine over temperature
(Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate properly
(Overheat).

Engine coolant was not added to the system
using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(The cooling fan circuit is open or
shorted.)

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat
For more information, refer to EC-1136,
"Main 12 Causes of Overheating" .
SEF621W
SEF111X

EC-1130
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

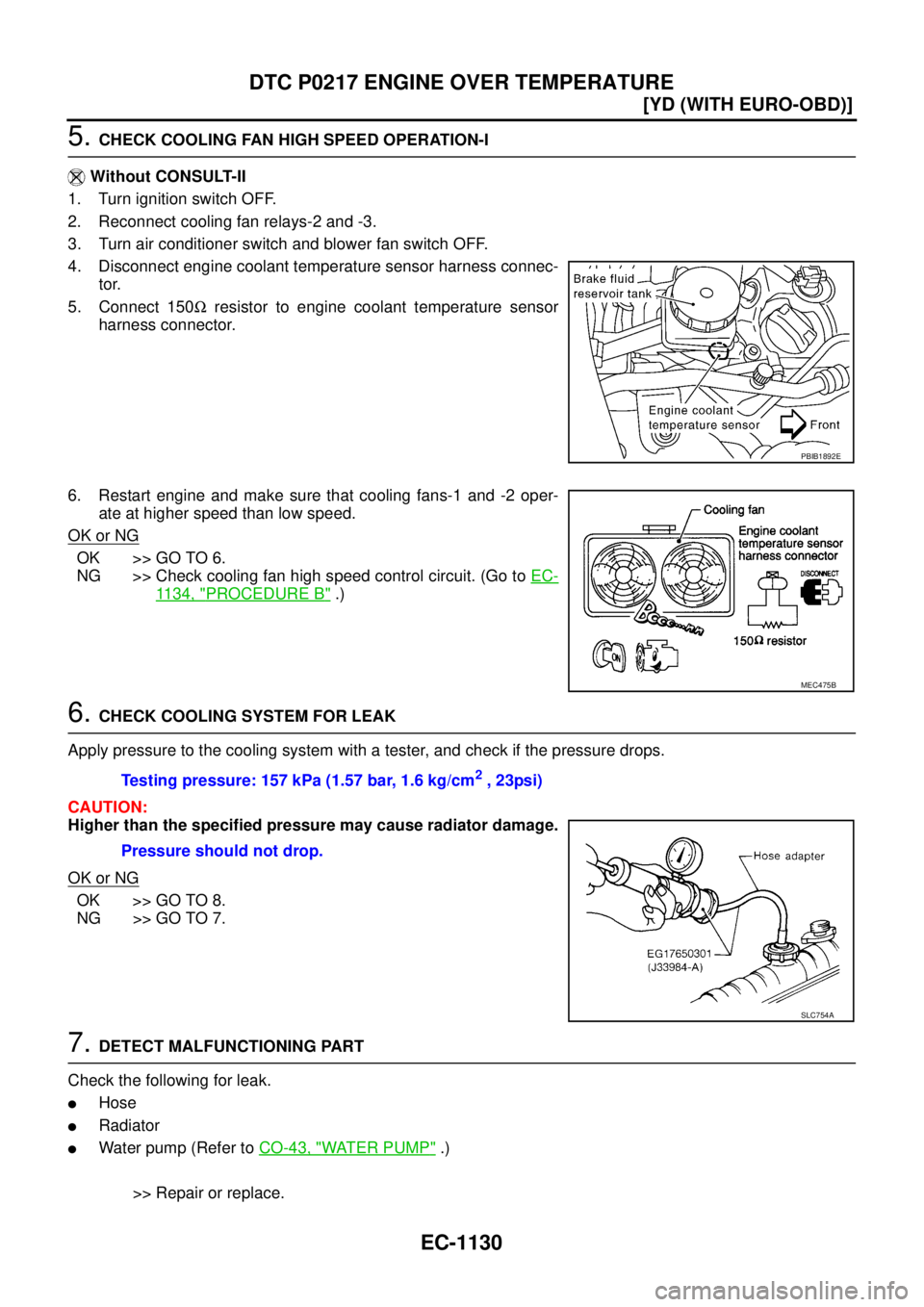

5. CHECK COOLING FAN HIGH SPEED OPERATION-I
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch OFF.
4. Disconnect engine coolant temperature sensor harness connec-
tor.
5. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
11 3 4 , "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-43, "WATER PUMP" .)
>> Repair or replace.
PBIB1892E
MEC475B
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23psi)
Pressure should not drop.
SLC754A

EC-1136
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

7. CHECK COOLING FAN MOTORS-1 AND -2
Refer to EC-1137, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relays.
8. CHECK INTERMITTENT INCIDENT
Perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Main 12 Causes of OverheatingEBS011A4
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-28, "
OVERHEATING CAUSE ANALYSIS" . Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixture See MA-19, "Engine
Coolant Mixture Ratio" .
3

Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSee CO-32, "LEVEL
CHECK" .
4

Radiator cap
Pressure tester 59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2 , 9 - 14 psi) (Limit)See MA-33, "
CHECKING
RADIATOR CAP" .
ON*
25
Coolant leaks
Visual No leaks See CO-32, "CHECKING
RADIATOR SYSTEM
FOR LEAKS" .
ON*
26
Thermostat
Touch the upper and
lower radiator hosesBoth hoses should be hot See CO-45, "THERMO-
STAT AND WATER PIP-
ING" , and CO-35,
"RADIATOR" .
ON*
17
Cooling fan
CONSULT-II Operating See trouble diagnosis for
DTC P0217 (EC-1124
).
OFF 8

Combustion gas leak
Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39
Coolant temperature
gauge
Visual Gauge less than 3/4
when driving—

Coolant overflow to
reservoir tank
Visual No overflow during driving
and idlingSee MA-30, "Changing
Engine Coolant" .
OFF*
410
Coolant return from
reservoir tank to radia-
tor
Visual Should be initial level in
reservoir tankSee CO-32, "LEVEL
CHECK" .
OFF 11

Cylinder head
Straight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)SeeEM-209, "CYLIN-
DER HEAD" .
12

Cylinder block and pis-
tons
Visual No scuffing on cylinder
walls or pistonSee EM-230, "CYLIN-
DER BLOCK" .
