2005 NISSAN X-TRAIL ESP

BRAKE MASTER CYLINDER
BR-17
C
D
E
G
H
I
J
K
L
MA
B
BR

CAUTION:

Do not reuse reservoir tank mounting pin.

Do not reuse reservoir tank.

Be sure to insert pin from the chamfered pinhole on the cylinder body.
MODELS WITHOUT ESP (PISTON STOPPER NOT APPLIED.)
CAUTION:
Remove reservoir tank only when absolutely necessary.
Disassembly (Piston Assembly)
1. Using a flat-bladed screwdriver as shown in the figure, lift up the
tabs on the stopper cap and remove it from the master cylinder.
NOTE:
Remove stopper cap while holding it because the piston in mas-
ter cylinder may pop out.
2. Carefully pull primary piston assembly straight out to prevent the
cylinder inner wall from being damaged.
3. Tap flange using a soft block, such as wood, and carefully pull
secondary piston assembly straight out to prevent cylinder body
inner wall from being damaged.
Inspection After Disassembly (Piston Assembly)
Cylinder body

Check inner wall of cylinder for damage, abrasion, corrosion, and pinholes. Replace the cylinder body if
detected.
Assembly (Piston Assembly)
CAUTION:

Do not use mineral oils such as kerosene, gasoline during the cleaning and assembly process.

Make sure there is no foreign matter such as dirt or dust attached to the inner cylinder walls, the
piston, or the cap seal, and use care to avoid damaging parts with the assembly tools.

Do not drop parts. If a part is dropped, do not use it.
1. Apply fluid to cylinder inner wall body and contact surface of the
piston assembly. Then insert secondary piston assembly and
primary piston assembly into cylinder body in this order.
CAUTION:

Pay attention to the orientation of the piston cup, and
insert straight to prevent the cup from being caught by
cylinder inner wall.

Be sure to replace the assembly without disassembling
the new inner kit.

Do not reuse the primary and secondary piston assem-
blies.
BRA0031D
BRA0033D
SFIA2051E

BRAKE MASTER CYLINDER
BR-19
C
D
E
G
H
I
J
K
L
MA
B
BR

3. Tilt reservoir tank as shown in the figure for the mounting pin to
be inserted. Return the reservoir tank to the upright position
when mounting pin passes through pinhole in the cylinder body.
Push mounting pin to the opposite pinhole of the reservoir tank,
so that it is the same condition as the insertion side.
CAUTION:

Be sure to insert pin from the chamfered pinhole of cylin-
der body.

Do not reuse the mounting pin.
MODELS WITH ESP
Disassembly
CAUTION:

While working, cover primary piston rod with cloth to prevent it from being damaged.

Only remove reservoir tank when absolutely necessary.
1. Place the side of cylinder body with chamfering around the pin
insertion hole up, and secure the cylinder body flange section
with a vise as shown in the figure.
CAUTION:
When securing in a vise, use copper plates or cloth to pro-
tect flange.
2. Using a pin punch [commercial service tool: approximately 4
mm (0.16 in) dia.], remove reservoir tank mounting pin.
3. Remove master cylinder assembly from the vise.
4. Remove reservoir tank and grommet from cylinder body.
5. Push in the primary piston and remove stopper pin from the cyl-
inder body secondary-side tank boss hole.
SFIA0342E
BRA0558D
BRA0559D
BRA0560D

BR-24
BRAKE BOOSTER

INSPECTION AFTER REMOVAL
Output rod length inspection
1. Using a handy vacuum pump, apply a vacuum of -66.7 kPa (-500 mmHg, -19.69 inHg) to the brake
booster.
2. Check output rod length.
3.
INSTALLATION
1. Loosen lock nut to adjust input rod length so that length “B” (in
the figure) satisfies the specified value.
2. After adjusting “B”, temporarily tighten lock nut to install booster
assembly to vehicle.
3. Connect brake pedal to input rod clevis.
4. Connect brake pedal assembly mounting nuts and tighten to the
specified torque.
5. Connect master cylinder to booster assembly.
6. Adjust brake pedal height and play.
7. Tighten input rod lock nut to the specified torque.
8. Bleed air. Refer to BR-9, "
Bleeding Brake System" . Reference value at vacuum of –66.7 kPa (–500 mmHg,
–19.69 inHg):
Without ESP models : 10.4 mm (0.409 in)
With ESP models : -6.2 mm (-0.244 in)
SBR208E
Length “B” standard : 125 mm (4.92 in)
SGIA0060E

VACUUM LINES
BR-25
C
D
E
G
H
I
J
K
L
MA
B
BR

VACUUM LINESPFP:41920
Removal and InstallationEFS000CE
RHD MODELS
LHD MODELS
CAUTION:

Because vacuum hose contains a check valve, it must be installed in the correct orientation. Refer
to the stamp or label to confirm correct installation. Brake booster will not operate normally if
hose is installed in the wrong direction.

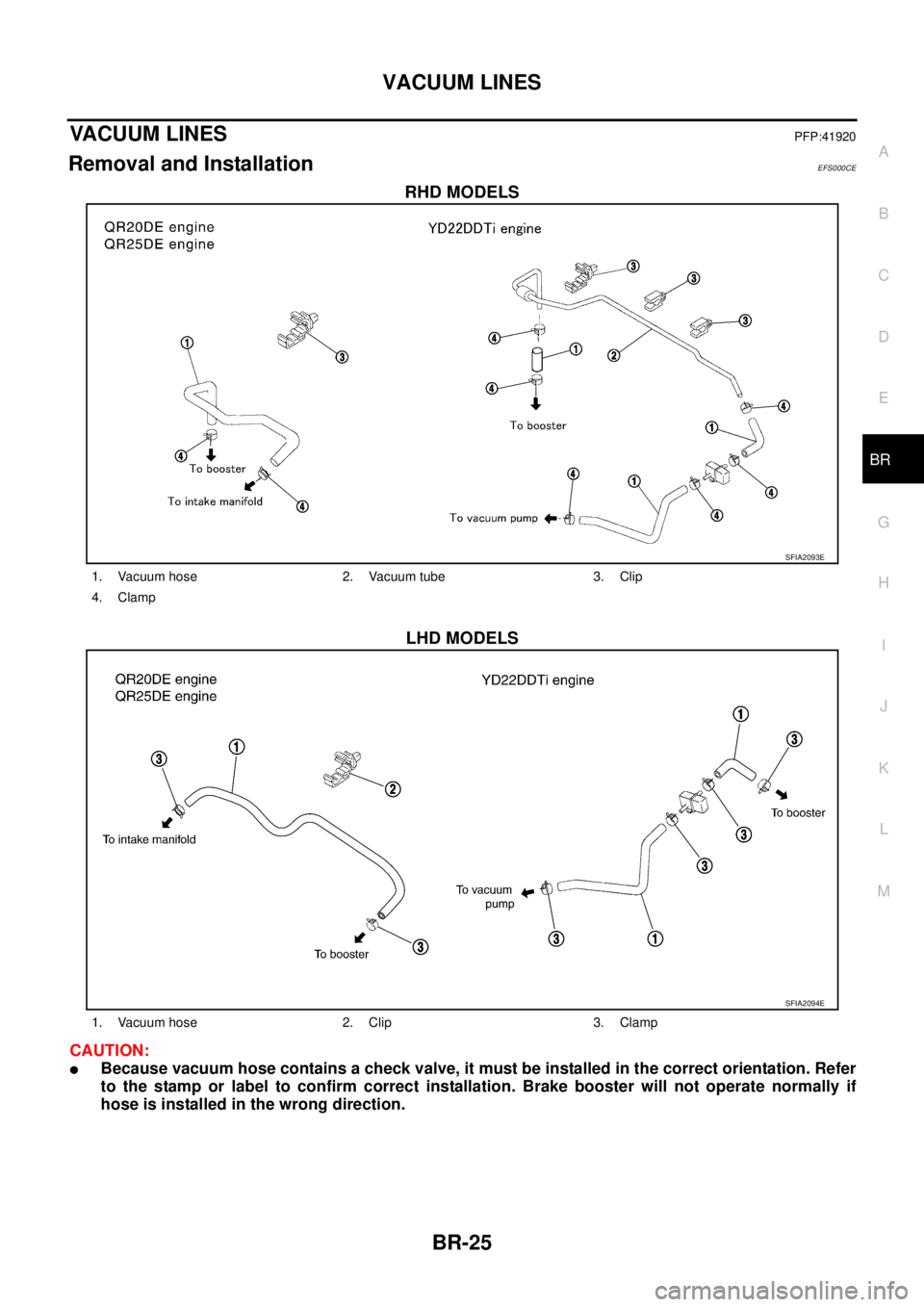

SFIA2093E
1. Vacuum hose 2. Vacuum tube 3. Clip
4. Clamp
SFIA2094E
1. Vacuum hose 2. Clip 3. Clamp
