2005 NISSAN X-TRAIL ESP

BRC-58
[ESP/TCS/ABS]
CAN COMMUNICATION

TYPE 9
System diagram
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Parking brake switch signalRT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
PKIC0343E

CAN COMMUNICATION
BRC-59
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Input/output signal chart
T: Transmit R: Receive
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

BRC-60
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
How to Proceed With DiagnosisEFS005VY
BASIC CONCEPT

Most important point to perform diagnosis is to understand systems (control and mechanism) in vehicle
thoroughly.

It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptom, and understand it fully.
Ask customer about his/her complaints carefully. In some cases,
it will be necessary to check symptom by driving vehicle with
customer.
NOTE:
Customers are not professionals. Do not assume “maybe cus-
tomer means...” or “maybe customer mentioned this symptom”.

It is essential to check symptoms right from beginning in order to
repair a malfunction completely.
For an intermittent malfunction, it is important to reproduce
symptom based on interview with customer and past examples.
Do not perform inspection on ad hoc basis. Most intermittent
malfunctions are caused by poor contacts. In this case, it will be
effective to shake suspected harness or connector by hand.
When repairs are performed without any symptom check, no
one can judge if malfunction has actually been eliminated.

After diagnosis, make sure to carry out “erase memory”. Refer to
BRC-28, "
SELF-DIAGNOSIS" .

For an intermittent malfunction, move harness or harness con-
nector by hand to check poor contact or false open circuit.

Always read “GI General Information” to confirm general precautions. Refer to GI-4, "General Precau-
tions" .
SEF234G
SEF233G

TROUBLE DIAGNOSIS
BRC-61
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

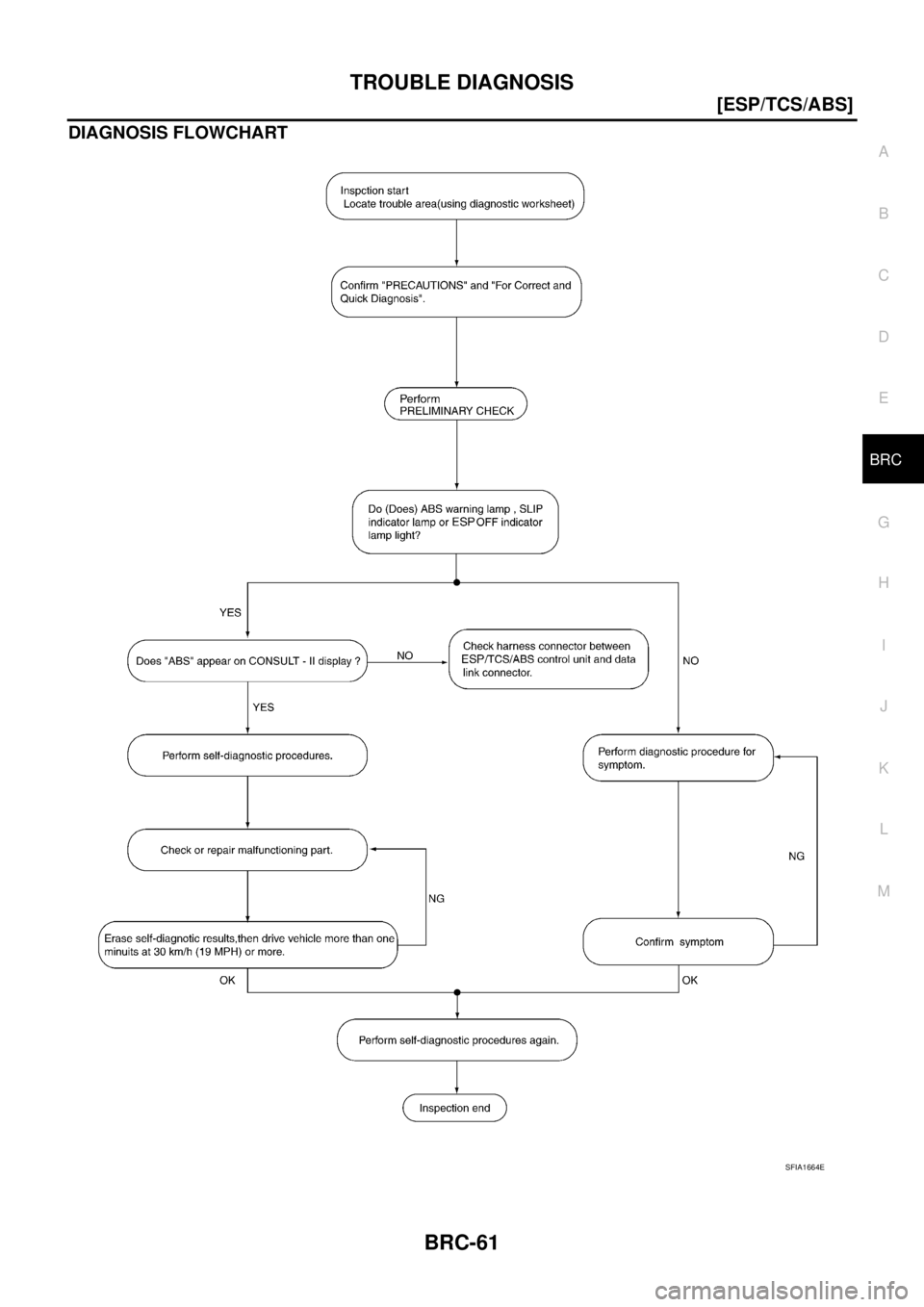

DIAGNOSIS FLOWCHART
SFIA1664E

BRC-62
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

ASKING COMPLAINTS

Complaints against malfunction vary depending on each person.
It is important to clarify customer complaints.

Ask customer about what symptoms are present and under
what conditions. Use information to reproduce symptom while
driving.

It is also important to use diagnosis sheet so as not to miss infor-
mation.

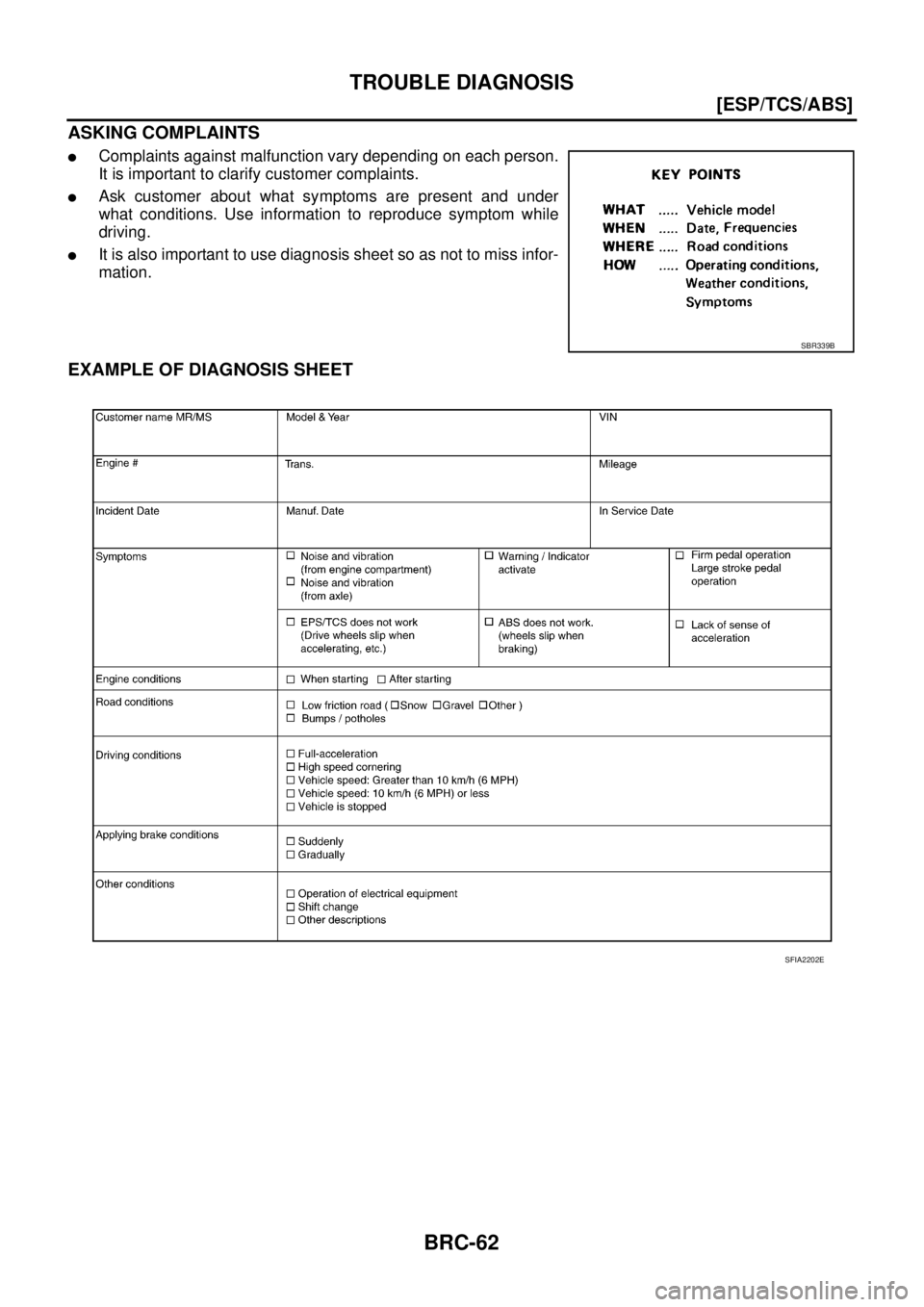

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
SFIA2202E

TROUBLE DIAGNOSIS
BRC-63
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

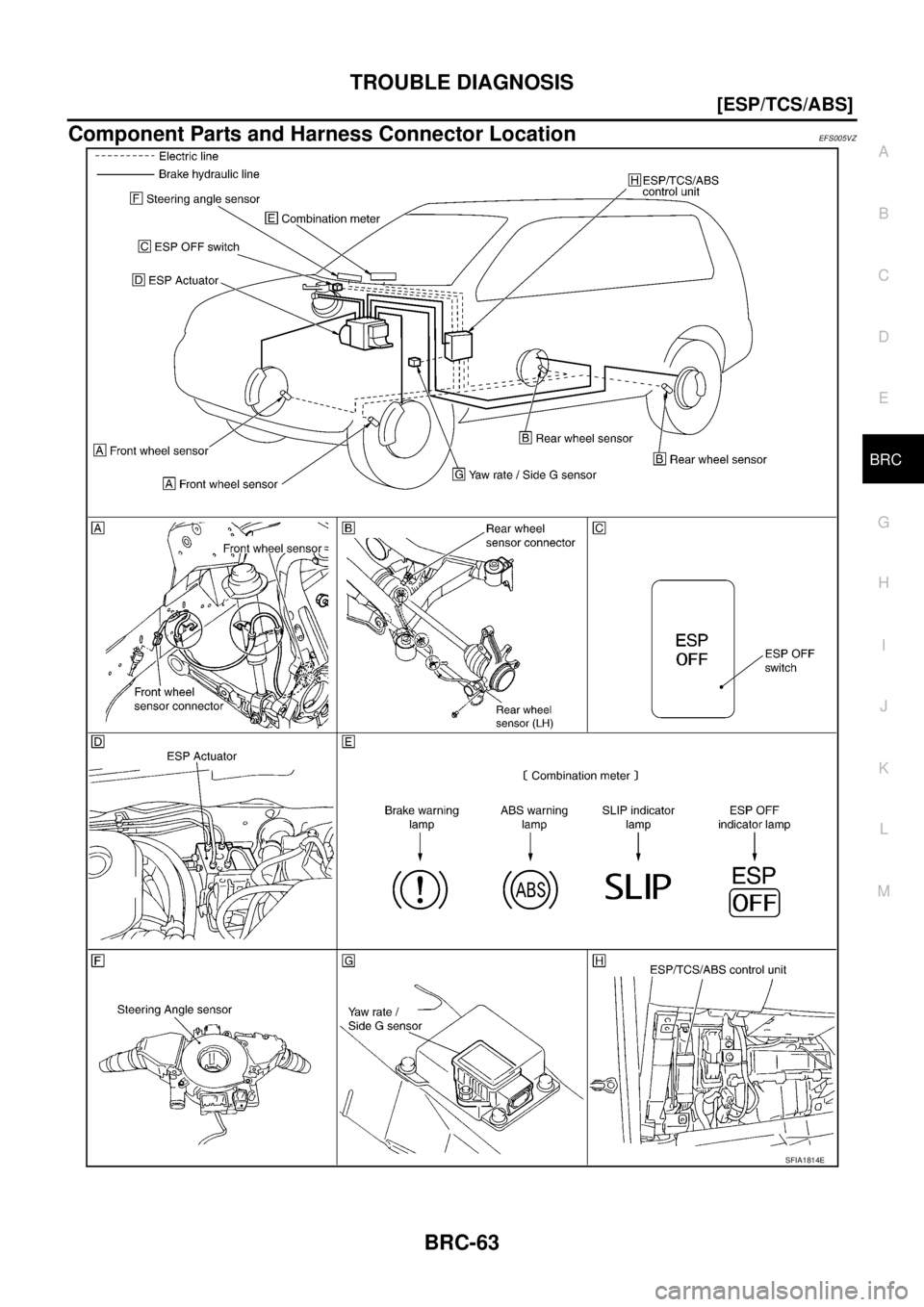

Component Parts and Harness Connector Location EFS005VZ
SFIA1814E

BRC-64
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

SchematicEFS005W0
TFWB0075E

TROUBLE DIAGNOSIS
BRC-65
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

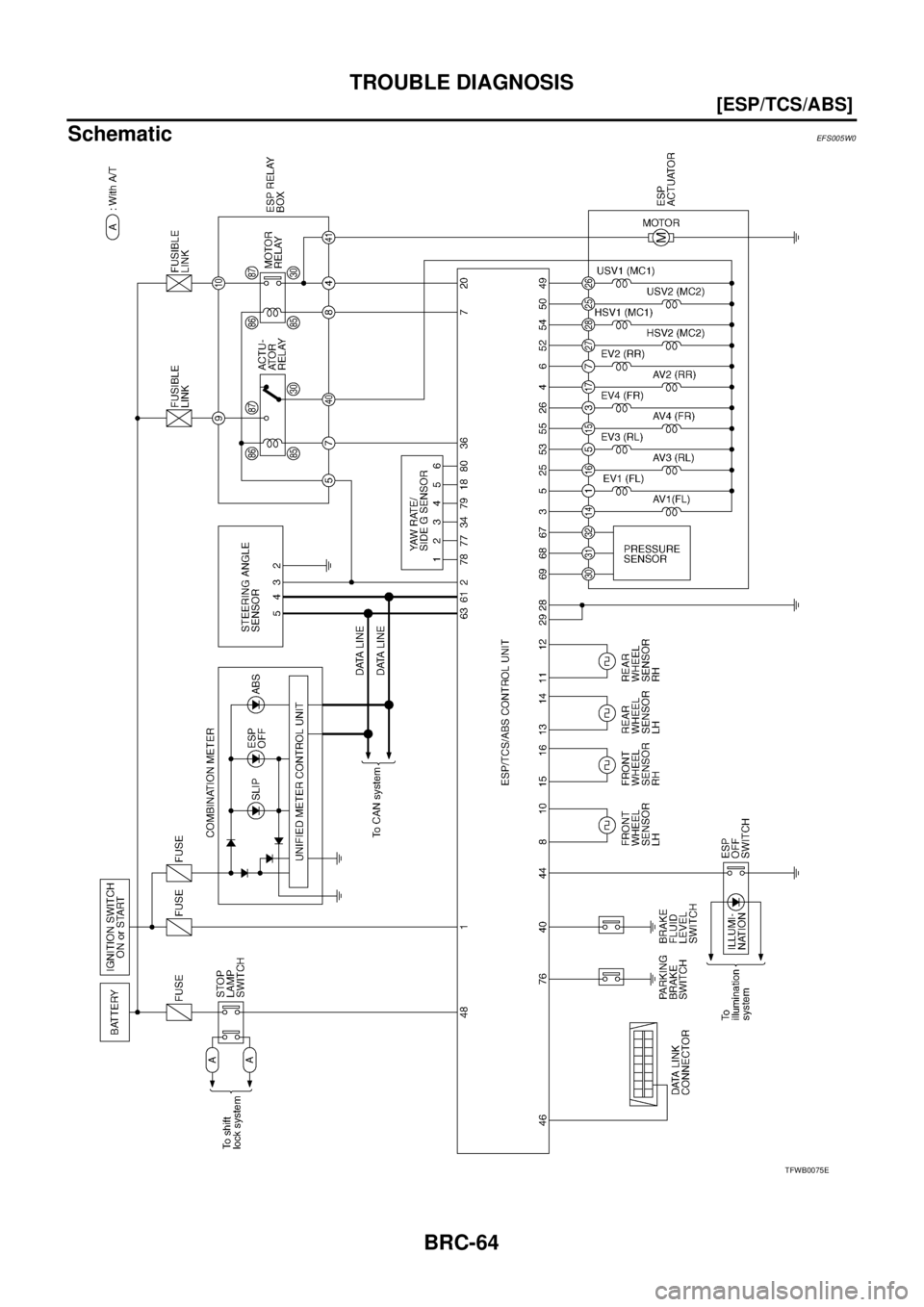

Wiring Diagram —ESP/TCS/ABS—EFS005W1
LHD MODEL
TFWB0084E
