Page 4341 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

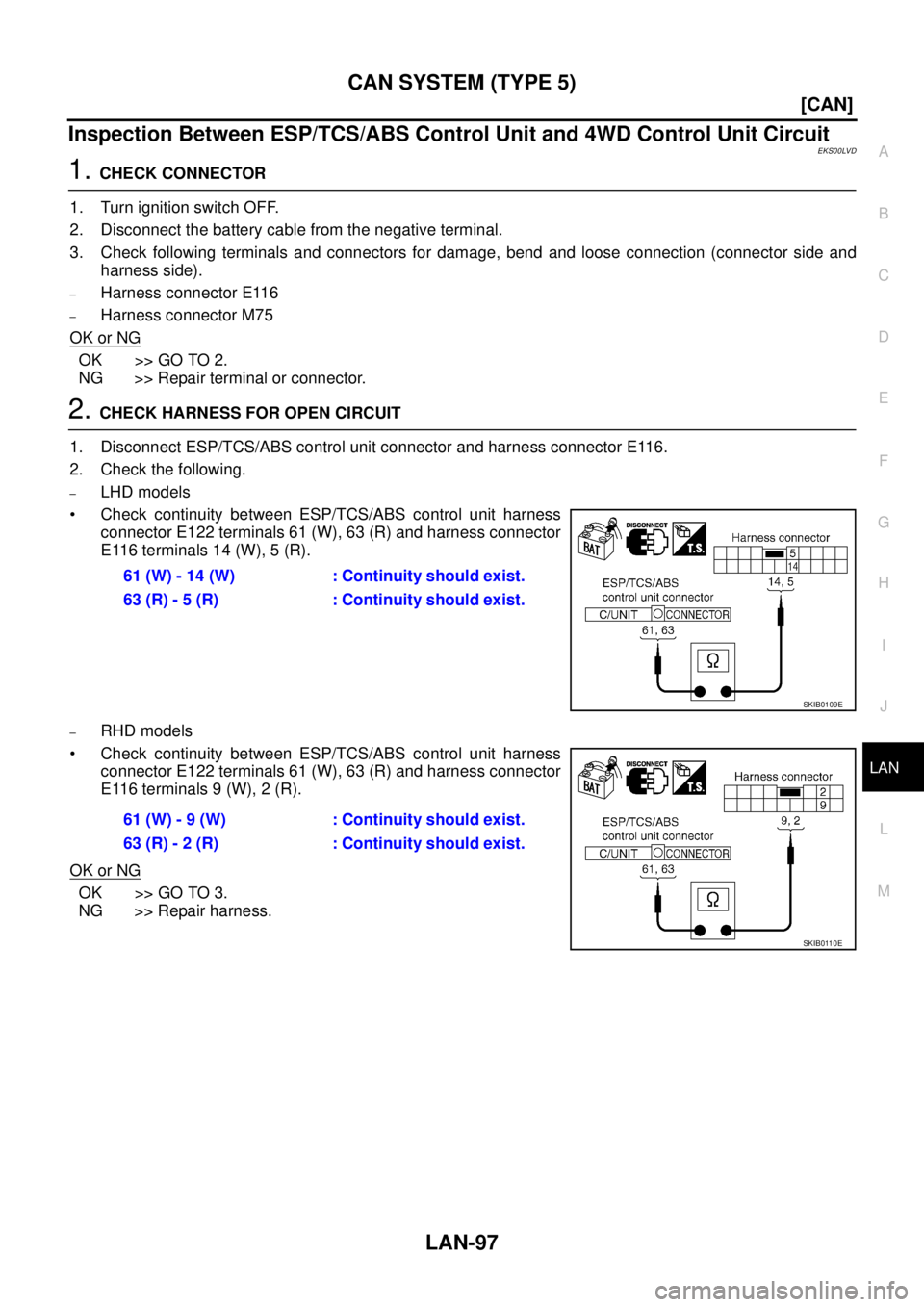

Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LVD
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Discon

Page 4342 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LAN-98
[CAN]
CAN SYSTEM (TYPE 5)

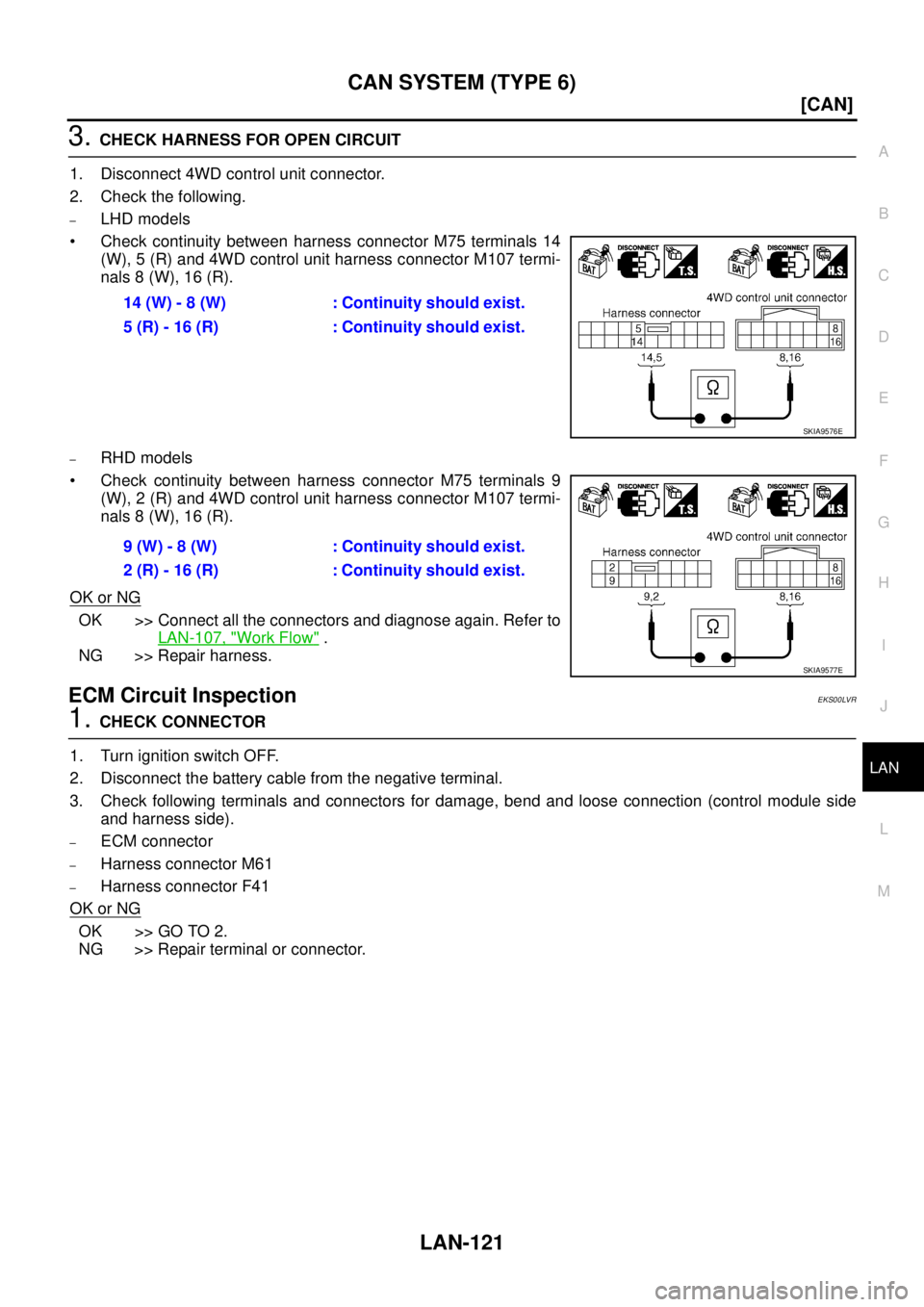

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
Check continuity between harness connector M75 te

Page 4351 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-

Page 4363 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-119
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

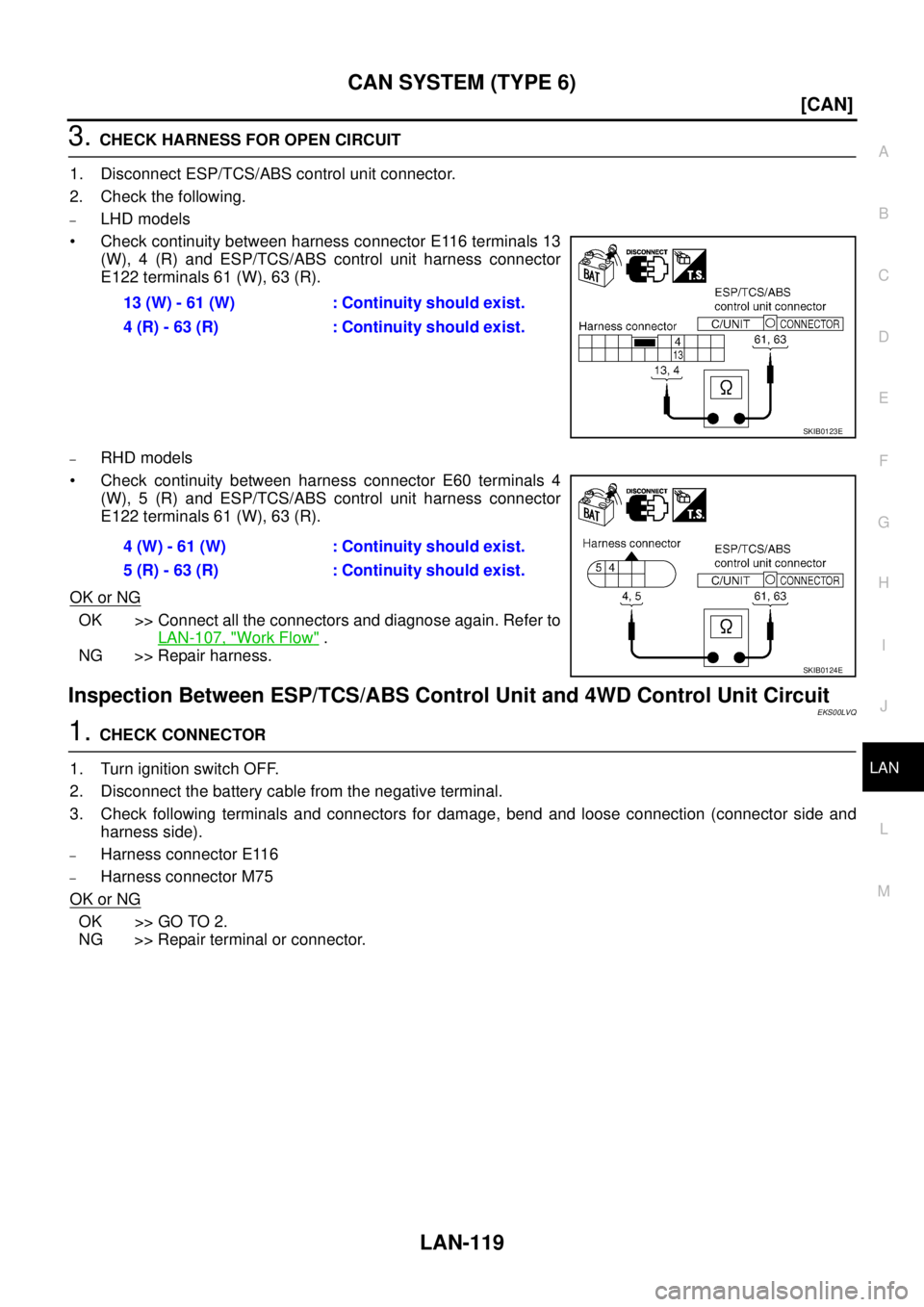

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check the following.
–LHD models
Check continu

Page 4365 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-121
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
Check continuity betw

Page 4502 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MA-6
GENERAL MAINTENANCE

GENERAL MAINTENANCEPFP:00000
General MaintenanceELS000AL
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehic

MA-6
GENERAL MAINTENANCE

GENERAL MAINTENANCEPFP:00000
General MaintenanceELS000AL
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or they can have their NISSAN dealers do them for a nominal charge.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically e.g. each time you check the engine oil or refuel.Item Reference page
TiresCheck the pressure with a gauge periodically when at a service station, includ-
ing the spare, and adjust to the specified pressure if necessary. Check carefully
for damage, cuts or excessive wear.—
Windshield wiper
bladesCheck for cracks or wear if not functioning correctly. —
Doors and engine
hoodCheck that all doors, the engine hood, the trunk lid and back door operate prop-
erly. Also ensure that all latches lock securely. Lubricate if necessary. Make sure
that the secondary latch keeps the hood from opening when the primary latch is
released.
When driving in areas using road salt or other corrosive materials, check for
lubrication frequently.BL-12
, BL-18
Tire rotationTires should be rotated every 10,000 km (6,000 miles) for 2WD models and
every 5,000 km (3,000 miles) for 4WD models.MA-43
Item Reference page
LampsMake sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim.—
Warning lamps and
chimesMake sure that all warning lamps and buzzers/chimes are operating properly. —
Steering wheelCheck that it has the specified play.
Check for changes in the steering conditions, such as excessive free play, hard
steering or strange noises.
Free play: Less than 35 mm (1.38 in)—
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.MA-47
Item Reference page
Windshield washer
fluidCheck that there is adequate fluid in the tank. —
Engine coolant levelCheck the coolant level when the engine is cold.MA-20
(QR20DE,
QR25DE)
MA-30
(YD22DDTi)
Engine oil levelCheck the level after parking the vehicle on a level spot and turning off the
engine.MA-24
(QR20DE,
QR25DE)
MA-35
(YD22DDTi)
Brake and clutch fluid
levelsMake sure that the brake and clutch fluid levels are between the “MAX” and
“MIN” lines on the reservoir.MA-39
, MA-44
BatteryCheck the fluid level in each cell. It should be between the “MAX” and “MIN”
lines.—

Page 4504 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MA-8
PERIODIC MAINTENANCE

CHASSIS AND BODY MAINTENANCE (QR20DE AND QR25DE PETROL ENGINE)
(Annual Mileage <30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,

Page 4506 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MA-10
PERIODIC MAINTENANCE

NOTE:
(1) Inspect once per year.
Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
*: F

MA-10
PERIODIC MAINTENANCE

NOTE:
(1) Inspect once per year.
Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
*: For 4WD models only.
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
(Annual Mileage <30,000 Km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions
A — Driving in dusty conditions
B — Repeatedly driving short distances
C — Towing a trailer or caravan
D — Extensive idling
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity or mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent off road use or driving in water
K —Sustained high speed driving
L — For models without Euro-OBD system
Differential gear oil (For level & leaks or
replace)IIIIIIMA-43
Steering gear & linkage, axle & suspension
parts, propeller shaft, front drive shafts &
exhaust systemI* I I* I I* IMA-45,
MA-46
,
MA-42
,
MA-46
,
MA-39
Wheel alignment (If necessary, rotate & bal-
ance wheels)IIIIIIFSU-6,
MA-43
Brake pads, rotors & other brake compo-
nentsIIIIIIMA-45,
MA-44
,
MA-45
Foot brake, parking brake & clutch (For free
play, stroke & operation)IIIIIIBR-6,
PB-3
,
CL-5
Air conditioner filterRRRRRRATC-130
Body corrosionSee
NOTE (1)MA-48
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform on a kilometer basis, but on an annual
basis when driving less than 20,000 km
(12,000 miles) per yearkm x 1,000
(Miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
