GW-44
POWER WINDOW SYSTEM
REAR POWER WINDOW SWITCH LH OPERATION
WINDOW UP
When the rear power window switch RH is pressed in the up position,
Power is supplied
through rear power window switch RH terminal 1
to rear power window motor RH terminal 1
Ground is supplied
to rear power window motor RH terminal 2
to rear power window switch RH terminal 2
to rear power window switch RH terminal 4
through power window main switch terminal 11 (LHD models) or 10 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch RH is pressed in the down position,
Power is supplied
through rear power window switch RH terminal 2
to rear power window motor RH terminal 2
Ground is supplied
to rear power window motor RH terminal 1
to rear power window switch RH terminal 1
to rear power window switch RH terminal 3
through power window main switch terminal 10 (LHD models) or 9 (RHD models)
Then, the motor lowers the window until the switch is released.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding the
window switch in the down or up position.
The AUTO feature operates on the driver's window.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's window.
When the lock switch is pressed to lock position, ground of the sub–switches in the power window main switch
is disconnected.This prevents the power window motors from operating.
TIMER FUNCTION
With the timer function, driver power window can be operated for approximately 15 minutes after ignition
switch is turned OFF (positions other than ON). However, the timer will be cancel when a specific signal, such
as driver door close (door switch OFF) → open (door switch ON), or ignition switch OFF → ON, is input.
DRIVER WINDOW ANTI–PINCH FUNCTION
During raising operation of driver power window, if power window main switch detects that foreign object is
pinched, power window lowers approximately 150 mm (5.91 in).
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to power window, it
may lower.
Operation conditions
Driver door window is between fully-open and just before fully-closed position (when the limit switch is
ON).
During automatic operation when ignition switch is turned ON.
During automatic or manual operation when ignition switch is other than ON position (when the timer
operates).
Page 3759 of 4555
POWER WINDOW SYSTEM
GW-45
C
D
E
F
G
H
J
K
L
MA
B
GW

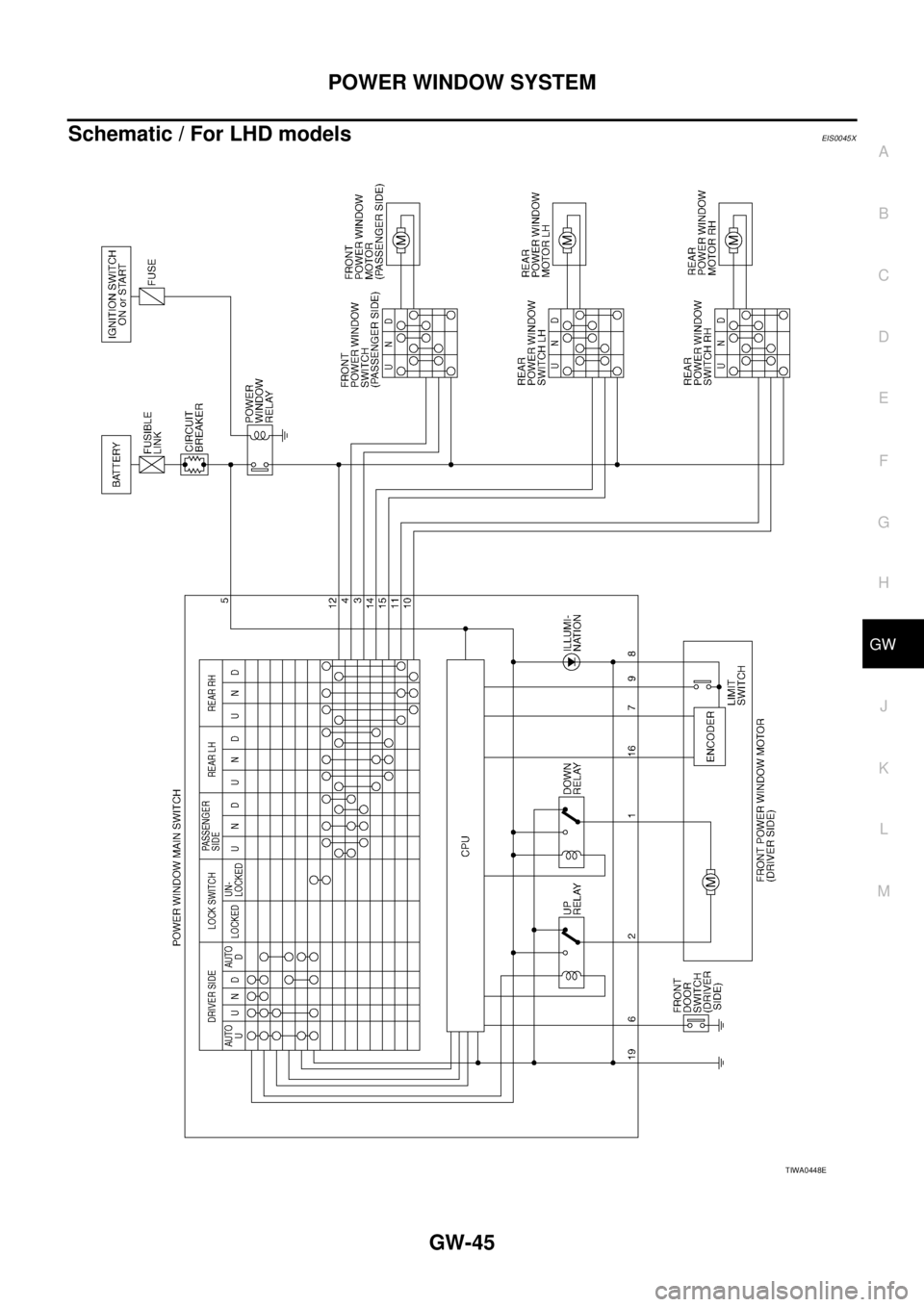

Schematic / For LHD modelsEIS0045X
TIWA0448E
Page 3760 of 4555
GW-46
POWER WINDOW SYSTEM

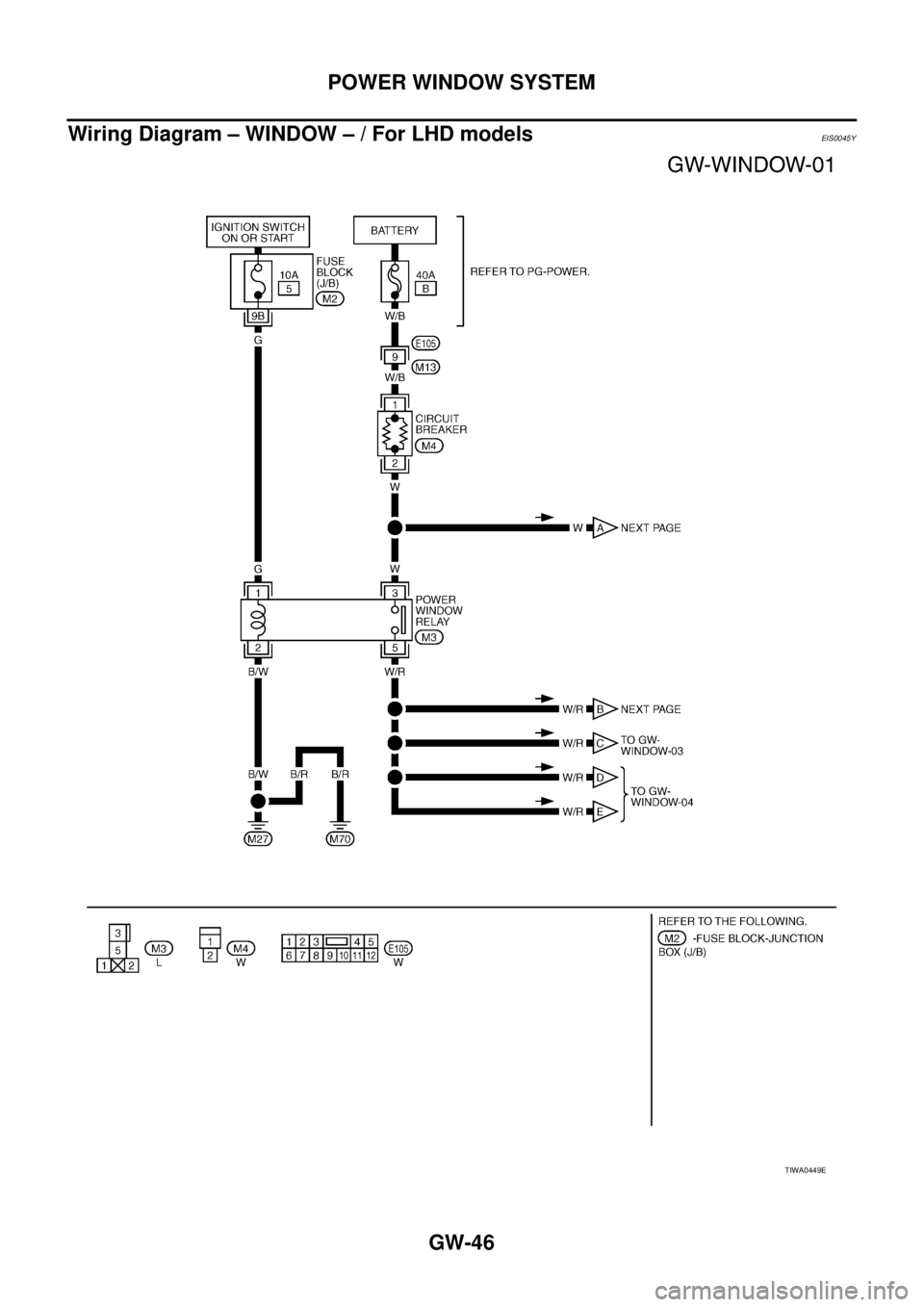

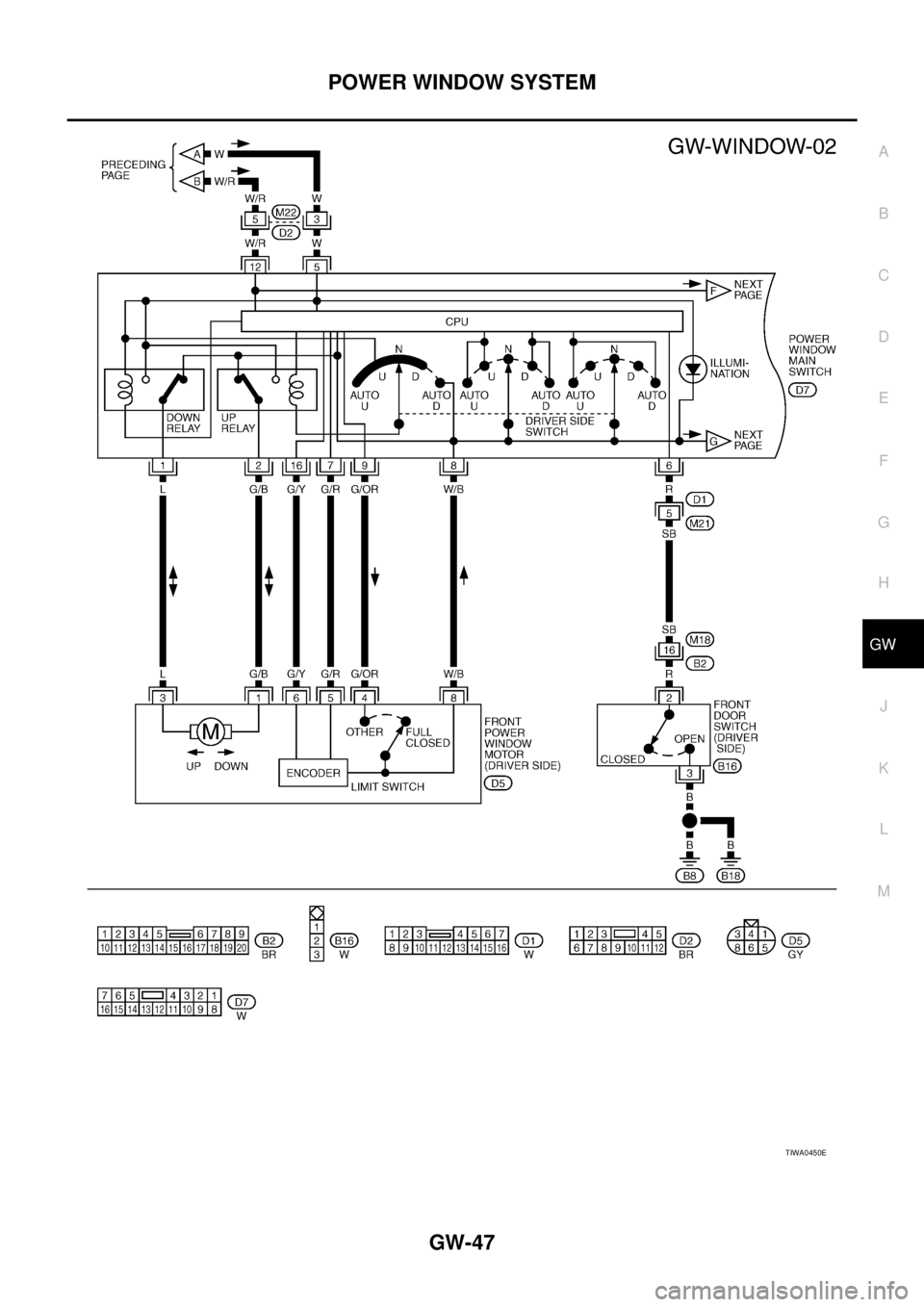

Wiring Diagram – WINDOW – / For LHD modelsEIS0045Y
TIWA0449E
Page 3761 of 4555
POWER WINDOW SYSTEM
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

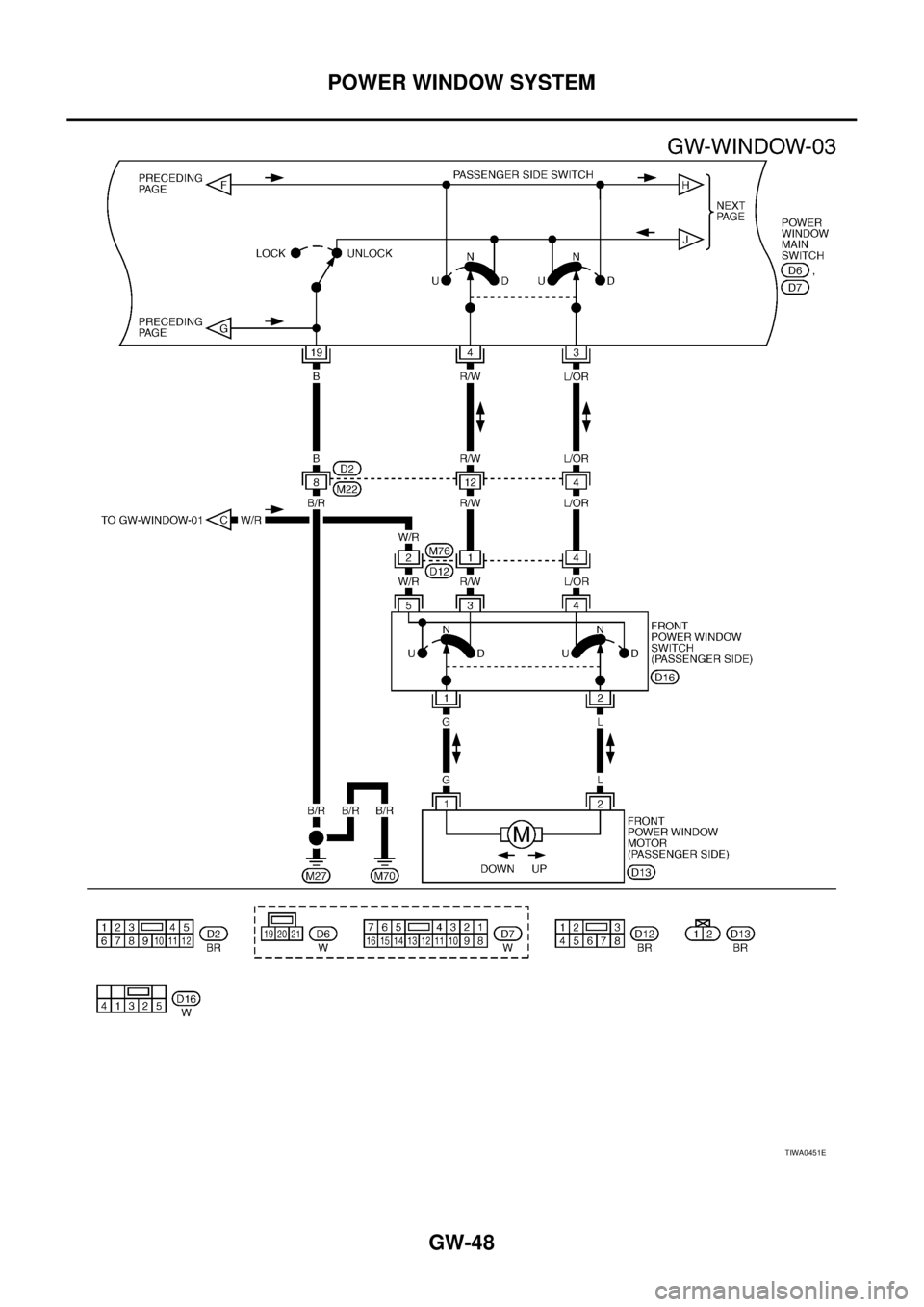

TIWA0450E
Page 3762 of 4555
GW-48
POWER WINDOW SYSTEM

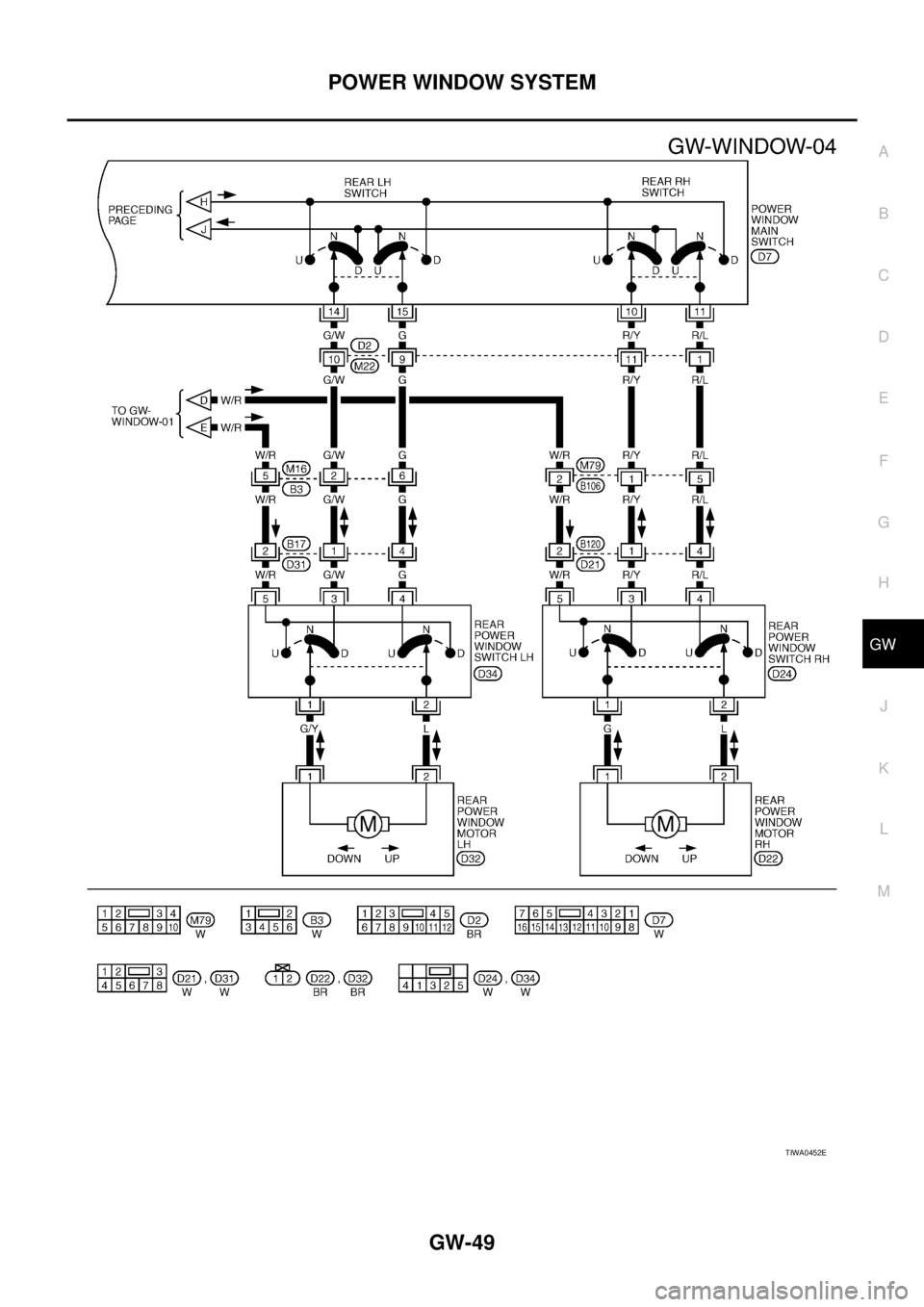

TIWA0451E
Page 3763 of 4555
POWER WINDOW SYSTEM
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0452E
Page 3764 of 4555

GW-50
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch / For LHD modelsEIS0045Z
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1LDriver side power window
motor DOWN signalWhen power window motor is
DOWN at operated.Battery voltage
Other than above. 0
2G/BDriver side power window
motor UP signalWhen power window motor is
UP at operated.Battery voltage
Other than above. 0
3L/ORPassenger side power window
motor DOWN signalWhen passenger switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0
4R/WPassenger side power window
motor UP signalWhen passenger switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
5 W Power sourse (fubible link) — Battery voltage
6 R Driver side door switch signalON (open) 0
OFF (close) Battery voltage
7 G/R Encoder power supplyIgnition switch position ON and
timer operating 10
8 W/B Limit switch and encoder ground — 0
9 G/OR Limit switch signalDriver side door window is
between fully-open and just
before fully-closed position
(ON). 0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF). 5
10 R/YRear RH side power window
motor UP signalWhen rear RH switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
11 R / LRear RH side power window
motor DOWN signalWhen rear RH switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0
12 W/R Power window relayIgnition switch position
(ON or START)Battery voltage
14 G/WRear LH side power window
motor UP signalWhen rear LH switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
15 GRear LH side power window
motor DOWN signalWhen rear LH switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0
Page 3765 of 4555
POWER WINDOW SYSTEM
GW-51
C
D
E
F
G
H
J
K
L
MA
B
GW
16 G/Y Encoder pulse signalWhen power window motor
operates.
19 B Ground — 0 TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
