Power Window (Rear RH) Circuit CheckEIS008BI
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Rear RH switch in power window main switch operated, check voltage between power window main
switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> GO TO 2.
NG >> Replace power window main switch.
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D710 (R/Y)
GroundClosing Battery voltage
Opening 0
11 (R/L)Closing 0
Opening Battery voltage
PIIA9595E
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D79 (R/Y)
GroundClosing Battery voltage
Opening 0
10 (R/L) Closing 0
Opening Battery voltage
PIIA9596E

POWER WINDOW SYSTEM
GW-69
C
D
E
F
G
H
J
K
L
MA
B
GW

2. CHECK POWER WINDOW SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and rear power window switch LH connector.
3.(LHD models)
Check continuity between power window main switch connector
D7 terminal 10, 11 and rear power window switch RH connector
D24 terminal 3, 4.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 9, 10 and rear power window switch LH connector
D34 terminal 3, 4.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between power window main
switch and rear power window switch RH. 10 (R/Y) - 3 (R/Y) : Continuity should exist.
11 (R/L) - 4 (R/L) : Continuity should exist.
PIIA9597E
9 (R/Y) - 3 (R/Y) : Continuity should exist.
10 (R/L) - 4 (R/L) : Continuity should exist.
PIIA9598E

GW-70
POWER WINDOW SYSTEM

Limit Switch Circuit CheckEIS008BJ
1. CHECK LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.

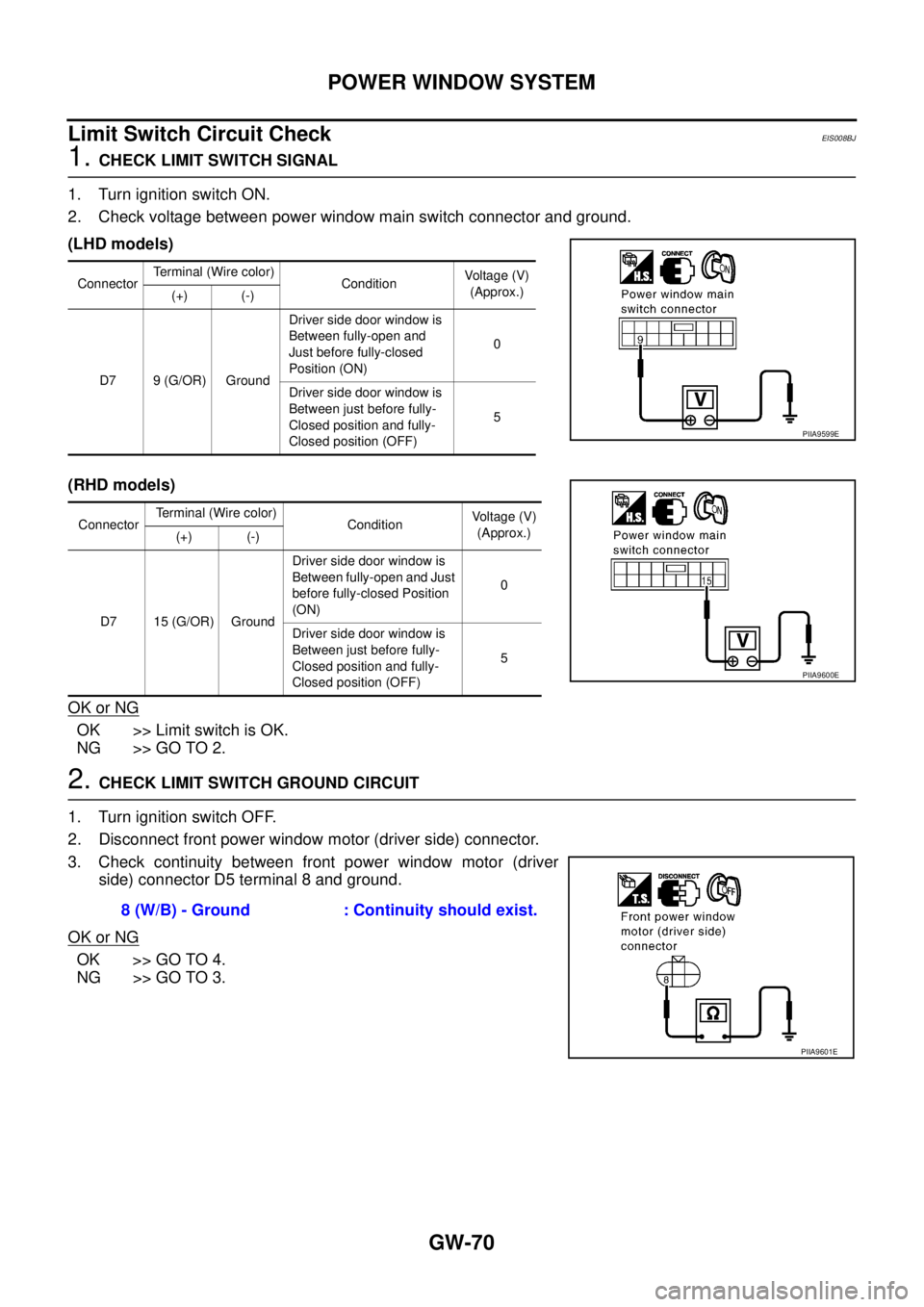

2. Check voltage between power window main switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> Limit switch is OK.
NG >> GO TO 2.
2. CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Check continuity between front power window motor (driver
side) connector D5 terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D7 9 (G/OR) GroundDriver side door window is
Between fully-open and
Just before fully-closed
Position (ON)0
Driver side door window is
Between just before fully-
Closed position and fully-
Closed position (OFF)5
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D7 15 (G/OR) GroundDriver side door window is
Between fully-open and Just
before fully-closed Position
(ON)0
Driver side door window is
Between just before fully-
Closed position and fully-
Closed position (OFF)5
PIIA9599E
PIIA9600E
8 (W/B) - Ground : Continuity should exist.
PIIA9601E

POWER WINDOW SYSTEM
GW-71
C
D
E
F
G
H
J
K
L
MA
B
GW

3. CHECK HARNESS CONTINUITY
1. Disconnect power window main switch connector.
2.(LHD models)

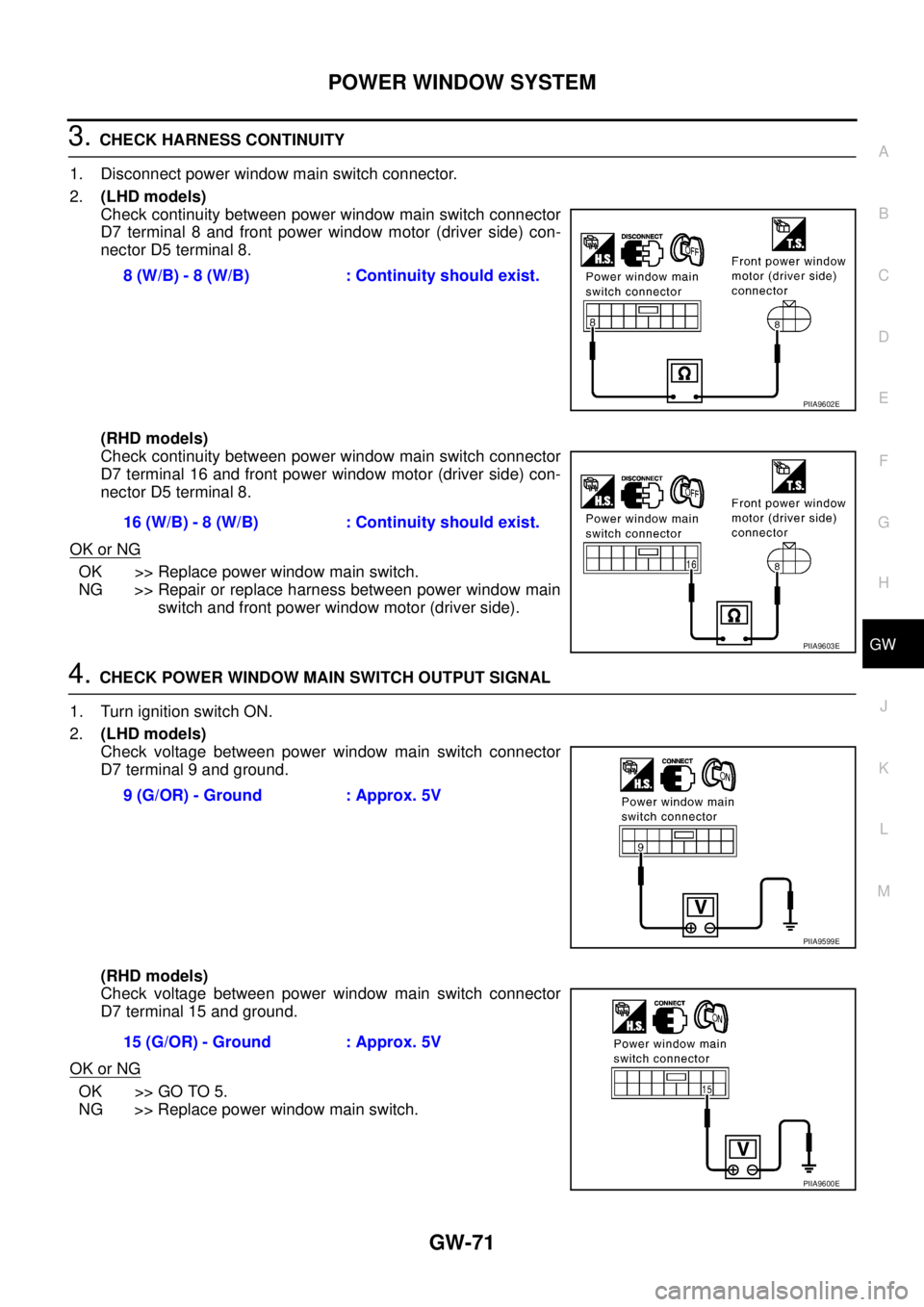

Check continuity between power window main switch connector
D7 terminal 8 and front power window motor (driver side) con-
nector D5 terminal 8.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 16 and front power window motor (driver side) con-
nector D5 terminal 8.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness between power window main
switch and front power window motor (driver side).
4. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2.(LHD models)
Check voltage between power window main switch connector
D7 terminal 9 and ground.
(RHD models)
Check voltage between power window main switch connector
D7 terminal 15 and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace power window main switch.8 (W/B) - 8 (W/B) : Continuity should exist.
PIIA9602E
16 (W/B) - 8 (W/B) : Continuity should exist.
PIIA9603E
9 (G/OR) - Ground : Approx. 5V
PIIA9599E
15 (G/OR) - Ground : Approx. 5V
PIIA9600E

GW-72
POWER WINDOW SYSTEM

5. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3.(LHD models)

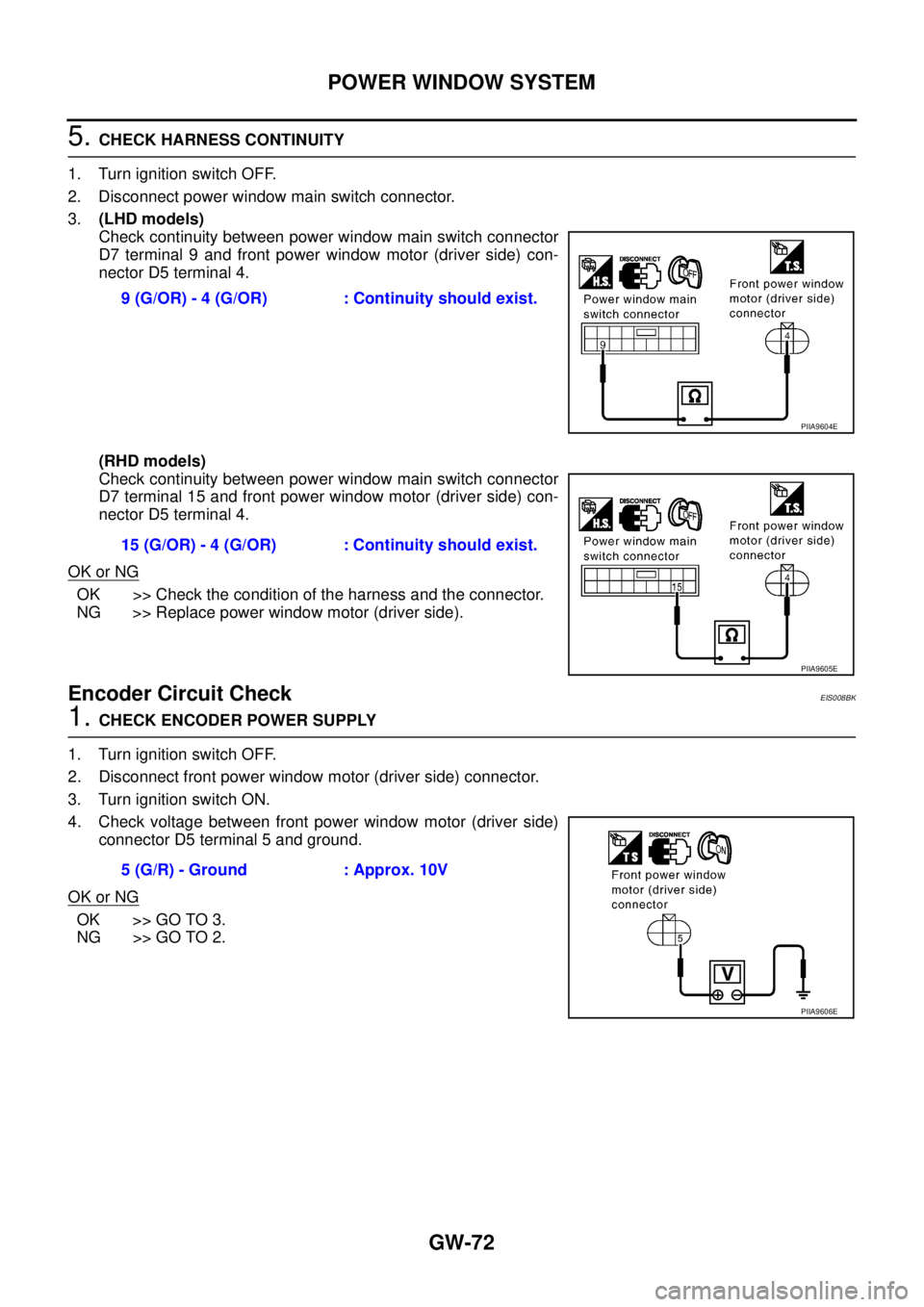

Check continuity between power window main switch connector
D7 terminal 9 and front power window motor (driver side) con-
nector D5 terminal 4.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 15 and front power window motor (driver side) con-
nector D5 terminal 4.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace power window motor (driver side).
Encoder Circuit CheckEIS008BK
1. CHECK ENCODER POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector D5 terminal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.9 (G/OR) - 4 (G/OR) : Continuity should exist.
PIIA9604E
15 (G/OR) - 4 (G/OR) : Continuity should exist.
PIIA9605E
5 (G/R) - Ground : Approx. 10V
PIIA9606E

POWER WINDOW SYSTEM
GW-73
C
D
E
F
G
H
J
K
L
MA
B
GW

2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3.(LHD models)

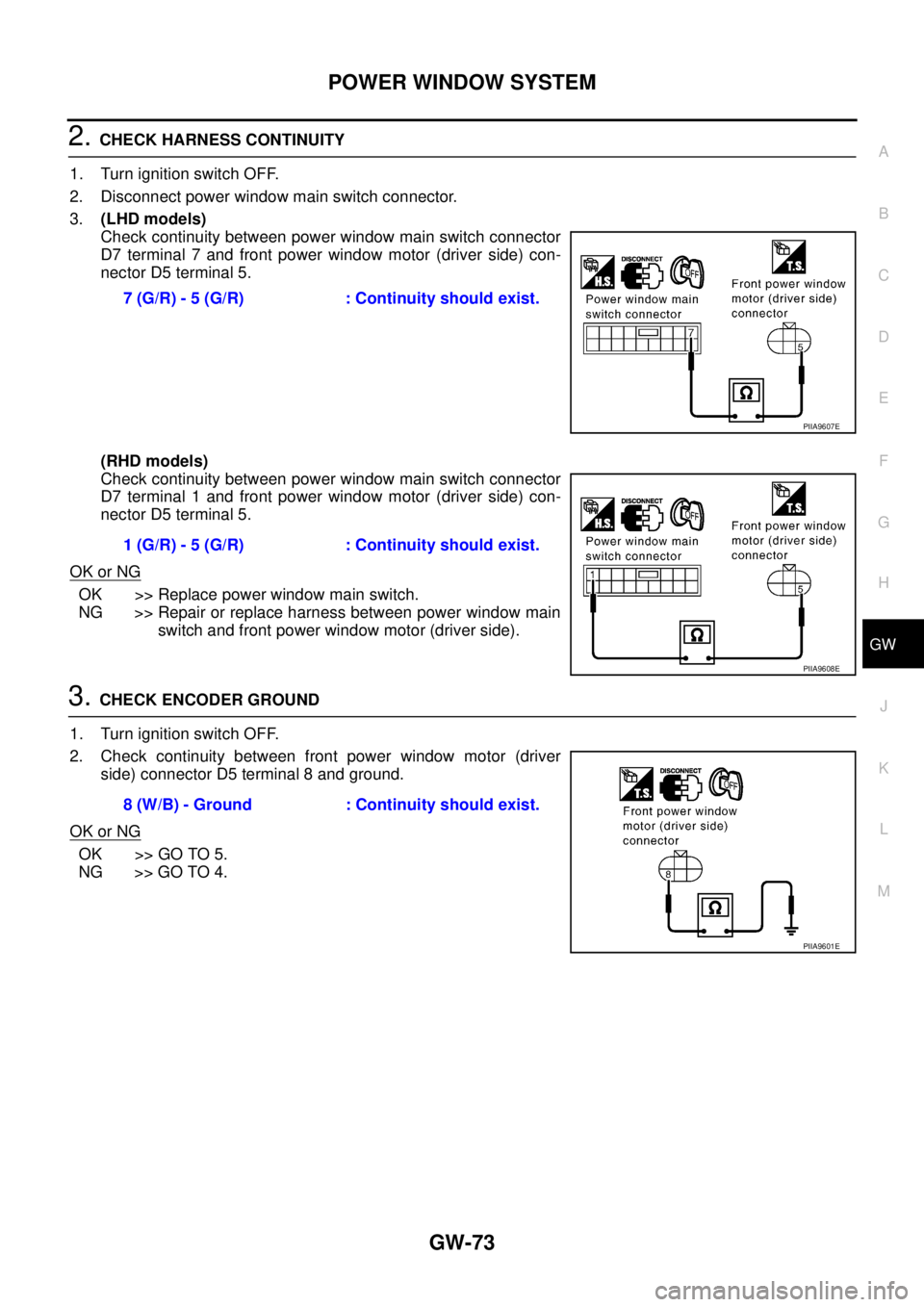

Check continuity between power window main switch connector
D7 terminal 7 and front power window motor (driver side) con-
nector D5 terminal 5.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 1 and front power window motor (driver side) con-
nector D5 terminal 5.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness between power window main
switch and front power window motor (driver side).
3. CHECK ENCODER GROUND
1. Turn ignition switch OFF.
2. Check continuity between front power window motor (driver
side) connector D5 terminal 8 and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.7 (G/R) - 5 (G/R) : Continuity should exist.
PIIA9607E
1 (G/R) - 5 (G/R) : Continuity should exist.
PIIA9608E
8 (W/B) - Ground : Continuity should exist.
PIIA9601E

GW-74
POWER WINDOW SYSTEM

4. CHECK ENCODER GROUND CIRCUIT
1. Disconnect power window main switch connector.
2.(LHD models)
Check continuity between power window main switch connector
D7 terminal 8 and front power window motor (driver side) con-
nector D5 terminal 8.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 16 and front power window motor (driver side) con-
nector D5 terminal 8.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness between power window main
switch and front power window motor (driver side). 8 (W/B) - 8 (W/B) : Continuity should exist.
PIIA9602E
16 (W/B) - 8 (W/B) : Continuity should exist.
PIIA9603E

POWER WINDOW SYSTEM
GW-75
C
D
E
F
G
H
J
K
L
MA
B
GW

5. CHECK ENCODER SIGNAL
1. Connect front power window motor (driver side) connector.
2. Turn ignition switch ON.

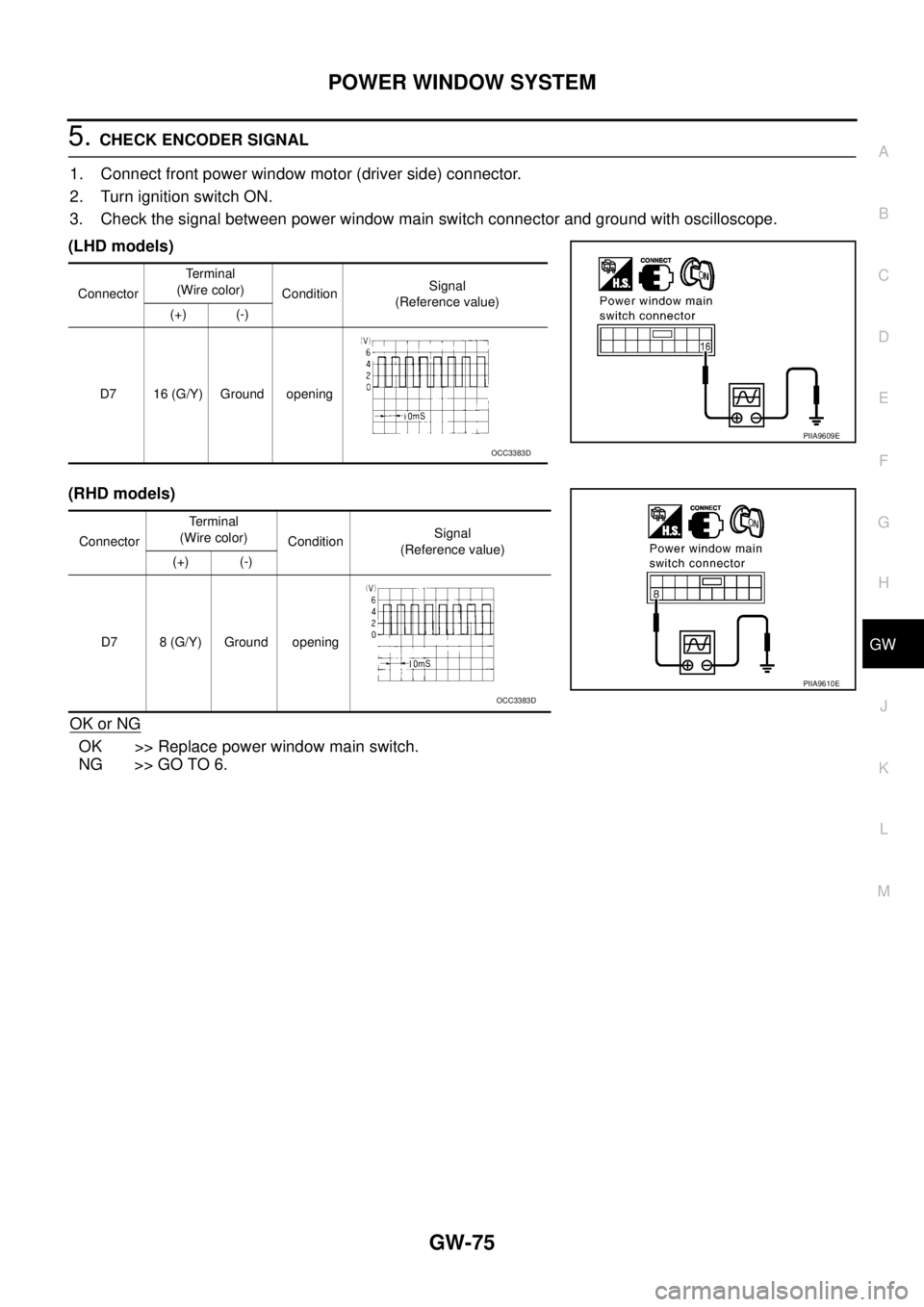

3. Check the signal between power window main switch connector and ground with oscilloscope.
(LHD models)
(RHD models)
OK or NG
OK >> Replace power window main switch.
NG >> GO TO 6.
Connector Terminal
(Wire color)
ConditionSignal
(Reference value)
(+) (-)
D7 16 (G/Y) Ground opening
Connector Terminal
(Wire color)
ConditionSignal
(Reference value)
(+) (-)
D7 8 (G/Y) Ground opening
PIIA9609E
OCC3383D
PIIA9610E
OCC3383D
