2005 NISSAN X-TRAIL window

GW-12

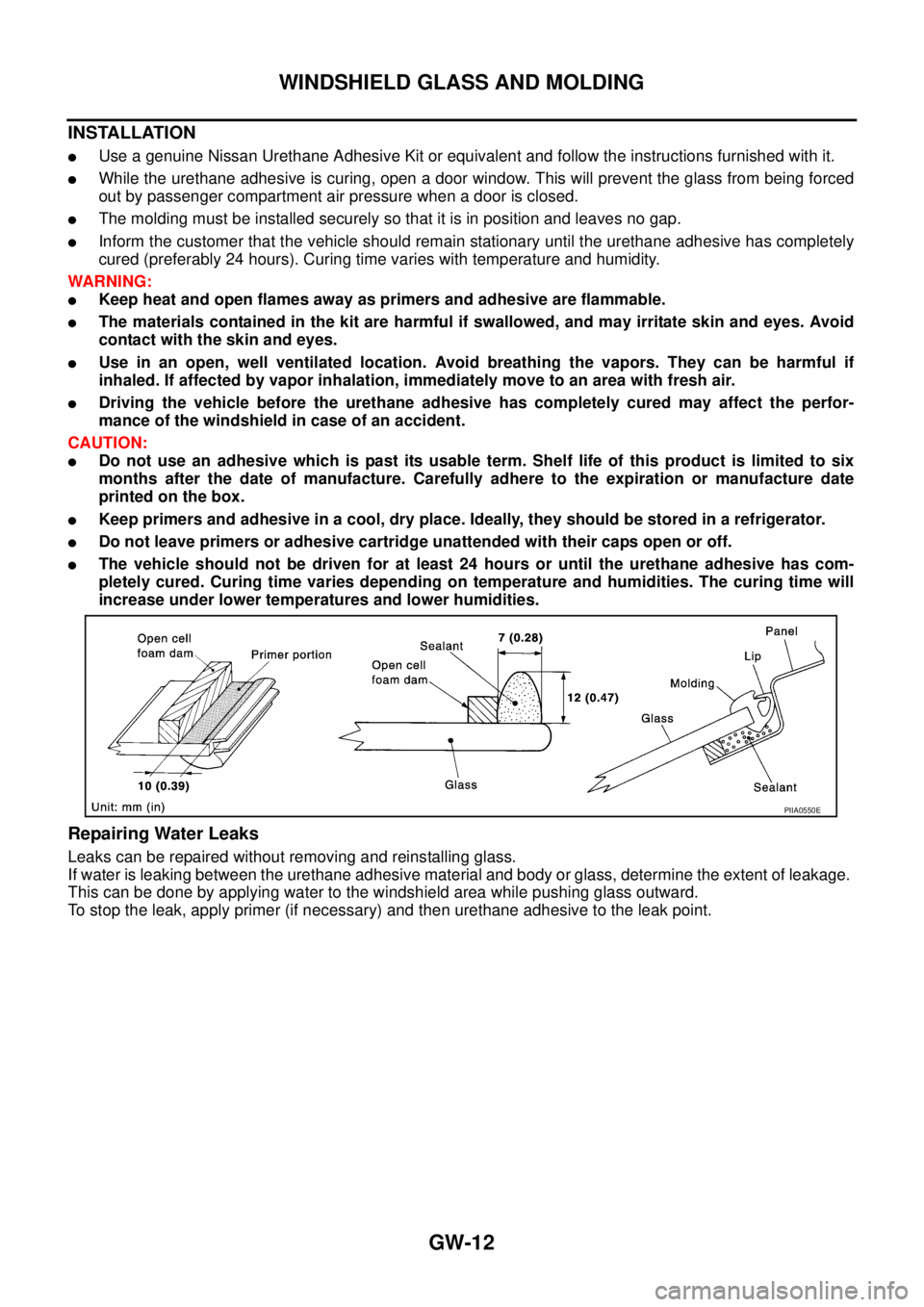

WINDSHIELD GLASS AND MOLDING

INSTALLATION

Use a genuine Nissan Urethane Adhesive Kit or equivalent and follow the instructions furnished with it.

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

The molding must be installed securely so that it is in position and leaves no gap.

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.
CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under lower temperatures and lower humidities.
Repairing Water Leaks
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.
PIIA0550E

SIDE WINDOW GLASS
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW

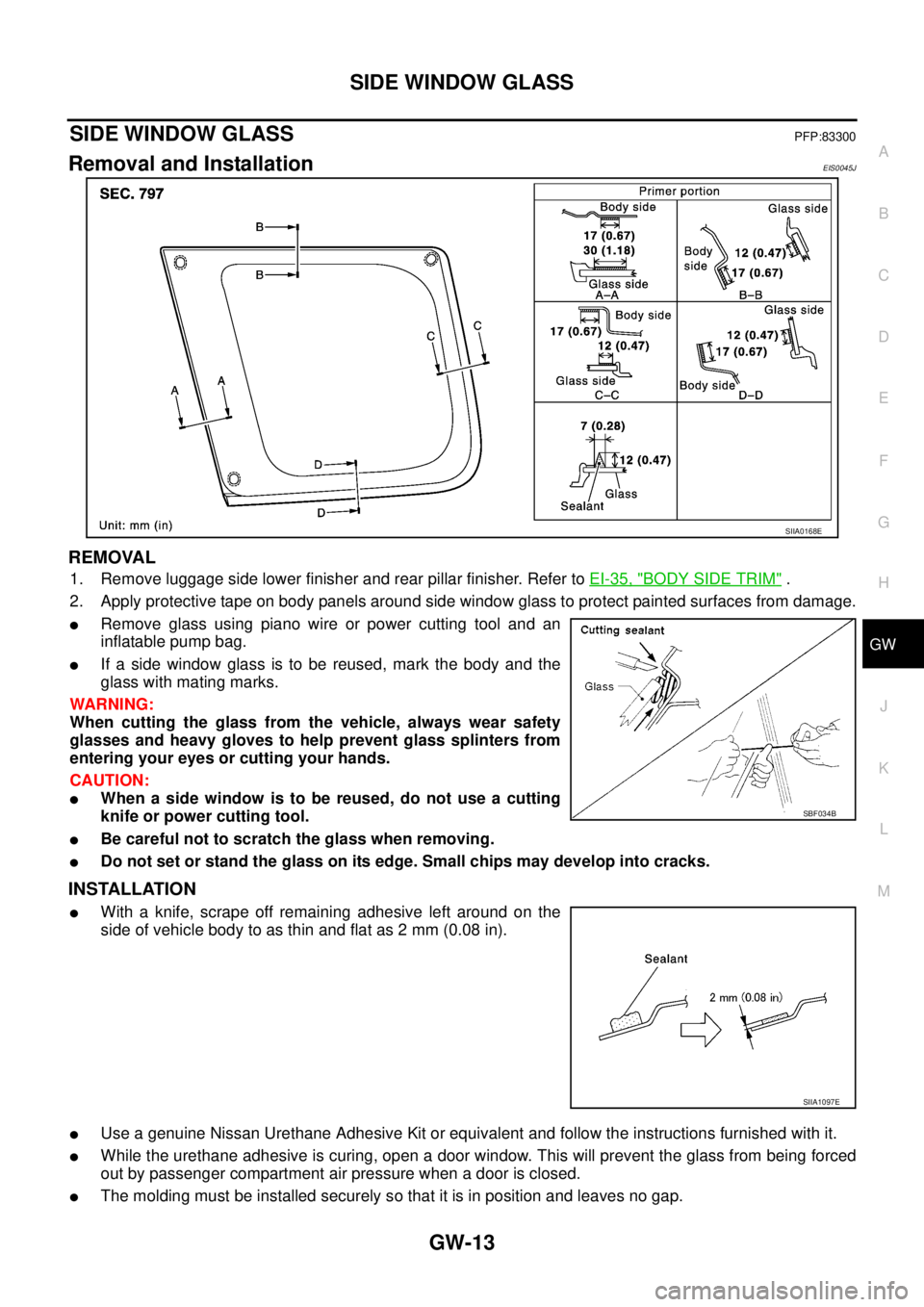

SIDE WINDOW GLASSPFP:83300
Removal and InstallationEIS0045J
REMOVAL
1. Remove luggage side lower finisher and rear pillar finisher. Refer to EI-35, "BODY SIDE TRIM" .
2. Apply protective tape on body panels around side window glass to protect painted surfaces from damage.

Remove glass using piano wire or power cutting tool and an
inflatable pump bag.

If a side window glass is to be reused, mark the body and the
glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety
glasses and heavy gloves to help prevent glass splinters from
entering your eyes or cutting your hands.
CAUTION:

When a side window is to be reused, do not use a cutting
knife or power cutting tool.

Be careful not to scratch the glass when removing.

Do not set or stand the glass on its edge. Small chips may develop into cracks.
INSTALLATION

With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm (0.08 in).

Use a genuine Nissan Urethane Adhesive Kit or equivalent and follow the instructions furnished with it.

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

The molding must be installed securely so that it is in position and leaves no gap.
SIIA0168E
SBF034B
SIIA1097E

GW-14
SIDE WINDOW GLASS


Inform the customer that the vehicle should remain stationary unit the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the Kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. if affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the side window in case of an accident.
CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

They vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under lower temperatures and lower humidities.
REPAIRING WATER LEAKS
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the side window area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

BACK DOOR WINDOW GLASS
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW

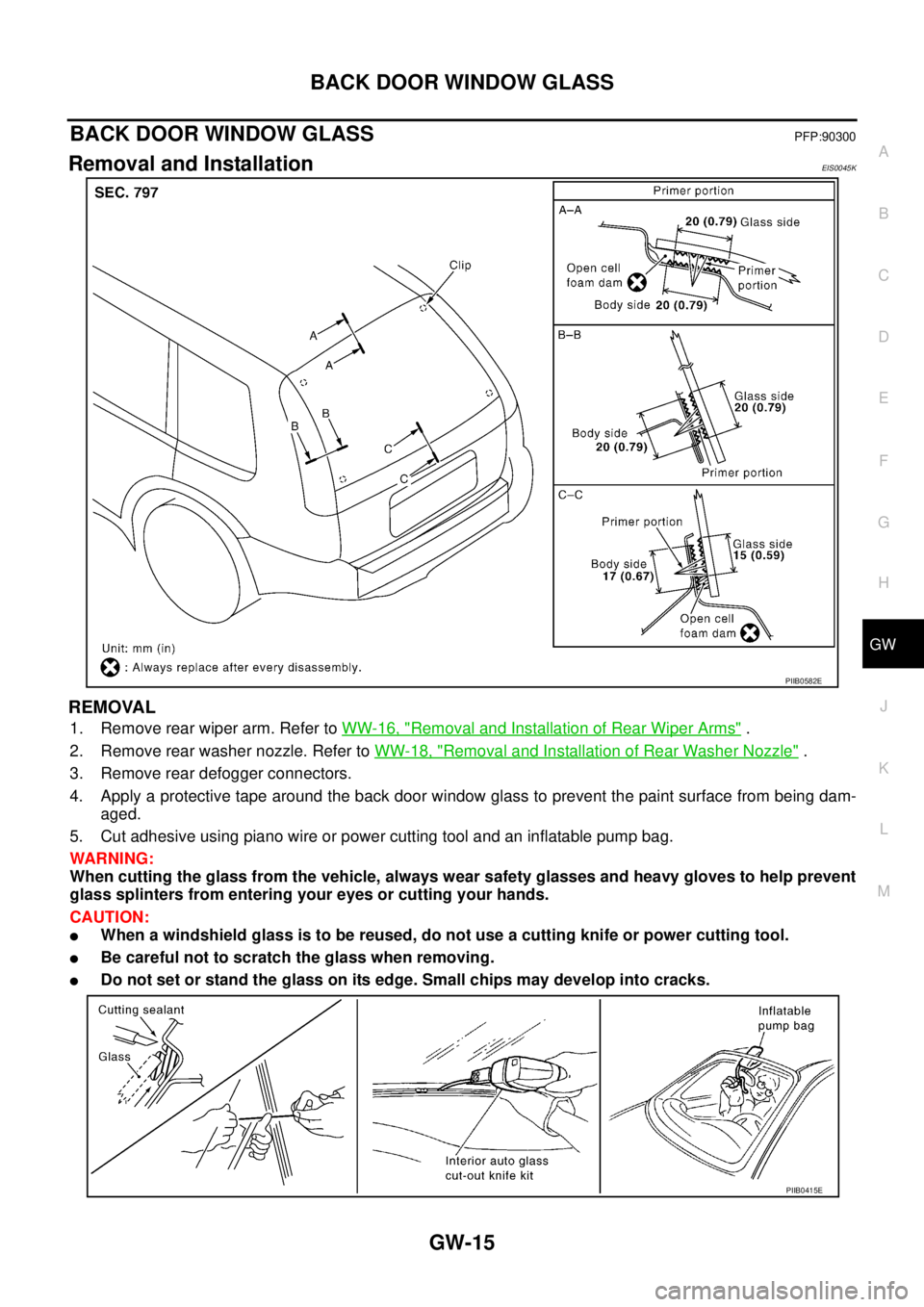

BACK DOOR WINDOW GLASSPFP:90300
Removal and InstallationEIS0045K
REMOVAL
1. Remove rear wiper arm. Refer to WW-16, "Removal and Installation of Rear Wiper Arms" .
2. Remove rear washer nozzle. Refer to WW-18, "
Removal and Installation of Rear Washer Nozzle" .
3. Remove rear defogger connectors.
4. Apply a protective tape around the back door window glass to prevent the paint surface from being dam-
aged.
5. Cut adhesive using piano wire or power cutting tool and an inflatable pump bag.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:

When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.

Do not set or stand the glass on its edge. Small chips may develop into cracks.
PIIB0582E
PIIB0415E

GW-16
BACK DOOR WINDOW GLASS

INSTALLATION

With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm (0.08 in).

Use a genuine Insane Urethane Adhesive Kit or equivalent and
follow the instructions furnished with it.

While the urethane adhesive is curing, open a door window. This
will prevent the glass from being forced out by passenger com-
partment air pressure when a door is closed.

Inform the customer that the vehicle should remain stationary
until the urethane adhesive has completely cured (preferably 24
hours). Curing time varies with temperature and humidity.
WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the back door window in case of an accident.
CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperatures and lower humidities.
SIIA1097E

REAR WINDOW DEFOGGER
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW

REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS0045L
System Description / LHD ModelsEIS0045M
The rear window defogger system is controlled by time control unit. The rear window defogger operates only
for approximately 15 minutes.
Power is supplied at all times

through 20A fuse (No.25, located in the fuse and fusible link box) and

to rear window defogger relay terminal 3 (with door mirror defogger or side air bag) or

to rear window defogger relay terminal 5 (without door mirror defogger or side air bag) .

through 10A fuse [No.27, located in the fuse block (J/B)]

to rear window defogger relay terminal 6 (with door mirror defogger).

through 10A fuse [No.28, located in the fuse block (J/B)]

to time control unit terminal 1.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No.5, located in the fuse block (J/B)]

to rear window defogger relay terminal 1 and

to time control unit terminal 17.
Ground is supplied

to rear window defogger switch terminals 2 and 4 (without auto A/C) or

to A/C auto amp. Terminal 3 (with auto A/C)

through body ground M27 and M70.
When the rear window defogger switch is turned ON, ground is supplied

to time control unit terminal 35

through rear window defogger switch terminal 1 (without auto A/C) or

through A/C auto amp, terminal 22 (with auto A/C).
Terminal 27 of the time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied

through rear window defogger relay terminals 5 and 7 (with door mirror defogger or side air bag)

through rear window defogger relay terminal 3 (without door mirror defogger or side air bag)

to the rear window defogger and door mirror defogger (with door mirror defogger).
The rear window defogger and door mirror defogger has an independent ground.
PIIA9619E

GW-18
REAR WINDOW DEFOGGER

With power and ground supplied, the rear window defogger and door mirror defogger filaments heat and defog
the rear window and door mirror.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
Power is supplied

through rear window defogger relay terminal 3 (without door mirror defogger or side air bag) or

through rear window defogger relay terminal 5 (with door mirror defogger or side air bag)

to rear window defogger switch terminal 3 (without auto A/C) or

to A/C auto amp, terminal 23 (with auto A/C).
System Description / RHD ModelsEIS008O7
The rear window defogger system is controlled by time control unit. The rear window defogger operates only
for approximately 15 minutes.
Power is supplied at all times

through 20A fuse (No.25, located in the fuse and fusible link box) and

to rear window defogger relay terminal 3 (with side air bag) or

to rear window defogger relay terminal 5 (without side air bag).
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No.5, located in the fuse block (J/B)]

to rear window defogger relay terminal 1 and

to time control unit terminal 17.
Ground is supplied

to rear window defogger switch terminals 2 and 4 (without auto A/C) or

to A/C auto amp. Terminal 3 (with auto A/C)

through body ground M27 and M70.
When the rear window defogger switch is turned ON, ground is supplied

to time control unit terminal 35

through rear window defogger switch terminal 1 (without auto A/C) or

through A/C auto amp, terminal 22 (with auto A/C).
Terminal 27 of the time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied

through rear window defogger terminal 3 (without side air bag) or

through rear window defogger terminal 5 (with side air bag)

to the rear window defogger.
The rear window defogger and door mirror defogger has an independent ground.
With power and ground supplied, the rear window defogger and door mirror defogger filaments heat and defog
the rear window and door mirror.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
Power is supplied

through rear window defogger relay terminal 3 (without side air bag) or

through rear window defogger relay terminal 5 (with side air bag)

to rear window defogger switch terminal 3 (without auto A/C) or

to A/C auto amp, terminal 23 (with auto A/C).

REAR WINDOW DEFOGGER
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW

Wiring Diagram — DEF — / For LHD modelsEIS0045N
TIWA0444E
