[YD (WITH EURO-OBD)]INDEX FOR DTCPFP:00024
Alphabetical IndexEBS0116O
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-46, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-1056, "
DTC U1000 CAN COMMUNICATION LINE" .
X: Applicable —: Not applicable
Items
(CONSULT-II screen terms) DTC*
1
TripMI lighting
up Reference page
CONSULT-II
GST*
2ECM*3
APP SEN 1/CIRCUIT P0122 0122 1 —EC-1099
APP SEN 1/CIRCUIT P0123 0123 1 —EC-1099
APP SEN 2/CIRCUIT P0222 0222 1 —EC-1138
APP SEN 2/CIRCUIT P0223 0223 1 —EC-1138
APP SENSOR P2135 2135 1 —EC-1285
BARO SEN/CIRC P2228 2228 3×EC-1303
BARO SEN/CIRC P2229 2229 3×EC-1303
BATTERY VOLTAGE P0563 0563 1 —EC-1215
BRAKE SW/CIRCUIT P0504 0504 1 —EC-1206
CAN COMM CIRCUIT U1000
1000*41—EC-1056
CKP SEN/CIRCUIT P0335 0335 3×EC-1157
CKP SENSOR P0336 0336 3×EC-1163
CMP SEN/CIRCUIT P0340 0340 3×EC-1169
CMP SENSOR P0341 0341 3×EC-1175
CMP/CKP RELATION P0016 0016 3×EC-1059
CYL1 INJECTOR P0201 0201 3×E C - 111 8
CYL2 INJECTOR P0202 0202 3×E C - 111 8
CYL3 INJECTOR P0203 0203 3×E C - 111 8
CYL4 INJECTOR P0204 0204 3×E C - 111 8
ECM P0605 0605 3×EC-1227
ECM P0606 0606 3×EC-1229
ECM RELAY P0686 0686 1 —EC-1245
ECT SEN/CIRC P0117 0117 3×EC-1093
ECT SEN/CIRC P0118 0118 3×EC-1093
EGR SYSTEM P0401 0401 3×EC-1186
EGR VALVE P0404 0404 3×EC-1193
ENG OVER TEMP P0217 0217 1×EC-1124
FRP RELIEF VALVE P1272 1272 3×EC-1263
FRP SEN/CIRC P0192 0192 3×E C - 111 0
FRP SEN/CIRC P0193 0193 3×E C - 111 0
FUEL LEAK P0093 0093 3×EC-1071
FUEL PUMP P0089 0089 3×EC-1068
FUEL PUMP P1273 1273 3×EC-1270
FUEL PUMP P1274 1274 1×EC-1275
FUEL PUMP P1275 1275 1×EC-1280

EC-976
[YD (WITH EURO-OBD)]
INDEX FOR DTC

DTC No. IndexEBS0116P
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-46, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-1056, "
DTC U1000 CAN COMMUNICATION LINE" .
X: Applicable —: Not applicable
DTC*
1
Items
(CONSULT-II screen item) TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
U1000
1000*4CAN COMM CIRCUIT 1 —EC-1056
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—— —
P0016 0016 CMP/CKP RELATION 3×EC-1059
P0045 0045 TC BOOST SOL/CIRC 3×EC-1061
P0088 0088 HIGH FUEL PRESS 3×EC-1066
P0089 0089 FUEL PUMP 3×EC-1068
P0093 0093 FUEL LEAK 3×EC-1071
P0101 0101 MAF SENSOR 3×EC-1075
P0102 0102 MAF SEN/CIRCUIT 3×EC-1083
P0103 0103 MAF SEN/CIRCUIT 3×EC-1083
P0112 0112 IAT SEN/CIRCUIT 3×EC-1088
P0113 0113 IAT SEN/CIRCUIT 3×EC-1088
P0117 0117 ECT SEN/CIRC 3×EC-1093
P0118 0118 ECT SEN/CIRC 3×EC-1093
P0122 0122 APP SEN 1/CIRCUIT 1 —EC-1099
P0123 0123 APP SEN 1/CIRCUIT 1 —EC-1099
P0182 0182 FUEL TEMP SEN/CIRC 3×EC-1106
P0183 0183 FUEL TEMP SEN/CIRC 3×EC-1106
P0192 0192 FRP SEN/CIRC 3×E C - 111 0
P0193 0193 FRP SEN/CIRC 3×E C - 111 0
P0200 0200 INJECTOR 3×E C - 111 6
P0201 0201 CYL1 INJECTOR 3×E C - 111 8
P0202 0202 CYL2 INJECTOR 3×E C - 111 8
P0203 0203 CYL3 INJECTOR 3×E C - 111 8
P0204 0204 CYL4 INJECTOR 3×E C - 111 8
P0217 0217 ENG OVER TEMP 1×EC-1124
P0222 0222 APP SEN 2/CIRCUIT 1 —EC-1138
P0223 0223 APP SEN 2/CIRCUIT 1 —EC-1138
P0234 0234 TC SYSTEM 1 —EC-1145
P0237 0237 TC BOOST SEN/CIRC 3×EC-1151
P0238 0238 TC BOOST SEN/CIRC 3×EC-1151
P0335 0335 CKP SEN/CIRCUIT 3×EC-1157
P0336 0336 CKP SENSOR 3×EC-1163
P0340 0340 CMP SEN/CIRCUIT 3×EC-1169
P0341 0341 CMP SENSOR 3×EC-1175

PRECAUTIONS
EC-981
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC


After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be displayed in the DTC Confirmation
Procedure if the repair is completed. The Overall Function
Check should be a good result if the repair is completed.

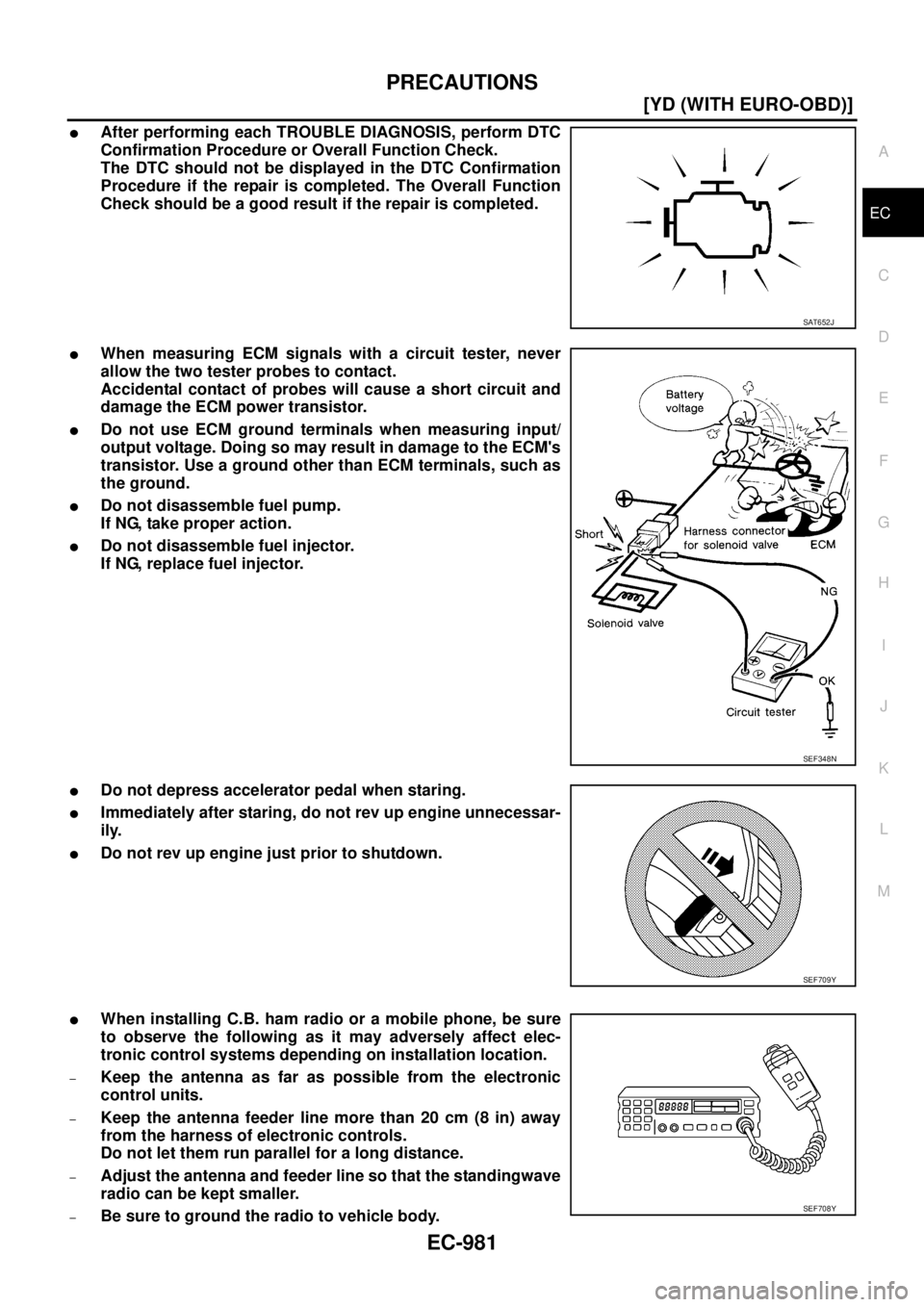

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.

Do not disassemble fuel pump.
If NG, take proper action.

Do not disassemble fuel injector.
If NG, replace fuel injector.

Do not depress accelerator pedal when staring.

Immediately after staring, do not rev up engine unnecessar-
ily.

Do not rev up engine just prior to shutdown.

When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on installation location.
–Keep the antenna as far as possible from the electronic
control units.
–Keep the antenna feeder line more than 20 cm (8 in) away
from the harness of electronic controls.
Do not let them run parallel for a long distance.
–Adjust the antenna and feeder line so that the standingwave
radio can be kept smaller.
–Be sure to ground the radio to vehicle body.
SAT652J
SEF348N
SEF709Y
SEF708Y

BASIC SERVICE PROCEDURE
EC-995
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

1. Turn ignition switch ON.
2. Select “PUMP LEARNT CLEAR” in “ACTIVE TEST” mode with
CONSULT-II.
3. Touch “CLEAR” and wait a few seconds.
4. Make sure that “CMPLT” is displayed on CONSULT-II screen.
MBIB0896E
MBIB0893E
MBIB0894E

EC-996
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionEBS011UJ
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st/2nd trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator (MI) on the instrument panel lights up when the same malfunction is detected in
three consecutive trips (Three trip detection logic).
Three Trip Detection Logic and One Trip Detection LogicEBS011UK
On board diagnosis (OBD) system of this vehicle has “Three Trip Detection Logic” and “One Trip Detection
Logic”. For which logic each self-diagnosis corresponds with, refer to EC-973, "
INDEX FOR DTC" .
“Trip” of “Three Trip Detection Logic” means a driving mode in which the self-diagnosis is performed while
driving.
THREE TRIP DETECTION LOGIC
When a malfunction is detected for the first time, 1st trip DTC is stored in the ECM memory. MI does not illumi-
nate at this stage. <1st trip>
When the same malfunction is detected again during the next driving, 2nd trip DTC is stored in the ECM mem-
ory and 1st trip DTC is cleared from the ECM memory. MI does not illuminate at this stage. <2nd trip>
When the same malfunction is detected again at the third driving, DTC and Freeze Frame Data are stored in
the ECM memory and 2nd trip DTC is cleared from the ECM memory. MI illuminates at the same time when
DTC is stored. <3rd trip>
In other words, DTC and Freeze Frame Data are stored and MI illuminates when the same malfunction occurs
in 3 consecutive trips.
This is called “Three Trip Detection Logic”.
ONE TRIP DETECTION LOGIC
When a malfunction is detected for the first time, DTC and Freeze Frame Data are stored in the ECM memory
and MI lights up. This is called “One Trip Detection Logic”. Some self-diagnoses will not illuminate MI when
DTC is stored. (Refer to EC-996, "
Emission-related Diagnostic Information" .) 1st/2nd trip DTC is not stored for
one trip detection logic.
Emission-related Diagnostic InformationEBS011UL
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
X: Applicable —: Not applicable Emission-related diagnostic information ISO Standard
Diagnostic Trouble Code (DTC) Service $03 of ISO 15031-5
Freeze Frame data Service $02 of ISO 15031-5
1st/2nd Trip Diagnostic Trouble Code (1st/2nd Trip DTC) Service $07 of ISO 15031-5
Calibration ID Service $09 of ISO 15031-5
DTC 1st trip DTC 2nd trip DTC Freeze Frame data
CONSULT-II××××
GST××××
ECM××*×*—
Items
(CONSULT-II screen item) DTC*
11st/2nd trip
DTCMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
CAN COMM CIRCUIT U1000 1000 — —EC-1056
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000—— —
CMP/CKP RELATION P0016 0016××EC-1059

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-999
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

tion, DTC is stored in the ECM memory and MI lights up when the same malfunction is detected during the fol-
lowing consecutive trip (3rd trip).
The procedure for erasing DTC, 1st trip DTC, and 2nd trip DTC from the ECM memory is described in EC-999,
"HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .
For malfunctions in which 1st/2nd trip DTC are displayed, Refer to EC-996, "
Emission-related Diagnostic Infor-
mation" .
1st/2nd trip DTC is specified in Service $07 of ISO15031-5. 1st/2nd trip DTC detection occurs without lighting
up MI and therefore does not warn the driver of a malfunction.
When 1st/2nd trip DTC is detected, check, print out or write down, and erase 1st/2nd trip DTC as specified
with step II of Work Flow, refer to EC-1008, "
WORK FLOW" . Then perform DTC Confirmation Procedure or
Overall Function Check to try to duplicate the malfunction. If the malfunction is duplicated, it is necessary to
investigate the cause again.
How to Read DTC and 1st/2nd Trip DTC
DTC and 1st/2nd trip DTC can be read by the following procedures.
With CONSULT-II
With GST
CONSULT-II or GST (Generic Scan Tool): Examples: P0117, P0335, P1260, etc.
These numbers are prescribed by ISO 15031-6.
(CONSULT-II also displays the malfunctioning parts and systems.)
A sample of CONSULT-II display for DTC and 1st/2nd trip DTC is
shown in the figure. DTC and 1st/2nd trip DTC are displayed in the
“SELF-DIAG RESULTS” mode of CONSULT-II.
“TIME” data shows how many times the vehicle was driven after the
last detection of DTC or 1st/2nd trip DTC. When DTC or 1st/2nd trip
DTC has been detected currently, “TIME” becomes “0”.

CONSULT-II displays for DTC and 1st/2nd trip DTC become the
same.

The output of a DTC indicates a malfunction. However, GST
does not indicate whether the malfunction is still occurring or
has occurred in the past and has returned to normal. CONSULT-
II can identify the malfunction status. Therefore the use of CON-
SULT-II (If available) is recommended.
FREEZE FRAME DATA
ECM records driving conditions such as calculated load value, engine coolant temperature, engine speed,
vehicle speed, and intake manifold pressure at the moment a malfunction is detected.
The data stored together with DTC is called Freeze Frame Data, and is displayed on CONSULT-II or GST.
When 1st/2nd trip DTC is detected, Freeze Frame Data is not recorded.
Only a set of Freeze Frame Data can be stored in the ECM memory. When ECM records Freeze Frame Data,
and another Freeze Frame Data is generated after that, the first (original) Freeze Frame Data is not updated in
ECM and it remains.
When the DTC is erased from ECM memory, Freeze Frame Data is erased with DTC. The procedure for eras-
ing DTC is described in EC-999, "
How to Erase DTC" .
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC
With CONSULT-II
The emission related diagnostic information in the ECM can be erased by selecting “ERASE” in the “SELF-
DIAG RESULTS” mode with CONSULT-II.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 5
seconds and then turn it ON (engine stopped) again.
2. Touch “ENGINE”.
3. Touch “SELF-DIAG RESULTS”.
PBIB2022E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1001
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NATS (Nissan Anti-theft System)EBS01177

If the security indicator lights up with the ignition switch in
the ON position or "NATS MALFUNCTION" is displayed on
"SELF-DIAG RESULTS" screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to NATS (Nissan Anti-Theft System) in BL section.

Confirm no self-diagnostic results of NATS is displayed
before touching "ERASE" in "SELF-DAIG RESULTS" mode
with CONSULT-II.

When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedure of NATS initialization and NATS ignition key ID registration, refer to CON-
SULT-II operation manual, NATS.
Malfunction Indicator (MI)EBS01F87
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.

If the MI does not light up, refer to EC-1699, "MI & DATA LINK
CONNECTORS" .
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following three functions.
SEF543X
SAT652J
Diagnostic Test
ModeKEY and ENG.
Statu sFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit. (See EC-
1699, "MI & DATA LINK CONNECTORS" .)
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When ECM detects a mal-
function, the MI will light up to inform the driver that a mal-
function has been detected.
Mode II Ignition switch in
ON position
Engine stoppedSELF-DIAGNOSTIC
RESULTSThis function allows DTCs to be read.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1003
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-1002, "How to Set Diagnostic
Test Mode II (Self-diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to EC-
1348, "MI & DATA LINK CONNECTORS" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
These DTC numbers are clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC is indicated by the number of blinks of the MI as shown below. A DTC will be used as an
example for how to read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-973, "
INDEX FOR DTC" )
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to EC-
1003, "How to Erase Diagnostic Test Mode II (Self-diagnostic Results)" .

If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.

Be careful not to erase the stored memory before starting trouble diagnoses.
MI Condition
ON When the malfunction is detected.
OFF No malfunction.
PBIA3905E
