2005 NISSAN X-TRAIL display

EC-1004
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

OBD System Operation ChartEBS011UM
RELATIONSHIP BETWEEN MI, 1ST/2ND TRIP DTC, DTC, AND DETECTABLE ITEMS

When the malfunction is detected for the first time, 1st trip DTC is stored in the ECM memory.

When the same malfunction is detected during 2nd consecutive trip, 2nd trip DTC is stored and 1st trip
DTC is cleared.

When the same malfunction is detected during 3rd consecutive trip, DTC and Freeze Frame Data are
stored and MI illuminates. Refer to EC-996, "
Three Trip Detection Logic and One Trip Detection Logic" for
details.1st/2nd trip DTC are cleared from the ECM memory.

MI will go off after the vehicle is driven 3 consecutive times with no malfunction (driving pattern A).

1st/2nd trip DTC, DTC, and Freeze Frame Data will be stored until the vehicle is driven 41 times (driving
pattern B) without the same malfunction recurring. “TIME” data displayed in the “SELF-DIAG RESULTS”
mode of CONSULT-II shows the number of times the vehicle is driven without the same malfunction recur-
ring.
SUMMARY CHART
Refer to EC-1006 for details of pattern A and B.Items Trip Counter Driving Pattern
MI (goes off) 3 2 A
DTC, Freeze Frame Data (clear) 41 40 B
1st/2nd Trip DTC (clear) 41 40 B

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1005
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

RELATIONSHIP BETWEEN MI, DTC, 1ST/ 2NDTRIP DTC AND DRIVING PATTERNS
*1: CONSULT-II displays for DTC and
1st/2nd trip DTC become the same.*2: 1st/2nd trip DTC becomes the same
display in mode7 of GST.*3: When the same malfunction is
detected in three consecutive trips,
MI will light up.
*4: MI will go off after vehicle is driven 3
times (pattern A) without any mal-
functions.*5: When the malfunction is detected for
the first time, 1st trip DTC is stored in
the ECM memory.*6: When the same malfunction is
detected during 2nd consecutive trip,
2nd trip DTC is stored and 1st trip
DTC is cleared.
*7: When the same malfunction is
detected during 3rd consecutive trip,
DTC and Freeze Frame Data are
stored.*8: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 41 times (pattern B)
without the same malfunction.
PBIB2048E

EC-1006
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM


Driving pattern A means the vehicle operation as follows:
Engine speed should go over 500 rpm at least 5 seconds and the DTC Confirmation Procedure is performed.

The A counter will be cleared when the same malfunction is detected.

The A counter will be counted up when the same malfunction is not detected.

The MI will go off when the A counter reaches 3.

Driving pattern B means the vehicle operation as follows:
Driving pattern A and (1)-(3) are satisfied.

The B counter will be cleared when the same malfunction is detected.

The B counter will be counted up when the same malfunction is not detected.

The DTC will not be displayed after the B counter reaches 40.
PBIB2049E

TROUBLE DIAGNOSIS
EC-1009
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Description for Work Flow
DIAGNOSTIC WORK SHEET
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about an incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one shown below in order to
organize all the information for troubleshooting.
STEP DESCRIPTION
STEP IGet detailed information about the conditions and the environment when the incident/symptom occurred using the
EC-1009, "
DIAGNOSTIC WORK SHEET" .
STEP IIBefore confirming the concern, check and write down (print out using CONSULT-II or GST) the (1st/2nd trip) DTC and
the freeze frame data (When 1st/2nd trip DTC is detected, Freeze Frame Data is not recorded.), then erase the DTC
and the data. (Refer to EC-999
.) The (1st/2nd trip) DTC and the freeze frame data can be used when duplicating the
incident at STEP III & IV.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Study the relationship between the cause, specified by (1st/2nd trip) DTC, and the symptom described by the cus-
tomer. (The Symptom Matrix Chart will be useful. See EC-1016
.)
Also check related service bulletins for information.
STEP IIITry to confirm the symptom and under what conditions the incident occurs.
The DIAGNOSTIC WORK SHEET and the freeze frame data are useful to verify the incident. Connect CONSULT-II
to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
If the malfunction code is detected, skip STEP IV and perform STEP V.
STEP IVTry to detect the (1st/2nd trip) DTC by driving in (or performing) the DTC Confirmation Procedure. Check and read
the (1st/2nd trip) DTC and freeze frame data by using CONSULT-II or GST.
During the (1st/2nd trip) DTC verification, be sure to connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO
TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
In case the DTC Confirmation Procedure is not available, perform the Overall Function Check instead. The (1st/2nd
trip) DTC cannot be displayed by this check, however, this simplified check is an effective alternative.
The NG result of the Overall Function Check is the same as the (1st/2nd trip) DTC detection.
STEP VTake the appropriate action based on the results of STEP I through IV.
If the malfunction code is indicated, proceed to TROUBLE DIAGNOSIS FOR DTC PXXXX.
If the normal code is indicated, proceed to the BASIC INSPECTION. (Refer to EC-1012
.)Then perform inspections
according to the Symptom Matrix Chart. (Refer to EC-1016
.)
STEP VIIdentify where to begin diagnosis based on the relationship study between symptom and possible causes. Inspect the
system for mechanical binding, loose connectors or wiring damage using (tracing) Harness Layouts.
Gently shake the related connectors, components or wiring harness with CONSULT-II set in “DATA MONITOR
(AUTO TRIG)” mode.
Check the voltage of the related ECM terminals or monitor the output data from the related sensors with CONSULT-II.
Refer to EC-1027
, EC-1042 .
The Diagnostic Procedure in EC section contains a description based on open circuit inspection. A short circuit
inspection is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in
GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" .
Repair or replace the malfunction parts.
If malfunctioning part cannot be detected, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT" .
STEP VIIOnce you have repaired the circuit or replaced a component, you need to run the engine in the same conditions and
circumstances which resulted in the customer's initial complaint.
Perform the DTC Confirmation Procedure and confirm the normal code [DTC No. P0000] is detected. If the incident is
still detected in the final check, perform STEP VI by using a method different from the previous one.
Before returning the vehicle to the customer, be sure to erase the unnecessary (already fixed) (1st/2nd trip) DTC in
ECM. (Refer to EC-999, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .)
SEF907L

EC-1010
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

Worksheet Sample
DTC Inspection Priority ChartEBS012AS
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-1056, "
DTC U1000 CAN COMMUNICATION LINE" .
MTBL0533

EC-1036
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

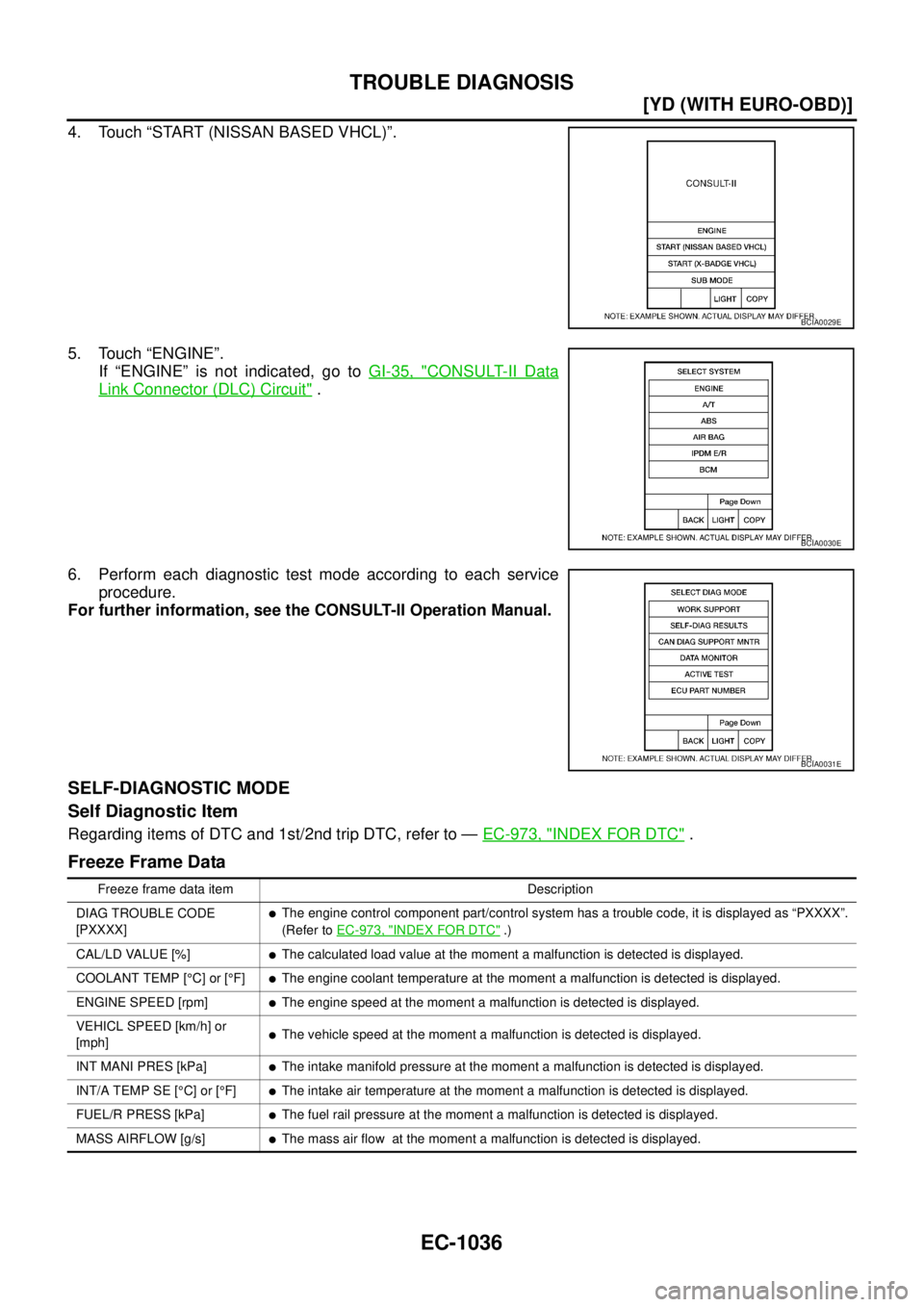

4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-35, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
SELF-DIAGNOSTIC MODE
Self Diagnostic Item
Regarding items of DTC and 1st/2nd trip DTC, refer to — EC-973, "INDEX FOR DTC" .
Freeze Frame Data
BCIA0029E
BCIA0030E
BCIA0031E
Freeze frame data item Description
DIAG TROUBLE CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”.
(Refer to EC-973, "
INDEX FOR DTC" .)
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/h] or
[mph]

The vehicle speed at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]

The intake manifold pressure at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C] or [°F]

The intake air temperature at the moment a malfunction is detected is displayed.
FUEL/R PRESS [kPa]

The fuel rail pressure at the moment a malfunction is detected is displayed.
MASS AIRFLOW [g/s]

The mass air flow at the moment a malfunction is detected is displayed.

TROUBLE DIAGNOSIS
EC-1037
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DATA MONITOR MODE
MONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
CKPS·RPM (TDC) [rpm]××

The engine speed computed from the
crankshaft position sensor signal is dis-
played.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is dis-
played.When the engine coolant temper-
ature circuit is open or short, ECM
enters fail-safe mode. The engine
coolant temperature determined
by the ECM is displayed.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed form the
vehicle speed sensor signal is displayed.
FUEL TEMP SEN
[°C] or [°F]××

The fuel temperature (determined by the
signal voltage of the fuel pump tempera-
ture sensor) is displayed.
ACCEL POS SEN [V]××

The accelerator pedal position sensor 1
signal voltage is displayed.
ACCEL SEN 2 [V]××

The accelerator pedal position sensor 2
signal voltage is displayed.
ACT CR PRESS [MPa]××

The Fuel rail pressure (determined by
the signal voltage of the fuel rail pressure
sensor) is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is dis-
played.
P/N POSI SW [ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position switch signal.
START SIGNAL [ON/OFF]××

indicates [ON/OFF] condition from the
starter signal.
PW/ST SIGNAL [ON/OFF]×

indicates [ON/OFF] condition from the
power steering pressure switch signal.
BRAKE SW [ON/OFF]××

indicates [ON/OFF] condition from the
stop lamp switch signal.
BRAKE SW2 [ON/OFF]××

indicates [ON/OFF] condition from the
ASCD brake switch and ASCD clutch
switch signal.
IGN SW [ON/OFF]××

Indicates [ON/OFF] condition from igni-
tion switch signal.
MAS AIR/FL SE [V]××

The signal voltage of the mass air flow
sensor is displayed.
MAIN INJ WID [msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
PUMP CURRENT [mA]×

Indicates the fuel pump power supply
current from the ECM.
GLOW RLY [ON/OFF]×

The glow relay control condition (deter-
mined by ECM according to the input sig-
nal) is displayed.
COOLING FAN
[LOW/HI/OFF]×

Indicates the control condition of the
cooling fans (determined by ECM
according to the input signal).
LOW ... Operates at low speed.
HI ... Operates at high speed.
OFF ... Stopped

EC-1038
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
EGR VOL CON/V [step]×

Indicates the EGR volume control value
computed by the ECM according to the
input signals.

The opening becomes larger as the
value increases.
INT/A VOLUME [mg/]

The intake air volume computed from the
mass air flow sensor signal is displayed.
BARO SEN [kPa]××

The barometric pressure (determined by
the signal voltage from the absolute
pressure sensor built into the ECM) is
displayed.
INT/M PRES SE [kPa]

Turbocharger boost (determined by the
signal voltage from the turbocharger
boost sensor) is displayed.
CYL COUNT [1/2/3/4]

The cylinder being injected is displayed.
1 ... Cylinder No.1 is injected.
2 ... Cylinder No.2 is injected.
3 ... Cylinder No.3 is injected.
4 ... Cylinder No.4 is injected.
SET SW
[ON/OFF]×

Indicates [ON/OFF] condition from SET/
COAST switch signal.
RESUME/ACC SW
[ON/OFF]×

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
CANCEL SW
[ON/OFF]×

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
MAIN SW
[ON/OFF]×

Indicates [ON/OFF] condition from MAIN
switch signal.
Voltage [V]
Voltage, frequency, duty cycle or pulse
width measured by the probe.Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones.
They are the same figures as an
actual piece of data which was
just previously measured. [Hz] or
[%] Frequency [msec], [Hz] or
[%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
POWER BAL-
ANCE

Engine: After warming up, idle the
engine.

A/C switch: OFF

Shift lever: Neutral position

Cut off each injector signal one at
a time using CONSULT-IIEngine runs rough or dies.

Harness and connectors

Compression

Fuel injector
COOLING FAN *

Ignition switch: ON

Operate the cooling fan at LOW,
HI speed and turn OFF using
CONSULT-II.Cooling fan moves at LOW, HI
speed and stops.
Harness and connector

Cooling fan motor

Cooling fan relay
