2005 NISSAN X-TRAIL display

EC-1230
[YD (WITH EURO-OBD)]
DTC P0606 ECM

Diagnostic ProcedureEBS011C2
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform EC-1229, "
DTC Confirmation Procedure" , again.
5. Is 1st trip DTC P0606 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Touch “ERASE”.
4. Perform EC-1229, "
DTC Confirmation Procedure" , again.
5. Is DTC P0606 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >>INSPECTION END
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1001,
"NATS (Nissan Anti-theft System)" .
3. Perform “Fuel Pump Learning Value Clearing”. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END

EC-1250
[YD (WITH EURO-OBD)]
DTC P1212 TCS COMMUNICATION LINE

DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS011D4
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and ESP/TCS/ABS control unit.
NOTE:

If DTC P1212 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000.
Refer to EC-1056, "
DTC U1000 CAN COMMUNICATION LINE" .

Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit
but also for ECM after TCS related repair.
On Board Diagnosis LogicEBS011D5
This self-diagnosis has the one trip detection logic.
MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011D6
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1250, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureEBS011D7
Go to BRC-60, "TROUBLE DIAGNOSIS" (models with ESP system) or BRC-12, "TROUBLE DIAGNOSIS"
(model without ESP system).
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212TCS communication lineECM can not receive the information from ESP/
TCS/ABS control unit continuously.

Harness or connectors
(The CAN communication line is
open or shorted.)

ESP/TCS/ABS control unit

Dead (Weak) battery
SEF817Y

EC-1262
[YD (WITH EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

4. CHECK FUEL INJECTOR-II
With CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform EC-1258, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
With GST
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select Service $04 with GST.
6. Touch “ERASE”.
7. Perform EC-1258, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Ye s o r N o
Yes >> Replace fuel injector of malfunctioning cylinder.
No >> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

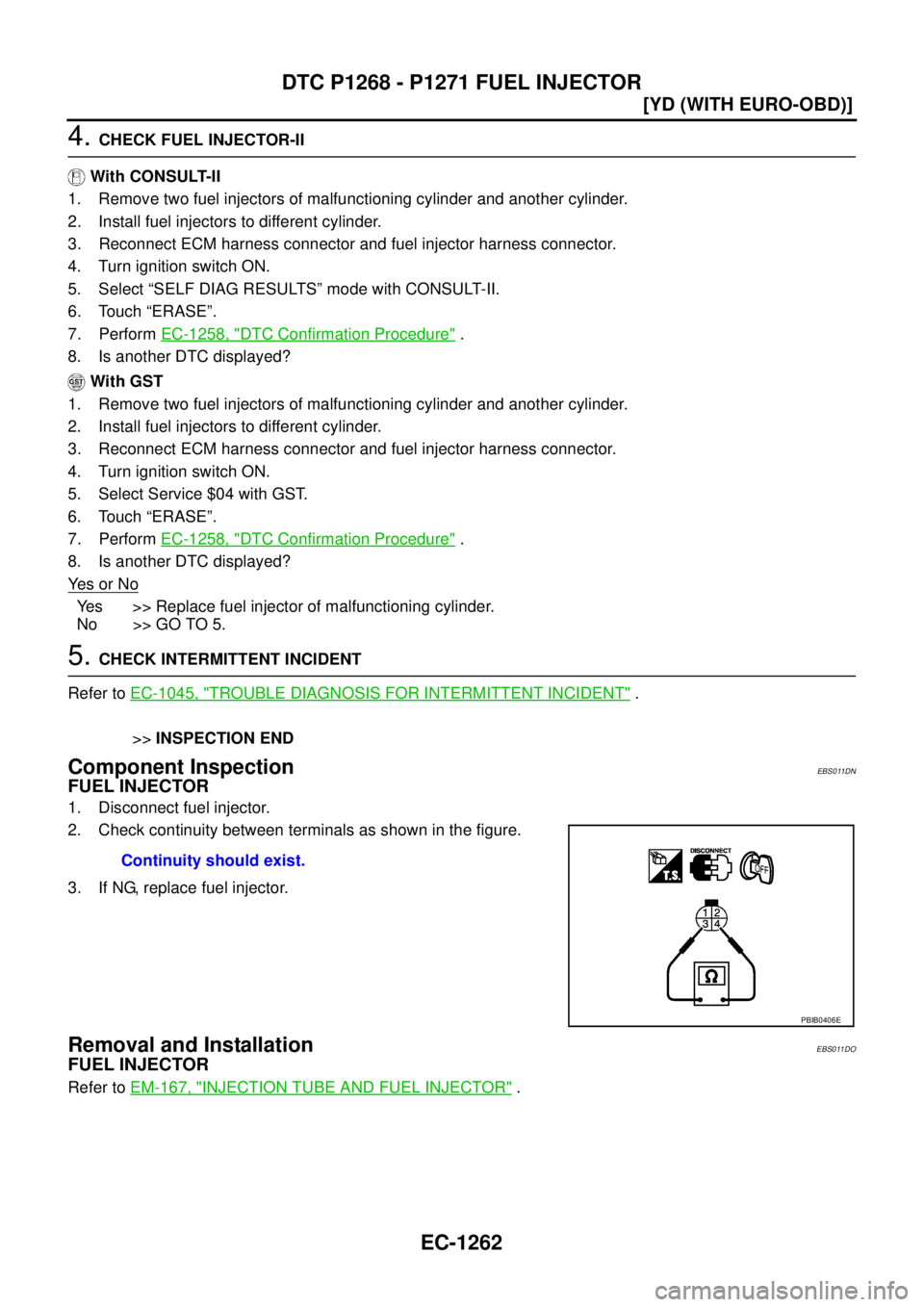

Component InspectionEBS011DN
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS011DO
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Continuity should exist.
PBIB0406E

DTC P1272 FUEL PUMP
EC-1263
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

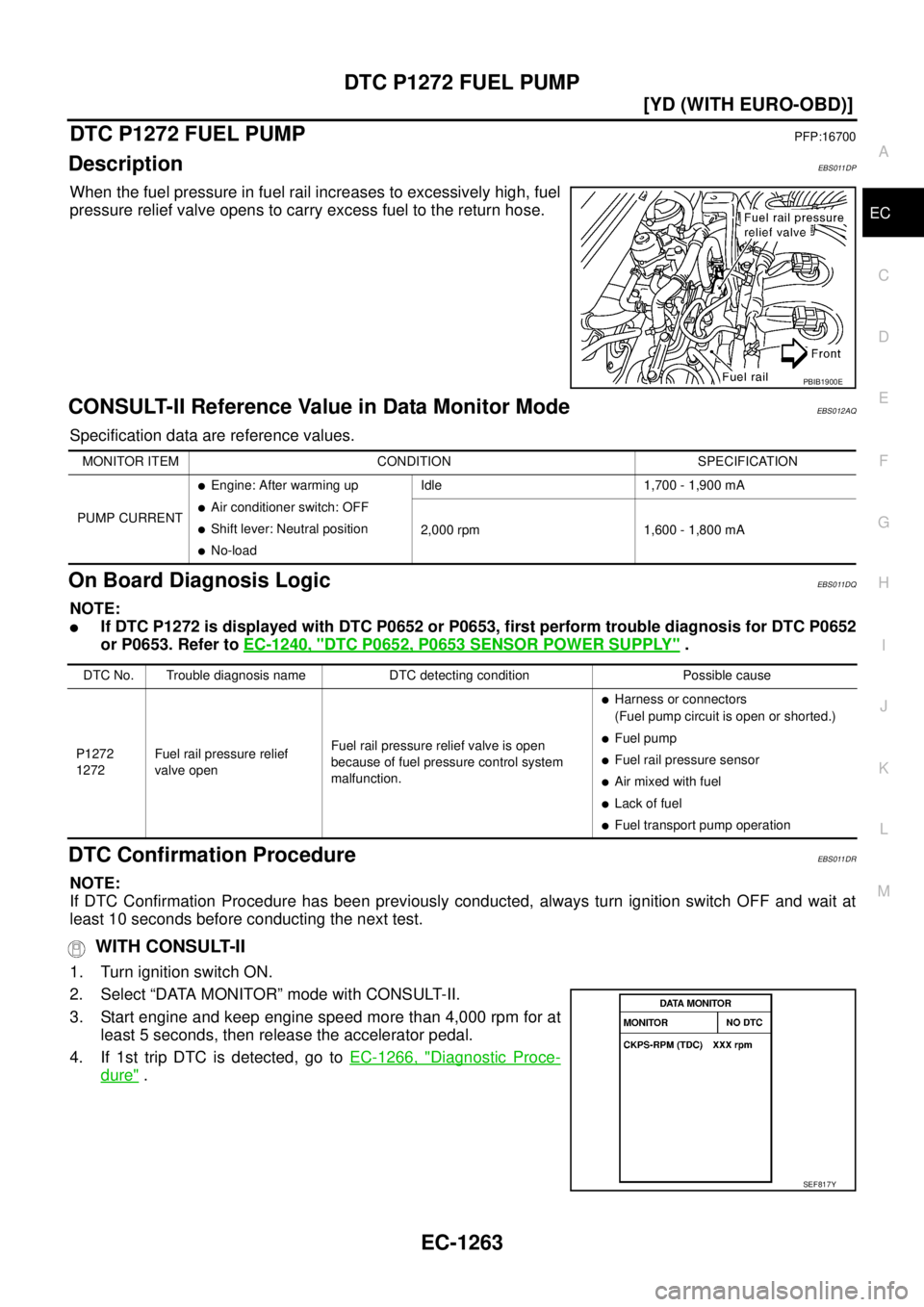

DTC P1272 FUEL PUMPPFP:16700
DescriptionEBS011DP
When the fuel pressure in fuel rail increases to excessively high, fuel
pressure relief valve opens to carry excess fuel to the return hose.
CONSULT-II Reference Value in Data Monitor ModeEBS012AQ
Specification data are reference values.
On Board Diagnosis LogicEBS011DQ
NOTE:

If DTC P1272 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011DR
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and keep engine speed more than 4,000 rpm for at
least 5 seconds, then release the accelerator pedal.
4. If 1st trip DTC is detected, go to EC-1266, "
Diagnostic Proce-
dure" .
PBIB1900E
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1272
1272Fuel rail pressure relief
valve openFuel rail pressure relief valve is open
because of fuel pressure control system
malfunction.

Harness or connectors
(Fuel pump circuit is open or shorted.)

Fuel pump

Fuel rail pressure sensor

Air mixed with fuel

Lack of fuel

Fuel transport pump operation
SEF817Y

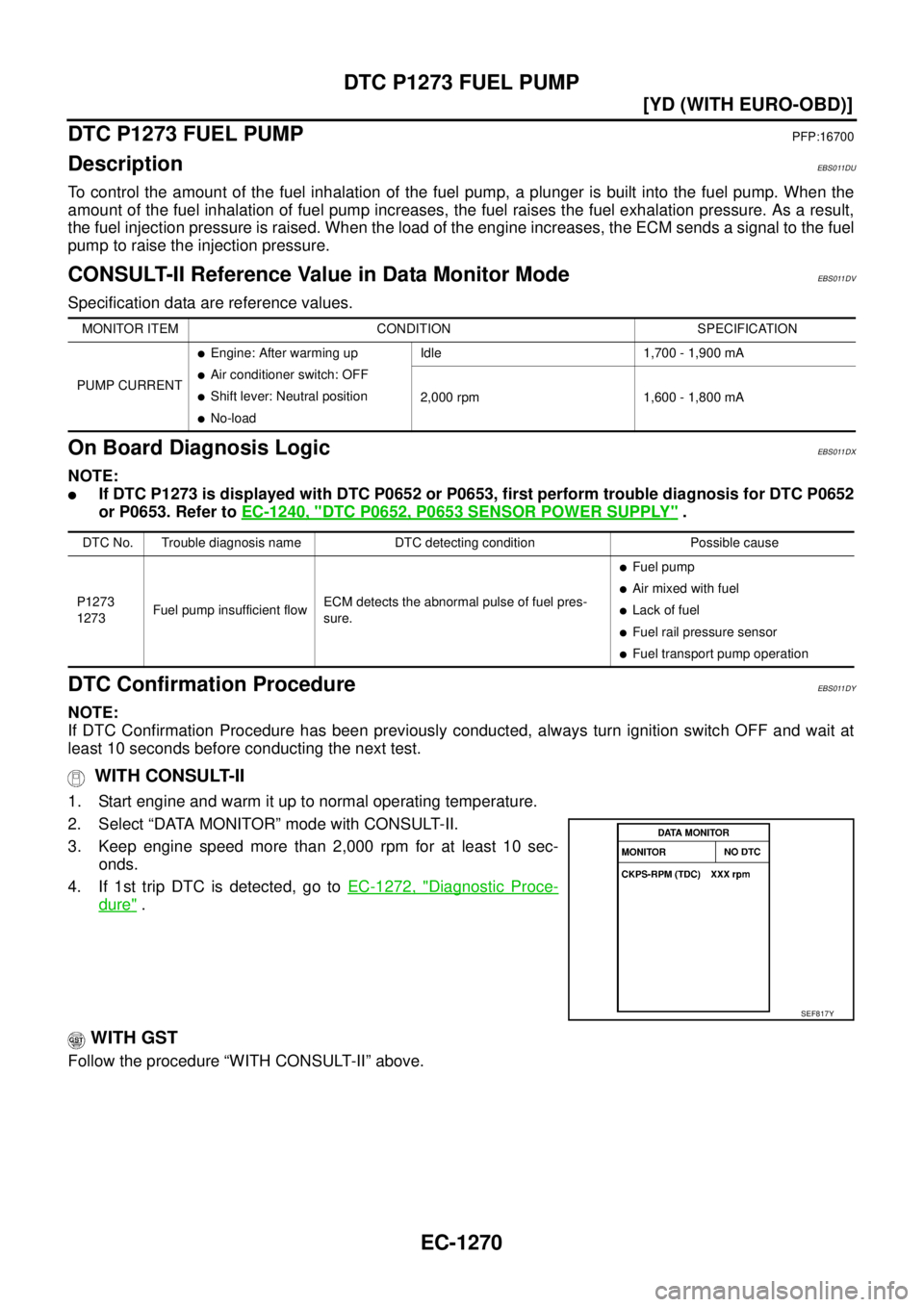

EC-1270
[YD (WITH EURO-OBD)]
DTC P1273 FUEL PUMP

DTC P1273 FUEL PUMPPFP:16700
DescriptionEBS011DU
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel pump increases, the fuel raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS011DV
Specification data are reference values.
On Board Diagnosis LogicEBS011DX
NOTE:

If DTC P1273 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011DY
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Keep engine speed more than 2,000 rpm for at least 10 sec-
onds.
4. If 1st trip DTC is detected, go to EC-1272, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1273
1273Fuel pump insufficient flowECM detects the abnormal pulse of fuel pres-
sure.

Fuel pump

Air mixed with fuel

Lack of fuel

Fuel rail pressure sensor

Fuel transport pump operation
SEF817Y

DTC P1274 FUEL PUMP
EC-1275
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

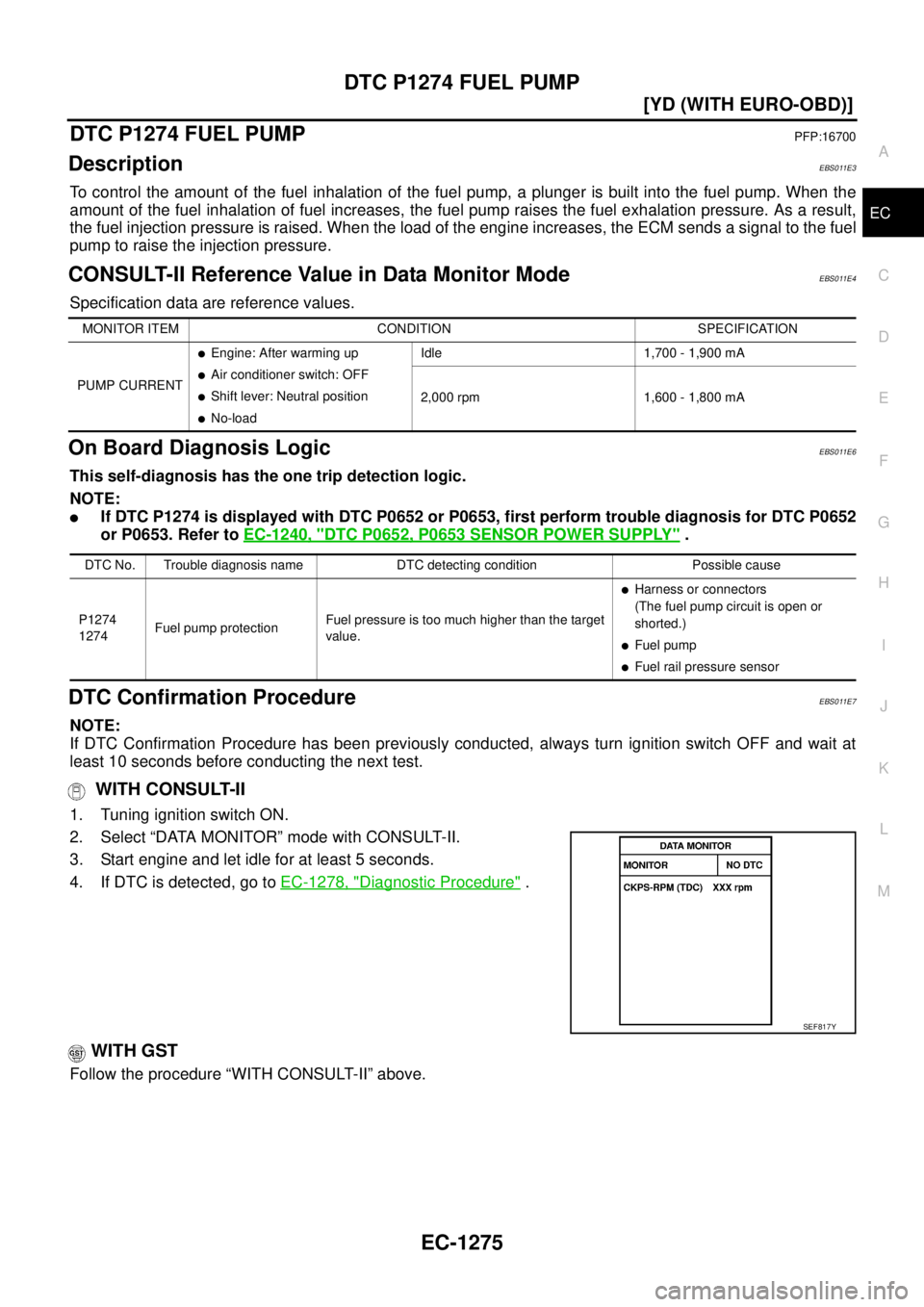

DTC P1274 FUEL PUMPPFP:16700
DescriptionEBS011E3
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS011E4
Specification data are reference values.
On Board Diagnosis LogicEBS011E6
This self-diagnosis has the one trip detection logic.
NOTE:

If DTC P1274 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011E7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Tuning ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let idle for at least 5 seconds.
4. If DTC is detected, go to EC-1278, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1274
1274Fuel pump protectionFuel pressure is too much higher than the target
value.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump

Fuel rail pressure sensor
SEF817Y

EC-1280
[YD (WITH EURO-OBD)]
DTC P1275 FUEL PUMP

DTC P1275 FUEL PUMPPFP:16700
DescriptionEBS011EC
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS011ED
Specification data are reference values.
On Board Diagnosis LogicEBS011EF
This self-diagnosis has the one trip detection logic.
NOTE:

If DTC P1275 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011EG
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Keep engine speed more than 2,000 rpm for at least 60 sec-
onds.
4. If DTC is detected, go to EC-1283, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1275
1275Fuel pump exchangeFuel pressure is too much higher than the target
value.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump

Fuel rail pressure sensor
SEF817Y

DTC P2135 APP SENSOR
EC-1285
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

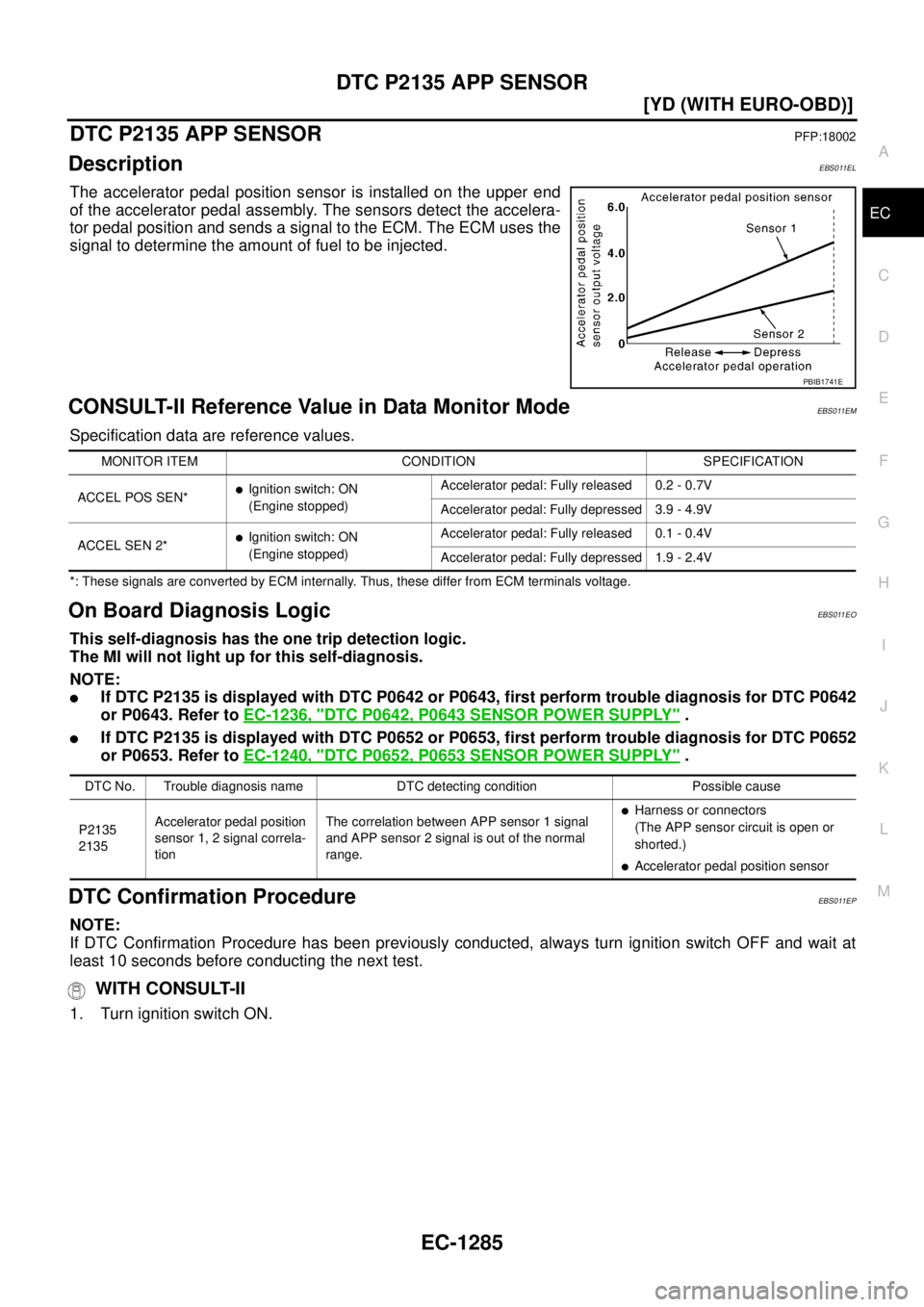

DTC P2135 APP SENSORPFP:18002
DescriptionEBS011EL
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS011EM
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
On Board Diagnosis LogicEBS011EO
This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.
NOTE:

If DTC P2135 is displayed with DTC P0642 or P0643, first perform trouble diagnosis for DTC P0642
or P0643. Refer to EC-1236, "
DTC P0642, P0643 SENSOR POWER SUPPLY" .

If DTC P2135 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011EP
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Accelerator pedal position
sensor 1, 2 signal correla-
tionThe correlation between APP sensor 1 signal
and APP sensor 2 signal is out of the normal
range.

Harness or connectors
(The APP sensor circuit is open or
shorted.)

Accelerator pedal position sensor
