AT-146
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
5. CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT- 4 4 8 , "
Control Valve Assembly" .
2. Check to ensure that:
Valve, sleeve and plug slide along valve bore under their own weight.
Valve, sleeve and plug are free from burrs, dents and scratches.
Control valve springs are free from damage, deformation and fatigue.
Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 6.
NG >> Repair control valve.
6. CHECK SHIFT UP (D3 TO D4 )
During AT- 7 8 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> Check control valve again.Repair or replace control
valve assembly.
7. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
–Line pressure solenoid valves
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace solenoid valve assembly.
8. CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
–Line pressure solenoid valves
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
OK or NG
OK >> GO TO 9.
NG >> Replace solenoid valve assembly.
SAT988H
Solenoid valve Terminal No.Resistance
(Approx.)
Line pressure solenoid valve 4 Ground 2.5 - 5Ω
SCIA3457E
SCIA3275E
Page 2411 of 4555
DTC P0734 A/T 4TH GEAR FUNCTION
AT-147
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
9. CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT- 4 4 8 , "
Control Valve Assembly" .
2. Check line pressure circuit valves for sticking.
–Pilot valve
–Shift solenoid valve A
–Shift solenoid valve B
OK or NG
OK >> GO TO 10.
NG >> Repair control valve.
10. CHECK SHIFT UP (D3 TO D4 )
During AT- 7 8 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> Check control valve again. Repair or replace control
valve assembly.
11 . CHECK DTC
Perform AT- 1 4 1 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Perform AT- 7 8 , "
Cruise Test — Part 1" again and return to the start point of this test group.
SAT988H
Page 2425 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
AT-161
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0750 SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004RY
Shift solenoid valves A and B are turned ON or OFF by the T NISSAN X-TRAIL 2005 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
AT-161
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0750 SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004RY
Shift solenoid valves A and B are turned ON or OFF by the T](/manual-img/5/57403/w960_57403-2424.png)
DTC P0750 SHIFT SOLENOID VALVE A
AT-161
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0750 SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004RY
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II REFERENCE VALUE IN DATE MONITOR MODE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CUA
Possible CauseECS00CUB
Check the following items.
Harness or connector
(The solenoid circuit is open or shorted.)
Shift solenoid valve A
DTC Confirmation ProcedureECS00CUC
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V A (ON/OFF)When shift solenoid valve A operates.
(When driving in D
1 or D4 .)ON
When shift solenoid valve A does not operate.
(When driving in D
2 or D3 .)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/V A
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
Harness or connectors
(The solenoid circuit is open or shorted.)
Shift solenoid valve A
: P0750
Page 2426 of 4555
AT-162
[EURO-OBD]
DTC P0750 SHIFT SOLENOID VALVE A
WITH CONSULT-II

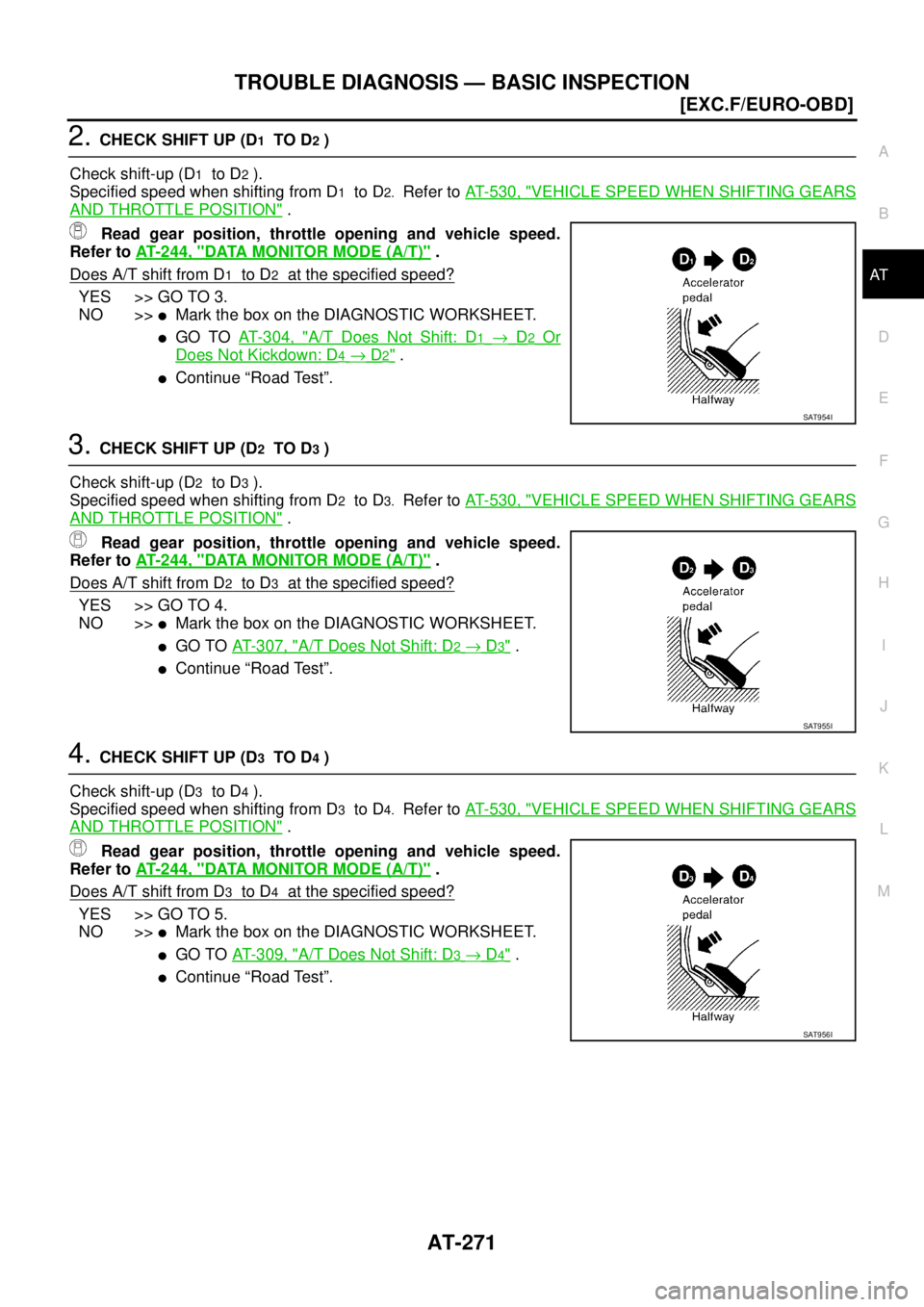

1. Turn ignition switch ON and select “DATA MONITOR” mode for
