2005 NISSAN X-TRAIL check

EC-1452
[YD (WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR

Diagnostic ProcedureEBS011Z0

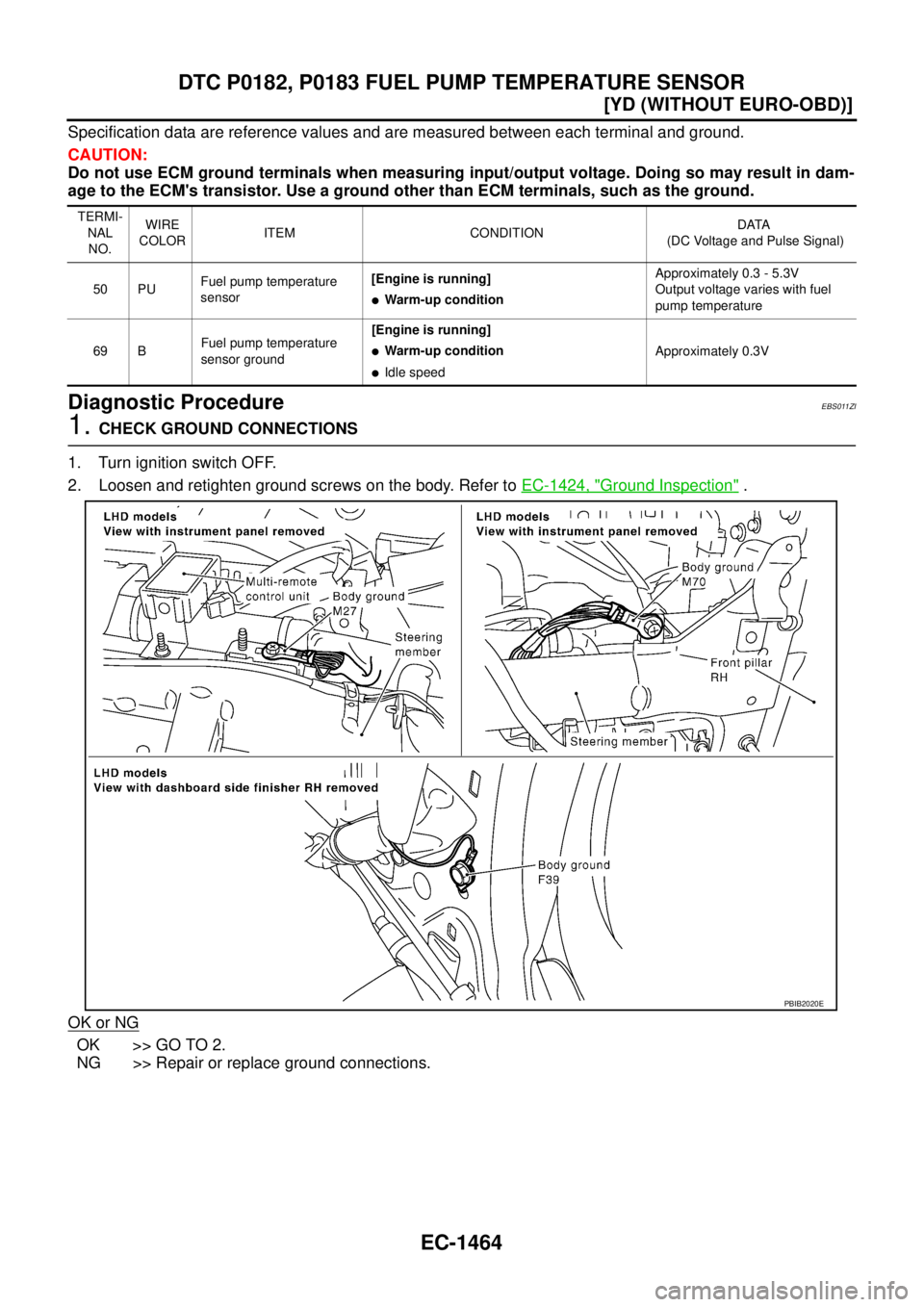

1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

DTC P0117, P0118 ECT SENSOR
EC-1453
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect engine coolant temperature sensor harness connec-
tor.
2. Turn ignition switch ON.
3. Check voltage between ECT sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECT sensor terminal 2 and ECM terminal 70. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-1454, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace engine coolant temperature sensor.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB1892E
Voltage: Approximately 5.3V
PBIB0152E
Continuity should exist.

EC-1454
[YD (WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR

Component InspectionEBS011Z1
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

2. If NG, replace engine coolant temperature sensor.
Removal and InstallationEBS011Z2
ENGINE COOLANT TEMPERATURE SENSOR
Refer to EM-209, "CYLINDER HEAD" .
PBIB2005E
Engine coolant temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P

DTC P0122, P0123 APP SENSOR
EC-1459
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011Z9
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

EC-1460
[YD (WITHOUT EURO-OBD)]
DTC P0122, P0123 APP SENSOR

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 84.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 83 and APP sensor terminal 5.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-1461, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0914E
Continuity should exist.
Continuity should exist.

DTC P0122, P0123 APP SENSOR
EC-1461
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011ZA
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly.
Removal and InstallationEBS011ZB
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.2V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
MBIB0615E

EC-1464
[YD (WITHOUT EURO-OBD)]
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS011ZI
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
50 PUFuel pump temperature
sensor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with fuel
pump temperature
69 BFuel pump temperature
sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
PBIB2020E

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
EC-1465
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK FUEL PUMP TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel pump temperature sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between fuel pump temperature sensor terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3. CHECK FUEL PUMP TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between fuel pump temperature sensor terminal 2 and ECM terminal 69.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace.
5. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Removal and InstallationEBS011ZJ
FUEL PUMP
Refer to EM-171, "FUEL PUMP" .
PBIB1942E
Voltage: Approximately 5.3V
PBIB0420E
Continuity should exist.
