DTC P0192, P0193 FRP SENSOR
EC-1469
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011ZQ
1. CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.

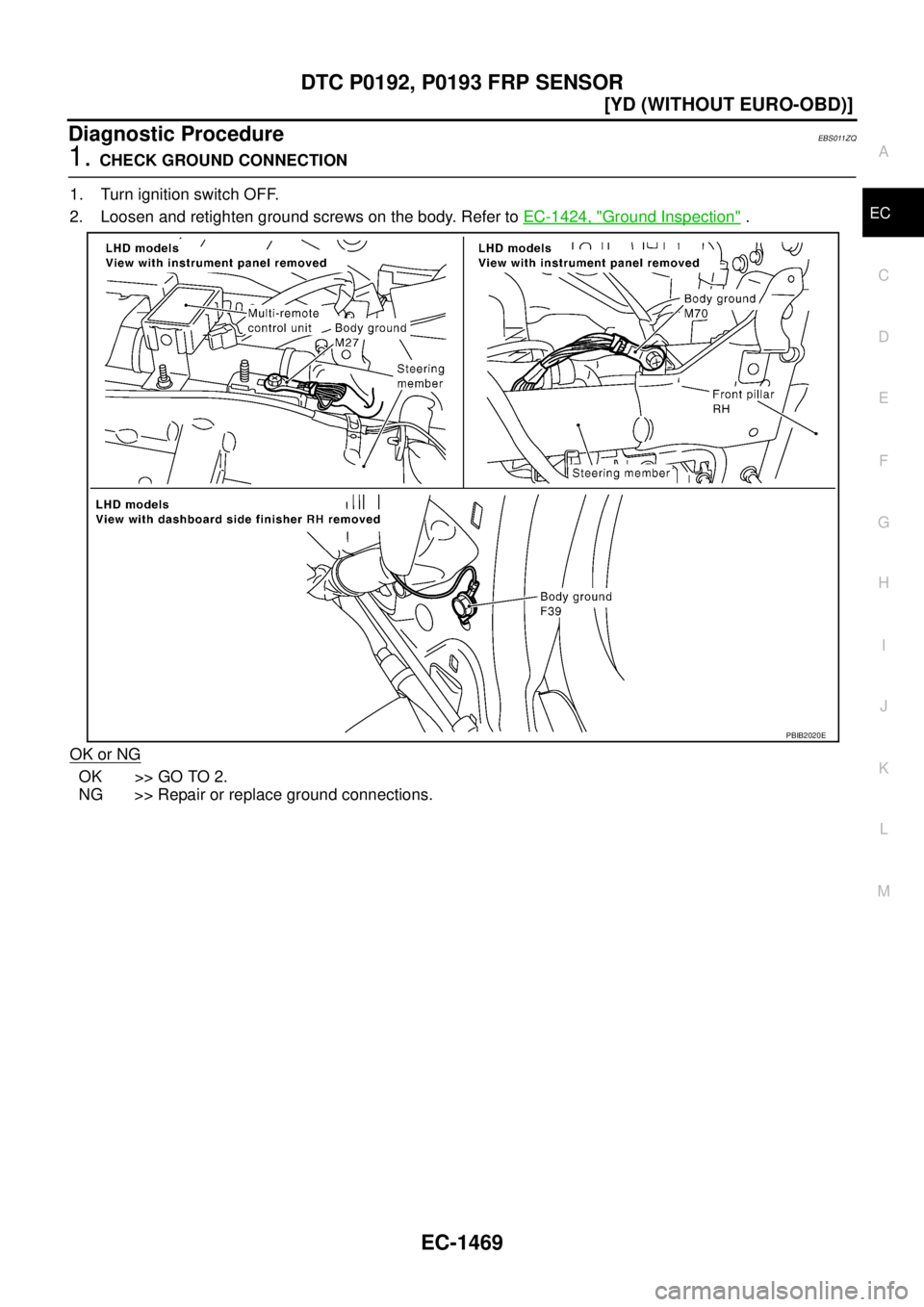

PBIB2020E

EC-1470
[YD (WITHOUT EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

2. CHECK FUEL RAIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel rail pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between fuel rail pressure sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK FUEL RAIL PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between fuel rail pressure sensor terminal 3 and ECM terminal 68.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL RAIL PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 48, 49 and fuel rail pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
5. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace fuel rail.
PBIB1894E
Voltage: Approximately 5.3V
PBIB0405E
Continuity should exist.
Continuity should exist.

DTC P0192, P0193 FRP SENSOR
EC-1471
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011ZR
FUEL RAIL PRESSURE SENSOR
1. Reconnect harness connector disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminals 48, 49 (Fuel rail pres-
sure sensor signal) and ground under the following conditions.
4. If the voltage is out of specification, disconnect fuel rail pressure
sensor harness connector and connect it again. Then repeat
above check.
5. If NG, replace fuel rail.
Removal and InstallationEBS011ZS
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Condition Voltage V
Idle 1.7 - 2.0
2,000 rpm 2.0 - 2.3
MBIB0613E

EC-1478
[YD (WITHOUT EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

Diagnostic ProcedureEBS01202
1. CHECK FUEL INJECTOR POWER SUPPLY FOR OPEN AND SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK FUEL INJECOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL INJECTOR-I
Refer to EC-1479, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
DTCTerminal
Cylinder
ECM Fuel injector
P0201 4 3 No.1
P0202 5 3 No.2
P0203 5 3 No.3
P0204 4 3 No.4
Continuity should exist.
PBIB1896E
DTCTerminal
Cylinder
ECM Fuel injector
P0201 42, 43 4 No.1
P0202 21, 22 4 No.2
P0203 23, 24 4 No.3
P0204 40, 41 4 No.4
Continuity should exist.

DTC P0201 - P0204 FUEL INJECTOR
EC-1479
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK FUEL INJECTOR-II
With CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform DTC Confirmation Procedure, EC-1475, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Without CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
6. Perform DTC Confirmation Procedure, EC-1475, "
DTC Confirmation Procedure" .
7. Is another DTC displayed?
Ye s o r N o
OK >> Replace fuel injector or malfunctioning cylinder.
NG >> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01203
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS01204
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Continuity should exist.
PBIB0406E

DTC P0217 ENGINE OVER TEMPERATURE
EC-1481
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Overall Function CheckEBS01209
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.

Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-
up pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1484,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1484,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-1484, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1484,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1484,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
SEF621W
SEF111X
SEF621W

EC-1484
[YD (WITHOUT EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0120B
1. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Disconnect cooling fan relays -2 and -3.
2. Turn ignition switch ON.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and touch “LOW” on the CONSULT-II screen.
4. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 2.
NG >> Check cooling fan low speed control circuit. (Go to EC-
1487, "PROCEDURE A" .)
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
34 LG/B Cooling fan relay (High)[Engine is running]

Cooling fan is not operating

Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is operating at high speedApproximately 0.1V
36 LG Cooling fan relay (Low)[Engine is running]

Cooling fan is not operating

Cooling fan is operating at high speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is operating at low speedApproximately 0.1V
PBIB1935E
SEF784Z

DTC P0217 ENGINE OVER TEMPERATURE
EC-1485
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Turn ignition switch OFF.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch ON.
4. Touch “HIGH”on the CONSULT-II screen.
5. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan high speed control circuit. (Go to EC-
1489, "PROCEDURE B" .)
3. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-43, "WATER PUMP" .)
>> Repair or replace.
SEF785Z
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23psi)
Pressure should not drop.
SLC754A
