2005 NISSAN 350Z Owner´s Manual

FRONT POWER SEAT
ADJUSTMENT (for Coupe models —
if so equipped)
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining (for driver’s seat)
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.
2
Reclining (for passenger’s seat)
The passenger’s seat is equipped with a manual
lever for reclining. See “Front manual seat ad-
justment” earlier in this section.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SPA1793
1-4
Safety — Seats, seat belts and supplemental restraint system


04.8.23/Z33-D/V5.0


FRONT POWER SEAT
ADJUSTMENT (for Roadster models)
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
Automatic passenger seatback tilt
functionThe passenger seatback will automatically tilt
forward and backward during the soft top
open/close operation. If you need to cancel this
function or when a child restraint is installed in
the passenger’s seat, push the seatback tilt
SSS0271
Safety — Seats, seat belts and supplemental restraint system
1-5


04.8.23/Z33-D/V5.0


cancel switch to the CANCEL position. For more
information about operation conditions, see
“Soft top” in the “3. Pre-driving checks and
adjustments” section. For the cancel switch, see
“Tilting and reclining passenger’s seat from driv-
er’s seat” later in this section.
Ventilated net seats (if so equipped)The ventilated net seats are designed for good
ventilation while driving. Net cloth is used on the
surface of the seatback and the cushion as
shown.
CAUTION

The seat is made of netted materials.
Be careful not to snag your jewelry,
such as a ring, bracelet or watch, on
the seat.
When using these seats, avoid wear-
ing clothing with soft fabrics (wool,
etc.). Clothing may be damaged as it
rubs against the netted material.
SSS0272
1-6
Safety — Seats, seat belts and supplemental restraint system


04.8.23/Z33-D/V5.0


SEAT LIFTER (for driver’s seat)
Type A (except for ventilated net seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
Type B (for ventilated net seat)Turn the dial and adjust the angle of the seat
cushion to the desired position.
TILTING AND RECLINING
PASSENGER’S SEAT FROM
DRIVER’S SEATThe passenger seatback can be adjusted from
the driver’s seat to make it easier for the driver to
use the rear parcel box or rear floor box, or to
help the passenger get in the vehicle.Coupe models (manual type)To tilt or recline the passenger seatback, pull up
the lever
A
located on the back side of it, and
move the seatback forward or backward.
SPA1715
Type A
SSS0202
Type B
SSS0203
Coupe models
Safety — Seats, seat belts and supplemental restraint system
1-7


04.8.23/Z33-D/V5.0


Roadster models (power type)The power seatback tilt switch
B
and the
seatback tilt cancel switch
Care located on the
back side of the passenger seatback as shown.
Tilting/reclining operation:
To tilt the passenger seatback forward, push the
top (
side) of the power seatback tilt
switch
B
for more than 0.5 seconds. The
seatback will automatically tilt forward. To stop
the movement, push the top or bottom of the
switch.
To tilt or adjust the seatback backward, push
and hold the bottom (
side) of the powerseatback tilt switch. While the switch is held
down, the seatback will move backward to the
original position that was last selected using the
reclining switch (located on the seat cushion).
Release the switch to stop the movement.
Operation conditions:
The power seatback tilt switch does not activate
under the following conditions.

when the passenger seat sliding/reclining
switches on the seat cushion are being op-
erated.

when the seat tilt cancel switch is in the
CANCEL position. (See “Seatback tilt cancelswitch” later in this section.)

when the passenger seat belt is fastened.

when the vehicle speed reaches 4 MPH (7
km/h) and more.
The automatic tilting/reclining movement will be
stopped:

when any of the above 4 conditions occur.

when the power seatback tilt switch (top or
bottom) is pushed again.

when the seatback is moved with the soft top
open/close operation.
When this interruption occurs, you cannot move
the seatback backward from the stopped posi-
tion with the power seatback tilt switch. Use the
reclining switch (on the seat cushion) to select
the seatback position.
SSS0273
Roadster models — Type A
SSS0274
Roadster models — Type B
1-8
Safety — Seats, seat belts and supplemental restraint system


04.8.23/Z33-D/V5.0


Seatback tilt cancel switch:
When the seatback tilt cancel switch
C
is
pushed to the CANCEL position, the
tilting/reclining operation using the power seat-
back tilt switch
B
will be cancelled. Only the
sliding/reclining switches (located on the seat
cushion) are operational. Push the seatback tilt
cancel switch to the AUTO position to reactivate
the power seatback tilt switch.
This cancel switch is linked with the automatic
passenger seatback tilt function of the soft top
operation. See “Soft top” in the “3. Pre-driving
checks and adjustments” section.
CAUTION
When a child restraint is installed in the
passenger seat, be sure to turn the seat-
back tilt cancel switch to the CANCEL
position. Otherwise, the child restraint
may be damaged.
HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up. To
lower, push the lock knob
Aand push the head
restraint down.
The ventilated net seats (if so equipped for
Roadster models) have non-adjustable head
restraints.
SSS0275
SSS0204
Safety — Seats, seat belts and supplemental restraint system
1-9


04.8.23/Z33-D/V5.0


Adjust the head restraints so the center is level
with the center of your ears.
WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
PRECAUTIONS ON SEAT BELT
USAGEIf you are wearing your seat belt properly ad-
justed and you are sitting upright and well back
in your seat, your chances of being injured or
killed in an accident and/or the severity of injury
may be greatly reduced. NISSAN strongly en-
courages you and all of your passengers to
buckle up every time you drive, even if your
seating position includes a supplemental air bag.
Most states, provinces or territories re-
quire that seat belts be worn at all times
when a vehicle is being driven.
SSS0178A
SEAT BELTS
1-10
Safety — Seats, seat belts and supplemental restraint system


04.8.23/Z33-D/V5.0

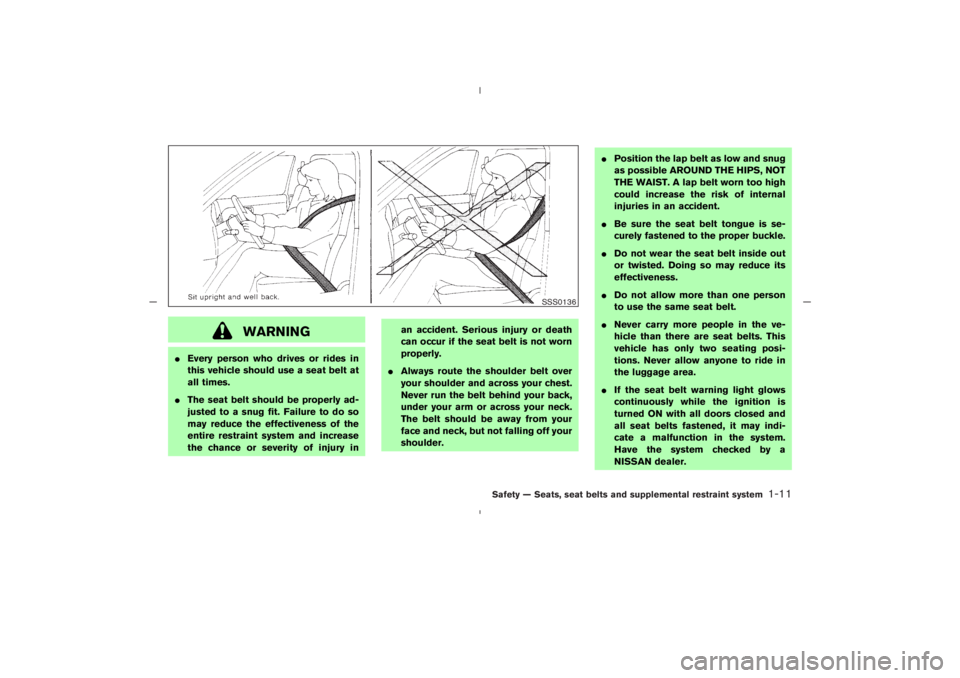

WARNING

Every person who drives or rides in
this vehicle should use a seat belt at
all times.

The seat belt should be properly ad-
justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury inan accident. Serious injury or death
can occur if the seat belt is not worn
properly.

Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.

Be sure the seat belt tongue is se-
curely fastened to the proper buckle.

Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.

Do not allow more than one person
to use the same seat belt.

Never carry more people in the ve-
hicle than there are seat belts. This
vehicle has only two seating posi-
tions. Never allow anyone to ride in
the luggage area.

If the seat belt warning light glows
continuously while the ignition is
turned ONwith all doors closed and
all seat belts fastened, it may indi-
cate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
SSS0136
Safety — Seats, seat belts and supplemental restraint system
1-11


04.8.23/Z33-D/V5.0
