2005 NISSAN 350Z Owner´s Manual

INDICATOR LIGHTS
Automatic transmission
position indicator light (A/T
models)
When the ignition keyis turned to the ON
position, the indicator in the tachometer shows
the automatic transmission selector lever posi-
tion. See “Driving the vehicle” (automatic trans-
mission) in the “5. Starting and driving” section.
Cruise main switch indicator
light (if so equipped)
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set switch indicator
light (if so equipped)
The light comes on while the vehicle speed is
controlled bythe cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp (MIL) comes on
steadyor blinks while the engine is running, it
mayindicate a potential emission control mal-
function.
The malfunction indicator lamp mayalso come
on steadyif the fuel filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
If this indicator lamp comes on steadyfor 20
seconds and then blinks for 10 seconds when
the engine is not running, it indicates that the
vehicle is not readyfor an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-tion” section of this manual.
Operation
The malfunction indicator lamp will come on in
one of two ways:

Malfunction indicator lamp on steady— An
emission control system malfunction has
been detected. Check the fuel filler cap. If the
fuel filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected bya NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp maystop
blinking and come on steady.
2-16
Instruments and controls


04.10.8/Z33-D/V5.0


Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Slip indicator light
The light will blink when the vehicle dynamic
control (VDC) system or the traction control
system (TCS) is operating, thus alerting the
driver to the fact that the road surface is slippery
and the vehicle is nearing its traction limits.
This light also comes on when the ignition switch
is turned to the ON position. The light will turn off
if the VDC or TCS is operational.
Traction control system (TCS)
off indicator light (if so
equipped)
The light comes on when the traction control
system (TCS) off switch is pushed to OFF. This
indicates the traction control system is not op-
erating.
This light also comes on when the ignition key is
turned to the ON position. The light will turn off
if the traction control system (TCS) is opera-
tional.
When the traction control system off indicator
light and slip indicator light come on with the
traction control system turned on, this light alerts
the driver to the fact that the traction control
system’s fail-safe mode is operating, that is the
system may not be functioning properly. Have
the system checked by a NISSAN dealer. If a
malfunction occurs in the system, the traction
control function will be canceled but the vehicle
is still driveable. For additional information, see
“Traction control system (TCS)” in the “5. Start-
ing and driving” section of this manual.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
The light comes on when the vehicle dynamiccontrol (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
This light also comes on when the ignition key is
turned to the ON position. The light will turn off
if the vehicle dynamic control (VDC) system is
operational.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
dynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by a
NISSAN dealer. If a malfunction occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.
Soft top indicator light
(Roadster models)
This light comes and stays on when the soft top
is being operated or it is stopped before reach-
ing a full open/close state. The light will turn off
when the top is fully opened or closed.
The soft top can be moved with the soft top
Instruments and controls
2-17


04.8.23/Z33-D/V5.0


operating switch only under all of the following
conditions:

When the vehicle is stopped.

When the foot brake pedal is depressed.

When the ignition switch is ON.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is in motion, and any of the
above conditions are discontinued or the pas-
senger power seat switches (on the cushion or
the seatback) are operated, the top will stop
moving. Remove your hand from the operating
switch, and press it again under the above
conditions until the top is fully opened or closed.
The indicator light will go off when the top
open/close operation is completely finished.
If the soft top indicator light flashes with the
ignition switch ON (whether the top is operated
or not), it may indicate the electric soft top
control unit is not functioning properly. Have
your vehicle checked by a NISSAN dealer as
soon as possible.
For more details about the electric soft topoperation, see “Soft top” in the “3. Pre-driving
checks and adjustments” section.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned off). Remove the key
and take it with you when leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
key is in the ignition switch. Make sure to turn the
light switch off when you leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the driver’s seat belt is securely fastened.Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound whenthe vehicle is in motion. Have the brakes
checked as soon as possible if the warning
sound is heard.
2-18
Instruments and controls


04.8.23/Z33-D/V5.0


Your vehicle has two types of security systems,
as follows:

Vehicle Security System

NISSAN Vehicle Immobilizer System (NVIS)
The security condition will be shown by the
security indicator light.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audible alarm signals if someone opens the
doors or rear hatch when the system is armed. It
is not, however, a motion detection type systemthat activates when a vehicle is moved or when
a vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto sup-
ply stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection fea-
tures.
Security indicator lightThis light
Ablinks whenever the ignition switch
is in the LOCK, OFF or ACC position. This is
normal.
How to arm the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
SIC2132
SIC1699A
SECURITY SYSTEMS
Instruments and controls
2-19


04.8.23/Z33-D/V5.0


3. Close and lock all doors and rear hatch/trunk
lid.
Lock all doors by pressing the LOCK button
on the keyfob. When using the keyfob, the
hazard indicators flash twice to indicate all
doors are locked.
4. Confirm that the security indicator light
comes on. The security indicator light glows
for about 30 seconds and then blinks. The
system is now activated. If, during this 30
second time period, the door is unlocked by
the key or the keyfob, or the ignition key is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and rear hatch/trunk lid
locked and ignition key off. Turn the igni-
tion key to ACC to turn the system off.Vehicle security system activationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after ap-
proximately 50 seconds. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlockinga door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:

Opening the door without using the key or
keyfob.

Opening the rear hatch or the trunk lid with-
out using the release switch or keyfob.
How to stop an activated alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS)The NISSAN Vehicle Immobilizer System (NVIS)
will not allow the engine to start without the use
of the registered NVIS key.
If the engine fails to start using the registered
NVIS key, it may be due to interference caused
by another NVIS key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NVIS key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NVIS key on a separate key ring to avoid
interference from other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
2-20
Instruments and controls


04.8.23/Z33-D/V5.0


TURE RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Security indicator lightThis light
Ablinks whenever the ignition switch
is in the LOCK, OFF or ACC position. This
function indicates the security system equipped
on the vehicle is operational.
If the NISSAN Vehicle Immobilizer System
(NVIS) is malfunctioning, this light will remain on
while the ignition key is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System
service as soon as possible. Bring all NVIS
keys that you have when visiting a NISSANdealer for service.
SIC1699A
Instruments and controls
2-21


04.8.23/Z33-D/V5.0

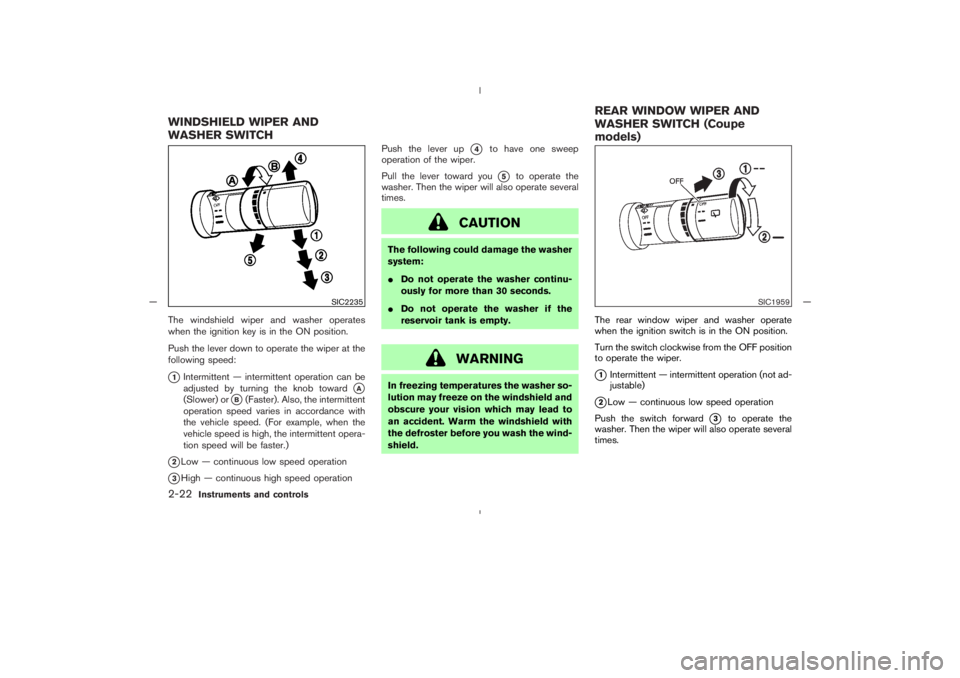

The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B(Faster). Also, the intermittent
operation speed varies in accordance with
the vehicle speed. (For example, when the
vehicle speed is high, the intermittent opera-
tion speed will be faster.)
2Low — continuous low speed operation
3High — continuous high speed operationPush the lever up
4
to have one sweep
operation of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.
CAUTION
The following could damage the washer
system:

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
SIC2235
SIC1959
WINDSHIELD WIPER AND
WASHER SWITCHREAR WINDOW WIPER AND
WASHER SWITCH (Coupe
models)2-22
Instruments and controls


04.8.23/Z33-D/V5.0


CAUTION

If the rear window wiper operation is
interrupted by snow or ice, the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow or ice on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

The following could damage the
washer system:
•Do not operate the washer continu-
ously for more than 30 seconds.
•Do not operate the washer if the
reservoir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
and obscure your vision. Warm the rear
window with the defroster before you
wash the rear window.To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch on. The indicator light will come on. Push
the switch again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION

When cleaning the inner side of the
rear window, be careful not to scratch
or damage the rear window de-froster.

Do not use the rear window defroster
switch while the soft top is being
operated or fully opened. The heat
may damage the top material and/or
components. (for Roadster models)
SIC1960
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Instruments and controls
2-23


04.8.23/Z33-D/V5.0
