2005 NISSAN 350Z Owner´s Manual

1. Master keys*
2. Valet key*
3. Key number plate
(* With built-in transponder chip)
You can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System (NVIS) components
in your vehicle. These keys have a transponder
chip in the key head.
The master key can be used for all the locks.
The valet key cannot be used for the rear floor
box lock. To protect belongings when you leave
a key with someone, give them the valet key only.Never leave these keys in the vehicle.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle.
NISSAN does not record any key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
NISSAN Vehicle Immobilizer System (NVIS)
KEY - Master and Valet keys:
As many as 5 keys can be used with one vehicle.
New keys must be registered to the NVIS com-
ponents in your vehicle by a NISSAN dealer. At
this time, you should bring all NVIS keys that you
have to a NISSAN dealer for registration. This is
because the registration process will erase all
memory of the NVIS components.
CAUTION
Do not allow the NVIS key, which con-
tains an electrical transponder, to come
in contact with salt water. This could
cause the system to malfunction.
WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
SPA1379D
KEYSDOORS3-2
Pre-driving checks and adjustments


04.8.23/Z33-D/V5.0


LOCKING WITH KEYThe power door lock system allows you to lock
or unlock all doors including the rear hatch/trunk
lid simultaneously.

Turning the driver’s door key to the rear of the
vehicle
1
will lock all doors including the
rear hatch/trunk lid.

Turning the driver’s door key one time to the
front of the vehicle
2
will unlock the driver’s
door and rear hatch/trunk lid. From that po-
sition, returning the key to neutral (where the
key can only be removed and inserted) and
turning it to the front again within 5 secondswill unlock the passenger’s door.
Opening and closing windowsTurn the driver’s door key towards the front of
the vehicle (UNLOCK position) and hold for
about 1 second, all door windows will begin to
lower.
To close all door windows, turn the key to the
LOCK position and hold for about 1 second.
To stop opening or closing, turn the key to the
neutral position.
In the event of a hand in the way, or other
obstruction, the auto reverse function will acti-
vate.
LOCKING WITH INSIDE LOCK
KNOBPushing the door inside lock knobto the LOCK1
or UNLOCK
2
position will lock or unlock
the corresponding door. (The rear hatch/trunk lid
lock is linked with the driver side door lock.)
To individually lock the doors from the outside
(without a key), move the inside lock knobto the
LOCK position. Then close the door.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
SPA1503A
SPA1504A
Pre-driving checks and adjustments
3-3


04.8.23/Z33-D/V5.0


A
Driver’s side
B
Passenger’s side
LOCKING WITH POWER DOOR
LOCK SWITCHAll doors will be locked when the power door
lock switch is pushed to the LOCK position
1
with the driver’s or front passenger’s door open.
Then close the door and all doors will be locked.
When locking the door this way, be certain
not to leave the key inside the vehicle.
To unlock, push the power door lock switch to
the UNLOCK position
2.
Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position with
the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.It is possible to lock/unlock all doors (including
the rear hatch/trunk lid), release the rear
hatch/trunk lid and activate the panic alarm by
using the keyfobfrom outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm and the rear hatch/trunk
lid release will not activate when the key is
in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.
SPA1505E
REMOTE KEYLESS ENTRY
SYSTEM
3-4
Pre-driving checks and adjustments


04.8.23/Z33-D/V5.0

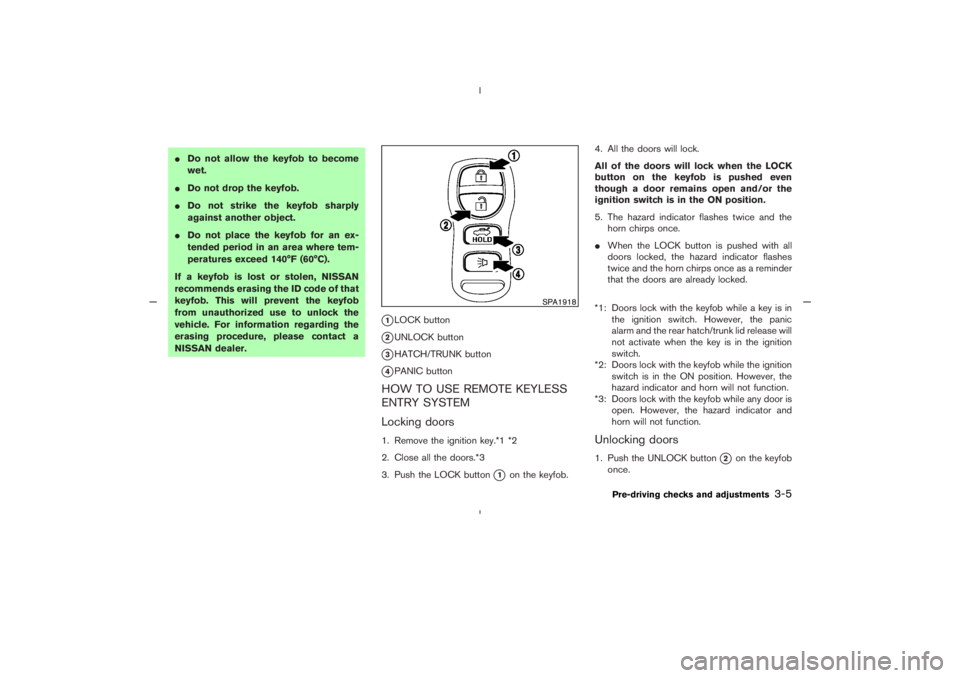

Do not allow the keyfob to become
wet.

Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.
1LOCK button
2UNLOCK button
3HATCH/TRUNK button
4PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors1. Remove the ignition key.*1 *2
2. Close all the doors.*3
3. Push the LOCK button
1
on the keyfob.4. All the doors will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition switch is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.

When the LOCK button is pushed with all
doors locked, the hazard indicator flashes
twice and the horn chirps once as a reminder
that the doors are already locked.
*1: Doors lock with the keyfobwhile a key is in
the ignition switch. However, the panic
alarm and the rear hatch/trunk lid release will
not activate when the key is in the ignition
switch.
*2: Doors lock with the keyfobwhile the ignition
switch is in the ON position. However, the
hazard indicator and horn will not function.
*3: Doors lock with the keyfobwhile any door is
open. However, the hazard indicator and
horn will not function.
Unlocking doors1. Push the UNLOCK button
2
on the keyfob
once.
SPA1918
Pre-driving checks and adjustments
3-5


04.8.23/Z33-D/V5.0

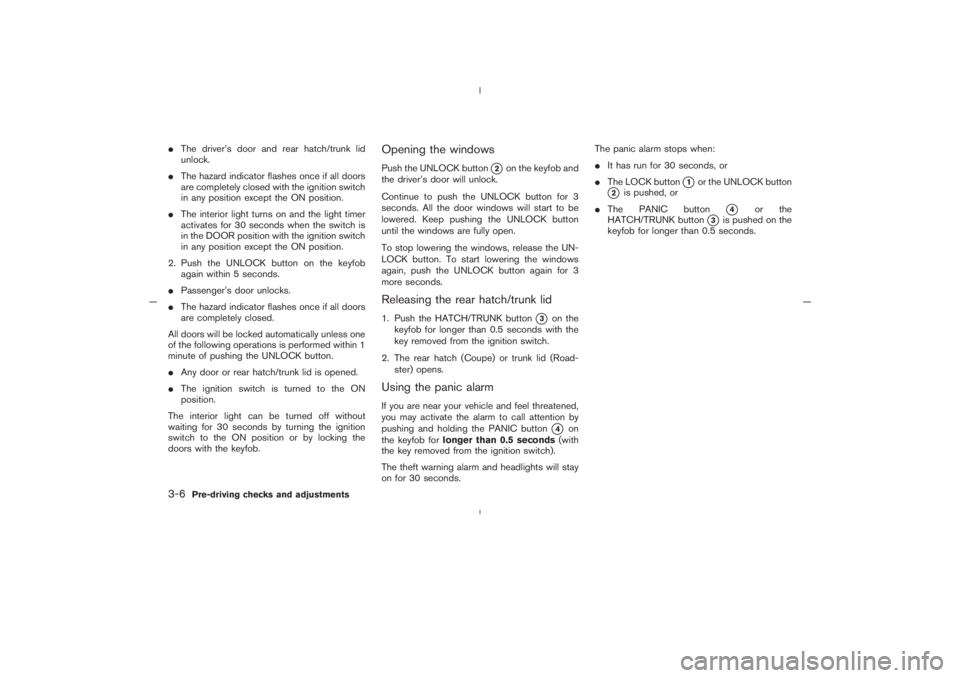

The driver’s door and rear hatch/trunk lid
unlock.

The hazard indicator flashes once if all doors
are completely closed with the ignition switch
in any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition switch
in any position except the ON position.
2. Push the UNLOCK button on the keyfob
again within 5 seconds.

Passenger’s door unlocks.

The hazard indicator flashes once if all doors
are completely closed.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute of pushing the UNLOCK button.

Any door or rear hatch/trunk lid is opened.

The ignition switch is turned to the ON
position.
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the windowsPush the UNLOCK button
2on the keyfoband
the driver’s door will unlock.
Continue to push the UNLOCK button for 3
seconds. All the door windows will start to be
lowered. Keep pushing the UNLOCK button
until the windows are fully open.
To stop lowering the windows, release the UN-
LOCK button. To start lowering the windows
again, push the UNLOCK button again for 3
more seconds.
Releasing the rear hatch/trunk lid1. Push the HATCH/TRUNK button
3
on the
keyfobfor longer than 0.5 seconds with the
key removed from the ignition switch.
2. The rear hatch (Coupe) or trunk lid (Road-
ster) opens.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention by
pushing and holding the PANIC button
4
on
the keyfobforlonger than 0.5 seconds(with
the key removed from the ignition switch).
The theft warning alarm and headlights will stay
on for 30 seconds.The panic alarm stops when:

It has run for 30 seconds, or

The LOCK button
1or the UNLOCK button
2
is pushed, or

The PANIC button
4
or the
HATCH/TRUNK button
3
is pushed on the
keyfobfor longer than 0.5 seconds.
3-6
Pre-driving checks and adjustments


04.8.23/Z33-D/V5.0


Setting hazard indicator and horn
modeThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCKbutton is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashesonce and the horn chirps once.
SPA1260
Pre-driving checks and adjustments
3-7


04.8.23/Z33-D/V5.0

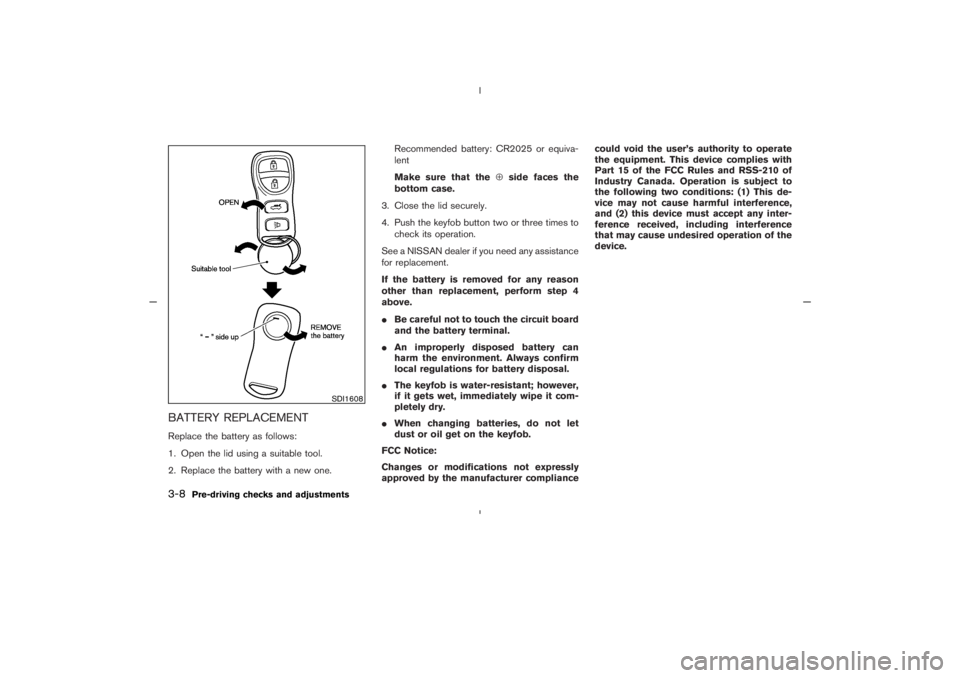

BATTERY REPLACEMENTReplace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.Recommended battery: CR2025 or equiva-
lent
Make sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch the circuit board
and the battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliancecould void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
SDI1608
3-8
Pre-driving checks and adjustments


04.8.23/Z33-D/V5.0


1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Raise the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. Insert the assist bar into the slot
3
in the
front edge of the hood.
4. When closing the hood, reset the assist bar
to its original position, then slowly close the
hood and make sure it locks into place.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
WARNING
Do not drive with the rear hatch open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
for exhaust gas.
SPA1506
HOODREAR HATCH (Coupe models)
Pre-driving checks and adjustments
3-9


04.8.23/Z33-D/V5.0
