2005 NISSAN 350Z Owner´s Manual

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.

After a rainfall to prevent possible damage
from acid rain

After driving on coastal roads

When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface

When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGThoroughly rinse surface dirt off the vehicle with
a wet sponge and plenty of clean water. Clean
the vehicle thoroughly using a mild soap such as
Nissan Car Wash, or a general purpose dish-
washing liquid mixed with clean, lukewarm
(never hot) water.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

For Roadster models, observe the
following:
•Do not use an automatic car wash
or a high pressure car wash. The
soft top may be damaged.
•Avoid applying direct water pres-
sure, such as high pressured water
from household hoses, on the lin-
ing of the soft top and vehicle
body. Avoid applying continuouswater on the parts around the soft
top and the windows. These may
cause water to leak into the inside of
your vehicle.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
Soft top care and cleaning (Roadster
models)Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
CLEANING EXTERIOR7-2
Appearance and care


04.8.23/Z33-D/V5.0


top regularly before it becomes quite dirty. Leav-
ing the soft top dirty or soiled for a long period
will cause deterioration to the quality of the top
material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water.

Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of the
soft top and vehicle body, as this maycause water to leak into the inside of
your vehicle.
After cleaning, always be sure the top and its
storage are completelydrybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. After wax-
ing, polishing is recommended to remove
built-up residue and to avoid a weathered ap-
pearance.
If you wish to wax your vehicle, only use a wax
specified for use over clear coats, such as
Nissan Liquid or Spray Wax. A NISSAN dealer
can assist you in choosing the proper product.

Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.

If the surface does not polish easily, use a
road tar remover and wax again.Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint
finish may dull the finish or leave swirl
marks.
REMOVING SPOTSRemove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at a NISSAN dealer or any automotive accessory
store.UNDERBODYIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and caus-
ing underbody and suspension corrosion. Be-
fore the winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
Appearance and care
7-3


04.8.23/Z33-D/V5.0


CAUTION

When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could
damage the electrical conductors or
rear window defroster elements.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water. (Roadster models)ALUMINUM ALLOY WHEELSWash regularly, especially during winter months
in areas where road salt is used. Salt could
discolor the wheel if not removed.CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft brush. Wipe the vinyl and leather
surfaces with a clean, soft cloth dampened in
mild soap solution, then wipe clean with a dry
soft cloth. Before using any fabric protector,
read the manufacturer’s recommendations.
Some fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION

Never use benzine, thinner or any
similar material.

The leather seats should be regularly
coated with a leather wax like saddle
soap. Never use car wax.

Never use fabric protectors unless
recommended by the manufacturer.

Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATSThe use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
CLEANING INTERIOR
7-4
Appearance and care


04.8.23/Z33-D/V5.0


Floor mat positioning aid
(driver side only)This model includes a front floor mat bracket to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain that the mats
are properly positioned.
SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them.
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye or
chemical solvents to clean the seat
belts, since these may severely weaken
the seat belt webbing.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.

Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
MoistureAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.Relative humidityCorrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing and where
atmospheric pollution exists and road salt is
used.
SAI0012
CORROSIONPROTECTION
Appearance and care
7-5


04.8.23/Z33-D/V5.0

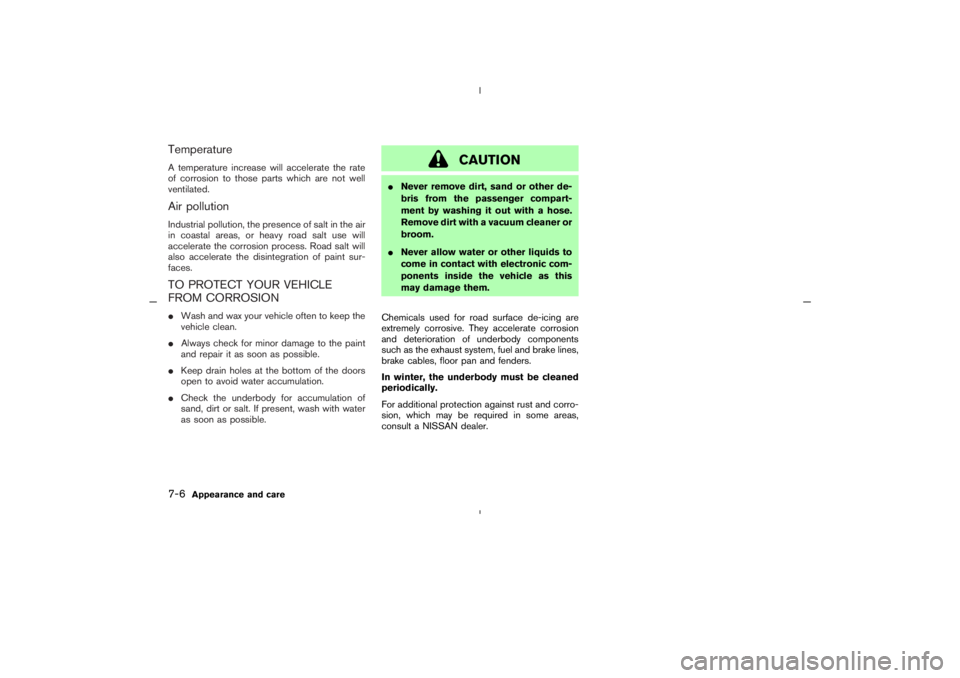

TemperatureA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.Air pollutionIndustrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint sur-
faces.TO PROTECT YOUR VEHICLE
FROM CORROSION
Wash and wax your vehicle often to keep the
vehicle clean.

Always check for minor damage to the paint
and repair it as soon as possible.

Keep drain holes at the bottom of the doors
open to avoid water accumulation.

Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION

Never remove dirt, sand or other de-
bris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner or
broom.

Never allow water or other liquids to
come in contact with electronic com-
ponents inside the vehicle as this
may damage them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake lines,
brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and corro-
sion, which may be required in some areas,
consult a NISSAN dealer.
7-6
Appearance and care


04.8.23/Z33-D/V5.0


8 Maintenance and do-it-yourselfMaintenance requirements ................................................. 8-2
General maintenance ........................................................... 8-2
Explanation of general maintenance items ............... 8-2
Maintenance precautions ................................................... 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system ........................................................ 8-8
Checking engine coolant level .................................... 8-8
Changing engine coolant ............................................. 8-9
Engine oil ............................................................................. 8-10
Checking engine oil level ........................................... 8-10
Changing engine oil and filter ................................... 8-10
Automatic transmission fluid ........................................... 8-12
Power steering fluid .......................................................... 8-13
Brake and clutch fluid ....................................................... 8-13
Brake fluid ....................................................................... 8-14
Clutch fluid ..................................................................... 8-14
Window washer fluid ........................................................ 8-14
Battery ................................................................................... 8-15
Jump starting ................................................................. 8-16
Drive belts ............................................................................ 8-17
Spark plugs ......................................................................... 8-17
Replacing spark plugs ................................................ 8-17Air cleaner ............................................................................ 8-18
Windshield wiper blades ................................................. 8-19
Cleaning ......................................................................... 8-19
Replacing ....................................................................... 8-20
Parking brake and brake pedal ...................................... 8-21
Checking parking brake ............................................. 8-21
Checking brake pedal ................................................. 8-21
Brake booster ................................................................ 8-22
Fuses ..................................................................................... 8-22
Engine compartment ................................................... 8-23
Passenger compartment ............................................ 8-24
Keyfobbattery replacement ............................................ 8-24
Lights ..................................................................................... 8-26
Headlights ...................................................................... 8-27
Exterior and interior lights .......................................... 8-28
Wheels and tires ................................................................ 8-31
Tire pressure ................................................................. 8-31
Tire labeling ..................................................................... 8-33
Types of tires ................................................................. 8-35
Tire chains ...................................................................... 8-35
Changing wheels and tires ........................................ 8-36


04.8.23/Z33-D/V5.0


Your new NISSAN has been designed to have
minimum maintenance requirements with longer
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your
NISSAN’s good mechanical condition, as well
as its emission and engine performance.
It is the owner’s responsibility to make sure that
scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
Scheduled maintenance:
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “NISSAN Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your NISSAN at regular intervals.
General maintenance:
General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
Where to go for service:
If maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and tuned by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealership training programs. They
are completely qualified to work on NISSAN
vehiclesbeforethey work on your vehicle,
rather than after they have worked on it.
You can be confident that a NISSAN dealer’s
service department performs the best job to
meet the maintenance requirements of your ve-
hicle — in a reliable and economic way.During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smells, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, closely observe the “Maintenance precau-
tions” later in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMSAdditional information on the following
items with “*” is found later in this section.Outside the vehicleThe maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:Check that all doors
and the engine hood operate smoothly as well as
the trunk lid or back hatch. Also make sure that
all latches lock securely. Lubricate if necessary.
Make sure that the secondary latch keeps the
hood from opening when the primary latch is
released.
When driving in areas using road salt or other
MAINTENANCE REQUIREMENTS GENERAL MAINTENANCE8-2
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*:When checking
the tires, make sure no nuts are missing, and
check for any loose nuts. Tighten if necessary.
Tire rotation*:Tires cannot be rotated in this
vehicle.
Tire, wheel alignment and balance:If the
vehicle pulls to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information Booklet.
Tires*:Check the pressure with a gauge often
and always prior to long distance trips. Adjust
the pressure in all tires, including the spare, to
the pressure specified. Check carefully for dam-age, cuts or excessive wear.
Windshield:Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified re-
pair facility.
Windshield wiper blades*:Check for cracks
or wear if they do not wipe properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Automatic transmission P (Park) position
mechanism:On a fairly steep hill check that the
vehicle is held securely with the selector lever in
the P (Park) position without applying any
brakes.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal does
not catch or require uneven effort. Keep the floor
mat away from the pedal.
Brakes:Check that the brakes do not pull the
vehicle to one side when applied.
Brake pedal and booster*:Check the pedal
for smooth operation and make sure it has the
proper distance under it when depressed fully.Check the brake booster function. Be sure to
keep floor mat away from the pedal.
Clutch pedal*:Make sure the pedal operates
smoothly and check that it has the proper free
play.
Parking brake*:Check that the lever has the
proper travel and make sure that the vehicle is
held securely on a fairly steep hill when only the
parking brake is applied.
Seats:Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if equipped) hold securely in all
latched positions.
Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel:Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes:Make sure that all
warning lights and chimes are operating prop-
erly.
Maintenance and do-it-yourself
8-3


04.8.23/Z33-D/V5.0
