2005 KIA Rio Owner's Manual

3-55
Trunk Lid (For 4 Door Coupe) To open the trunk, insert the key into the lock and
turn it clockwise until an audible “click” is heard.
 To close the trunk, use both hands to push the trunk
lid down until the lock “snaps’’ shut.
 Do not slam the trunk lid.
 Pull up on the trunk lid to make sure it is securely
latched.
To prevent premature wear or damage to the trunk lid
lift cylinders and attaching hardware, the trunk lid
must be fully closed before you drive your vehicle.
1B3104007E
Unlock
Key slot
If you must drive with the trunk lid open, keep the air
vents open so that additional outside air comes into the
vehicle.Remote Trunk Lid Release (If Equipped)The release is located at the left front corner of the dri-
ver’s seat on the floor. To open the trunk, pull up on
the lever.
WARNING -Exhaust Fumes
If you drive with the trunk lid open, you will
draw dangerous exhaust fumes into your vehi-
cle.
1B3104004C
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 55

Emergency Trunk Safety Release (If Equipped)You vehicle is equipped with an emergency trunk
release cable located inside the trunk. When pulled,
this cable will release the trunk latch mechanism and
open the trunk.Knowing Your Vehicle3-56
1B3104007F
WARNING -Exhaust Fumes
No one should be allowed to occupy the trunk
of the vehicle at any time. If the trunk is par-
tially or totally closed and the person is unable
to get out, severe injury or death could occur
due to lack of ventilation, fumes and rapid heat
build-up, or because of exposure due to cold
weather conditions. The trunk is also a highly
dangerous location in the event of a crash
because it is not a protected occupant space and
is instead part of the vehicle’s crush zone.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 56

3-57
HoodOpening the Hood1. Inside the vehicle, pull the hood release handle
located at the bottom left corner of the instrument
panel.
AS2B03041
Release
handle
Pull to unlatch
2. Go to the front of the vehicle, raise the hood until
the secondary latch catches, then lift the secondary
latch up (located under the hood at the center of the
vehicle).
1B3104008B
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 57

Knowing Your Vehicle3-583. Lift the hood and hold it open with the prop rod by
inserting the free end of the rod into the slot in the
hood.
1RS104013A
Closing the Hood Check the area under the hood to make certain all
filler caps are in place and that all loose items have
been removed.
 Secure the support rod in its clip.
 Lower the hood to about 30 cm (12 inches) height
and then let it drop to properly lock in place.
 Check to make sure the hood is closed.
WARNING
Hold the upper part wrapped in rubber of the
support rod. If you hold the other parts when
the support rod is heated by engine, you may
get burned.
CAUTION
Before closing the hood, make sure that all parts
and tools have been removed from the engine
area and that everyone is clear of the hood open-
ing.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 58

3-59

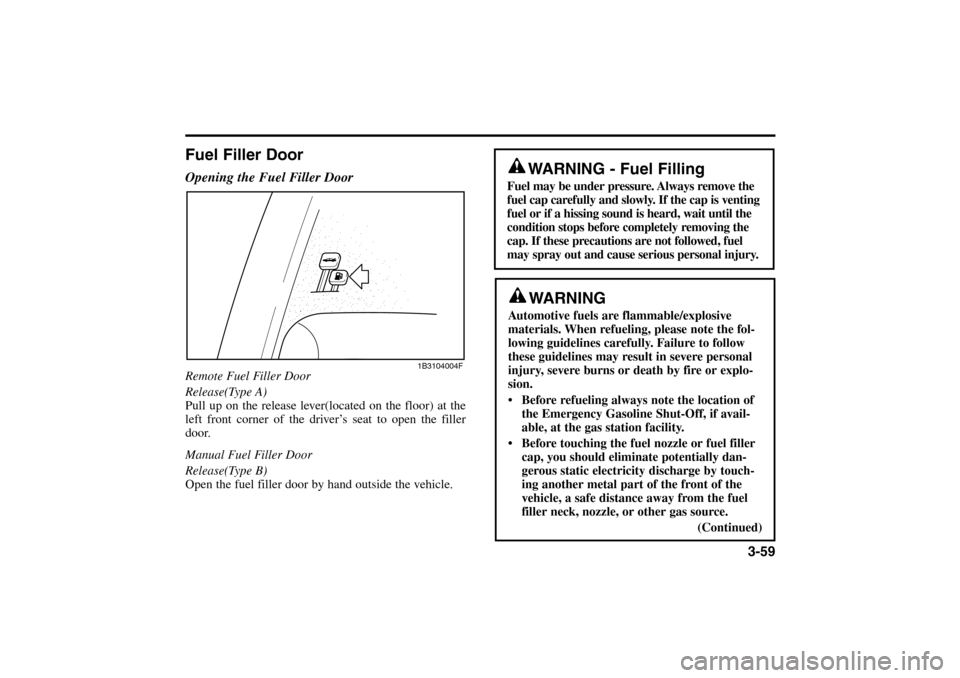

Fuel Filler DoorOpening the Fuel Filler DoorRemote Fuel Filler Door
Release(Type A)
Pull up on the release lever(located on the floor) at the
left front corner of the driver’s seat to open the filler
door.
Manual Fuel Filler Door
Release(Type B)
Open the fuel filler door by hand outside the vehicle.
1B3104004F
WARNING - Fuel Filling
Fuel may be under pressure. Always remove the
fuel cap carefully and slowly. If the cap is venting
fuel or if a hissing sound is heard, wait until the
condition stops before completely removing the
cap. If these precautions are not followed, fuel
may spray out and cause serious personal injury.
WARNING
Automotive fuels are flammable/explosive
materials. When refueling, please note the fol-
lowing guidelines carefully. Failure to follow
these guidelines may result in severe personal
injury, severe burns or death by fire or explo-
sion.
 Before refueling always note the location of
the Emergency Gasoline Shut-Off, if avail-
able, at the gas station facility.
 Before touching the fuel nozzle or fuel filler
cap, you should eliminate potentially dan-
gerous static electricity discharge by touch-
ing another metal part of the front of the
vehicle, a safe distance away from the fuel
filler neck, nozzle, or other gas source.
(Continued)
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 59

Knowing Your Vehicle3-60
(Continued)
 Do not get back into a vehicle once you have
begun refueling. Do not touch, rub or slide
against any item or fabric (polyester, satin,
nylon, etc.) capable of producing static elec-
tricity. Static electricity discharge can ignite
fuel vapors resulting in explosion. If you
must re-enter the vehicle, you should once
again eliminate potentially dangerous static
electricity discharge by touching a metal part
of the vehicle, away from the fuel filler neck,
nozzle or other gasoline source.
 When using a portable fuel container be sure
to place the container on the ground prior to
refueling. Static electricity discharge from the
container can ignite fuel vapors causing a
fire. Once refueling has begun, contact with
the vehicle should be maintained until the
filling is complete. Use only portable fuel con-
tainers designed to carry and store gasoline.
 Do not use cellular phones around a gas sta-
tion or while refueling any vehicle. Electric
current and/or electronic interference from
cellular phones can potentially ignite fuel
vapors causing a fire.
(Continued)
(Continued)
If you must use your cellular phone, use it in a
place away from the gas station.
 When refueling always shut the engine off.
Sparks produced by electrical components
related to the engine can ignite fuel vapors
causing a fire. Always insure that the engine
is OFF before and during refueling. Once
refueling is complete, check to make sure
the fuel filler cap and door are securely
closed, before starting the engine.
 Do not light any fire around a gas station.
DO NOT use matches or a lighter and DO
NOT SMOKE or leave a lit cigarette in your
vehicle while at a gas station especially dur-
ing refueling. Automotive fuel is highly
flammable and can, when ignited, result in
explosion by flames.
 If a fire breaks out during refueling, leave
the vicinity of the vehicle, and immediately
contact the manager of the gas station or
contact the police and local fire department.
Follow any safety instructions they provide.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 60

3-61
 To remove the cap, turn it counterclockwise.
 To install the cap, turn it clockwise until it “clicks.’’
This indicates that the cap is securely tightened.
✻ ✻
NOTICE
A loose fuel filler cap may cause the OBD-II
Malfunction Indicator Light ( ) light in the
instrument panel to illuminate unnecessarily.
Always ensure that the fuel filler cap is tight.
CHECK
CHECK
The fuel filler neck is designed to prevent filling the
fuel tank with anything but unleaded fuel.
If the fuel filler lid will not open in cold weather
because the area around it is frozen, push or lightly tap
the lid.
✻ ✻
NOTICE
If the fuel filler cap requires replacement, use
only a genuine Kia cap. An incorrect fuel filler
cap can result in a serious malfunction of the fuel
system or emission control system. Correct
replacement caps are available at Authorized Kia
Dealers.✻ ✻
NOTICE
Do not spill fuel on the exterior surfaces of the
vehicle. Any type of fuel on painted surfaces may
damage the paint.
AS2B03046A
RemoveInstall
Fuel filler
neck
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 61

Knowing Your Vehicle3-62Steering WheelHornTo sound the horn, press the horn symbol on your
steering wheel. Check the horn regularly to be sure it
operates properly.
S R S

AIR BAG
1RS104021C
MirrorsOutside Rearview MirrorYour vehicle is equipped with both left-hand and right-
hand outside rearview mirrors. The mirrors can be
adjusted from the vehicle interior with remote control
levers, or a remote control switch, depending on the
type of control fitted. The mirror heads can be folded
rearward to prevent damage when using on automatic
car wash.
CAUTION
 The right outside rearview mirror is convex.
Objects seen in the mirror are closer than they
appear.
 When changing lanes, use your interior
rearview mirror or direct observation to deter-
mine the actual distance of following vehicles
behind you.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 62
