In Case Of An Emergency6-206. For models with alloy wheels, remove the center
cap.
WARNING - Changing a Front
Tire
When one front wheel is lifted off the ground,
neither the automatic transaxle P (Park)
position nor the manual transaxle R (Reverse)
position will prevent the vehicle from moving
and possibly slipping off the jack, even if these
positions are properly engaged. To prevent
vehicle movements while changing a tire,
always set the parking brake fully, and always
block the wheel diagonally opposite the wheel
being changed.
7. Loosen the four lug nuts counterclockwise one turn
each, but do not remove any nut until the tire has
been raised off the ground.
3
2
4
1
1B3106002C
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 20

6-21
8. Place the jack at the front or rear jacking position
closest to the tire you are changing. Place the jack
under the side sill at the designated location.
9. Insert the jack handle into the jack and turn it
clockwise, raising the vehicle until the tire just
clears the ground, approximately 30 mm (1.2 in.).
Before removing the lug nuts, make sure the
vehicle is stable and that there is no chance for it to
slip or move.
WARNING -Jack Location
To reduce the possibility of injury, be sure to
use only the jack provided with the vehicle and
in the correct jack position; never use any
other part of the vehicle for jack support.
1S2108008 AS2B06014
Jack handle
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 21

In Case Of An Emergency6-22
Once the lug nuts have been tightened, lower the
vehicle fully to the ground and continue to tighten the
lug nuts until they are completely secured.
If you are unsure of the tightness of the wheel lug nuts,
have them checked at the nearest service station. The
specified tightening torque is 103 N.
m (76 ft. lb.).
CAUTION
Your vehicle has metric threads on the wheel studs
and nuts. During wheel removal, make certain
that the same nuts removed are reinstalled - or, if
replaced, that nuts with metric threads and the
same configuration are used. Installation of a non-
metric thread nut on a metric stud or vice-versa
will not secure the wheel to the hub properly and
will damage the stud so that it must be replaced.
Be sure to use extreme care in checking for thread
style before installing aftermarket lug nuts or
wheels. If in doubt, consult an Authorized Kia
Dealer. Damaged studs may result in wheel loss
and personal injury.
10. Remove the lug nuts by turning them
counterclockwise, then remove the wheel.
11. Mount the spare tire into position and tighten the
nuts by hand. Install the lug nuts with the beveled
edge inward.
12. Turn the jack handle counterclockwise and lower
the vehicle until it touches the ground. Tighten the
lug nuts firmly in an “X’’ pattern.
3
2
4
1
1B3106002B
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 22

6-23

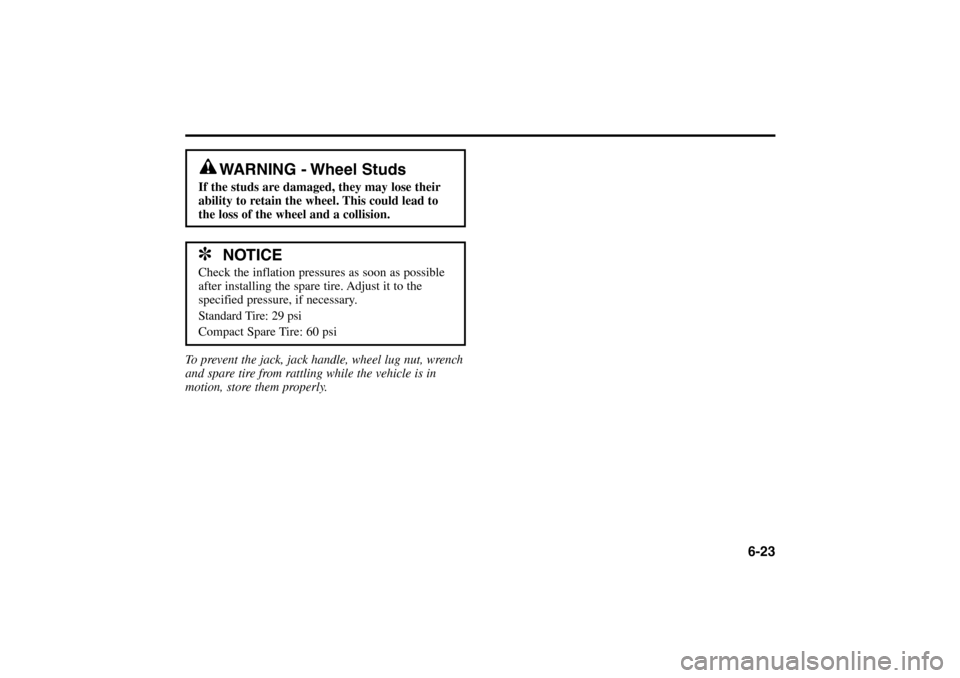

To prevent the jack, jack handle, wheel lug nut, wrench
and spare tire from rattling while the vehicle is in
motion, store them properly.
WARNING - Wheel Studs
If the studs are damaged, they may lose their
ability to retain the wheel. This could lead to
the loss of the wheel and a collision.✽
NOTICE
Check the inflation pressures as soon as possible
after installing the spare tire. Adjust it to the
specified pressure, if necessary.
Standard Tire: 29 psi
Compact Spare Tire: 60 psi
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 23

7-1
MAINTENANCEMaintenance Services . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . .7-5
Owner Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . . .7-13
Engine Oil and Oil Filter . . . . . . . . . . . . . . . . . . . . . . .7-14
Engine Cooling System . . . . . . . . . . . . . . . . . . . . . . .7-16
Brakes and Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . .7-20
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-21
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-22
Automatic Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .7-23
Lubricants and Fluids . . . . . . . . . . . . . . . . . . . . . . . . .7-26
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-27
Wiper Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-28
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-31
Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-34
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .7-42
Lubricant Specifications . . . . . . . . . . . . . . . . . . . . . . .7-47
7
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 1

Maintenance7-2Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-49
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-52
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 2

Maintenance ServicesYou should exercise the utmost care to prevent damage
to your vehicle and/or injury to yourself whenever
performing any maintenance or inspection procedures.
Should you have any doubts concerning the inspection
or servicing of your vehicle, we strongly recommend
that you have an Authorized Kia Dealer perform this
work.
An Authorized Kia Dealer has factory-trained
technicians and genuine Kia parts to service your
vehicle properly. For expert advice and quality service,
see an Authorized Kia Dealer.
Inadequate, incomplete or insufficient servicing may
result in operational problems with your vehicle that
could lead to vehicle damage, an accident or personal
injury.
Owner’s ResponsibilityMaintenance Service and Record Retention are the
owner’s responsibility.
You should retain documents to show that proper
maintenance has been performed on your vehicle in
accordance with the scheduled maintenance service
charts shown on the following pages. You need this
information to be able to establish your compliance
with the servicing and maintenance requirements of
your Kia warranties.
Detailed warranty information is provided in your
Warranty and Consumer Information Manual. Repairs
and adjustments required as a result of improper
maintenance or a lack of required maintenance are not
covered.
We recommend that such maintenance be performed
by an Authorized Kia Dealer using genuine Kia parts.
7-3
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 3

Scheduled Maintenance ServiceAfter 96 months or 192,000 km (60,000 miles)
continue to follow the prescribed maintenance
intervals.Maintenance7-4
