2005 KIA Rio Owner's Manual

7-53
Lap/Shoulder Belt Webbing Cleaning
Clean the belt webbing with any mild soap solution
recommended for cleaning upholstery or carpet. Follow
the instructions provided with the soap. Do not bleach
or re-dye the webbing because this may weaken it.
Interior Window Glass Cleaning
If the interior glass surfaces of the vehicle become
fogged (that is, covered with an oily, greasy or waxy
film), they should be cleaned with glass cleaner.
Follow the directions on the glass cleaner container.
CAUTION
Using anything but recommended cleaners and
procedures may affect the fabric’s appearance
and fire-resistant properties.✻ ✻
NOTICE
Do not scrape or scratch the inside of the rear
window. This could damage the rear window
defroster grid.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 53

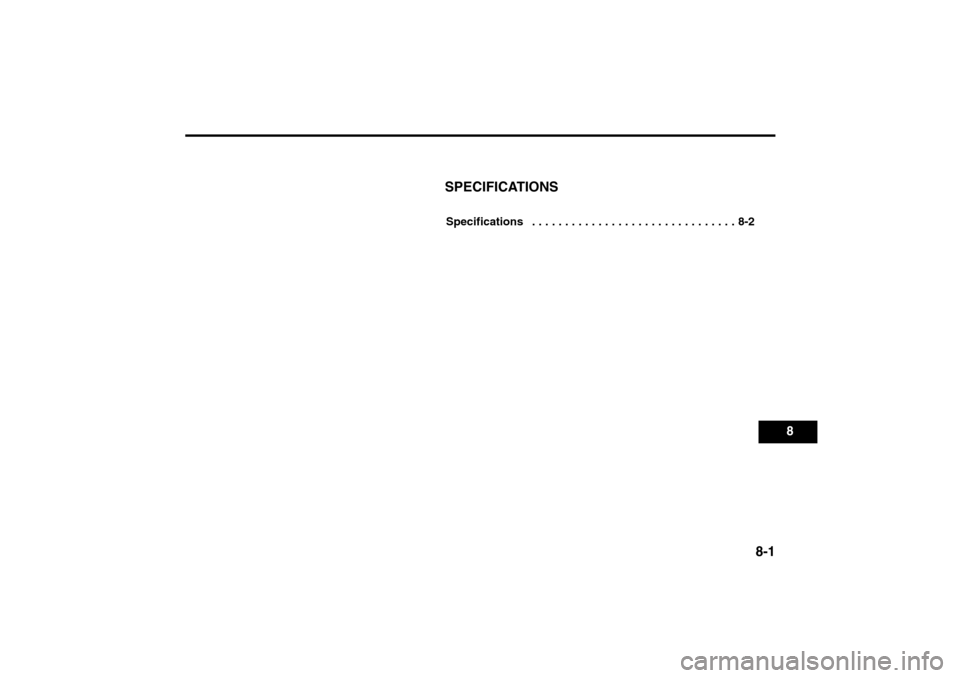

8-1
SPECIFICATIONSSpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-1

SpecificationsThe specifications given here are for general
information only. Please check with an authorized Kia
dealer for more precise and more up-to-date
information.
DIMENSIONS Unit: mm (in)WEIGHTS
Refer to the label describing GVWR & GAWR
weights attached to your vehicle.
(see page 5-13, Label information)
AIR CONDITIONERSpecifications8-2
Item 4 Door 5 Door
Overall length 166.9 (4,240)
166.9 (4,240)
Overall width 66.1 (1,680) 66.1 (1,680)Overall height w/o roof rack
56.5 (1,435) -
Overall height with roof rack
- 57.9 (1,470)
Front tread 56.3 (1,430) 56.3 (1,430)
Rear tread 56.5 (1,435) 56.5 (1,435)
Wheelbase 94.9 (2,410) 94.9 (2,410)
Refrigerant complies with SAE J639 R134a
Maximum operating charge480 ± 25 g
(16.93 ± 0.88 oz.)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-2

8-3
LIGHT BULBS
Light Bulb Wattage
Front Headlights 60/55
Turn signal lights 28/8
Rear Fog light (if equipped) 27
Stop and tail lights 28/8
Turn signal lights4 Door 27
5 Door 21
Backup lights 27
Side marker lights 5
License plate lights 5
Interior Interior lights 10
High mounted stop 4 Door 21
lights (if equipped) 5 Door 5
Map lights(if equipped) 5
TIRES
SizeInflation Pressure
Front Rear
TypeP175/65R 14 81T 29 psi (200 kPa) 29 psi (200 kPa)
T105/70D 14
60 psi (415 kPa)
T105/70R 14
Spare tire
(Temporary
spare)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-3

CAPACITIES
M/T: Manual Transaxle
A/T: Automatic Transaxle ENGINE
ELECTRICAL SYSTEM
Specifications8-4
Item
Borex Stroke1.6 DOHC
Displacement 1594 cc (97.2 cu. in.)
Compression Ratio
10.0:1 78 mmx 83.4 mm
(3.07 in.x 3.28 in.)
Item liter/US qt.
Item 1.6 DOHC
Battery
Alternator 12V-80 Amp
StarterM/T 12V-0.85 kw12 volt MF
60 AH
A/T 12V-0.85 kw
Spark
plugsGap1.0-1.1 mm
(0.028-0.032 in.)TypeBKR6ES-II (NGK)
RC8YC4 (CHAMPION)
Engine Oil w/Filter 3.4/3.59
Engine Oil w/o Filter 3.2/3.38Coolant 2.6+/0.38+
liter/US gal.
Fuel Tank 45/11.7Transaxle OilM/T
A/T2.8/2.9
5.9/6.2
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-4

CLUTCH
8-5
GEAR RATIOGear Manual Transaxle Automatic Transaxle1st 3.417:1 2.800:12nd 1.895:1 1.540:13rd 1.296:1 1.000:14th 0.968:1 0.700:15th 0.780:1 -Reverse
3.272:1 2.333:1
Clutch Control
Type
Clutch PedalCable
Suspended
Full stroke129.3 mm
(5.091 inches)
Height195 mm
(7.677 inches)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-5

Index
9-1
A
ir Bag - Supplemental Restraint System.....................3-46
Air Cleaner ......................................................................7-27
Automatic Transaxle................................................4-9, 7-23
Battery ............................................................................7-31
Before Driving ..................................................................5-4
Brake System ..................................................................4-15
Brakes and Clutch ...........................................................7-20
Bulb Replacement ...........................................................7-42C
limate Control System ................................................4-44
Connection Jumper Cables ...............................................6-5
Cup Holders and Console Storage Compartment ...........3-66
D
aytime Running Lights(DRL) .....................................4-35
Door Locks........................................................................3-5
Electrical Circuit Protection ............................................6-7
Emergency Starting ...........................................................6-4Emission Control System..................................................5-3
Engine Compartment ......................................................7-13
Engine Cooling System ..................................................7-16
Engine Oil and Oil Filter ................................................7-14
Exterior Care ...................................................................7-49
Fuel Filler Door .............................................................3-59
Fuel Requirements ............................................................5-2G
auges ...........................................................................4-25
H
ood ..............................................................................3-57
How To Use This Manual .................................................1-2
If You Have a Flat Tire ..................................................6-16
Ignition Switch ..................................................................4-2
Instrument Cluster...........................................................4-23
Instrument Panel Overview ..............................................2-4
Interior and Exterior Overview .........................................2-2
9
RIO ENG CNA 9.qxd 7/29/05 5:19 PM Page 9-1

Interior Care ....................................................................7-52
Interior Features ..............................................................4-40
Interior Lights .................................................................3-65K
eyless Entry System......................................................3-3
Keys ..................................................................................3-2
Label Information ..........................................................5-13
Lighting ...........................................................................4-33
Lubricant Specifications .................................................7-47
Lubricants and Fluids......................................................7-26
Luggage Net ....................................................................3-68M
aintenance Schedule ...................................................7-5
Maintenance Services .......................................................7-3
Manual Transaxle ..............................................................4-7
Mirrors ............................................................................3-62
O
verheating .....................................................................6-2
Overloading.....................................................................5-13
Owner Maintenance ........................................................7-10
Parking Brake ................................................................7-21
Power Outlet ...................................................................3-70
Power Steering.......................................................4-22, 7-22
R
ear Hatch .....................................................................3-54
Rear Window Defroster ..................................................4-38
Road Warning ...................................................................6-2
Roof Rack .......................................................................3-69
Safety Belts ....................................................................3-20
Seats ................................................................................3-11
Special Driving Conditions...............................................5-7
Specifications ................................................................... 8-2
Starting the Engine............................................................4-4
Steering Wheel ................................................................3-62
Suggestions for Economical Operation ............................5-6
Sunglass Holder ..............................................................3-67Tilt Steering ...................................................................4-22
Tires and Wheels.............................................................7-34
Tonneau Cover ................................................................3-71
Towing ............................................................................6-14
Trailer Towing.................................................................5-12
Trunk Lid ........................................................................3-55V
ehicle Break-In Process ................................................1-3
W
arnings and Indicators ...............................................4-27
Windows ...........................................................................3-8
Index9-2
RIO ENG CNA 9.qxd 7/29/05 5:19 PM Page 9-2
