Driving Your Vehicle4-28Low Brake Fluid Level Warning
If the warning light remains ON when the parking
brake is released, it may indicate that the brake fluid
level in the reservoir is low.
If the warning light remains ON:
1. Drive to the nearest safe location and carefully stop
your vehicle.
2. With the engine stopped, check the brake fluid level
immediately and add fluid as required. All brake
components should also be checked immediately
for fluid leaks.
3. If leaks are found, if the warning light remains ON,
or if the brakes do not operate properly, do not
drive the vehicle. Have it towed to an Authorized
Kia Dealer for a brake system inspection and nec-
essary repairs.To check bulb operation, the warning light illuminates
when the ignition switch is in the ON position.
Safety Belt Warning As a reminder to the driver and passenger, safety belt
warning light will illuminate for approximately 6 sec-
onds each time you turn the ignition switch ON.
If the driver’s lap/shoulder belt is not fastened when
the key is turned ON, a chime sounds for approximate-
ly six seconds and the safety belt warning light illumi-
nates for approximately six seconds. If the system does
not operate as described, see an Authorized Kia Dealer
for assistance.Air Bag Warning This warning light will remain ON for approximately
6 seconds each time you turn the ignition switch ON.
If the system does not operate as described or if the
light comes on while the vehicle is being driven, see an
Authorized Kia Dealer for immediate assistance.Charging System Warning This warning light indicates a malfunction of either the
generator or electrical charging system.
–
+
WARNING - Brake Warning
Lights
Driving the vehicle with a warning light ON is
dangerous. If the brake warning light remains
ON, have the brakes checked and repaired
immediately.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 28

4-29
If the warning light illuminates while driving:
1. Drive to the nearest safe location and carefully stop
your vehicle.
2. With the engine OFF, check the generator drive belt
for looseness or breakage.
3. If the belt is adjusted properly, a problem exists
somewhere in the electrical charging system. Have
an Authorized Kia Dealer locate and correct the
problem as soon as possible.Engine Oil Pressure Warning This warning light indicates the engine oil pressure is
low.
If the warning light comes ON while driving:
1. Drive safely to the side of the road and stop.
2. With the engine OFF, check the engine oil level. If
the level is low, add oil as required.
If the warning light remains ON after adding oil or if
oil is not available, call an Authorized Kia Dealer.Low Fuel Level Warning This warning light indicates the fuel tank is near
empty. The warning light will come on when the fuel
level has dropped to about 9 liters (2.4 US gal.).
Refuel as soon as possible.
✽
NOTICE
Do not drive the vehicle with a loose or broken
generator belt; the engine could be damaged by
overheating because this belt also drives the water
pump.
✽
NOTICE
 If the engine is not stopped as soon as possible,
severe engine damage could result.
 Do not drive the vehicle when the Engine Oil
Pressure Warning Light is ON.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 29

4. Turn off all unnecessary electrical loads.
5. Connect the jumper cables in the exact sequence
shown in the illustration on the previous page.
First, connect one end of a jumper cable to the
positive terminal (+) of the discharged battery ,
then the other end of the same cable to the positive
terminal (+) on the booster battery . Next,
connect one end of the other jumper cable to the
negative terminal (–) of the booster battery , then
the other end to a solid, stationary, metallic point
(for example, the engine lifting bracket) away
from the battery. Do not connect the jumper cable
to or near any part that moves when the engine is
cranked. Do not connect the jumper cable from the
negative terminal (–) of the booster battery to the
negative terminal (–) of the discharged battery. Do
not allow the jumper cables to contact anything
except the correct battery terminals or the correct
ground. Do not lean over the battery when making
connections.6. Start the engine of the vehicle with the booster
battery and run it at 2,000 rpm. Then, start the
engine of the vehicle with the discharged battery.
If the cause of your battery discharging is not apparent
(for example, having left the lights on accidentally),
you should have your vehicle checked by an Authorized
Kia Dealer.
Push-StartingA vehicle equipped with an automatic transaxle cannot
be started by pushing. A vehicle equipped with a
manual transaxle should not be push-started because it
could damage the emission control system. Follow the
directions for jump starting.
In Case Of An Emergency6-6
CAUTION
Never tow a vehicle to start it. A sudden surge
forward when the engine starts could cause a
collision with the tow vehicle.
1
2
3
4
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 6

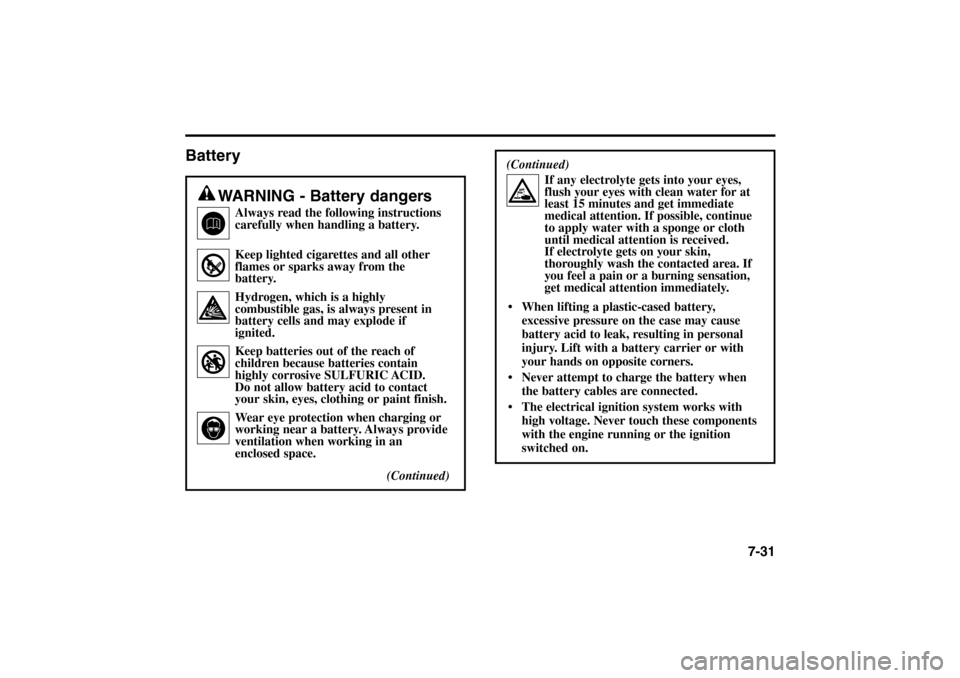

Battery
7-31
WARNING - Battery dangers
Always read the following instructions
carefully when handling a battery.
Keep lighted cigarettes and all other
flames or sparks away from the
battery.
Hydrogen, which is a highly
combustible gas, is always present in
battery cells and may explode if
ignited.
Keep batteries out of the reach of
children because batteries contain
highly corrosive SULFURIC ACID.
Do not allow battery acid to contact
your skin, eyes, clothing or paint finish.
Wear eye protection when charging or
working near a battery. Always provide
ventilation when working in an
enclosed space.
(Continued)
(Continued)
If any electrolyte gets into your eyes,
flush your eyes with clean water for at
least 15 minutes and get immediate
medical attention. If possible, continue
to apply water with a sponge or cloth
until medical attention is received.
If electrolyte gets on your skin,
thoroughly wash the contacted area. If
you feel a pain or a burning sensation,
get medical attention immediately.
• When lifting a plastic-cased battery,
excessive pressure on the case may cause
battery acid to leak, resulting in personal
injury. Lift with a battery carrier or with
your hands on opposite corners.
 Never attempt to charge the battery when
the battery cables are connected.
 The electrical ignition system works with
high voltage. Never touch these components
with the engine running or the ignition
switched on.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 31

Battery MaintenanceFor best battery service:
 Keep the battery securely mounted.
 Keep the battery top clean and dry.
 Keep the terminals and connections clean, tight, and
coated with petroleum jelly or terminal grease.
 Immediately rinse any spilled electrolyte from the
battery with a solution of water and baking soda.
 If the vehicle is not going to be used for an extended
period of time, disconnect the battery cables.Maintenance7-32Battery Recharging
Your vehicle has a maintenance-free, calcium-based
battery.
 If the battery becomes discharged in a short time
(headlights or interior lights were left on while the
vehicle was not in use), recharge it by slow (trickle)
charging for 10 hours.
 If the battery gradually discharges because of high
electric load while the vehicle is being used,
recharge it at 20-30A for two hours.
AS2B07020
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 32

7-33
WARNING - Recharging Battery
When recharging the battery, observe the
following precautions:
 The battery must be removed from the
vehicle and placed in an area with good
ventilation.
 Do not allow cigarettes, sparks, or flame
near the battery.
 Watch the battery during charging, and stop
or reduce the charging rate if the battery
cells begin gasing (boiling) violently or if the
temperature of the electrolyte of any cell
exceeds 49°C (120°F).
 Wear eye protection when checking the
battery during charging.
(Continued)
(Continued)
 Disconnect the battery charger in the
following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the
negative battery terminal.
3. Unhook the positive clamp from the
positive battery terminal.✻ ✻
NOTICE
 Before performing battery maintenance or
recharging, turn OFF all accessories and stop
the engine.
 When remounted battery, disconnect the
negative (–) battery cable first. When re-
installing the battery, reconnect the negative (–)
battery cable last.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 33
