1FEATURES OF YOUR HYUNDAI
40
B230C02TG
Rear seat package tray
Tether Strap Hook
Front of Vehicle
2. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest and between the head-rest posts, otherwise route the tether strap over the top of the seatback. Child Restraint Hook Holders
B230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the rear seat package tray.
B230C01NF
Tether Anchor Cover
1. Open the tether anchor cover on therear seat package tray. Child Restraint Hook Holder
B230B02A-AAT Using a Child Restraint System With "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is stronglyrecommended and may be required in your state. This child seat or infant seat should be of appropriate size for thechild and should be installed in accor- dance with the manufacturer's instruc- tions. It is further recommended thatthe seat be placed in the vehicle's rear seat since this can make an important contribution to safety. Your vehicle isprovided with three child restraint hook holders on the rear seat package tray for installing the child seat or infant seat.Holder Bolt (5/16"-22 mm)
B230B01TG
Conical Spring Washer Child Restraint Hook HolderRetainer Washer

1
FEATURES OF YOUR HYUNDAI
41
B230D01TG-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardized method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation. B230D01NF
On each side of the rear seat, between the cushion and backrest, are located apair of ISOFIX anchorage points to- gether with a top tether mounting on the rear seat package tray. During the in-stalling, the seat has to be engaged at the anchorage-points in a way you can hear it clicking (check by pulling!) andhas to be fixed with the TopTether-belt on the belonging point of the rear seat package tray. The installing and theuse of a child-seat has to be done according to the installing-manual, which is added to the ISOFIX-seat.B230D02TG
ISOFIX Anchor
ISOFIX Anchor Position Indicator
3. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat.
B230D03TG
NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
1. To engage the child restraint seat tothe ISOFIX anchor, insert the child restraint seat latch into the ISOFIXanchor. Listen for the audible "click" sound.

1FEATURES OF YOUR HYUNDAI
42
B230H01JM-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriatefor your children. When using the child safety seats, refer to the following table.
Rear
Center
Age Group Seating Position
L1, L2,
L3, L4 X
XX XX XX Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4 years)II & III : 15kg to 36kg(4 ~ 12 years) X
L1, L2,
L3, L4
L3, L5,
L6, L7, L8
L6, L9
L1 : Suitable for Bebe confort ELIOS (E2 037014) approved for the use in this mass group
L2 : Suitable for PegPerego primo Viaggio (E13 030010) approvedfor the use in this mass group
vehicle rear seat belt metal latch plates or tabs must be latchedsecurely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraintto prevent the child from reaching and taking hold of unretracted seat
belts. Unlatched metal latch platesor tabs may allow the child to reach the unretracted seat belts which may result in strangulationand a serious injury or death to the child in the child restraint.
o Do not mount more than one child
restraint to a single tether or achild restraint lower anchorage point. The improper increased loadmay cause the anchorage points or tether anchor to break, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com- patible child seat only to the ap-propriate locations shown in theillustration.
o Always follow the installation and
use instructions provided by themanufacturer of the child re- straint.
!WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only providedfor the left and right outboard rear seating positions. Do not misuse the ISOFIX anchors by attemptingto attach a child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, thechild seat ISOFIX attachments may not be strong enough to secure the child restraint seat properly inthe center of the rear seat and may break, causing serious injury or death.
o When using the vehicle’s “ISOFIX” system to install a child restraintsystem in the rear seat, all unused
2. Connect the tether strap hook to the
child restraint hook holder and tightento secure the seat. Refer to "Secur- ing a Child Restraint System With Tether Anchorage System" on page1-40.

1
FEATURES OF YOUR HYUNDAI
43
L3 : Suitable for Bebe confort iSEOS (E2 039014) approved for the use in this mass group
NOTE: Use it after adjusting the headrest to the lowest level.
L4 : Suitable for GRACO Autobaby (E11 03. 44.160/E11 03.44.161) approved for the use in this mass group
L5 : Suitable for Romer Lord Plus (E1 03301136) approved for the use inthis mass group
L6 : Suitable for Euro Kids Star (E1 03301128/E1 03301129)approved for the use in this mass group
L7 : Suitable for BeSafe iZi COMFORT (E4 03443206) approved for thisuse in this mass group
NOTE: Use it after removing the headrest or adjusting the headrest to thelowest level. L8 : Suitable for MAXI-COSI Priori XP
(E1 03301153) approved for theuse in this mass group
L9 : Suitable for Bebe confort HiPSOS
(E2 031011) approved for this usein this mass group
NOTE: Use it after removing the headrest.
X : Seat position not suitable for chil- dren in this mass group
When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position.
HXG229
B180B01NF-GAT Pre-tensioner Seat Belt (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belt fits tightly against theoccupant's body in certain frontal col- lisions. The pre-tensioner seat belts can beactivated with the airbags.

1FEATURES OF YOUR HYUNDAI
44
NOTE:
o Both the driver's and frontpassenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags.
o When the pre-tensioner seat belts are activated, a loud noise maybe heard and fine dust, whichmay appear to be smoke, may be visible in the passenger compart- ment. These are normal operat-ing conditions and are not haz- ardous.
o Although it is harmless, the fine dust may cause skin irritationand should not be breathed for prolonged periods. Wash all ex-posed skin areas thoroughly af- ter an accident in which the pre- tensioner seat belts were activated.
!
The seat belt pre-tensioner system consists mainly of the following compo- nents, whose locations are shown in the illustration:
1. SRS airbag warning light
2. Retractor pre-tensioner assembly
3. SRS control module
4. Buckle pre-tensioner assembly B180B01NF
1
2
3
Driver's airbag
Passenger's airbag
WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position. 4
!
In certain frontal collisions, the pre- tensioner will activate and pull the seatbelt into tighter contact against the occupant's body. The buckle pre- tensioner (which is installed in thebuckle) will also pull the seat belt into the buckle.
CAUTION:
Do not put anything near the buckle. Placing objects near the buckle can adversely affect the buckle pre- tensioner and may increase the riskof personal injury in the event of a collision. If the system senses excessive seat belt tension on the driver or passenger's seat belt when the pre-tensioner acti- vates, the load limiter inside the pre-tensioner will release some of the pres- sure on the affected seat belt.

1
FEATURES OF YOUR HYUNDAI
45
!!
AIR
BAG
CAUTION:
o Because the sensor that activates the SRS airbag is connected with pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will illuminatefor approximately 6 seconds af- ter the ignition key has been turned to the "ON" position, andthen it should turn off.
o If pre-tensioner seat belt is not
working properly, this warninglight will illuminate even if there is no malfunction of the SRS airbag. If the SRS airbag warninglight does not illuminate when the ignition key is turned to "ON", or if it blinks for a second andremains illuminated after illumi- nating for approximately 6 sec- onds, or if it illuminates while thevehicle is being driven, please have an authorized Hyundai dealer inspect the pre-tensioner seat beltor SRS airbag system as soon as possible. WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat beltsmust be replaced. All seat belts, of any type, should always be replaced after they have beenworn during a collision.
o The pre-tensioner seat belt as-
sembly mechanisms become hotduring activation. Do not touch the pre-tensioner seat belt as- semblies for several minutes af- ter they have been activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat beltsyourself. This must be done by an authorized Hyundai dealer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or repair the pre-tensioner seat belt system in any manner.
o Improper handling of the pre-tensioner seat belt assemblies, and failure to heed the warnings not tostrike, modify, inspect, replace, service or repair the pre-tensioner seat belt assemblies may lead toimproper operation or inadvertent activation and serious injury.
o Always wear the seat belts when driving or riding in a motor ve-hicle.

1FEATURES OF YOUR HYUNDAI
46
B240D01TG-GAT (If Installed)

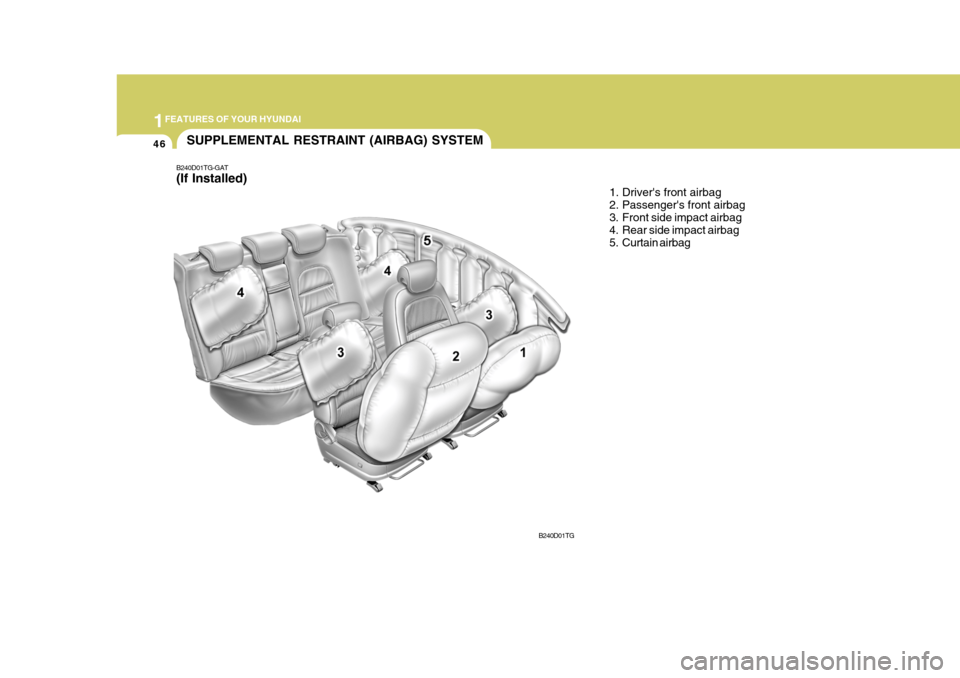

SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
1. Driver's front airbag
2. Passenger's front airbag
3. Front side impact airbag
4. Rear side impact airbag
5. Curtain airbag
B240D01TG

1
FEATURES OF YOUR HYUNDAI
47
!
passenger with additional protection than that offered by the seatbelt sys-tem alone, in case of a frontal impact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the backside of the sun visor and in the glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and be supplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore, your seat belts must be worn at alltimes while the vehicle is in mo- tion. The airbags deploy only in certain frontal impact conditionssevere enough to likely cause significant injury to the vehicle occupants.
B240A01NF-GAT Driver's and Passenger's Front Airbag Your Hyundai is equipped with a Supplemental Restraint (Airbag) Sys-tem. The indications of the system's presence are the letters "SRS AIR BAG" embossed on the airbag padcover in the steering wheel and the front passenger's panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in thecenter of the steering wheel and the front passenger's panel above the glove box. The purpose of the SRS is toprovide the vehicle's driver or the front
B240A01TG
B240A02TG
Rear impact
o The SRS is designed to deploy the
airbags only when an impact issufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat beltsmust be worn at all times.
o Front airbags are not intended to deploy in side-impact, rear-im- pact or rollover crashes. In addi- tion, airbags will not deploy infrontal crashes below the deploy- ment threshold speed.Side Impact
Rollover
Driver's Front Airbag
