DO-IT-YOURSELF MAINTENANCE
37FUSE PANEL DESCRIPTION
G200C01TG-GAT
Engine Compartment
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. HTG4005

6 DO-IT-YOURSELF MAINTENANCE
38
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
HORNTAIL
ECU IG1
DRL
FR FOG
A/CON
F/PUMP
DIODE ATM
STOP
H/LP LO RH
S/ROOF
H/LP WASHER
H/LP HI
ECU (B+)
SNSR3 SNSR1 SNSR2B/UP
IGN COIL
ECU (IG1)
H/LP LO ABS PROTECTED COMPONENTS
ABS/ESP Control module, Multipurpose check connectorABS/ESP Control module, Multipurpose check connector Fuse(FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN) Defogger relay Blower relay Fuse(P/WDW LH, P/WDW RH) Start relay, Ignition switch(IG2, START) Engine control unit relay Fuse(KEY SOL, ECS/RR FOG), Power connector Ignition switch(ACC, IG1) Fusible link(ABS1, ABS2, RR HTD, BLOWER) Horn relay Tail light relay PCM (Spare) Burglar alarm horn relay Front fog light relay A/C Relay Fuel pump relay (Spare) ATM Control relay Stop light switch HID Relay Overhead console lamp Headlight washer motor Headlight relay (HIGH) PCM Injector#1~#6, A/C Relay, Cooling fan relay Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2, Variable intake manifold valve Oxygen Sensor#1~#4 Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor Ignition coil#1~#6, Condenser PCM Headlight relay(LOW) ABS/ESP Control module, Multipurpose check connector
ABS1 ABS2
I/P (B+)1
RR HTD
BLOWER
P/WDW IGN2
ECU RLY I/P (B+)2
IGN1ALT FUSE RATING
40A20A 40A 40A 40A 40A 40A 30A 30A 30A
150A
15A 20A 10A 10A 15A 15A 10A 20A
-
20A 15A 15A 15A 20A 20A 10A 10A 15A 15A 10A 20A 10A 20A 10ADESCRIPTION
FUSIBLE LINK
FUSE

6
DO-IT-YOURSELF MAINTENANCE
39
G200E01TG-GAT

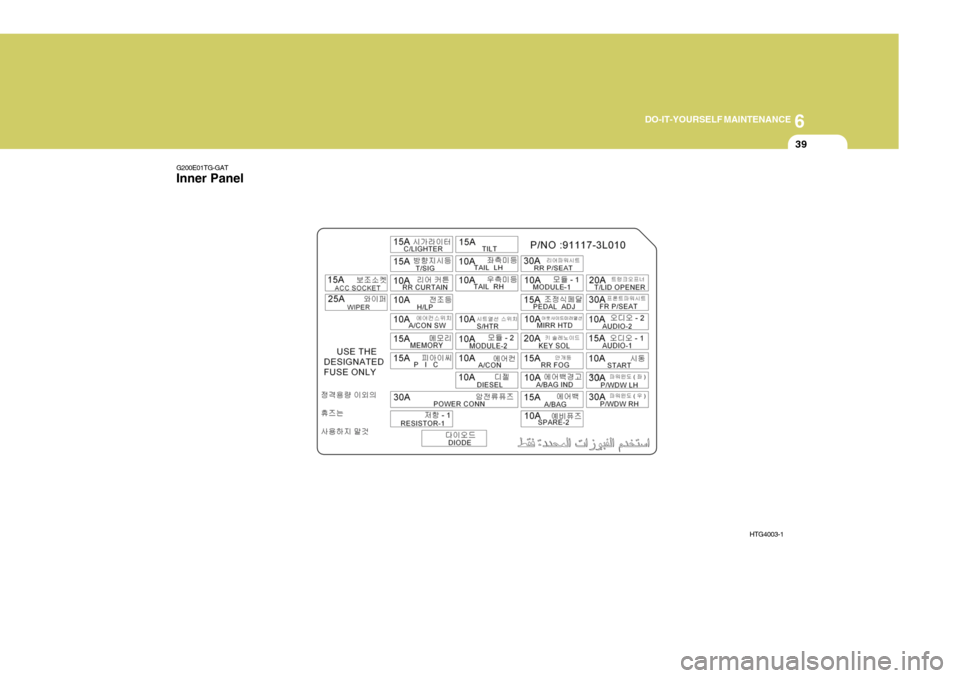

Inner Panel
HTG4003-1

6 DO-IT-YOURSELF MAINTENANCE
40
PROTECTED COMPONENTS
Fuel lid opener & Trunk lid switch Front lumbar support switch, IMS Control module, Driver/Passenger seat manual switch ATM Key lock control module, Audio, IMS Switch, Accessory relay, Seat/Power outlet relay,
Digital clock & Passenger seat belt IND.
AudioTransaxle range switch, Burglar alarm relay Left front safety window module, Left rear power window switch Right front safety window module, Right rear power window switchRight rear ICM relay boxInstrument cluster, BCM, Rear curtain module, Rain sensor, IMS Control module, Power window main switchBack warning buzzerLeft/Right outside mirror & mirror folding motor, A/C Control module Key solenoid, Power window main switch Rear fog light relayInstrument clusterAir bag cut off switch, SRS Control module(Spare)Tilt & Telescopic module, Sport mode switch Front fog light relay, Left rear combination light, License plate light, Left headlight
FUSE RATING 20A 30A10A 15A 10A 30A30A30A10A15A 10A 20A15A10A15A10A15A 10A 10A
FUSE
T/LID
FR P/SEAT AUDIO-2 AUDIO-1
START
P/WDW LH
P/WDW RH RR P/SEAT MODULE-1
PEDAL ADJ
MIRR HTD KEY SOLRR FOG
A/BAG IND A/BAG
SPARE-2 TILT
TAIL LH
TAIL RHPROTECTED COMPONENTS
Fuel lid opener & Trunk lid switch Front lumbar support switch, IMS Control module, Driver/Passenger seat manual switch ATM Key lock control module, Audio, IMS Switch, Accessory relay, Seat/Power outlet relay,
Digital clock & Passenger seat belt IND.
AudioTransaxle range switch, Burglar alarm relay Left front safety window module, Left rear power window switch Right front safety window module, Right rear power window switchRight rear ICM relay boxInstrument cluster, BCM, Rear curtain module, Rain sensor, IMS Control module, Power window main switchBack warning buzzerLeft/Right outside mirror & mirror folding motor, A/C Control module Key solenoid, Power window main switch Rear fog light relayInstrument clusterAir bag cut off switch, SRS Control module(Spare)Tilt & Telescopic module, Sport mode switch Front fog light relay, Left rear combination light, License plate light, Left headlight Right rear combination light, License plate light, Right headlight

6
DO-IT-YOURSELF MAINTENANCE
41
PROTECTED COMPONENTS
Driver seat warmer switch Instrument cluster, ESP Switch, BCM, ATM Key lock control module, YAW Rate sensor, Multi-function switch A/C Control module, Tilt & Telescopic module, Rheostat, Electric chromic mirror, Overhead console lamp (Spare) Cigarette lighterBCMRear curtain moduleHeadlight relay, AQS & Ambient sensor, HID relay, Headlight leveling actuatorA/C Control module, Blower relay, A/C Control module(AUTO) Data link connector, A/C Control module, Instrument cluster, Multi-function switch, Tilt & Telescopic module, BCM, Door warning switch, Room lamp, Left/Right foot lamp, Door lamp (Spare)Rear power outletWasher relay, Wiper relay(High), Wiper relay Fuse(MEMORY, AUDIO-1)
FUSE RATING 10A 10A 10A 10A 15A15A10A10A10A 15A 15A 15A25A30A
FUSE
S/HTR
MODULE-2
A/CON
DIESEL
C/LIGHTER T/SIG
RR CURTAIN
H/LP
A/CON SW
MEMORY
PIC
ACC SOCKET
WIPER
POWER CONN

Emission Control System ............................................ 7-2
Catalytic Converter ...................................................... 7-3
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2EMISSION CONTROL SYSTEMS
H010A01A-GAT
(If Installed)
Your Hyundai is equipped with an
emission control system to meet all requirements of the Emission prohibi- tion rules of your province.
There are three emission control sys-
tems which are as follows.
(1) Crankcase emission control sys- tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is recommended that you have your carinspected and maintained by an au- thorized Hyundai dealer in accordance with the maintenance schedule in thismanual. H010B01A-AAT
1. Crankcase Emission Control
System
The positive crankcase ventilation
(PCV) system is employed to preventair pollution caused by blow-by gasesbeing emitted from the crankcase. This system supplies fresh filtered air to the crankcase through the air in-take hose. Inside the crankcase, the fresh air mixes with blow-by gases, which then pass through the PCVvalve into the induction system.
H010C02Y-GAT
2. Evaporative Emission
Control System
The Evaporative Emission Control
System is designed to prevent fuelvapors from escaping into the atmo-sphere. Canister
While the engine is inoperative, fuel
vapors generated inside the fuel tankare absorbed and stored in the canis-ter. When the engine is running, the fuel vapors absorbed in the canister are drawn into the induction systemthrough the purge control solenoid valve. Purge Control Solenoid Valve
The purge control solenoid valve is
controlled by the ECM (Engine Control Module); when the engine coolant tem- perature is low, and during idling, it closes, so that evaporated fuel is not taken into the surge tank. After enginewarm-up, during ordinary driving, it opens so as to introduce evaporated fuel to the surge tank.

7
EMISSION CONTROL SYSTEMS
3
!
CATALYTIC CONVERTER
H020A01A-AAT All Hyundai vehicles are equipped
with a monolith type three-way cata- lytic converter to reduce the carbon monoxide, hydrocarbons and nitro-gen oxides contained in the exhaust gas. Exhaust gases passing through the catalytic converter cause it tooperate at a very high temperature. The introduction of large amounts of unburned gasoline into the exhaustmay cause the catalytic converter to overheat and create a fire hazard. This risk may be reduced by observ-ing the following: Catalytic Converter
H010D01A-AAT
3. Exhaust Emission Control
System
The Exhaust Emission Control Sys-tem is a highly effective system which controls exhaust emissions while maintaining good vehicle performance. WARNING:
o Use unleaded fuel only.
o Maintain the engine in good operating condition. Extremely high catalytic converter tempera-tures can result from improper operation of the electrical, igni- tion or multiport electronic fuelinjection.
o If your engine stalls, pings, knocks, or is hard to start, have your Hyundai dealer inspect and repair the problem as soon aspossible.
o Avoid driving with a very low fuel level. Running out of gaso-line may cause the engine to misfire and result in damage to the catalytic converter.
o Avoid idling the engine for peri-
ods longer than 10 minutes.
o The vehicle should not be pushed or pulled to get started.This may cause the catalyticconverter to overheat and cre- ate a fire hazard.
H020A01TG
