2005 Hyundai Azera instrument cluster

1. Headlight Leveling Device Switch (If Installed)
2. Rear Fog Light Switch (If Installed)
3. Electronic Stability Program (ESP) Switch(If Installed)
4. Panel Brightness Control Knob (Rheostat Switch)
5. Steering Wheel Tilt & Telescopic Lever
6. Hood Release Lever
7. Cigarette Lighter
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from theair freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
!
NOTE: Switch arrangements from No. 1 to No. 4 can be changed according to options. 8. Front Ashtray
9. Front Seat Warmer (If Installed)
10. Rear Window Curtain Switch (If Installed)
11. Digital Clock
12. Passenger's Seat Belt Warning Light (If Installed)
13. Hazard Warning Switch
14. Power Outlet

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Brake Pedal
5. Accelerator Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Audio Remote Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Cruise Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

1. Digital Clock
2. Passenger's Seat Belt Warning Light (If Installed)
3. Hazard Warning Switch
4. Electronic Stability Program (ESP) Switch(If Installed)
5. Steering Wheel Tilt & Telescopic Lever
6. Panel Brightness Control Knob (Rheostat Switch)
7. Rear Fog Light Switch (If Installed)
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
!
NOTE: Switch arrangements from No. 6 to No. 8 can be changed according to options. 8. Headlight Leveling Device Switch (If Installed)
9. Hood Release Lever
10. Front Seat Warmer (If Installed)
11. Front Ashtray
12. Cigarette Lighter
13. Rear Window Curtain Switch (If Installed)
14. Power Outlet

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Accelerator Pedal
5. Brake Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Cruise Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Audio Remote Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

YOUR VEHICLE AT A GLANCE
B255A01TG-GAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
High Beam Indicator Light Door Ajar Warning Light
Seat Belt Warning Light
Turn Signal Indicator LightsPassenger's Front Airbag OFF Indicator Light (If Installed)
ABS Service Reminder Indicator (SRI)
Low Oil Pressure Warning Light Parking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light
SRS (Airbag) Service Reminder Indicator (SRI)
Cruise Indicator Light (If Installed)
Malfunction Indicator Light
Electronic Stability Program Indicator Lights (If Installed)
Low Windshield Washer Fluid Level Warning Light
Front Fog Indicator Light
Cruise SET Indicator Light (If Installed)
* More detailed explanations of these items will be found beginning on page 1-62.Low Fuel Level Warning Light
Trunk Lid Open Warning Light Immobilizer Warning Light (If Installed)

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-5
Door Locks ................................................................... 1-9Theft-Alarm System ..................................................... 1-13
Windows ...................................................................... 1-16
Seats ........................................................................... 1-20
I.M.S (Integrated Memory System) .............................. 1-26
Seat Belts .................................................................... 1-31
Child Restraint System ................................................ 1-37
Supplemental Restraint (AIRBAG ) System................. 1-46
Instrument Cluster and Indicator Lights .......................1-58
Warning and Indicator Lights....................................... 1-62
Trip Computer .............................................................. 1-73
Multi-function Light Switch ........................................... 1-77
Windshield Wiper/Washer Switch ................................1-80
Sunroof ........................................................................ 1-89
Mirror ........................................................................... 1-96
Hood R elease ............................................................ 1-105
Cruise Co ntrol............................................................ 1-109
Heating and Cooling Control ...................................... 1-113
Stereo Sound System ............................................... 1-133
Audio System ............................................................ 1-136
Antenna ..................................................................... 1-167
FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
50
!
However, the fine dust generated during airbag deployment may cause skin irritation. Wash all exposed skin areas thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON"position.If the SRS is not working prop- erly,
(1)The SRS SRI does not come on when the ignition key isturned to the "ON" position or after the engine is started.
(2)The SRS SRI blinks for a sec- ond and remains on after illu-minating for about 6 secondswhen the ignition key is turned to the "ON" position or after he engine is started.
(3)The SRS SRI illuminates while driving.
If this occurs, have your vehicleimmediately inspected by your Hyundai dealer.
Passenger's Front Airbag
B240B05L
freshener onto these areas (Instru-ment cluster, instrument panel pad or air ventilator), it may damagethese parts. If the liquid from air freshener does leak onto these areas, wash them with water im-mediately.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout the vehicle. These conditions are normal and are not hazardous.
CAUTION:
o Do not install or place any acces- sories (drink holder, cassette holder, sticker, etc.) on the front passenger's panel above theglove box in a vehicle with a passenger's front airbag. Such ob- jects may become dangerous pro-jectiles and cause injury if the passenger's front airbag inflates.
o When installing a container of
liquid air freshener inside a ve-hicle, do not place it near the instrument cluster nor on the in-strument panel pad surface. If there is any leakage from the air B240B01TG
Passenger's Front Airbag!

1FEATURES OF YOUR HYUNDAI

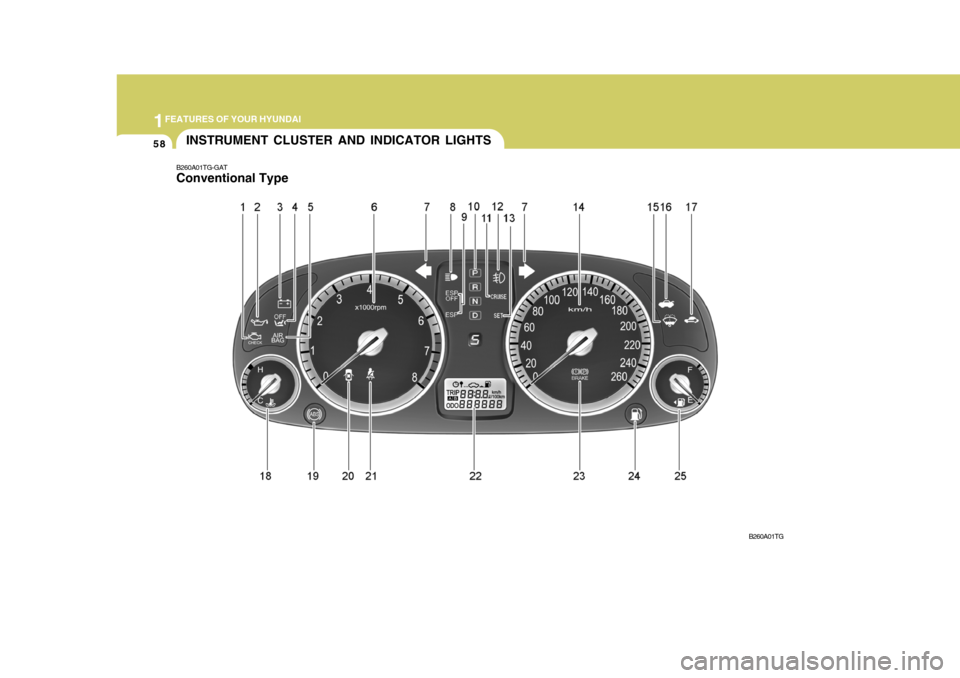

58INSTRUMENT CLUSTER AND INDICATOR LIGHTS
B260A01TG-GAT Conventional Type
B260A01TG
