2005 Hyundai Azera remote control

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Brake Pedal
5. Accelerator Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Audio Remote Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Cruise Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Accelerator Pedal
5. Brake Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Cruise Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Audio Remote Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

1FEATURES OF YOUR HYUNDAI
28
!
NOTE:
o The seat warmer may not operate
if ambient temperature is warm enough.
o If the seat warmer doesn't work when the ambient temperature islower than 24°C, it must bechecked at an authorized dealer.
WARNING:
Be very careful not to injure by lowtemperature burn or an attack offever as following occupants; infants, children, old man, drunken man, people who is taken sleeping drug orcold remedy.B100A01TG-GAT SEAT WARMER (If Installed) The front seats can be electrically heated individually when the ignition switch is ON. When the switch is ON, anumber ranging from 1 to 5 is displayed on the switch (5 = warmest setting). To turn off the seat warmer, set theswitch to 0. B100A01TG
L
: When the remote control outside
rearview mirror switch knob is se-lected to the "L" position, both ofthe outside rearview mirrors will move downward.
R : When the remote control outside
rearview mirror switch knob is se-lected to the "R" position, only thepassenger's outside rearview mir- ror will move downward.
Neutral :When the remote control out-
side rearview mirror switchknob is placed in the middle position, the outside rearviewmirrors will not operate while the vehicle is moving back- ward.
NOTE: When the ignition key is in the "LOCK" position, the shift lever is moved to any position except "R"position, or the remote control out- side rearview mirror switch knob is placed in the middle position, theoutside rearview mirrors will auto- matically revert to original position.

1

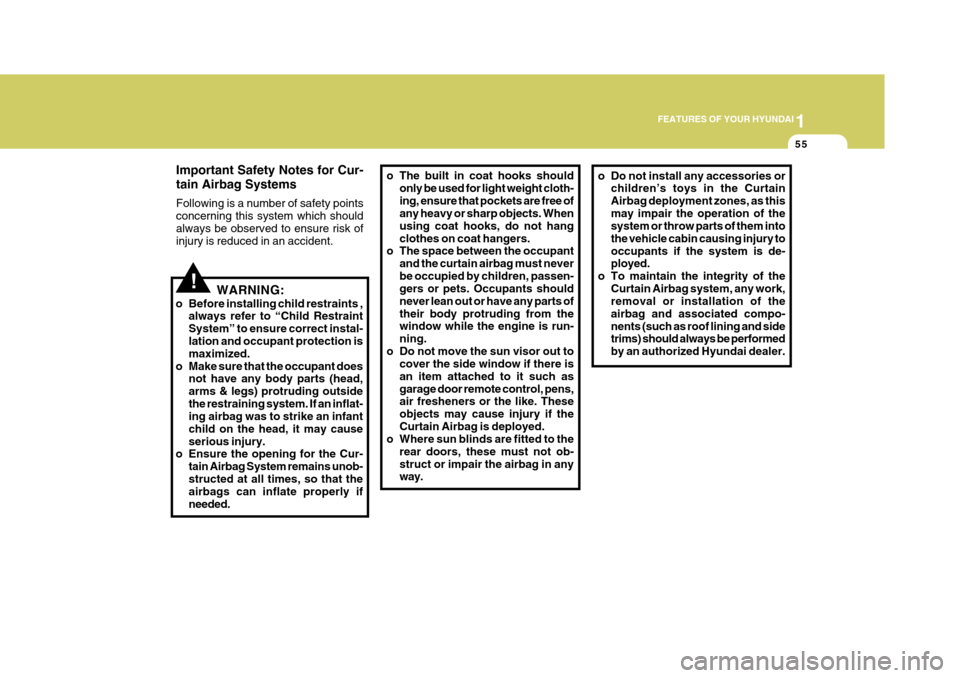

FEATURES OF YOUR HYUNDAI
55
o The built in coat hooks should
only be used for light weight cloth- ing, ensure that pockets are free of any heavy or sharp objects. When using coat hooks, do not hangclothes on coat hangers.
o The space between the occupant
and the curtain airbag must neverbe occupied by children, passen- gers or pets. Occupants should never lean out or have any parts oftheir body protruding from the window while the engine is run- ning.
o Do not move the sun visor out to cover the side window if there isan item attached to it such asgarage door remote control, pens, air fresheners or the like. These objects may cause injury if theCurtain Airbag is deployed.
o Where sun blinds are fitted to the
rear doors, these must not ob-struct or impair the airbag in any way. o Do not install any accessories or
children’s toys in the Curtain Airbag deployment zones, as thismay impair the operation of the system or throw parts of them into the vehicle cabin causing injury tooccupants if the system is de- ployed.
o To maintain the integrity of the Curtain Airbag system, any work,removal or installation of the airbag and associated compo-nents (such as roof lining and side trims) should always be performed by an authorized Hyundai dealer.
!WARNING:
o Before installing child restraints , always refer to “Child Restraint System” to ensure correct instal- lation and occupant protection is maximized.
o Make sure that the occupant does not have any body parts (head,arms & legs) protruding outsidethe restraining system. If an inflat- ing airbag was to strike an infant child on the head, it may causeserious injury.
o Ensure the opening for the Cur-
tain Airbag System remains unob-structed at all times, so that the airbags can inflate properly if needed.
Important Safety Notes for Cur- tain Airbag Systems Following is a number of safety points concerning this system which shouldalways be observed to ensure risk of injury is reduced in an accident.

1FEATURES OF YOUR HYUNDAI
96
B505A01NF-GAT CENTER CONSOLE BOX
HTG2179
The center console box is used for storing cassette tape or small articles. To use the center console box, pull up the button and lift the lid to open it. HTG2179-1
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the center console box lidshould be kept closed when the car is in motion.
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. NOTE: Before driving away, always check that your mirrors are positioned so you can see behind you, both to the left and right sides, as well as di-rectly behind your vehicle. B510B01TG
OUTSIDE REARVIEW MIRROR
B510B01TG-AAT

1FEATURES OF YOUR HYUNDAI
100
B520B02O-GAT Electric type (If Installed) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the button turns the
auto-dimming function OFF which is indicated by the green status indi- cator LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green status indi- cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. HTG2080B530A01TG-GAT
B530A01TG
PARKING BRAKE
Always engage the parking brake be- fore leaving the car. This also turns onthe parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be surethat the parking brake is fully released and the indicator light is off.
o To engage the parking brake, de- press the parking brake pedal.
o To release the parking brake, de- press the parking brake pedal a sec- ond time.
NOTE: The parking brake pedal should be checked periodically for proper stroke.
TRUNK LID
B540A01S-GAT Remote Trunk Lid Release To open the trunk lid without using the key, pull up the lid release lever. HTG2014
HTG2017
To close, lower the trunk lid, then press down on it until it locks.

1FEATURES OF YOUR HYUNDAI
112
2. TAPE mode
o Pressing the SEEK ( ) will play thebeginning of the next music seg- ment.
o Pressing the SEEK ( ) will start
replay at the beginning of the musicjust listened to.
3. CD (Compact Disc)/CDC (Compact Disc Changer) mode
o Press the SEEK ( ) once to skip forward to the beginning of the next track.
o Press the SEEK ( ) once to skip back to the beginning of the track.
MUTE Switch
o Press the MUTE switch to disap- pear the sound.
o Press the MUTE switch again to
reproduce the sound.
VOL ( / ) Switch
o Press the VOL ( ) switch to in- crease volume.
o Press the VOL ( ) switch to de-
cease volume.
RADIO (FM1 FM2 AM) TAPE CD CDC
SEEK ( / ) Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK ( ) is pressed, the unit will automatically tune to the next higher frequency and when the SEEK ( ) switch is pressed, it will automati-cally tune to the next lower frequency.

NOTE: Do not operate audio remote con- trol switches simultaneously. MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (Compact Disc) andCDC (Compact Disc Changer). Each press of the switch changes the display as follows:
AUDIO REMOTE CONTROL SWITCH
B610A01L-GAT (If Installed) The steering wheel audio remote con- trol switch is installed to promote safe driving. B610A02TG
Without Cruise Control System
B610A03TG
With Cruise Control System

10INDEX
2
A Accessory Box .......................................................... 1-95
Air Cleaner Filter ........................................................ 6-10
Air Conditioning Care ........................................................................ 6-18
Filter ............................................................ 1-132, 6-18
Operation .......................................... 1-121, 1-124, 6-18
Switch ........................................................ 1-120, 1-127
Airbag ........................................................................ 1-46
Curtain airbag ......................................................... 1-54
Driver's and passenger's front airbag ...................... 1-47
Passenger's front airbag O N/OFF switch ...............1-51
Side impact airbag .................................................. 1-53
Antenna ................................................................... 1-167
Ashtray ...................................................................... 1-87
Audio System Audio remote control switch ................................. 1-112
Cassette tape player operation (M455) .................1-146
Cassette tape player operation (M465) .................1-156
Compact disc player operation (M445) .................1-139
Compact disc player operation (M455) .................1-149
Compact disc player operation (M465) .................1-159
Stereo radio operation (M445) ..............................1-136
Stereo radio operation (M455) ..............................1-143
Stereo radio operation (M465) ..............................1-153
Automatic Heating and Cooling Control System ...... 1-123BBack Warning
System ............................................... 2-12
Battery .............................................................. 2-17, 6-23
Brake Anti-lock brake system (ABS) ................................ 2-10
Checking the brakes ............................................... 6-16
Fluid ........................................................................ 6-16
Pedal clearance ...................................................... 6-20
Pedal free-play ........................................................ 6-20
Practices ................................................................ 2-13
Breaking-In your New Hyundai .................................... 1-3
C
Care of Cassette Tapes .......................................... 1-165
Care of Discs .......................................................... 1-164
Catalytic Converter ...................................................... 7-3
Child Restraint System .............................................. 1-37
Child-Protector Rear Door Lock ................................. 1-12
Cigarette Lighter ........................................................ 1-85
Clock ......................................................................... 1-85
Combination Light
Auto light ................................................................ 1-78
Daytime running lights ............................................ 1-78
Headlight flasher ..................................................... 1-79
Headlight swi tch ..................................................... 1-77
High-beam switch ................................................... 1-79
Lane change si gnal ................................................. 1-77
Parking light auto cut ............................................. 1-78
Turn signal operation .............................................. 1-77
