2004 SUBARU FORESTER sensor

EN(H4SO)-116
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of throttle position sensor
signal using Subaru Select Monitor or OBD-II
general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA FOR ENGINE”. to EN(H4SO)-29, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage more than 4.9 V? Go to step 2.Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector
may be the cause.
N
OTE:
In this case repair
the following:
 Poor contact in
throttle position
sensor connector
 Poor contact in
ECM connector.
 Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN THROTTLE
POSITION SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from throttle
position sensor.
3) Measure the resistance of harness
between throttle position sensor connector and
engine ground.
Connector & terminal
(E13) No. 2 — Engine ground:Is the resistance less than 5
Ω?Go to step 3.Repair harness
and connector.
NOTE:
In this case repair
the following:
 Open circuit in
harness between
throttle position
sensor and ECM
connector
 Poor contact in
coupling connector
 Poor contact in
joint connector
3 CHECK HARNESS BETWEEN THROTTLE
POSITION SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to ON.
2) Measure the voltage between throttle posi-
tion sensor connector and engine ground.
Connector & terminal
(E13) No. 3 (+) — Engine ground (
−):Is the voltage more than 4.9 V? Repair the battery
short circuit in har-
ness between
throttle position
sensor and ECM
connector. After
repair, replace the
ECM. FU(H4SO)-44,
Engine Control
Module (ECM).>Replace the throt-
tle position sen-
sor. FU(H4SO)-29,
Throttle Position
Sensor.>

EN(H4SO)-117
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Q: DTC P0125 INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP
FUEL CONTROL
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Engine would not return to idling.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.
WIRING DIAGRAM:
EN-02388
1
2
B122
1912
913
B135ECM
21
E3
B22
E8 ENGINE
COOLANT
TEMPERATURE
SENSOR
E8
12
3
B135
567
82 1
94
310
24 22 23 251112131415
26 27
281617181920 21
B22
125678
131415169101112
34
17181920
B122 : LHD
12345678
B122 : RHD
1234

EN(H4SO)-120
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
S: DTC P0130 O2 SENSOR CIRCUIT (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.

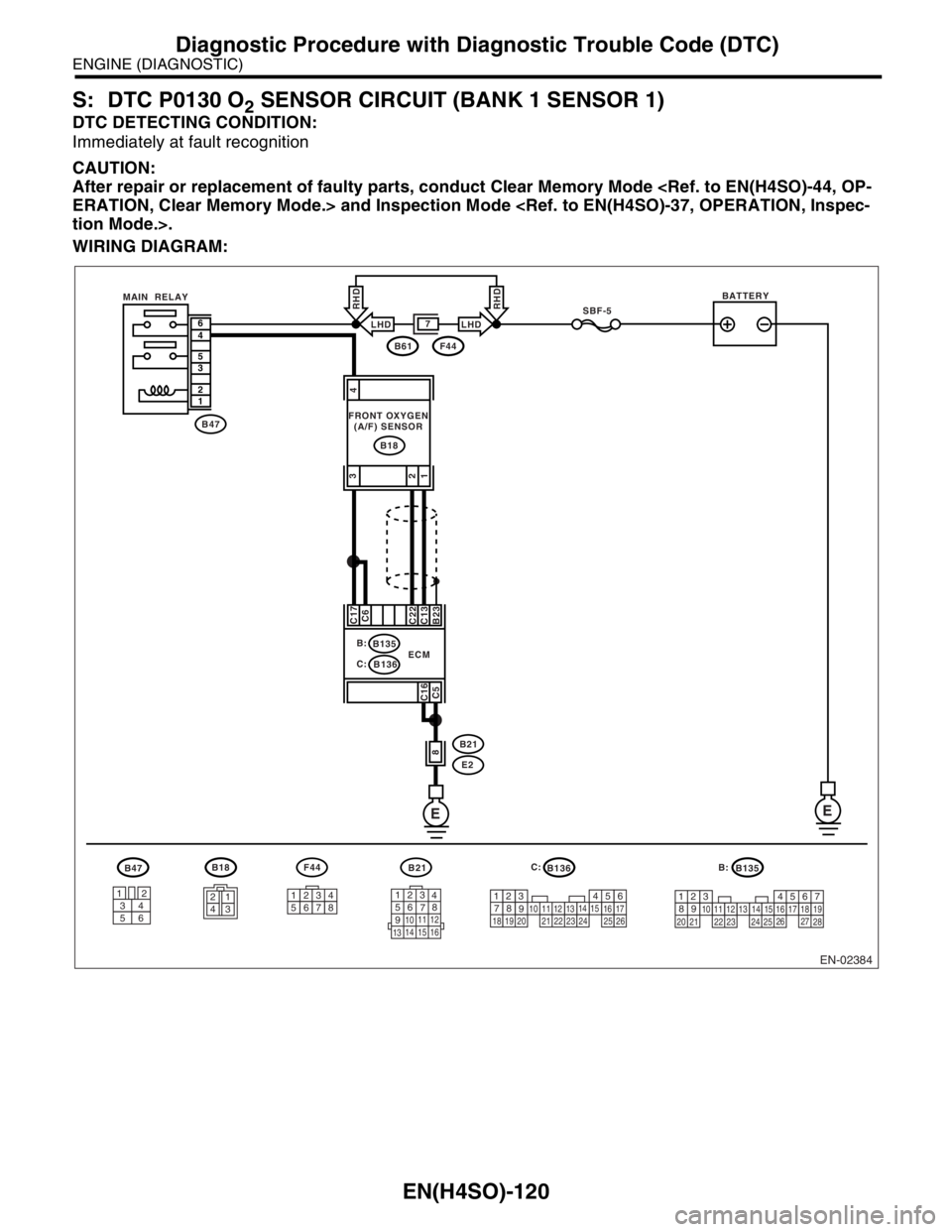

WIRING DIAGRAM:
EN-02384
B18
3412
56
B47F44
12345678
B136B135
1234
B21
123
4
56
78
9
1011 12
1314 15 16
SBF-5
EE
B47
B18
6
4
5
3
2
1
B23 C13
C22C6 C17
C16
C5
8
B:
C:B135
B136
B21
E2 ECMBATTERY
B61F44
7
FRONT OXYGEN
(A/F) SENSOR MAIN RELAY
567
82 1
94
310
24
22 23251112131415
26 27
281617181920 21
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
LHDLHD
RHDRHD
4
3
1 2
B: C:

EN(H4SO)-121
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the DTC
using “List of Diag-
nostic Trouble
Code (DTC)”.
EN(H4SO)-72, List
of Diagnostic Trou-
ble Code (DTC).>Go to step 2.
2 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
1) Start the engine.
2) While observing the Subaru Select Monitor
or OBD-II general scan tool screen, warm-up
the engine until coolant temperature is above
70°C (160°F).
If the engine is already warmed-up, operate at
idle speed for at least 1 minute.
3) Read the data of front oxygen (A/F) sensor
signal using Subaru Select Monitor or OBD-II
general scan tool.
NOTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA FOR ENGINE”. to EN(H4SO)-29, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage 0.85 — 1.15 V? Go to step 3.Go to step 4.
3 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
1) Race the engine at speeds from idling to
5,000 rpm for a total of 5 cycles.
2) Read the data of front oxygen (A/F) sensor
signal at racing using Subaru Select Monitor or
OBD-II general scan tool.
N
OTE:
 Normally the air fuel ratio be rich at racing.
 To increase engine speed to 5,000 rpm,
slowly depress accelerator pedal, taking
approximately 5 seconds, and quickly release
accelerator pedal to decrease engine speed.Is the voltage more than 1.1 V? Go to step 6.Go to step 4.
4 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
front oxygen (A/F) sensor connector.
3) Measure the resistance between ECM and
front oxygen (A/F) sensor.
Connector & terminal
(B136) No. 13 — (B18) No. 1:
(B136) No. 22 — (B18) No. 2:Is the resistance less than 5
Ω?Go to step 5.Repair open circuit
between ECM and
front oxygen (A/F)
sensor.
5 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
Measure the resistance between ECM and
chassis ground.
Connector & terminal
(B136) No. 13 — Chassis ground:
(B136) No. 22 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 6.Repair ground
short circuit
between ECM and
front oxygen (A/F)
sensor.

EN(H4SO)-122
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
6 CHECK EXHAUST SYSTEM.
Check exhaust system parts.
N
OTE:
Check the following items:
 Loose installation of portions
 Damage (crack, hole etc.) of parts
 Looseness of front oxygen (A/F) sensor
 Looseness and ill fitting of parts between
front oxygen (A/F) sensor and rear oxygen
sensorIs there a fault in exhaust sys-
tem?Repair or replace
the faulty par t.Replace the front
oxygen (A/F) sen-
sor. FU(H4SO)-40,
Front Oxygen (A/
F) Sensor.> Step Check Yes No

EN(H4SO)-123
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
T: DTC P0131 O2 SENSOR CIRCUIT LOW VOLTAGE (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.
WIRING DIAGRAM:
EN-02384
B18
3412
56
B47F44
12345678
B136B135
1234
B21
123
4
56
78
9
1011 12
1314 15 16
SBF-5
EE
B47
B18
6
4
5
3
2
1
B23 C13
C22C6 C17
C16
C5
8
B:
C:B135
B136
B21
E2 ECMBATTERY
B61F44
7
FRONT OXYGEN
(A/F) SENSOR MAIN RELAY
567
82 1
94
310
24
22 23251112131415
26 27
281617181920 21
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
LHDLHD
RHDRHD
4
3
1 2
B: C:

EN(H4SO)-124
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
front oxygen (A/F) sensor connector.
3) Measure the resistance of harness
between ECM and chassis ground.
Connector & terminal
(B136) No. 13 — Chassis ground:
(B136) No. 22 — Chassis ground:Is the resistance more than 1
MΩ?Replace the front
oxygen (A/F) sen-
sor. FU(H4SO)-40,
Front Oxygen (A/
F) Sensor.>Repair ground
short circuit in har-
ness between
ECM and front
oxygen (A/F) sen-
sor connector.

EN(H4SO)-125
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
U: DTC P0132 O2 SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Detect as soon as the malfunction occurs.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode tion Mode.>.
WIRING DIAGRAM:
EN-02384
B18
3412
56
B47F44
12345678
B136B135
1234
B21
123
4
56
78
9
1011 12
1314 15 16
SBF-5
EE
B47
B18
6
4
5
3
2
1
B23 C13
C22C6 C17
C16
C5
8
B:
C:B135
B136
B21
E2 ECMBATTERY
B61F44
7
FRONT OXYGEN
(A/F) SENSOR MAIN RELAY
567
82 1
94
310
24
22 23251112131415
26 27
281617181920 21
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
LHDLHD
RHDRHD
4
3
1 2
B: C:
