2004 SUBARU FORESTER display

4AT(H4SO)-29
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Power Indicator Light Display
9 CHECK INHIBITOR SWITCH.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Turn the Subaru Select Monitor to ON.
4) Read the data of range switch using Sub-
aru Select Monitor.
 Range switch is indicated in ON ←→ OFF.When each range is selected,
does the LED of Subaru Select
Monitor light up?Go to step 10.Check the inhibi-
tor switch circuit.
4AT(H4SO)-95,
CHECK INHIBI-
TOR SWITCH,
Diagnostic Proce-
dure without Diag-
nostic Trouble
Code (DTC).>
10 CHECK SHORT CIRCUIT OF HARNESS.
1) Disconnect the connector from TCM.
2) Remove the combination meter.
3) Disconnect the connector from combination
meter.
4) Measure the resistance of harness connec-
tor between TCM and chassis ground.
Connector & terminal
(B56) No. 11 — Chassis ground:Is the resistance less than 1
MΩ?Check the TCM
power supply and
ground line. to 4AT(H4SO)-30,
CHECK POWER
SUPPLY AND
GROUND LINE,
INSPECTION,
Power Indicator
Light Display.>Repair the short
circuit in harness
between combina-
tion meter connec-
tor and TCM
connector. Step Check Yes No

4AT(H4SO)-30
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Power Indicator Light Display

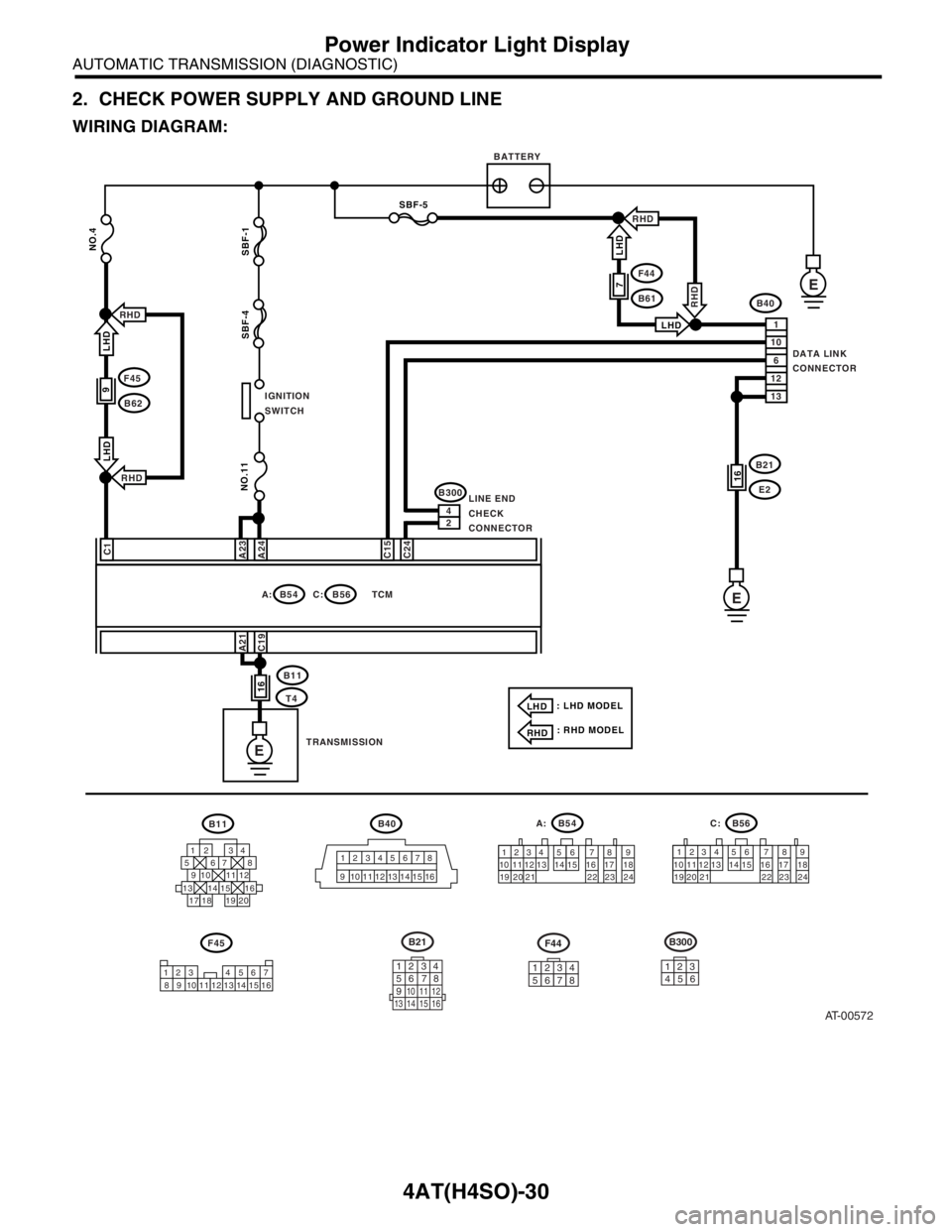

2. CHECK POWER SUPPLY AND GROUND LINE
WIRING DIAGRAM:
AT-00572
B40B11
F45
B54 A:B56
B11
T4
B40
DATA LINK
CONNECTOR
TCM C:
1 1
2 2
3 3
4 4
5
56
6778
8
9 9
13 14 15
20 19 171610 10
11 11
12
13 14 15 16 12
BATTERY
E
E
F45
B62
NO.4
NO.11
SBF-4 SBF-1 LHD
LHD
IGNITION
SWITCH
C1
A23
A24
C15
C24
18
123 4 567
8 9 10 12 13 14 15 1611
1234 5 6 7 8 9
10 11 12 13 14 15 16 17 18
19 20 21 22 23 241234 5 6 7 8 9
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24
RHD
RHD
9
1
10
6
12
13
SBF-5
F44
B61
LHD
RHD
7
LHD
RHD
B21
E216
E
B21
1234
5678
9
10 11 12
13 14 15 16
12345678
F44
A21
C19
16
24
B300
LINE END
CHECK
CONNECTOR
: LHD MODEL
: RHD MODELLHD
RHD
123
456
B300
TRANSMISSION
B56C:B54A:

4AT(H4SO)-31
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Power Indicator Light Display
Step Check Yes No
1 CHECK BATTERY TERMINAL.
Turn the ignition switch to OFF.Is there poor contact at battery
terminal?Repair or tighten
the battery termi-
nal.Go to step 2.
2 CHECK POWER SUPPLY OF TCM.
1) Disconnect the connector from TCM.
2) Turn the ignition switch to ON.
3) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B56) No. 1 (+) — Chassis ground (
−):Is the voltage 10 — 13 V? Go to step 4.Go to step 3.
3 CHECK FUSE (NO. 4).
Remove the fuse (No. 4).Is the fuse (No. 4) blown out? Replace the fuse
(No. 4). If replaced
fuse (No. 4) has
blown out easily,
repair short circuit
in harness
between fuse (No.
4) and TCM.Repair the open
circuit in harness
between fuse (No.
4) and TCM, or
fuse (No. 4) and
battery, and poor
contact in cou-
pling connector.
4 CHECK IGNITION POWER SUPPLY CIR-
CUIT.
1) Turn the ignition switch to ON (engine
OFF).
2) Measure the ignition power supply voltage
between TCM connector and chassis ground.
Connector & terminal
(B54) No. 23 (+) — Chassis ground (–):
(B54) No. 24 (+) — Chassis ground (–):Is the voltage 10 — 13 V? Go to step 6.Go to step 5.
5 CHECK FUSE (NO. 11).
Remove the fuse (No. 11).Is the fuse (No. 11) blown out? Replace the fuse
(No. 11). If
replaced fuse (No.
11) has blown out
easily, repair short
circuit in harness
between fuse (No.
11) and TCM.Repair the open
circuit in harness
between fuse (No.
11) and TCM, or
fuse (No. 11) and
battery, and poor
contact in cou-
pling connector.
6 CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from TCM and
transmission.
3) Measure the resistance of harness
between TCM and transmission connector.
Connector & terminal
(B56) No. 19 — (B11) No. 16:
(B54) No. 21 — (B11) No. 16:Is the resistance less than 1
Ω?Go to step 7.Repair the open
circuit in harness
between TCM,
transmission har-
ness connector,
and poor contact
in coupling con-
nector.
7 CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND TRANSMISSION
GROUND.
Measure the resistance of harness between
transmission and transmission ground.
Connector & terminal
(T4) No. 16 — Transmission ground:Is the resistance less than 1
Ω?Go to step 8.Repair the open
circuit in harness
between transmis-
sion and transmis-
sion ground.
8 CHECK POOR CONTACT IN CONNECTORS.Is there poor contact in control
module power supply, ground
line and data link connector?Repair the con-
nector.Replace the TCM.
Transmission Con-
trol Module
(TCM).>

4AT(H4SO)-33
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure for Subaru Select Monitor Communication
Step Check Yes No
1 CHECK SUBARU SELECT MONITOR POW-
ER SUPPLY CIRCUIT.
Measure the voltage between data link con-
nector and chassis ground.
Connector & terminal
(B40) No. 1 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2.Repair the har-
ness and connec-
tor between battery
and data link con-
nector, and poor
contact in coupling
connector.
2 CHECK SUBARU SELECT MONITOR
GROUND CIRCUIT.
Measure the resistance of harness between
data link connector and chassis ground.
Connector & terminal
(B40) No. 12 — Chassis ground:
(B40) No. 13 — Chassis ground:Is the resistance less than 1
Ω?Go to step 3.Repair the open
circuit in harness
between data link
connector and
ground terminal,
and poor contact
in coupling con-
nector.
3 CHECK COMMUNICATION OF SELECT
MONITOR.
1) Turn the ignition switch to ON.
2) Using the Subaru Select Monitor, check
whether communication to engine systems can
be executed normally.Are the contents of engine sys-
tem displayed on Subaru
Select Monitor?Go to step 8.Go to step 4.
4 CHECK COMMUNICATION OF SELECT
MONITOR.
1) Turn the ignition switch to OFF.
2) Disconnect the TCM connector.
3) Check whether communication to engine
systems can be executed normally.Are the contents of engine sys-
tem displayed on Subaru
Select Monitor?Go to step 6.Go to step 5.
5 CHECK COMMUNICATION OF SELECT
MONITOR.
1) Turn the ignition switch to OFF.
2) Connect the TCM connector.
3) Disconnect the ECM connector.
4) Check whether communication to transmis-
sion systems can be executed normally.Are the contents of transmis-
sion displayed on Subaru
Select Monitor?Inspect the ECM. Go to step 6.
6 CHECK HARNESS CONNECTOR BETWEEN
EACH CONTROL MODULE AND DATA LINK
CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the TCM, ECM.
3) Measure the resistance between data link
connector and chassis ground.
Connector & terminal
(B40) No. 10 — Chassis ground:
(B40) No. 6 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 7.Repair the har-
ness and connec-
tor between each
control module and
data link connector.
7 CHECK OUTPUT SIGNAL FOR TCM.
1) Turn the ignition switch to ON.
2) Measure the voltage between data link con-
nector and chassis ground.
Connector & terminal
(B40) No. 10 (+) — Chassis ground (
−):Is the voltage more than 1 V? Repair the har-
ness and connec-
tor between each
control module
and data link con-
nector.Go to step 8.
8 CHECK HARNESS/CONNECTOR BETWEEN
TCM AND DATA LINK CONNECTOR.
Measure the resistance between TCM connec-
tor and data link connector.
Connector & terminal
(B56) No. 15 — (B40) No. 10:Is the resistance less than 0.5
Ω?Go to step 9.Repair the harness
and connector
between TCM and
data link connector.

4AT(H4SO)-37
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS CONNECTOR BETWEEN
TCM AND ECM.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
ECM.
3) Measure the resistance of harness
between TCM and ECM connector.
Connector & terminal
(B55) No. 17 — (B134) No. 10:Is the resistance less than 1
Ω?Go to step 2.Repair the open
circuit in harness
between TCM and
ECM connector.
2 CHECK HARNESS CONNECTOR BETWEEN
TCM AND ECM.
Measure the resistance of harness between
TCM connector and chassis ground.
Connector & terminal
(B55) No. 17 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 3.Repair the short
circuit in harness
between TCM and
ECM connector.
3 PREPARE SUBARU SELECT MONITOR.Do you have a Subaru Select
Monitor?Go to step 5.Go to step 4.
4 CHECK INPUT SIGNAL FOR TCM.
1) Connect the connectors to TCM and ECM.
2) Turn the ignition switch to ON (engine
OFF).
3) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B55) No. 17 (+) — Chassis ground (
−):Is the voltage more than 10.5
V?Even if the
POWER indicator
light was blinking,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector or
harness may be
the cause. Repair
the harness or
connector in TCM
and ECM.Go to step 6.
5 CHECK INPUT SIGNAL FOR TCM USING
SUBARU SELECT MONITOR.
1) Connect the connectors to TCM and ECM.
2) Connect the Subaru Select Monitor to data
link connector.
3) Start the engine and turn Subaru Select
Monitor switch to ON.
4) Warm-up the engine until engine coolant
temperature is above 80°C (176°F).
5) Idle the engine.
6) Read the data of engine speed using Sub-
aru Select Monitor.
 Display shows the engine speed signal value
sent from ECM.Is the revolution value same as
tachometer reading shown on
combination meter?Even if the
POWER indicator
light was blinking,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector or
harness may be
the cause. Repair
the harness or
connector in TCM
and ECM.Go to step 6.
6 CHECK POOR CONTACT.Is there poor contact in engine
speed signal circuit?Repair the poor
contact.Go to step 7.
7 CONFIRM DTC 11.Replace the ECM with a new
one. Does the DTC 11 appear
again, after memory has been
cleared?Replace the TCM.
Transmission Con-
trol Module
(TCM).>Replace the ECM.
FU(H4SO)-44,
Engine Control
Module (ECM).>

4AT(H4SO)-55
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK INPUT SIGNAL FOR TCM.
1) Connect the connectors to TCM and ECM.
2) Start the engine, and warm-up the trans-
mission until ATF temperature is above 80°C
(176°F).
N
OTE:
If ambient temperature is below 0°C (32°F),
drive the vehicle until ATF reaches its operating
temperature.
3) Idle the engine.
4) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B54) No. 1 (+) — Chassis ground (
−):Is the voltage 0.4 — 1.6 V? Even if the
POWER indicator
light was blinking,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector or
harness may be
the cause. Repair
the harness or
connector in TCM
and ECM.Go to step 7.
6 CHECK INPUT SIGNAL FOR TCM USING
SUBARU SELECT MONITOR.
1) Connect the connectors to TCM and ECM.
2) Connect the Subaru Select Monitor to data
link connector.
3) Start the engine, and turn Subaru Select
Monitor switch to ON.
4) Warm-up the engine until engine coolant
temperature is above 80°C (176°F).
5) Idle the engine.
6) Read the data of intake manifold pressure
signal using Subaru Select Monitor.
 Display shows the intake manifold pressure
signal value sent from ECM.Is the voltage 0.4 — 1.6 V? Even if the
POWER indicator
light was blinking,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector or
harness may be
the cause. Repair
the harness or
connector in TCM
and ECM.Go to step 7.
7 CHECK POOR CONTACT.Is there poor contact in intake
manifold pressure signal cir-
cuit?Repair the poor
contact.Replace the TCM.
Transmission Con-
trol Module
(TCM).> Step Check Yes No

4AT(H4SO)-86
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK FWD SWITCH.
Connect the Subaru Select Monitor to data link
connector, and then change to LED display
screen.When the fuse is inserted to
FWD switch, does LED light
up?Go to step CHECK
BRAKE SWITCH.
4AT(H4SO)-88,
CHECK BRAKE
SWITCH, Diag-
nostic Procedure
without Diagnostic
Trouble Code
(DTC).>Go to step 2.
2 CHECK FWD INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the TCM connector.
3) Turn the ignition switch to ON.
4) Short the combination meter connector to
chassis ground.
CAUTION:
Be sure to short through fuse.
Connector & terminal
(i10) No. 22 — Chassis ground:Does the FWD indicator light
illuminate?Go to step 3.Inspect the combi-
nation meter.
Combination
Meter Assembly.>
3 CHECK HARNESS CONNECTOR BETWEEN
TCM AND FWD SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from TCM and
FWD switch.
3) Measure the resistance of harness
between TCM and FWD switch connector.
Connector & terminal
(B55) No. 20 — (F27) No. 36:Is the resistance less than 1
Ω?Go to step 4.Repair the open
circuit in harness
between TCM and
FWD switch con-
nector.
4 CHECK HARNESS CONNECTOR BETWEEN
TCM AND FWD SWITCH.
Measure the resistance of harness connector
between TCM and body to make sure that cir-
cuit does not short.
Connector & terminal
(B55) No. 20 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 5.Repair the short
circuit in harness
between TCM and
FWD switch con-
nector.
5 CHECK HARNESS CONNECTOR BETWEEN
FWD SWITCH AND CHASSIS GROUND.
Measure the resistance of harness between
FWD switch and chassis ground.
Connector & terminal
(F27) No. 35 — Chassis ground:Is the resistance less than 1
Ω?Go to step 6.Repair the open
circuit in harness
between FWD
switch connector
and chassis
ground.
6 CHECK INPUT SIGNAL FOR TCM.
1) Turn the ignition switch to OFF.
2) Connect the connector to TCM and FWD
switch.
3) Turn the ignition switch to ON.
4) Measure the signal voltage for TCM while
installing the fuse to FWD switch connector.
Connector & terminal
(B55) No. 20 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 7.Go to step 11.
7 CHECK INPUT SIGNAL FOR TCM.
Measure the signal voltage for TCM while
removing the fuse from FWD switch connector.
Connector & terminal
(B55) No. 20 (+) — Chassis ground (
−):Is the voltage 6 — 9.1 V? Go to step 8.Replace the TCM.
Transmission Con-
trol Module
(TCM).>

4AT(H4SO)-89
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
E: CHECK KICK–DOWN SWITCH
DETECTING CONDITION:
The kick down switch circuit is open or shorted.
TROUBLE SYMPTOM:
No kick-down occurs (when the throttle is fully opened).
WIRING DIAGRAM:
Step Check Yes No
1 CHECK KICK-DOWN SWITCH OPERATION.
Select “Current Data Display” in Subaru Select
Monitor.When the accelerator pedal is
fully depressed, does “ON” dis-
played?Go to step CHECK
POWER MODE
SWITCH. 4AT(H4SO)-91,
CHECK POWER
MODE SWITCH,
Diagnostic Proce-
dure without Diag-
nostic Trouble
Code (DTC).>Go to step 2.
2 CHECK KICK-DOWN SWITCH GROUND
LINE.
1) Disconnect the connector from kick-down
switch.
2) Measure the resistance of harness connec-
tor between kick-down switch and chassis
ground.
Connector & terminal
(B129) No. 1 — Chassis ground:Is the resistance less than 1
Ω?Go to step 3.Repair the open
circuit in harness
between kick-
down switch and
chassis ground.
3 CHECK KICK-DOWN SWITCH.
Measure the resistance for kick-down switch
when depressing the accelerator pedal.
Te r m i n a l s
No. 1 — No. 2:Is the resistance less than 1
Ω?Go to step 4.Replace the kick-
down switch. to SP(H4SO)-4,
Accelerator
Pedal.>
AT-00594
E
B55
B55 TCM
KICK-DOWN
SWITCH
B129 1 2
B129
11
1
23410 11 12
19
20 21135614 1578916 17 18
22 23 241
2
