2004 MITSUBISHI ENDEAVOR mirror

Fig. 19: Identifying Connector E
- 14

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-29 for loose,
corroded or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-29 is
damaged, repair or replace the damaged component(s).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 20: Identifying Connector C
- 29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 3) and ground in good condition?
YES: No action is necessary and testing is complete.
NO: The wiring harness may be damaged. Repair the wiring harness as
necessary. And then check to see that the heater function of the door
mirror (LH) operates normally.
STEP 6. Check joint connector (2) C-104 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 21: Identifying Connector C
- 104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is joint connector (2) C-104 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged component(s). And then check to see
that the heater function of the door mirror (LH) operates normally.
STEP 7. Check the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 1) and
joint connector (2) C-104 (terminal 23)
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 22: Identifying Connector E
- 14

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 23: Identifying Connector C
- 104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-29 for loose,
corroded or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-29 is
damaged, repair or replace the damaged component(s).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 24: Identifying Connector C
- 29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between remote controlled mirror (LH)
connector E-14 (terminal 1) and joint connector (2) C-104 (terminal 23) in
good condition?
YES: No action is necessary and testing is complete.
NO: Repair the wiring harness as necessary. And then check to see that
the heater function of the door mirror (LH) operates normally.
STEP 8. Check remote controlled mirror (RH) connector E-01 for loose,
corroded or damaged terminals, or terminals pushed back in the
connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 25: Identifying Connector E
- 01

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled mirror (RH) connector E-01 in good condition?
YES: Go to Step 9 .
NO: Repair or replace the damaged component(s). And then check to see
that the heater function (heated door mirror) of the door mirror (RH)
operates normally.
STEP 9. Check the heater function of the door mirror (RH).
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

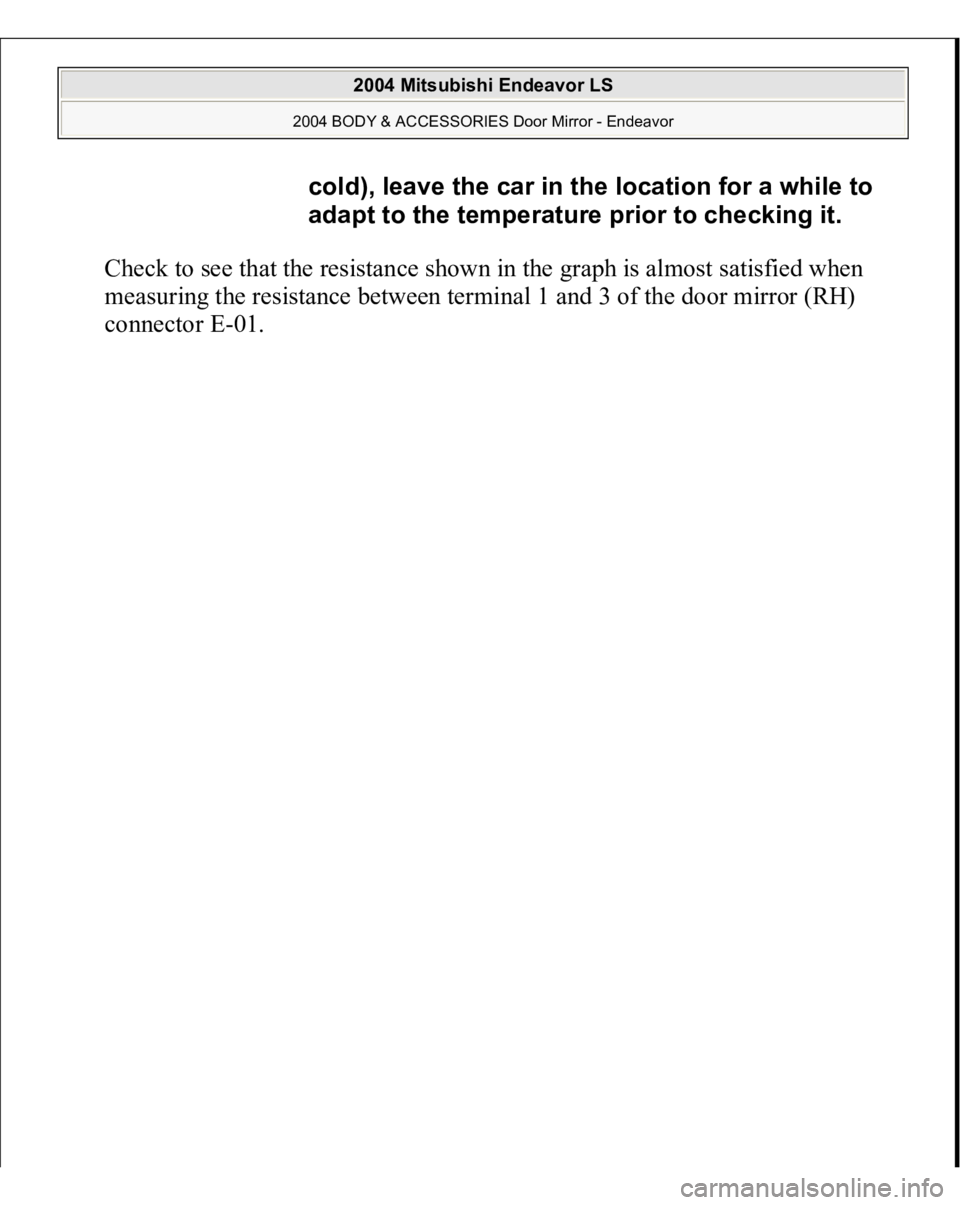

Check to see that the resistance shown in the graph is almost satisfied when
measuring the resistance between terminal 1 and 3 of the door mirror (RH)
connector
E-01.
cold), leave the car in the location for a while to
adapt to the temperature prior to checking it.
