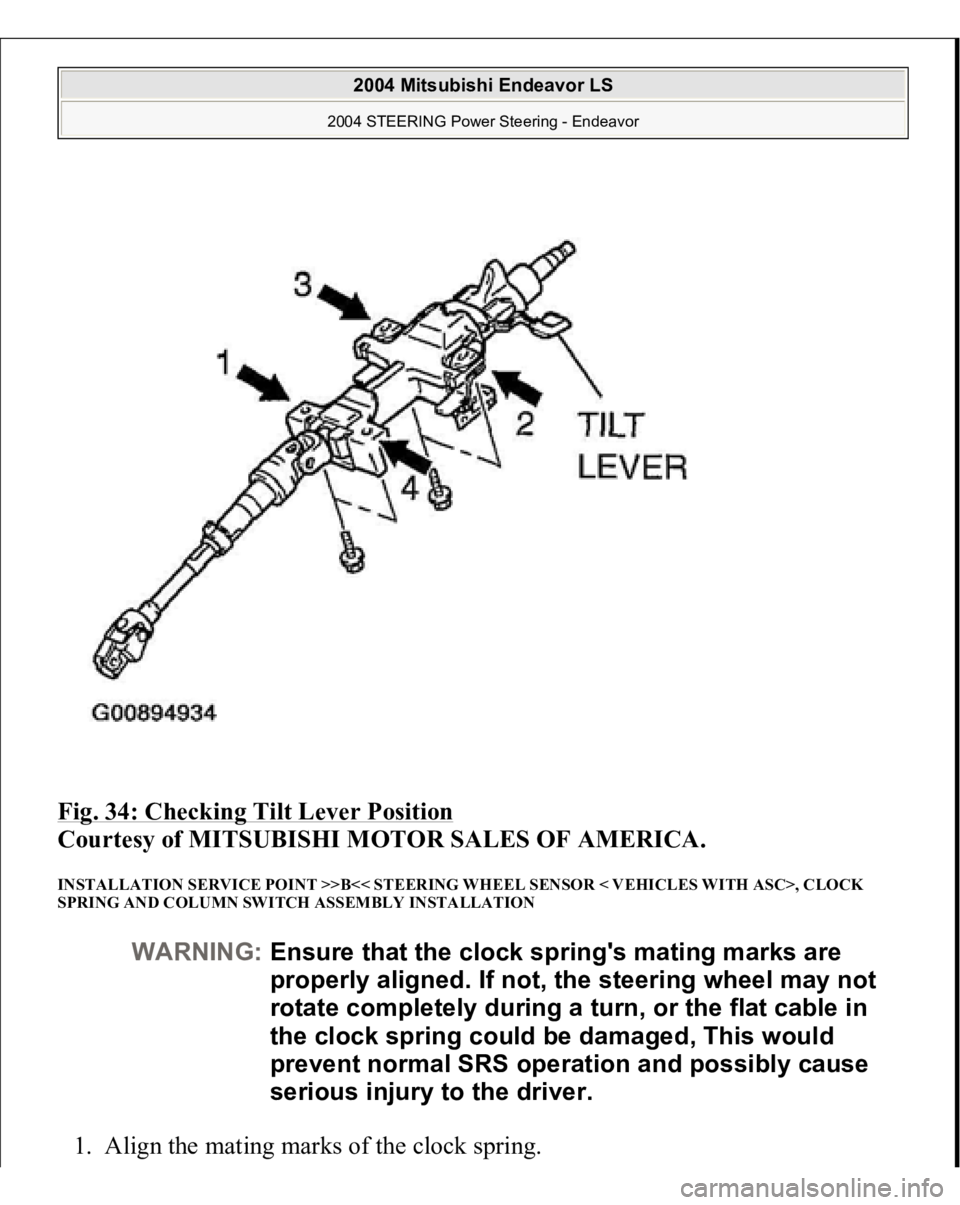

Fig. 34: Checking Tilt Lever Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>B<< STEERING WHEEL SENSOR < VEHICLES WITH ASC>, CLOCK
SPRING AND COLUMN SWITCH ASSEMBLY INSTALLATION 1. Align the mating marks of the clock spring.
WARNING:Ensure that the clock spring's mating marks are
properly aligned. If not, the steering wheel may not
rotate completely during a turn, or the flat cable in
the clock spring could be damaged, This would
prevent normal SRS operation and possibly cause
serious injury to the driver.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

< Mating Mark Alignment
>
1. Turn the clock spring clockwise fully. Then turn it back approximately 3-
3/4 turns counterclockwise to align the mating marks.
2. Turn the front wheels to the straight-ahead position. Then install the clock
spring to the column switch.

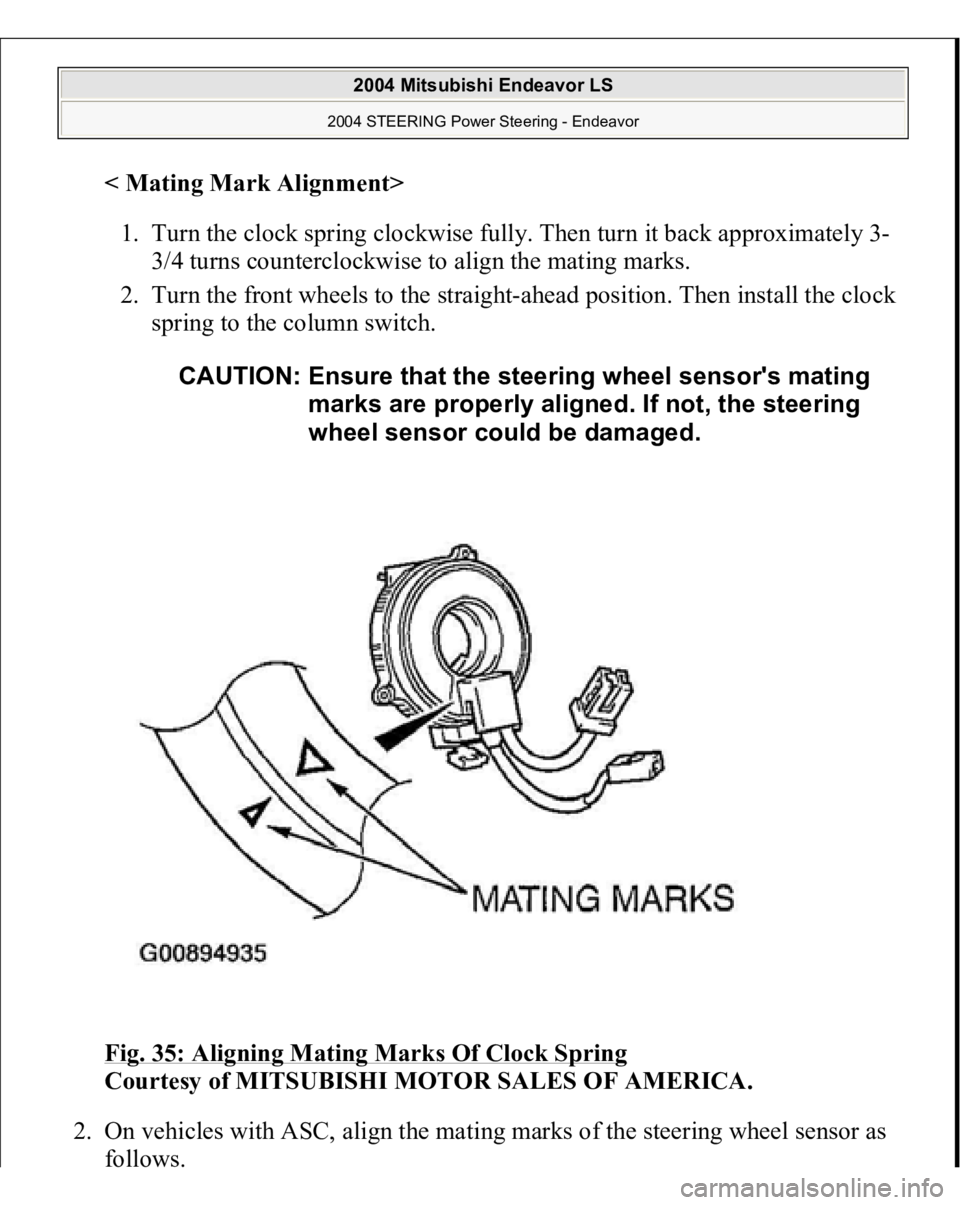

Fig. 35: Aligning Mating Marks Of Clock Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. On vehicles with ASC, align the mating marks of the steering wheel sensor as
follows.
CAUTION: Ensure that the steering wheel sensor's mating
marks are properly aligned. If not, the steering
wheel sensor could be damaged.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

< Mating Mark Alignment
>
1. Turn the steering wheel sensor clockwise fully. Then turn it back
approximately 2-3/4 turns counterclockwise to align the mating marks.
2. Align the mating marks on the clock spring and the steering wheel sensor,
and install the steering wheel sensor to the column switch assembly.
3. Connect the steering wheel sensor connector.

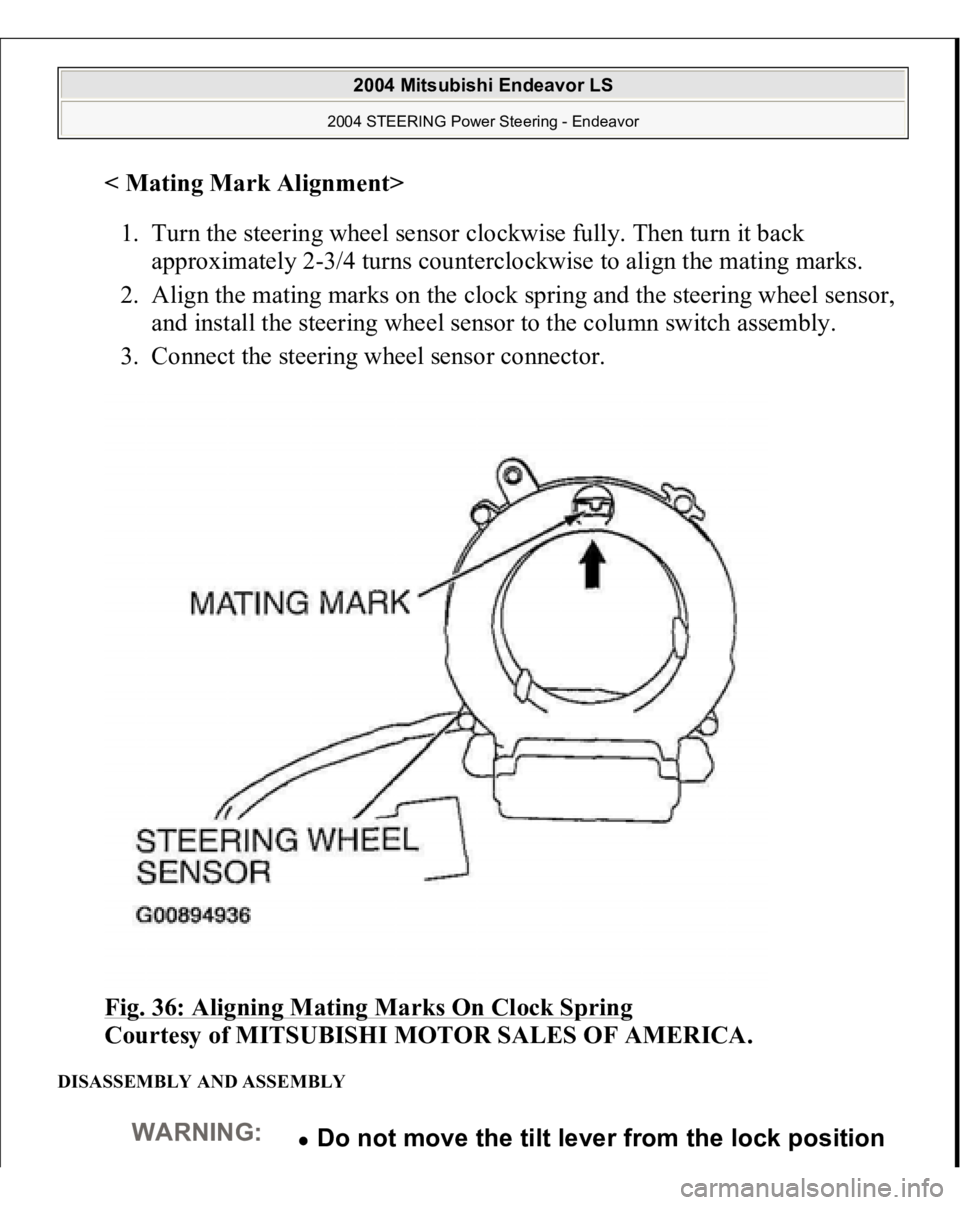

Fig. 36: Aligning Mating Marks On Clock Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DISASSEMBLY AND ASSEMBLY
WARNING:
Do not move the tilt lever from the lock position

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

REAR AXLE HUB ASSEMBL
Y
REMOVAL AND INSTALLATION Fig. 17: Removing/Installing Rear Axle Hub Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990767: End Yoke Holder
MB990241: Axle Shaft Puller
MB991354: Puller Bod
y
CAUTION:
For vehicles with ABS, be careful not to strike the
pole piece at the tip of the rear ABS sensor with
tools during servicing work. The rear hub assembly should not be dismantled.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

2. If the dust cover is cracked or damaged, replace the stabilizer bar link
assembly. REAR SUSPENSION CROSSMEMBER REMOVAL AND INSTALLATION < FWD>
NOTE: Cracks or damage of the dust cover may cause damage
to the ball joint.
CAUTION: For vehicles with ABS, be careful when handling the
pole piece at the tip of the ABS sensor so as not to
damage it by striking against other parts.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 33: Removing & Installing Rear Suspension Crossmember (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A>> REAR ABS SENSOR REMOVAL < VEHICLES WITH ABS> The rear ABS sensor can be damaged during service work. Unclamp the rear ABS
sensor cable as shown, and tie it out of the wa
y.
CAUTION: For vehicles with ABS, be careful when handling the
pole piece at the tip of the ABS sensor so as not to
damage it by striking against other parts.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 34: Removing Rear ABS Sensor Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B>> TOE CONTROL ARM ASSEMBLY REMOVAL Disconnect the toe control arm only from its rear suspension crossmember side, and
tie it to the trailin
g arm assembl
y as shown.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 38: Installing Crossmember Stay/Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL AND INSTALLATION < AWD>
CAUTION: For vehicles with ABS, be careful when handling the
pole piece at the tip of the ABS sensor so as not to
damage it by striking against other parts.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
