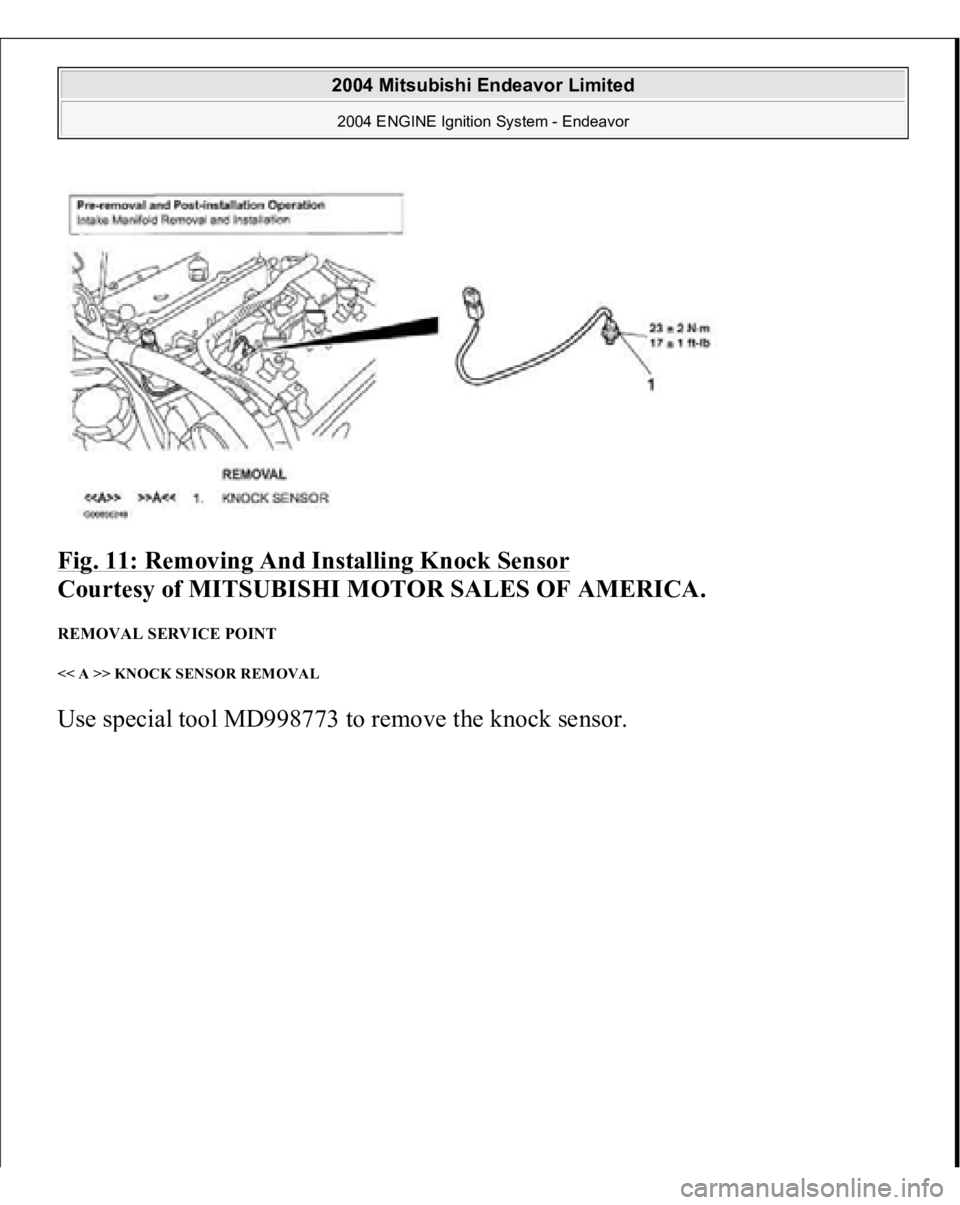

Fig. 11: Removing And Installing Knock Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> KNOCK SENSOR REMOVAL Use s
pecial tool MD998773 to remove the knock sensor.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor

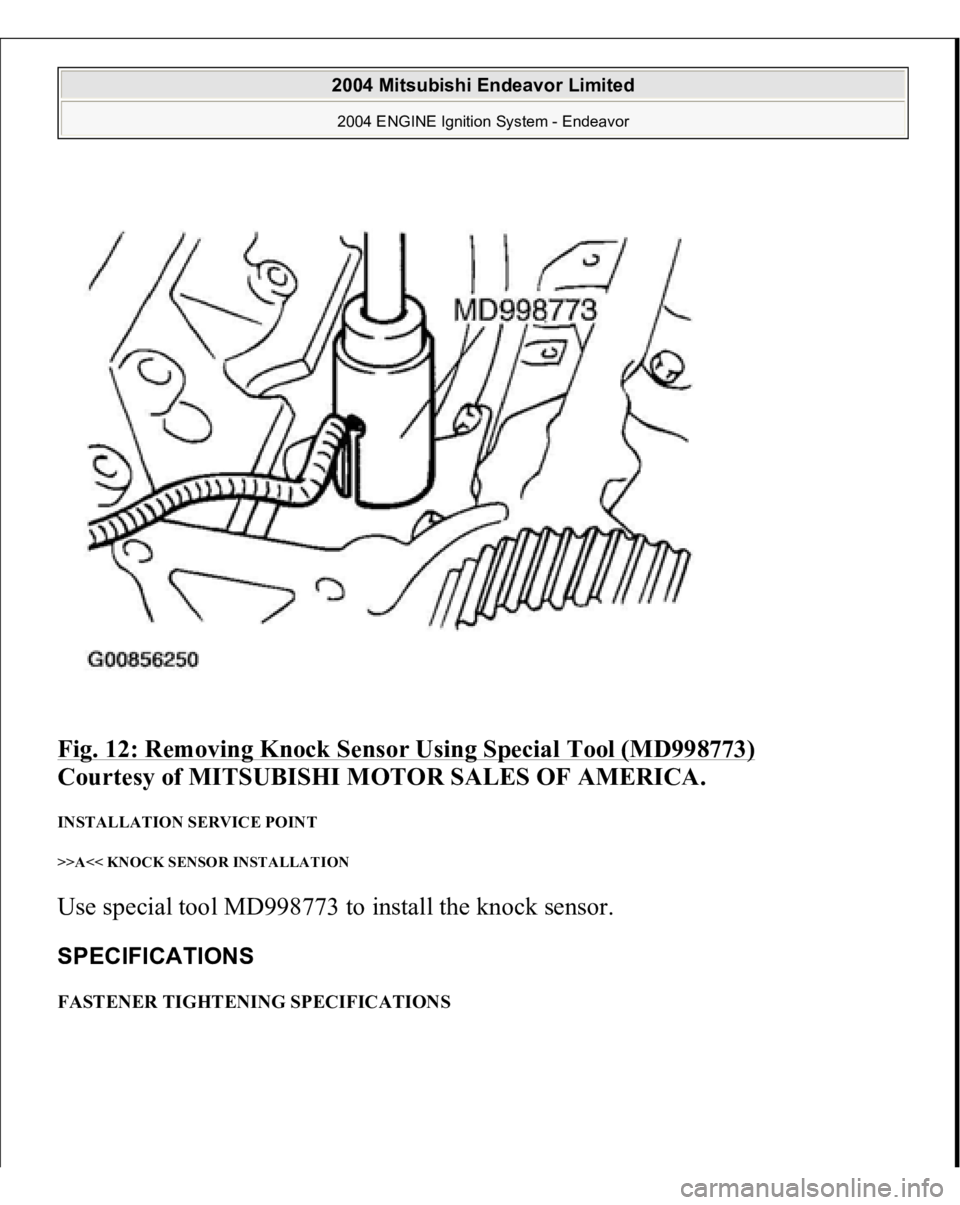

Fig. 12: Removing Knock Sensor Using Special Tool (MD998773)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A<< KNOCK SENSOR INSTALLATION Use special tool MD998773 to install the knock sensor. SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS
2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor

>>A<< INSTRUMENT PANEL INSTALLATIONLoop a length of cord between the instrument panel and the duct to aid installation
of the photo sensor.

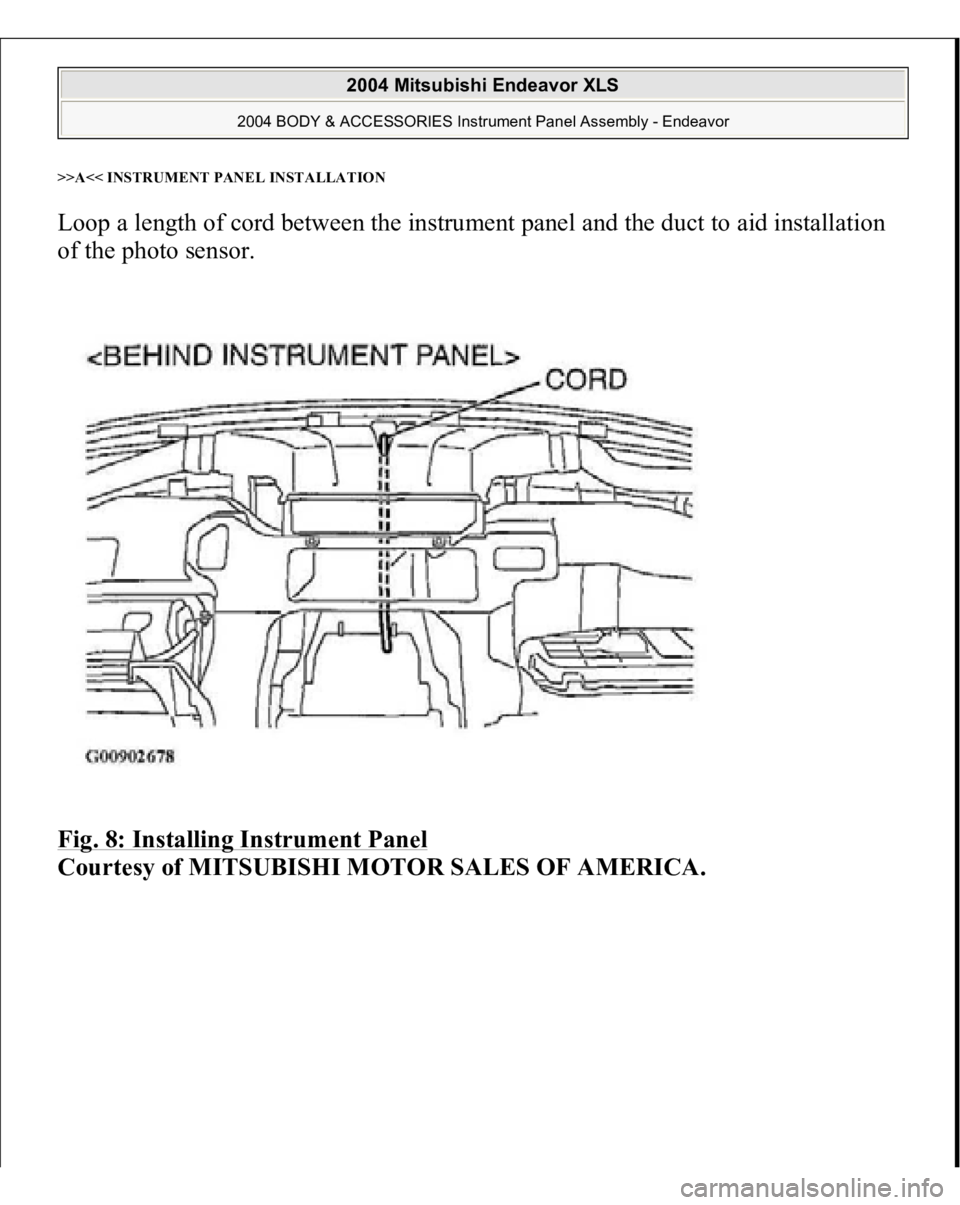

Fig. 8: Installing Instrument Panel

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor XLS
2004 BODY & ACCESSORIES Instrument Panel Assembly - Endeavor

Required Special Tool
:
MD998770: Oxygen sensor wrench
REMOVAL SERVICE POINT << A >>HEATED OXYGEN SENSOR REMOVAL Use special tool MD998770 to remove the oxygen sensor.
Fig. 11: Using Special Tool (MD998770) To Remove Oxygen Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT
2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

>>A<< HEATED OXYGEN SENSOR INSTALLATIONUse special tool MD998770 to install the oxygen sensor.
Fig. 12: Using Special Tool (MD998770) To Install Oxygen Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION Check the following points; replace the part if a problem is found. EXHAUST MANIFOLD CHECK 1. Check for dama
ge or crackin
g of an
y part.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

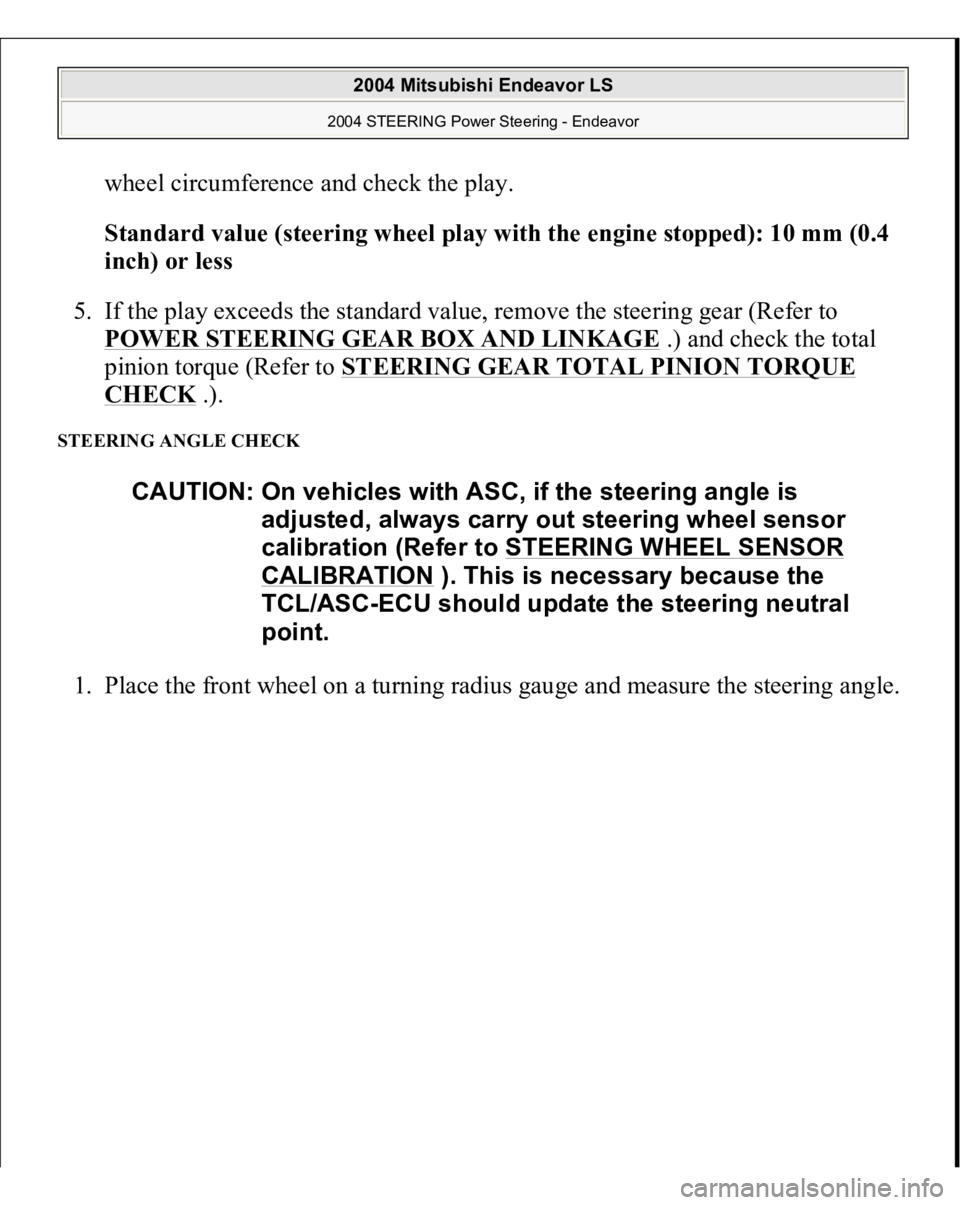

wheel circumference and check the play.
Standard value (steering wheel play with the engine stopped): 10 mm (0.4
inch) or less
5. If the play exceeds the standard value, remove the steering gear (Refer to
POWER STEERING GEAR BOX AND LINKAGE
.) and check the total
pinion torque (Refer to STEERING GEAR TOTAL PINION TORQUE
CHECK
.).
STEERING ANGLE CHECK 1. Place the front wheel on a turnin
g radius
gauge an
d measure the steerin
g an
gle.
CAUTION: On vehicles with ASC, if the steering angle is
adjusted, always carry out steering wheel sensor
calibration (Refer to STEERING WHEEL SENSOR
CALIBRATION
). This is necessary because the
TCL/ASC-ECU should update the steering neutral
point.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

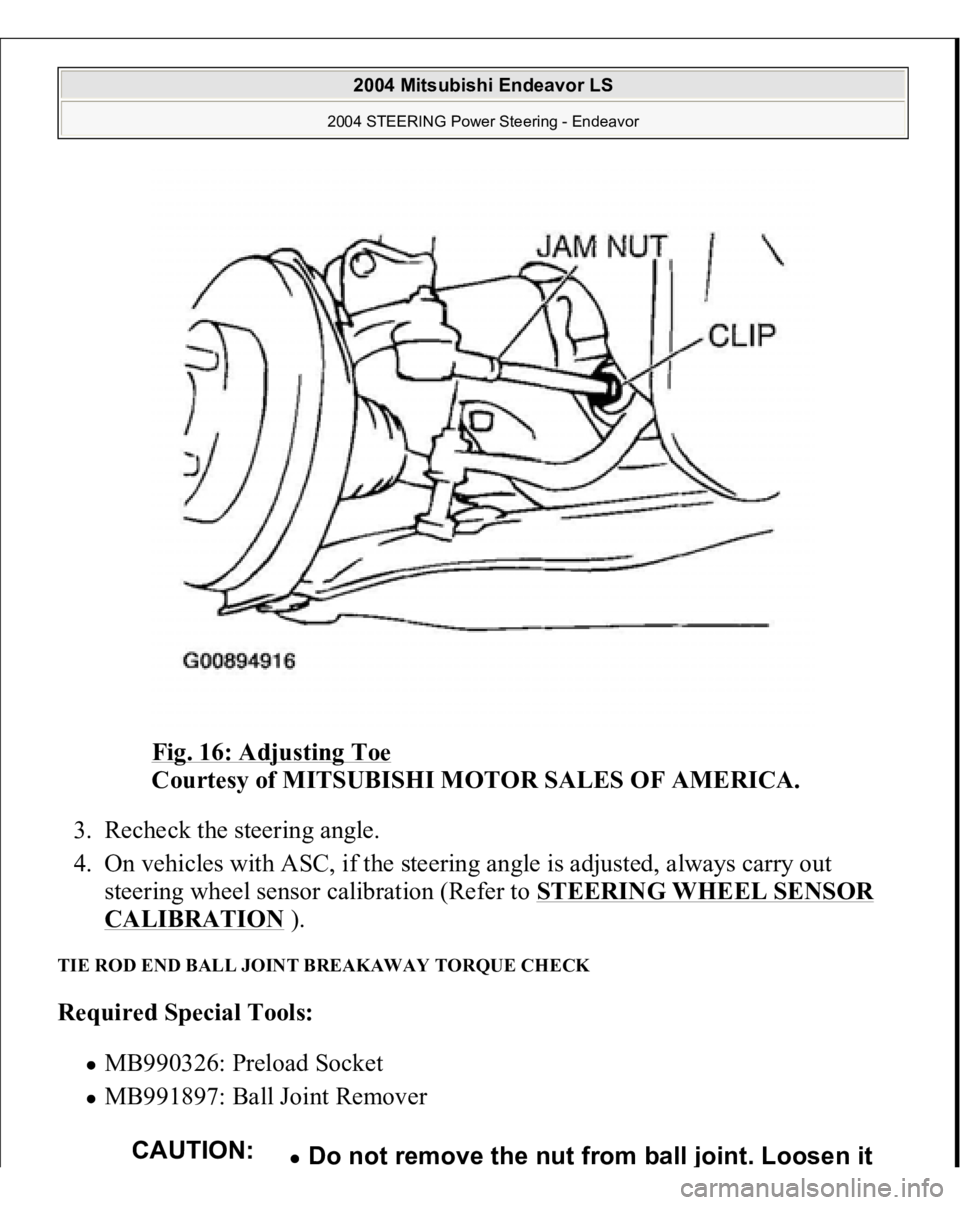

Fig. 16: Adjusting Toe

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Recheck the steering angle.
4. On vehicles with ASC, if the steering angle is adjusted, always carry out
steering wheel sensor calibration (Refer to STEERING WHEEL SENSOR
CALIBRATION
).
TIE ROD END BALL JOINT BREAKAWAY TORQUE CHECK Required Special Tools:
MB990326: Preload Socket MB991897: Ball Joint Remover
CAUTION:
Do not remove the nut from ball
joint. Loosen it

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

Pre-removal Operation
Front Scuff Plate and Cowl Side Trim Removal (Refer to TRIMS
.)
Steering Wheel and Air bag Module Assembly Removal (Refer to
STEERING WHEEL
.)
Instrument Panel Side Cover and Under Cover Removal (Refer to
INSTRUMENT PANEL ASSEMBLY
.)
Floor Console Side Cover (LH) Removal (Refer to FLOOR CONSOLE ASSEMBLY
.)
Front Floor Carpet Removal
Post-installation Operation Front Floor Console Installation Floor Console Side Cover (LH) Installation (Refer to FLOOR CONSOLE ASSEMBLY
.)
Instrument Panel Side Cover and Under Cover Removal (Refer to
INSTRUMENT PANEL ASSEMBLY
.)
Steering Wheel and Air bag Module Assembly Installation (Refer to
STEERING WHEEL
.)
Front Scuff Plate and Cowl Side Trim Removal (Refer to TRIMS
.)
Steering Wheel Sensor Calibration < Vehicles with ASC> (Refer to
STEERING WHEEL SENSOR CALIBRATION
.)
CAUTION: On vehicles with ASC, always carry out steering
wheel sensor calibration after the steering shaft has
been installed (Refer to STEERING WHEEL SENSOR
CALIBRATION
). This is necessary because the
TCL/ASC-ECU should update the steering neutral
point.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor
