2004 MITSUBISHI ENDEAVOR can bus

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

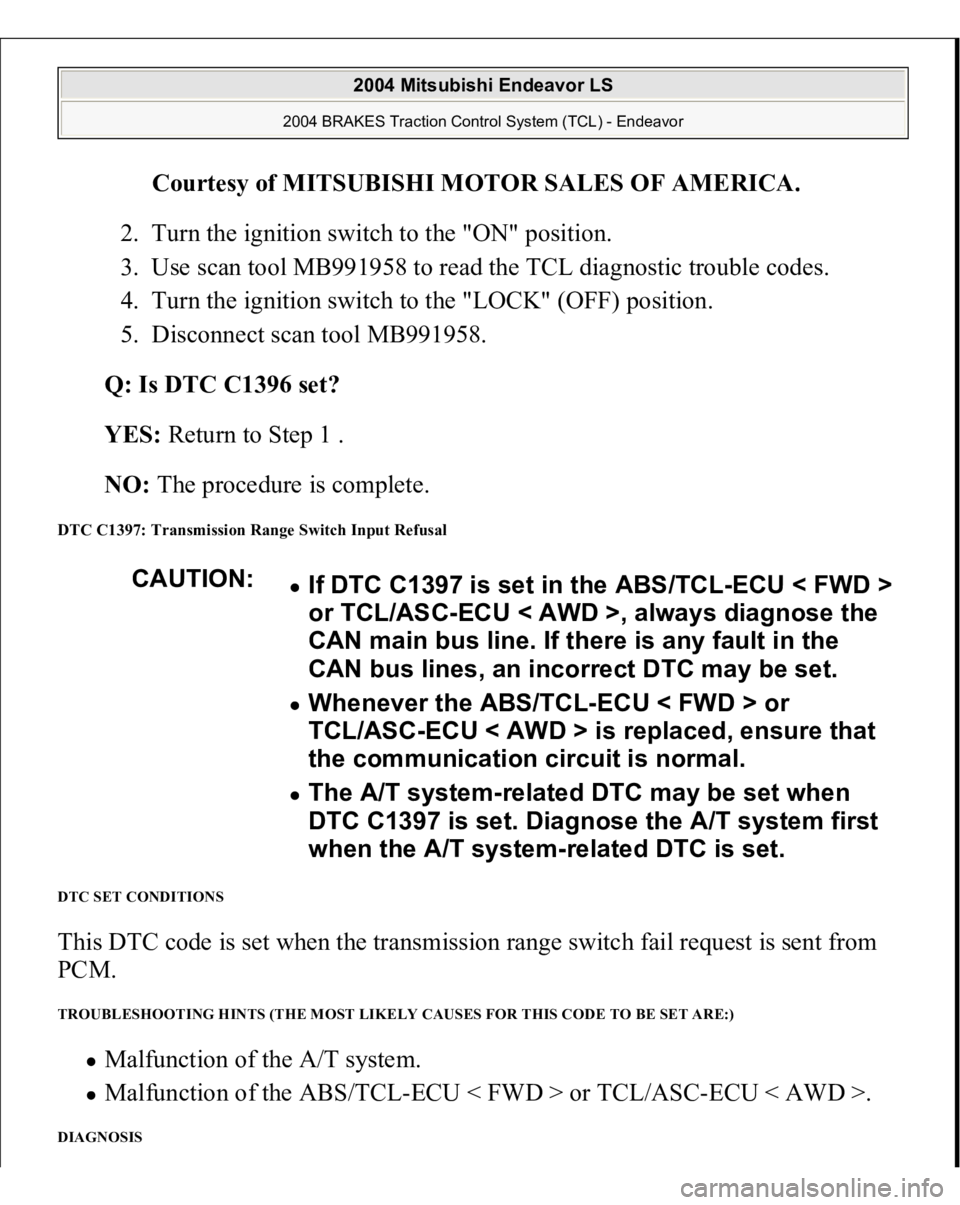

2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the TCL diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC C1396 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC C1397: Transmission Range Switch Input Refusal DTC SET CONDITIONS This DTC code is set when the transmission range switch fail request is sent from
PCM. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CODE TO BE SET ARE:)
Malfunction of the A/T system. Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >.
DIAGNOSIS
CAUTION:
If DTC C1397 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal. The A/T system-related DTC may be set when
DTC C1397 is set. Diagnose the A/T system first
when the A/T system-related DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the TCL diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC C1397 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1100: CAN Communications System Time Out Error Engine Related Data DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives engine
system-related signals from the powertrain control module (PCM) via CAN bus
lines. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Damaged harness or connector. Malfunction of the PCM. Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >.
DIAGNOSIS Required Special Tools: CAUTION:
If DTC U1100 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

MB991958: Scan tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line. (Refer to EXPLANATION ABOUT THE
MUT
-III CAN BUS DIAGNOSIS
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line. (Refer to DIAGNOSTIC TROUBLE CODE
DIAGNOSIS
, ). Then go to Step 6 .
STEP 2. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Erase the DTC. (Refer to TRACTION CONTROL SYSTEM (TCL)
DIAGNOSIS
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Turn the ignition switch to the "ON" position.
6. Check if the DTC is set.
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Disconnect scan tool MB991958.
Q: Is DTC U1100 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1101: CAN Communications System Time Out Error A/T Related Data DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives A/T system-
related signals from the powertrain control module (PCM) via CAN bus lines. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Damaged harness or connector. Malfunction of the PCM. CAUTION:
If DTC U1101 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

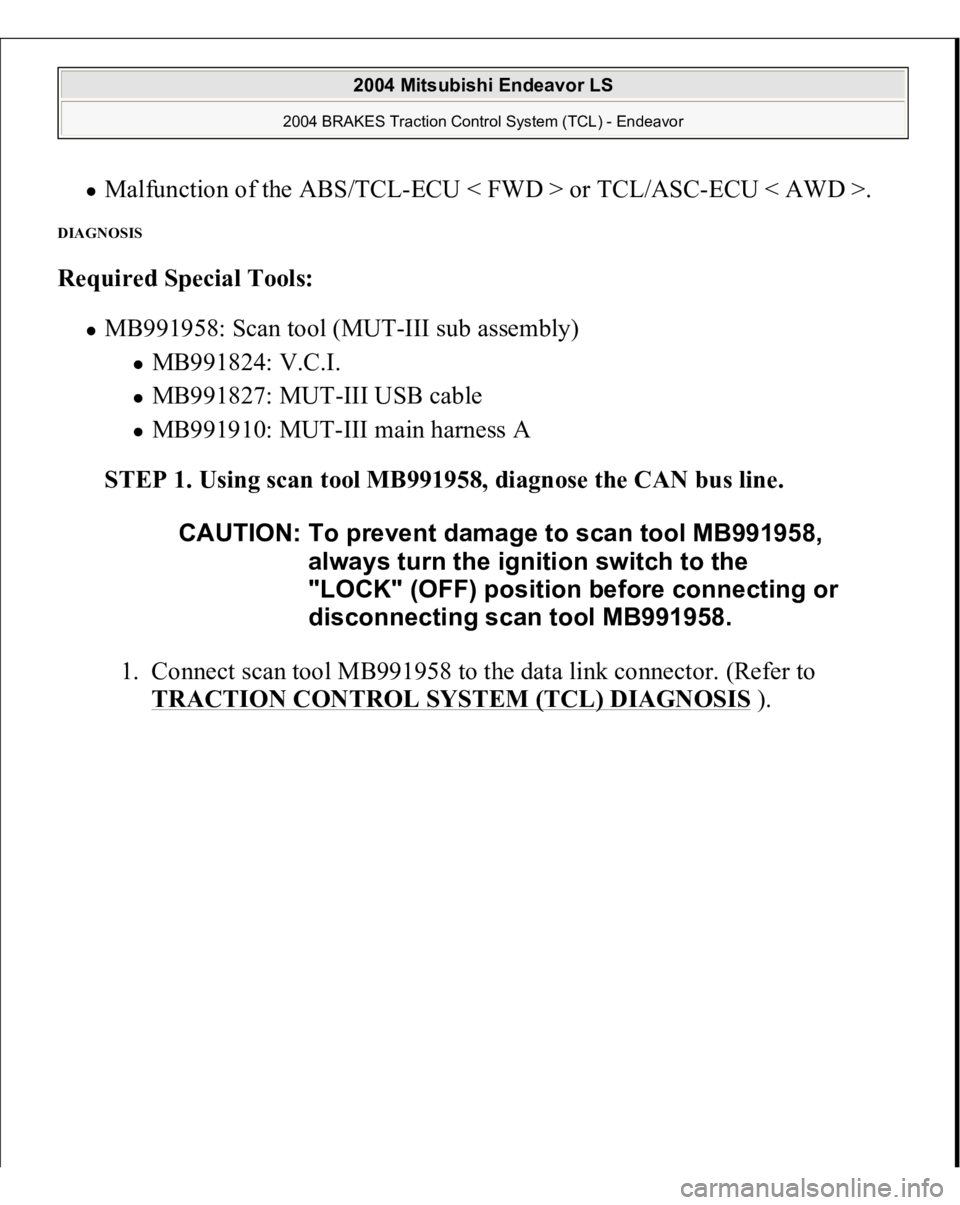

Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >.
DIAGNOSIS Required Special Tools:
MB991958: Scan tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

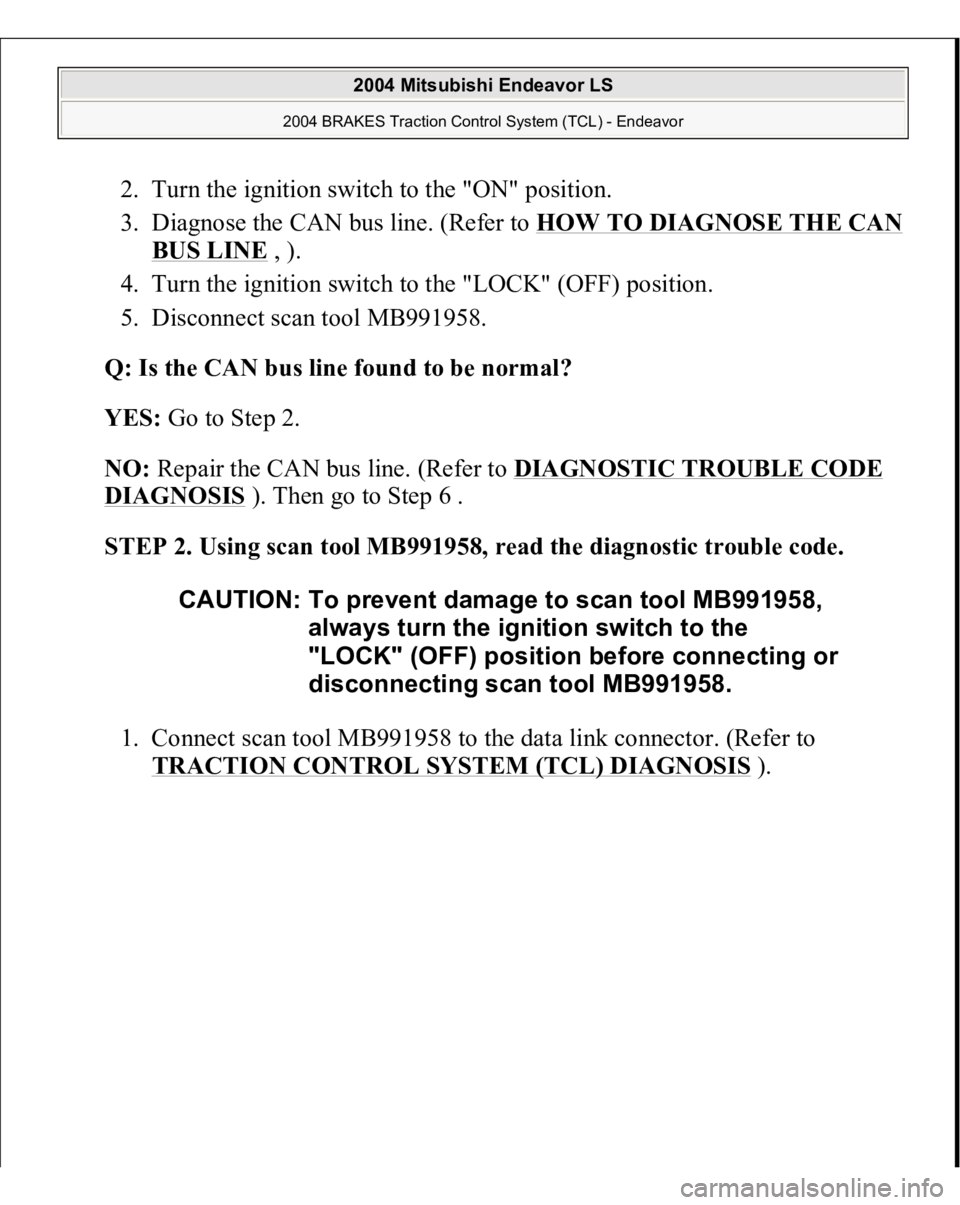

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line. (Refer to HOW TO DIAGNOSE THE CAN
BUS LINE
, ).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line. (Refer to DIAGNOSTIC TROUBLE CODE
DIAGNOSIS
). Then go to Step 6 .
STEP 2. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Erase the DTC. (Refer to TRACTION CONTROL SYSTEM (TCL)
DIAGNOSIS
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Turn the ignition switch to the "ON" position.
6. Check if the DTC is set.
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Disconnect scan tool MB991958.
Q: Is DTC U1101 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1120: CAN Communications System TCL Uncontrollable by Engine Malfunction DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives engine
system-related signals from the powertrain control module (PCM) via CAN bus
lines. If a fail-safe related data is contained in the si
gnal from the PCM, DTC CAUTION:
If DTC U1120 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal. The engine control system-related DTC may be
set when DTC U1120 is set. Diagnose the engine
control system first when the engine control
system-related DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
