2004 MITSUBISHI ENDEAVOR can bus

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 2.
STEP 2. Recheck for steering wheel sensor diagnostic trouble code.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1551, C1552, C1553, C1554, C1555 or C1608 set?
YES: Replace steering wheel sensor.
NO: The procedure is complete.
DTC U1073: BUS OFF TROUBLE JUDGMENT This code is stored when the steering wheel sensor has ceased the CAN
communication (bus off). Then, if a penalty mode is entered after approximately
five minutes, regular data transmission will be cancelled. TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools: CAUTION:
If DTC U1073 is set in the steering wheel sensor,
always diagnose the CAN main bus line. If there
is any fault in the CAN bus lines, an incorrect
DTC may be set. Whenever the ECU is replaced, ensure that the
communication circuit is normal.
CAUTION: If DTC U1073 has been set, TCL/ASC-ECU related
DTC C1506 is also set. After DTC U1073 has been
diagnosed, don't forget to erase DTC C1506.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

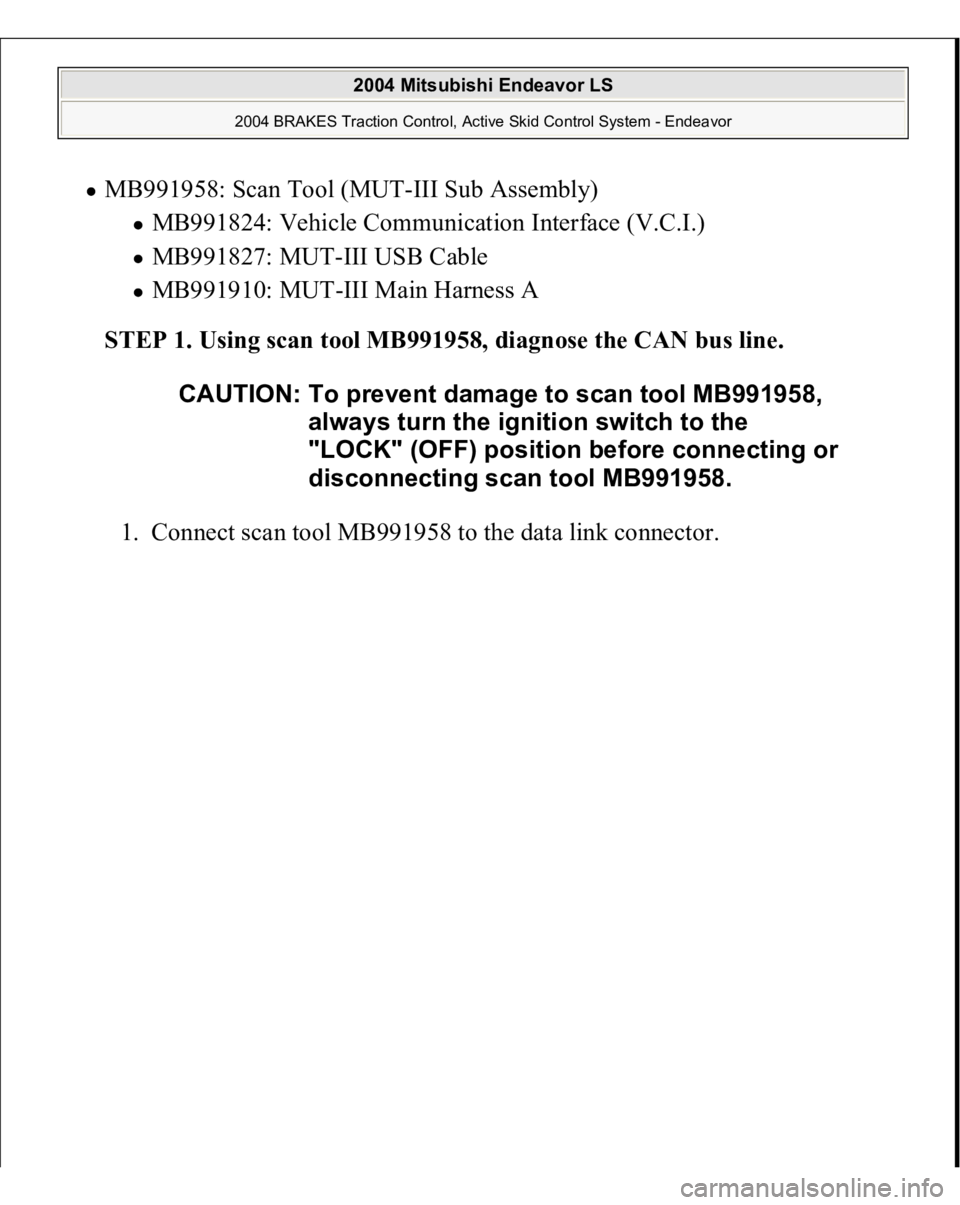

MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

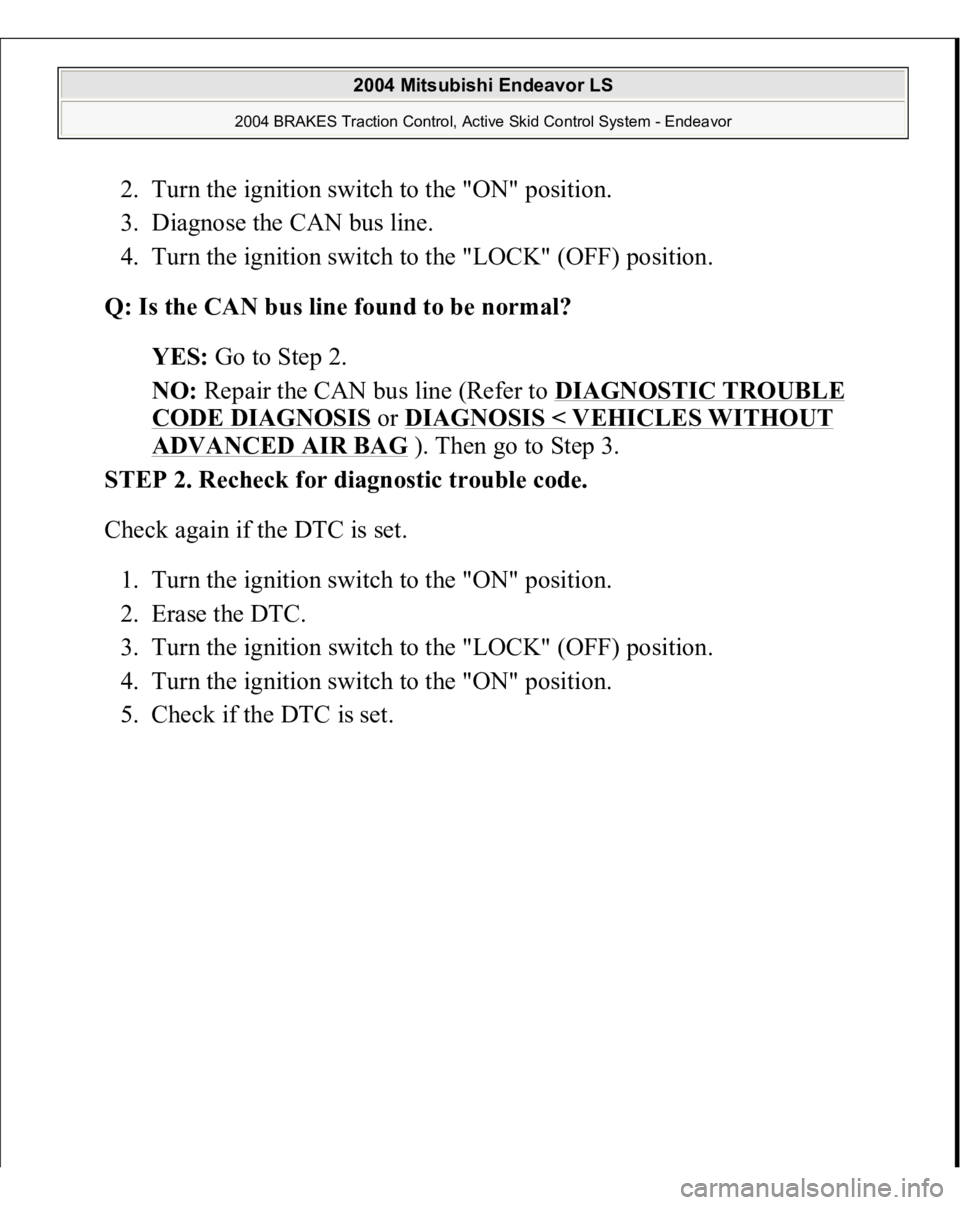

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 3.
STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 198: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate with the ABS
system, the CAN bus lines may be defective. If the ABS system does not work, the
TCL/ASC-ECU or its power supply circuit may be defective. TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Malfunction of the hydraulic unit (Integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

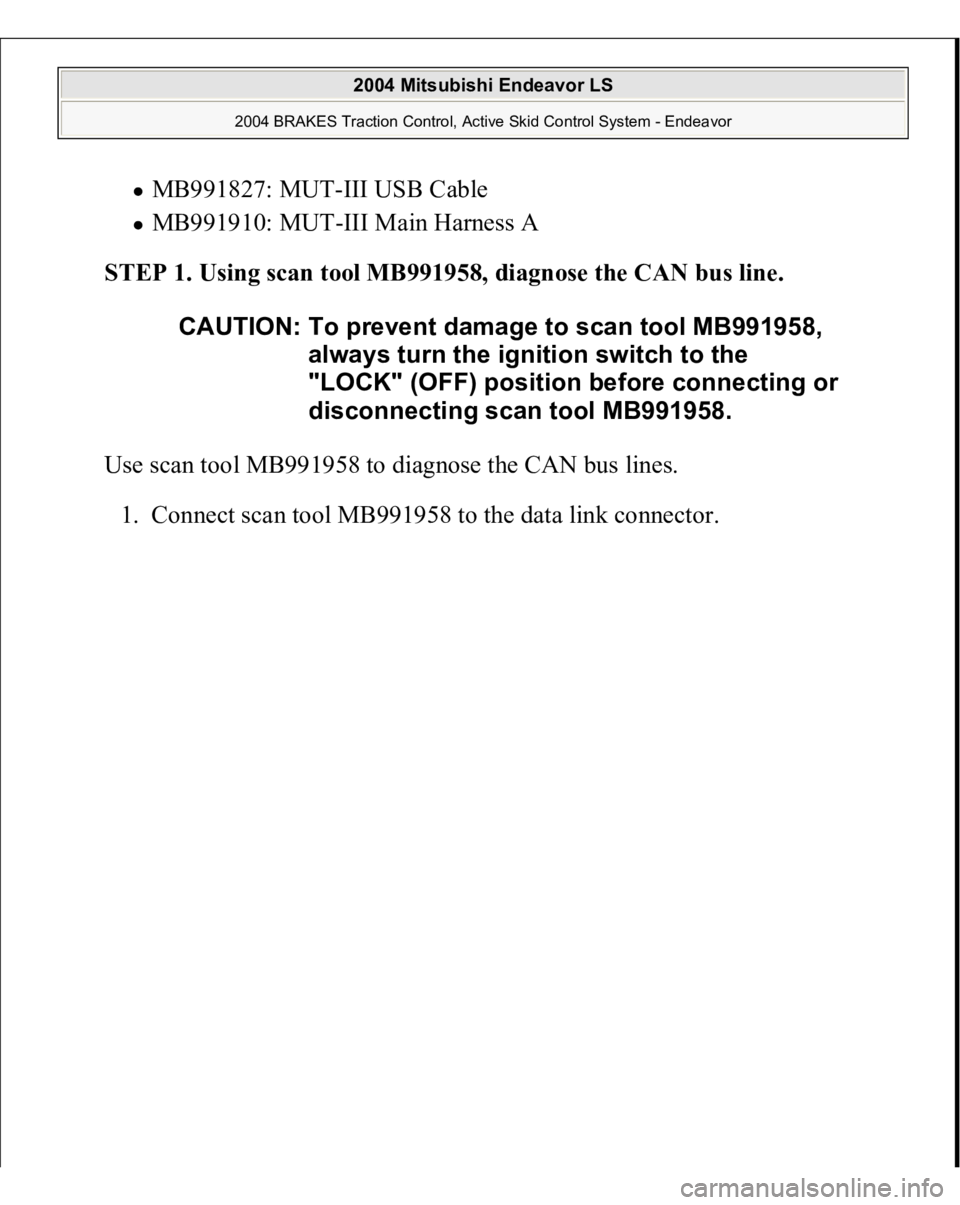

MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Check and repair the power supply circuit system (Refer to DTC
C1860: POWER SUPPLY HIGH VOLTAGE, DTC C1861: POWER SUPPLY LOW VOLTAGE
).
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
).
INSPECTION PROCEDURE 2: Communication between Scan Tool and the steering wheel sensor is not possible.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 201: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate with the steering
wheel sensor, the CAN bus lines may be defective. If the ASC system does not
work, the steering wheel sensor or its power supply circuit may be defective. TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface
(V.C.I.
)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
