2004 MITSUBISHI ENDEAVOR can bus

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 3.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 2.
STEP 2. Recheck for diagnostic trouble code.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

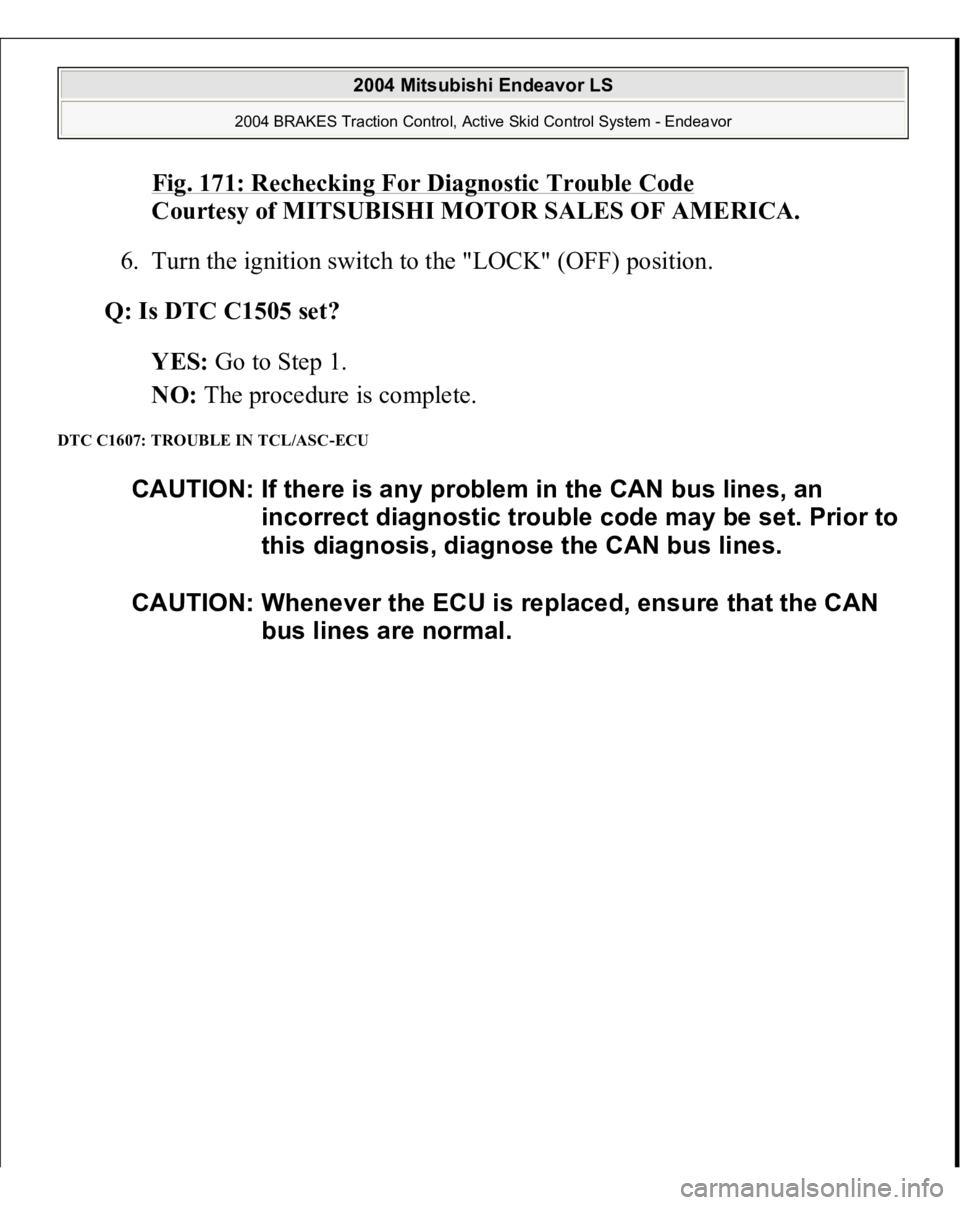

Fig. 171: Rechecking For Diagnostic Trouble Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1505 set?
YES: Go to Step 1.
NO: The procedure is complete.
DTC C1607: TROUBLE IN TCL/ASC-ECU
CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

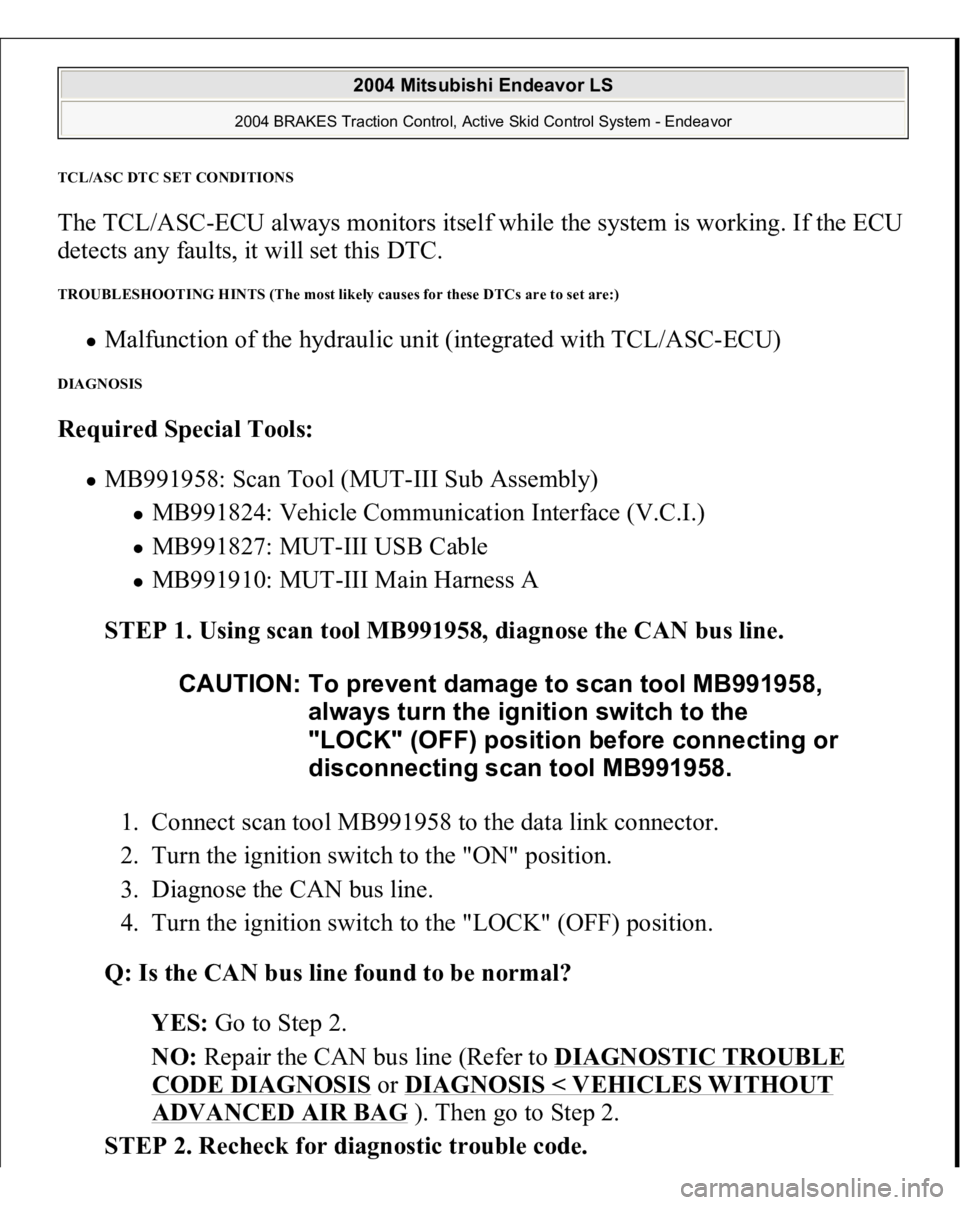

TCL/ASC DTC SET CONDITION
S
The TCL/ASC-ECU always monitors itself while the system is working. If the ECU
detects any faults, it will set this DTC. TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 2.
STEP 2. Recheck for diagnostic trouble code. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

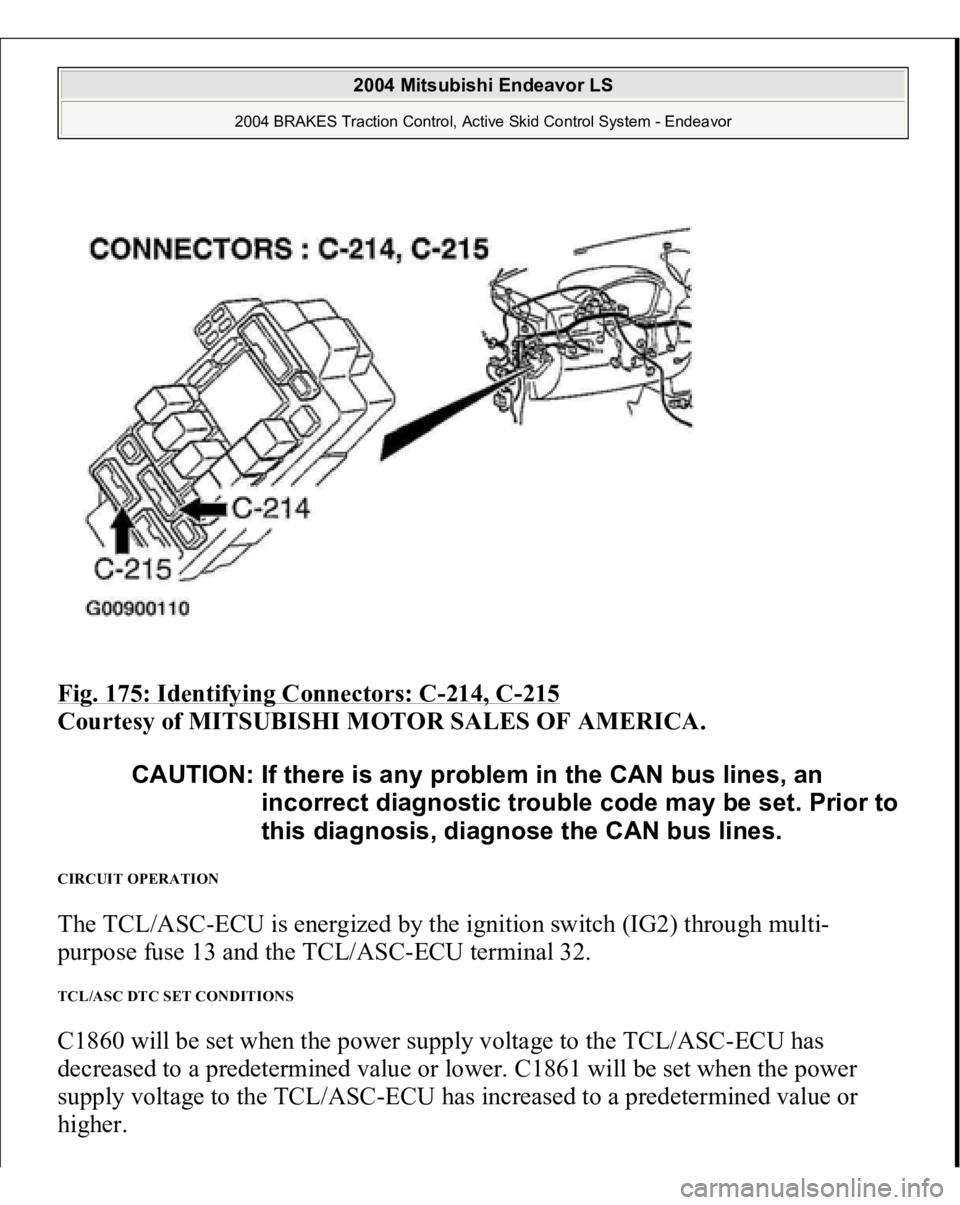

Fig. 175: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION The TCL/ASC-ECU is energized by the ignition switch (IG2) through multi-
purpose fuse 13 and the TCL/ASC-ECU terminal 32. TCL/ASC DTC SET CONDITIONS C1860 will be set when the power supply voltage to the TCL/ASC-ECU has
decreased to a predetermined value or lower. C1861 will be set when the power
supply voltage to the TCL/ASC-ECU has increased to a predetermined value or
higher.
CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

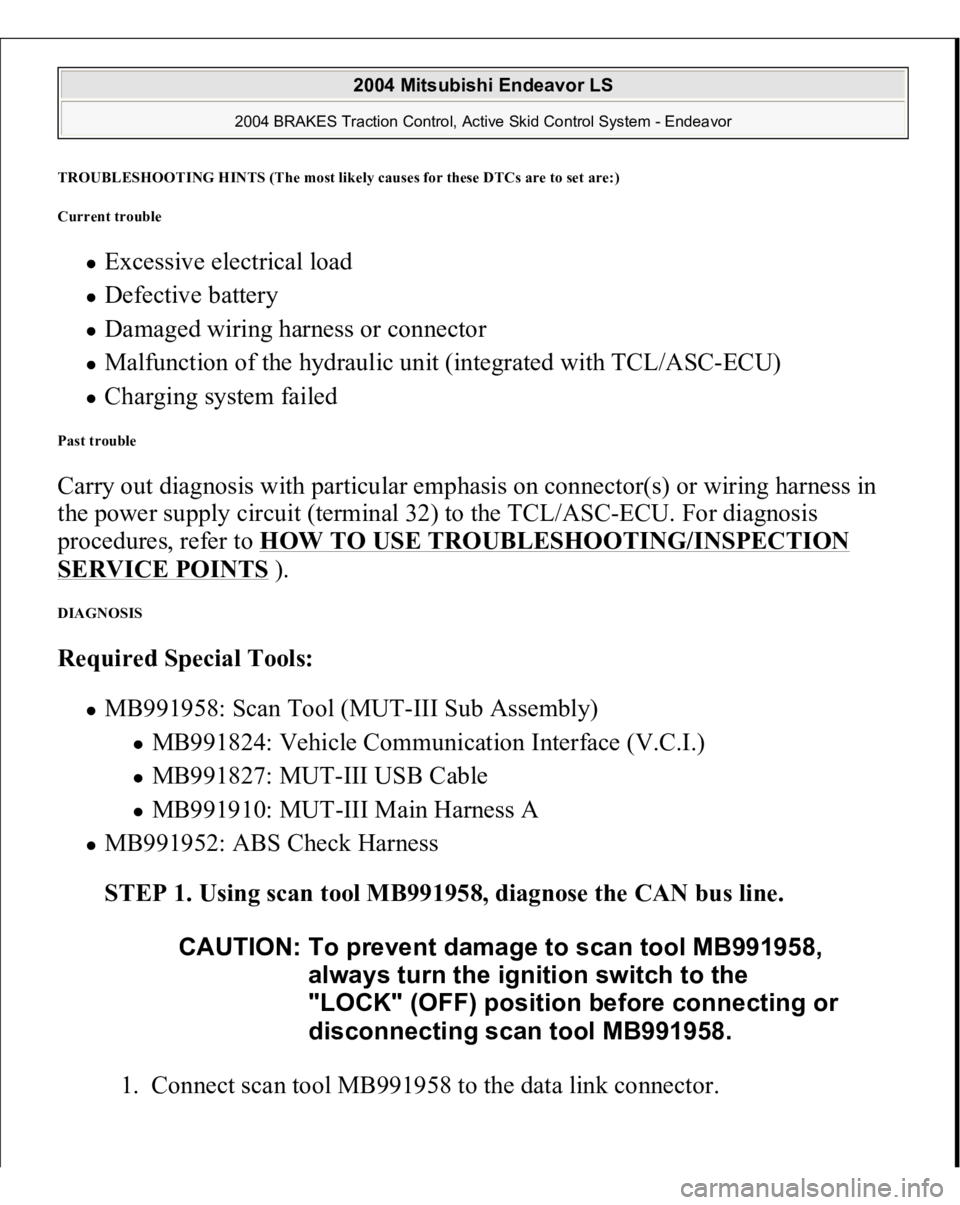

TROUBLESHOOTING HINTS (The most likel
y causes for these DTCs are to set are:
)
Current trouble
Excessive electrical load Defective battery Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Charging system failed
Past trouble Carry out diagnosis with particular emphasis on connector(s) or wiring harness in
the power supply circuit (terminal 32) to the TCL/ASC-ECU. For diagnosis
procedures, refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS
).
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

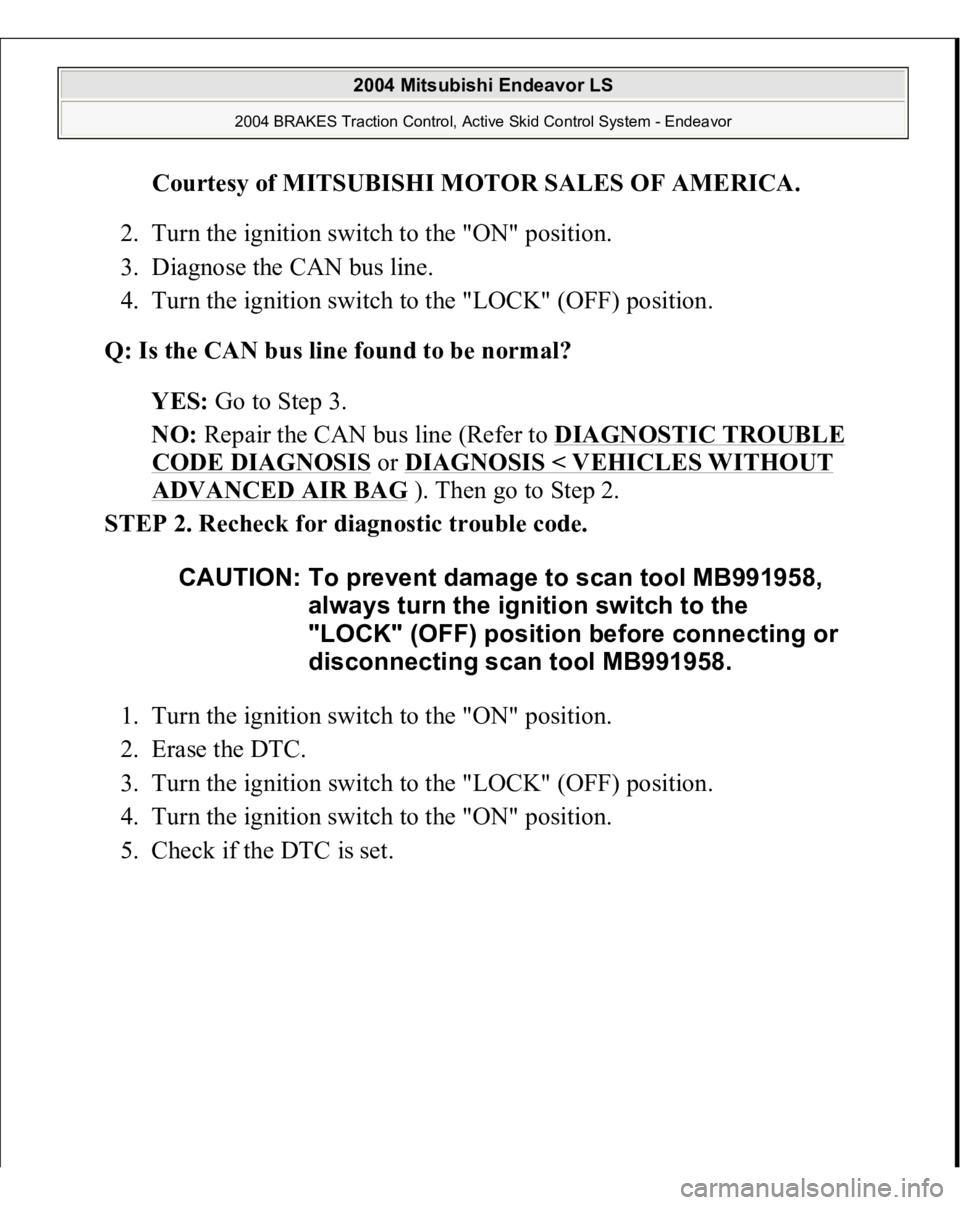

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 3.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 2.
STEP 2. Recheck for diagnostic trouble code.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

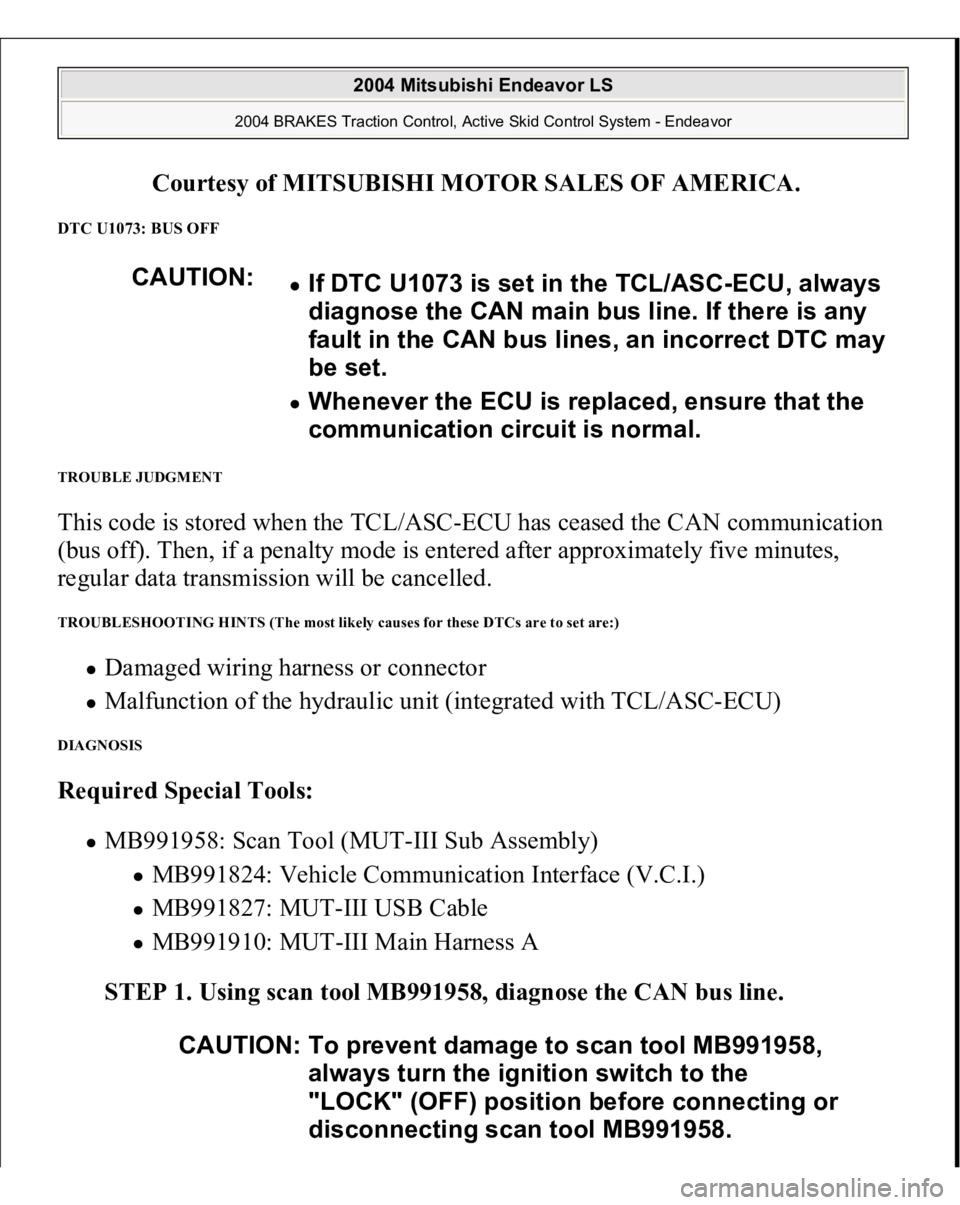

DTC U1073: BUS OFF TROUBLE JUDGMENT This code is stored when the TCL/ASC-ECU has ceased the CAN communication
(bus off). Then, if a penalty mode is entered after approximately five minutes,
regular data transmission will be cancelled. TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line. CAUTION:
If DTC U1073 is set in the TCL/ASC-ECU, always
diagnose the CAN main bus line. If there is any
fault in the CAN bus lines, an incorrect DTC may
be set. Whenever the ECU is replaced, ensure that the
communication circuit is normal.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

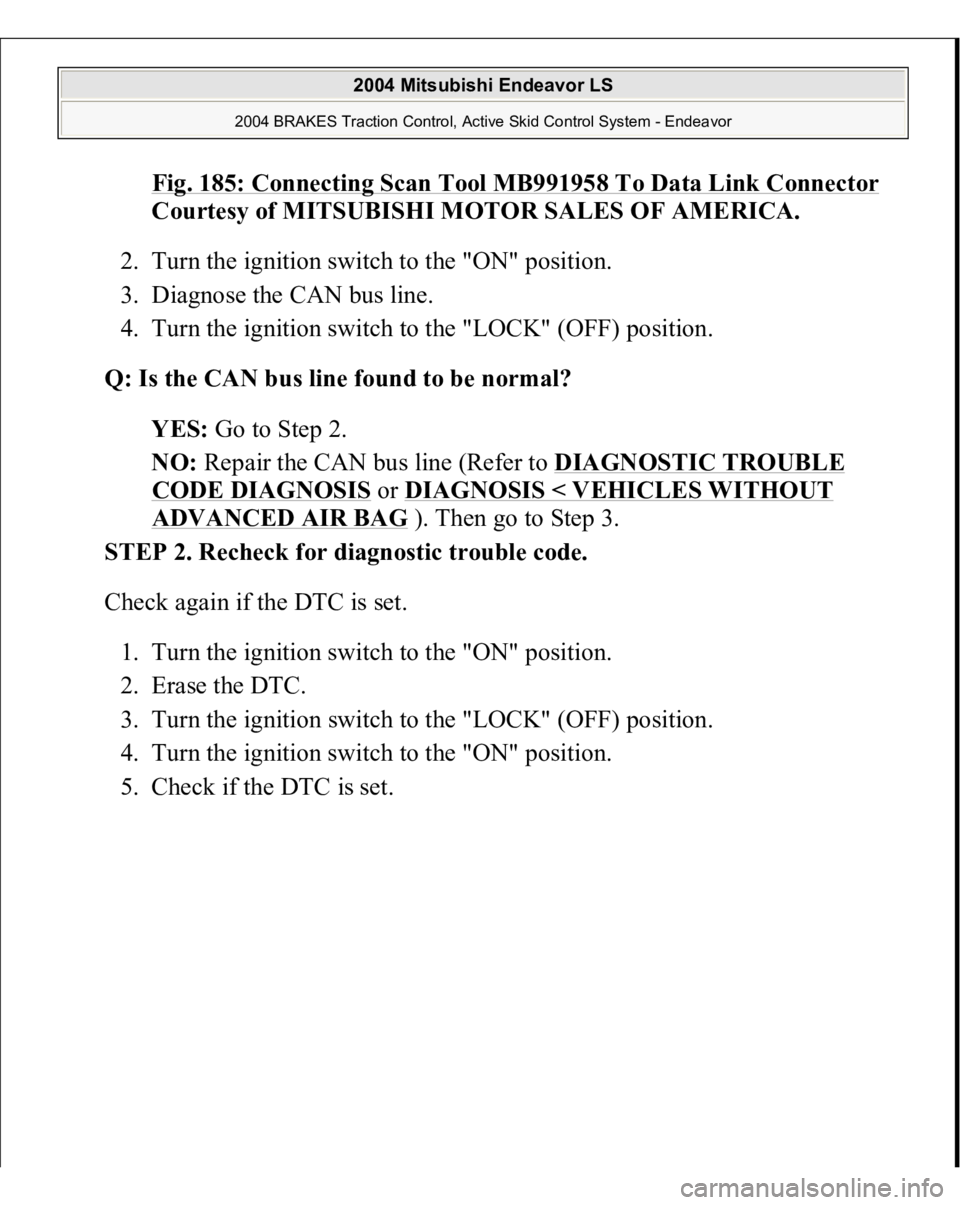

Fig. 185: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 3.
STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
