Page 3269 of 3870

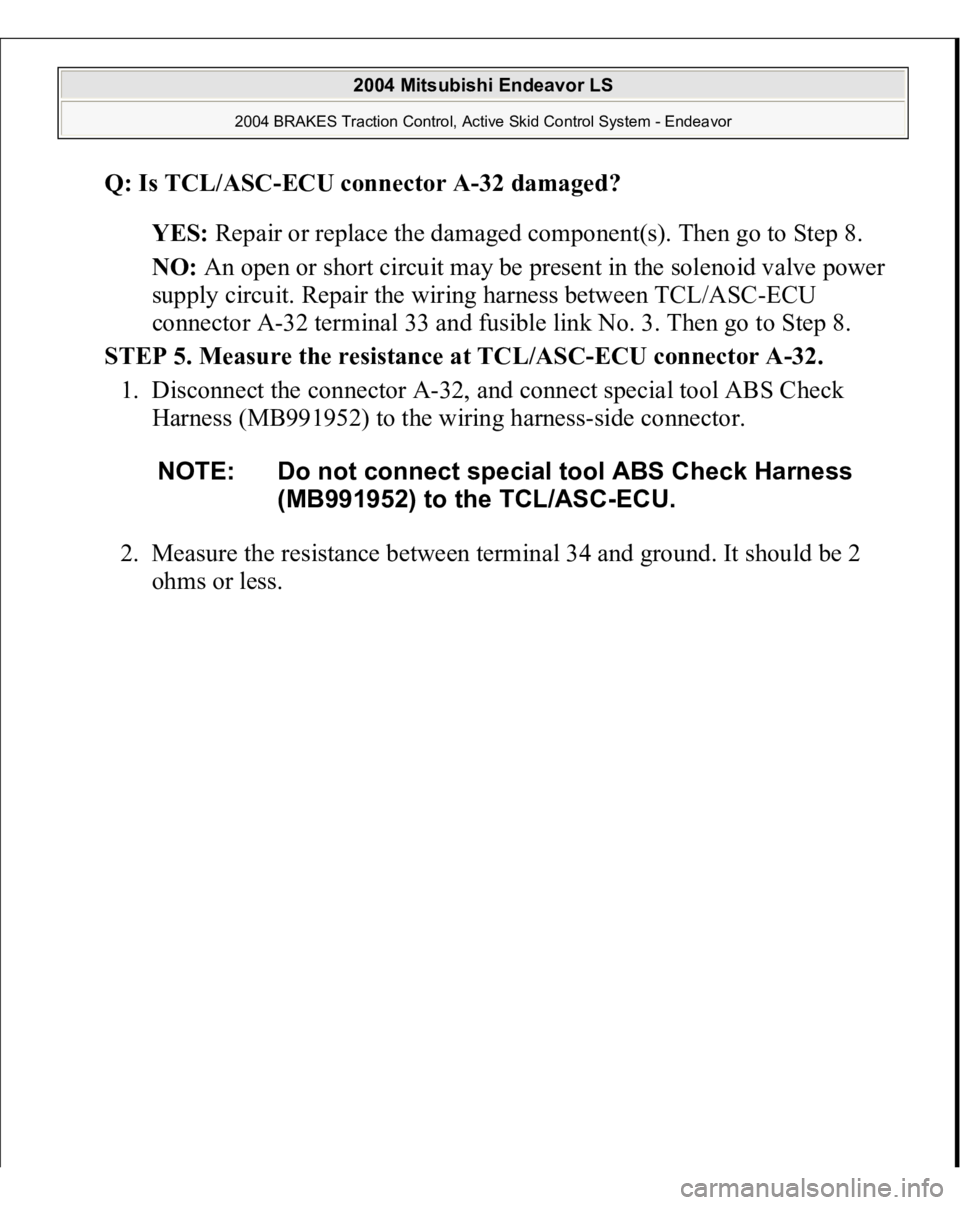

Q: Is TCL/ASC-ECU connector A-32 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 8.
NO: An open or short circuit may be present in the solenoid valve power
supply circuit. Repair the wiring harness between TCL/ASC-ECU
connector A-32 terminal 33 and fusible link No. 3. Then go to Step 8.
STEP 5. Measure the resistance at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between terminal 34 and ground. It should be 2
ohms or less. NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3270 of 3870

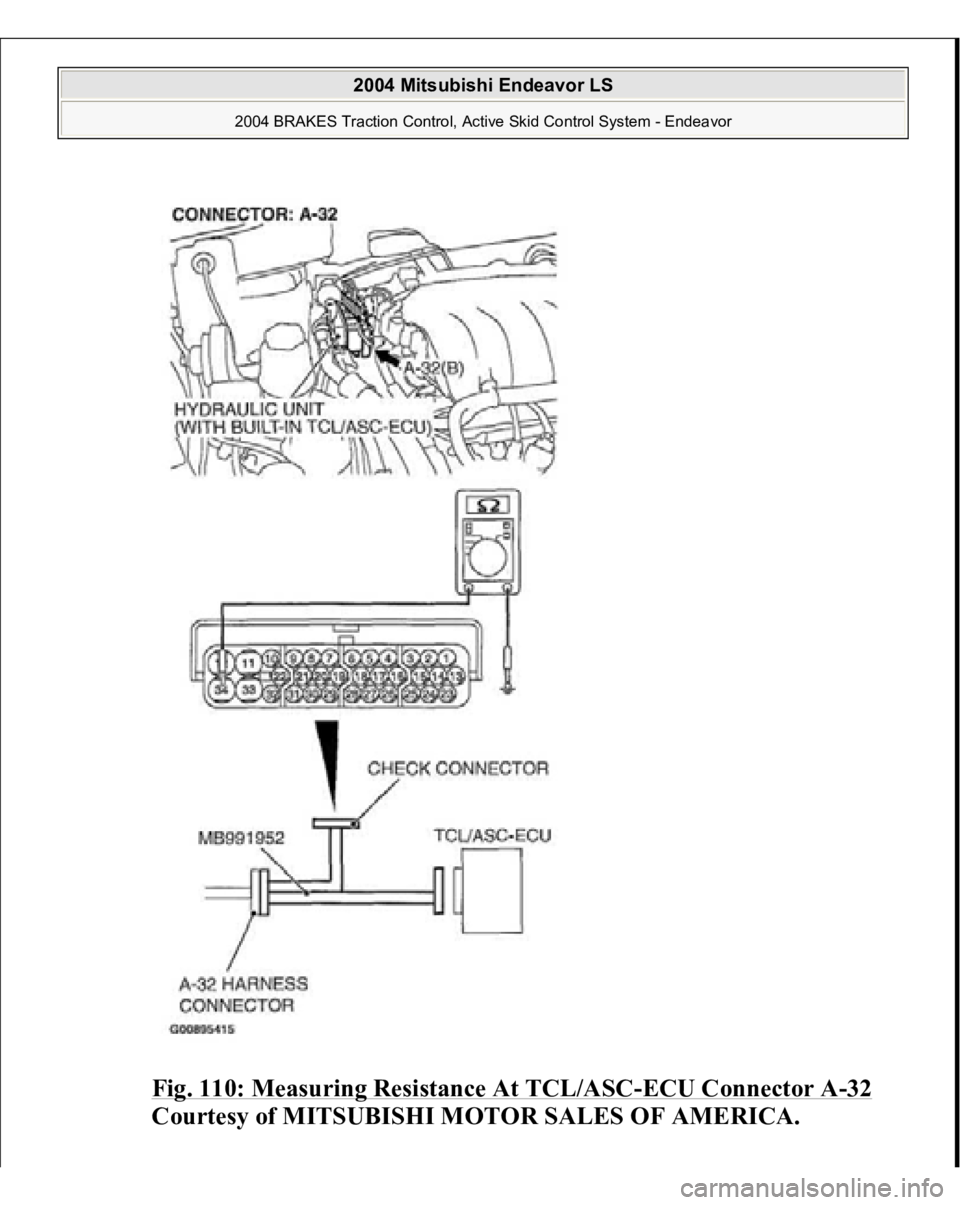

Fig. 110: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3271 of 3870

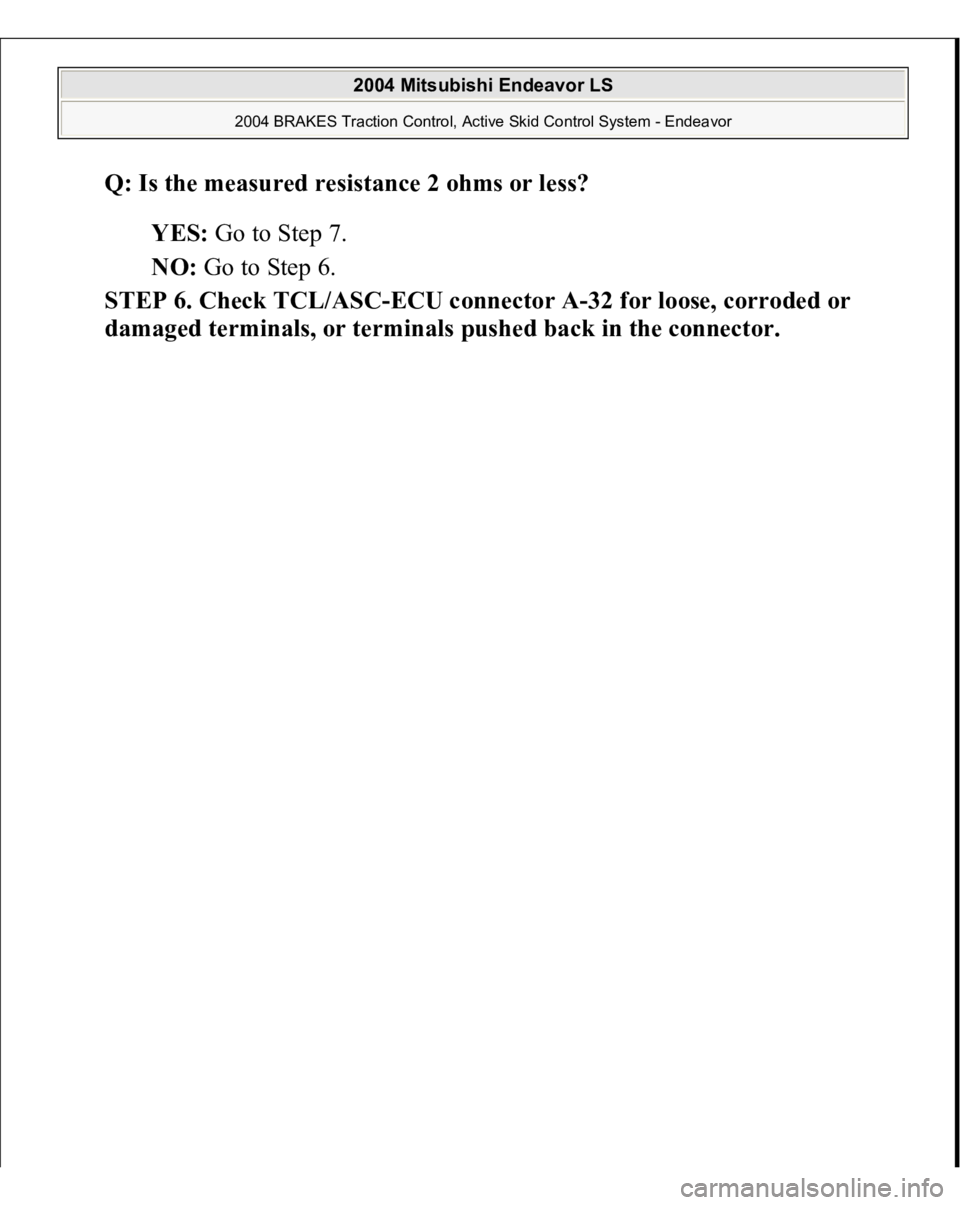

Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7.
NO: Go to Step 6.
STEP 6. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3272 of 3870

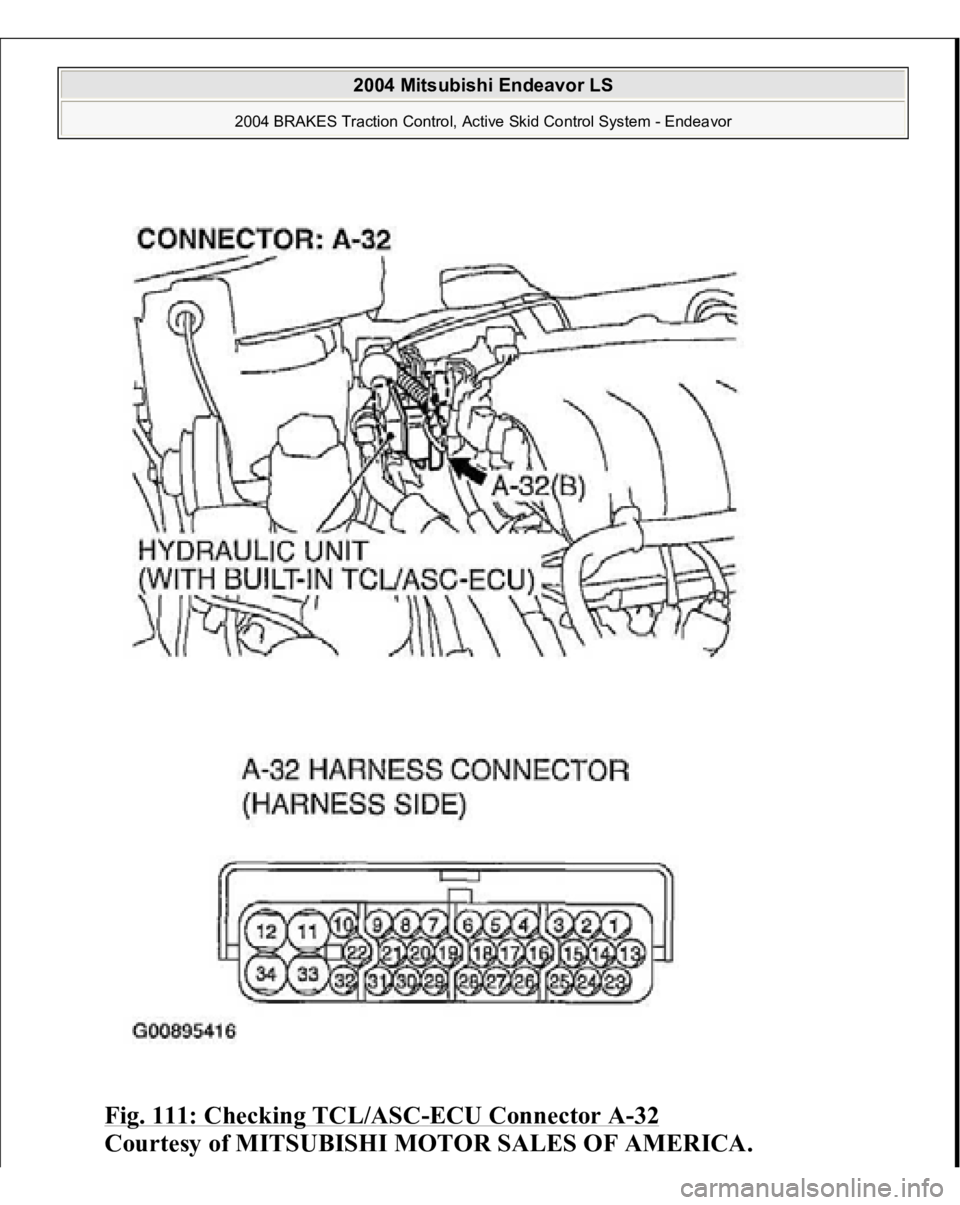

Fig. 111: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3273 of 3870
Q: Is TCL/ASC-ECU connector A-32 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 8.
NO: An open circuit may be present in the ground circuit. Repair the
wiring harness between TCL/ASC-ECU connector A-32 terminal 34 and
the body ground. Then go to Step 8.
STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3274 of 3870
Fig. 112: Rechecking For Diagnostic Trouble Code
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3275 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1266, C1273 or C1274 set?
YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then
go to Step 8.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 8. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3276 of 3870
Fig. 113: Rechecking For Diagnostic Trouble Code
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
