MITSUBISHI ENDEAVOR 2004  Service Repair Manual Current trouble
Damaged wiring harness or connector  Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
Past trouble
Carry out diagnosis with particular emphasis on connector(s) or wi

Page 3262 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 106: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3263 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 3264 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 107: Rechecking For Diagnostic Trouble Code

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3265 of 3870

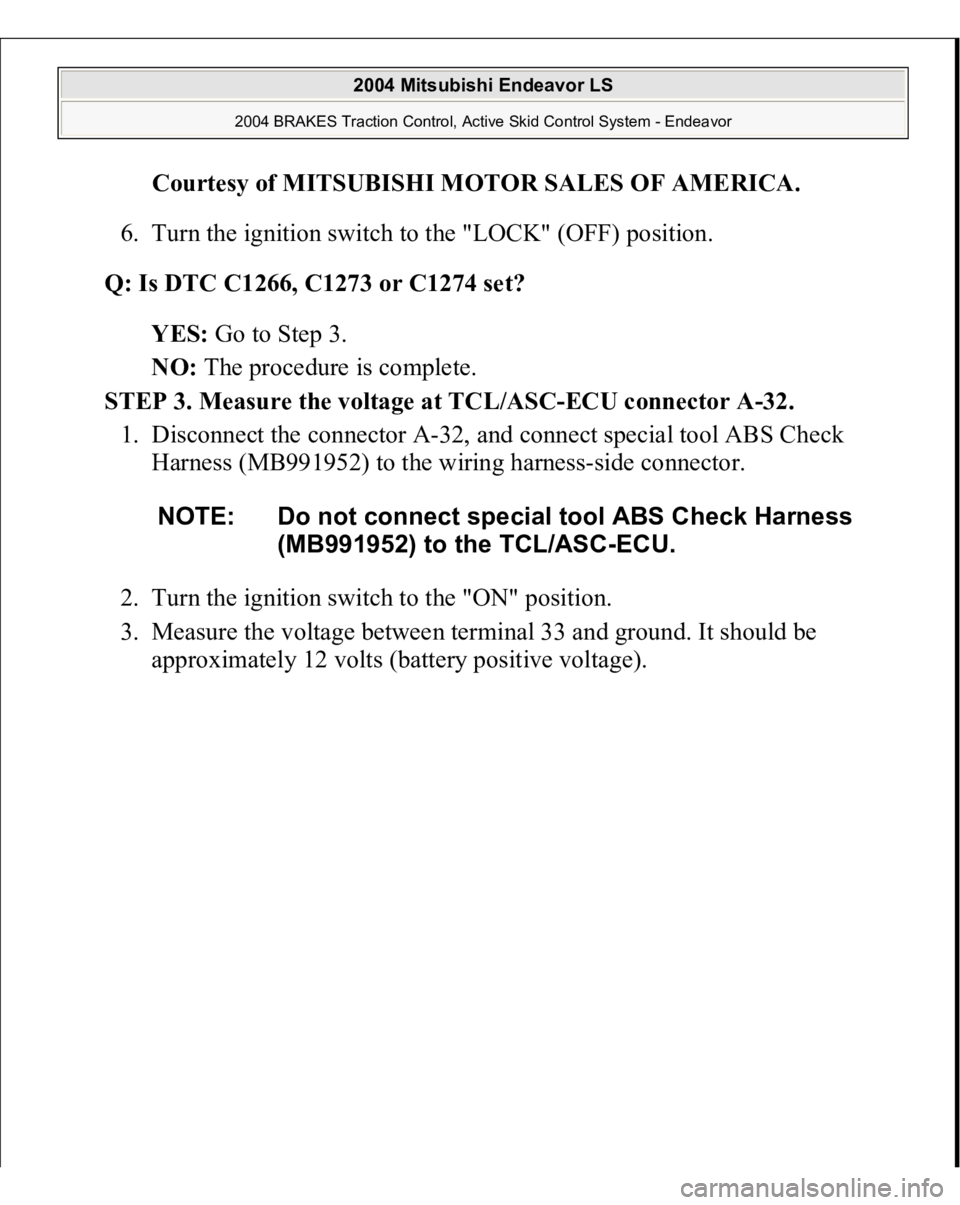

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1266, C1273 or C1274 set?
YES: Go to Step 3.
NO: The procedure is co

Page 3266 of 3870

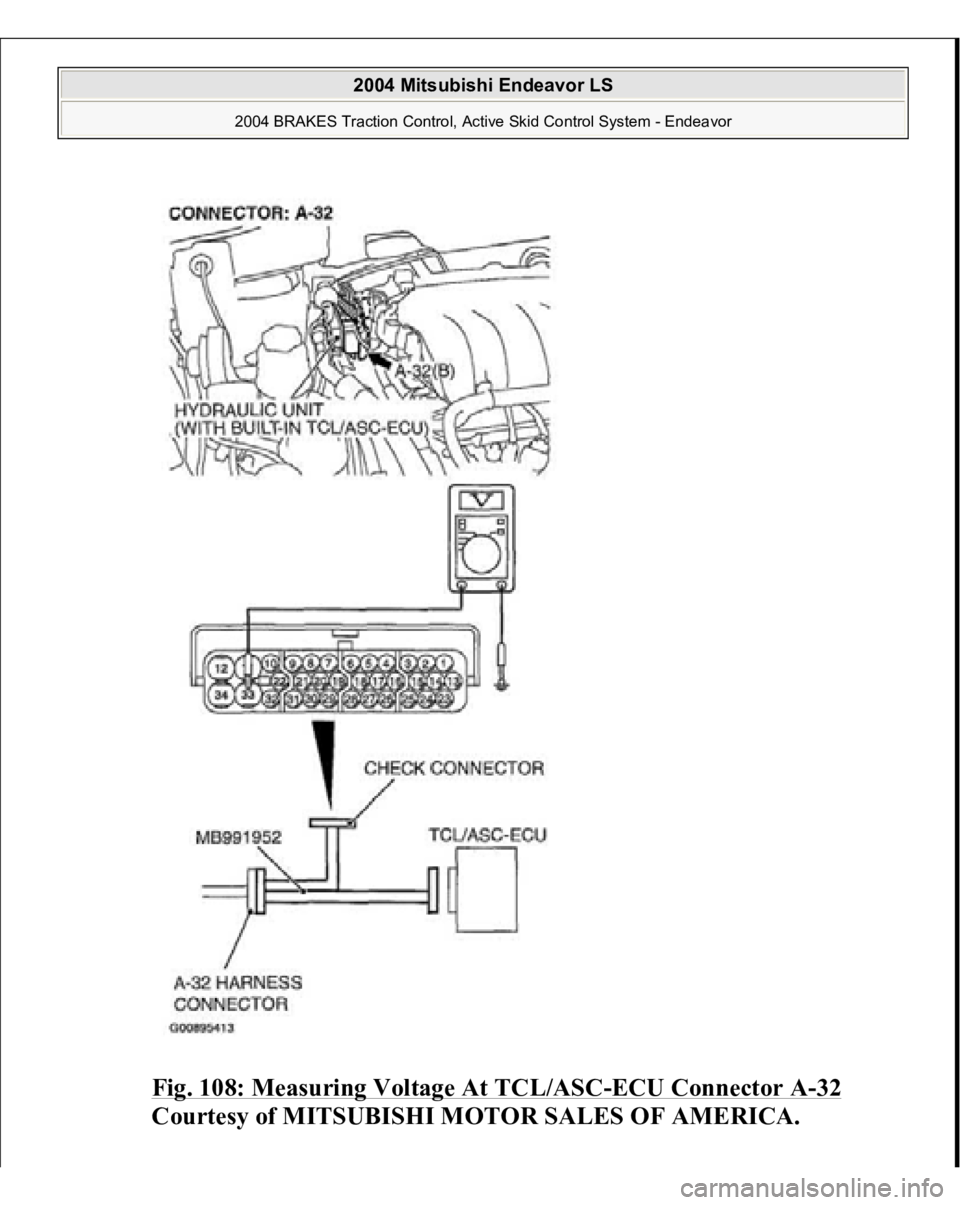

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 108: Measuring Voltage At TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - En

Page 3267 of 3870

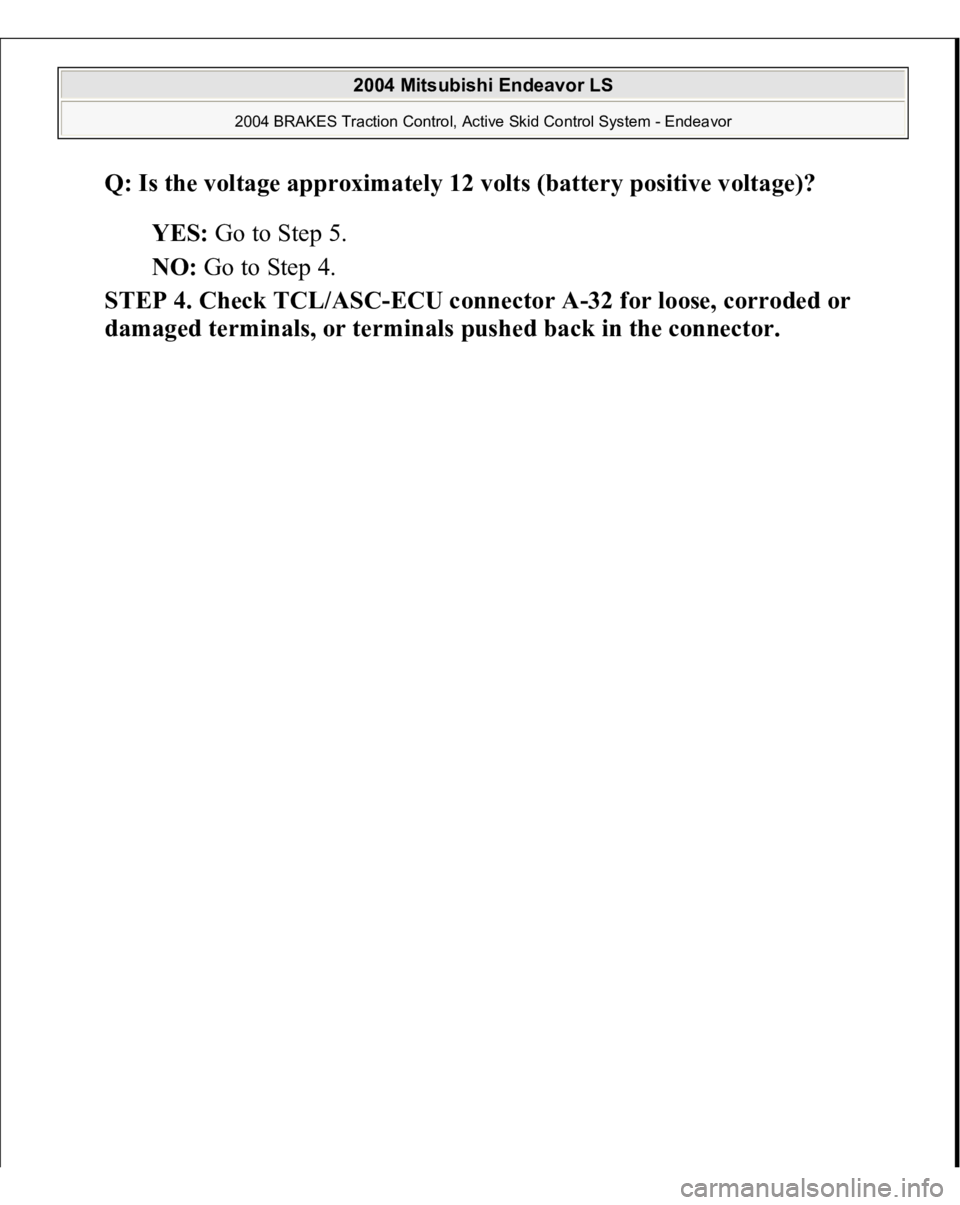

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Q: Is the voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 5.
NO: Go to Step 4.
STEP 4. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or

Page 3268 of 3870

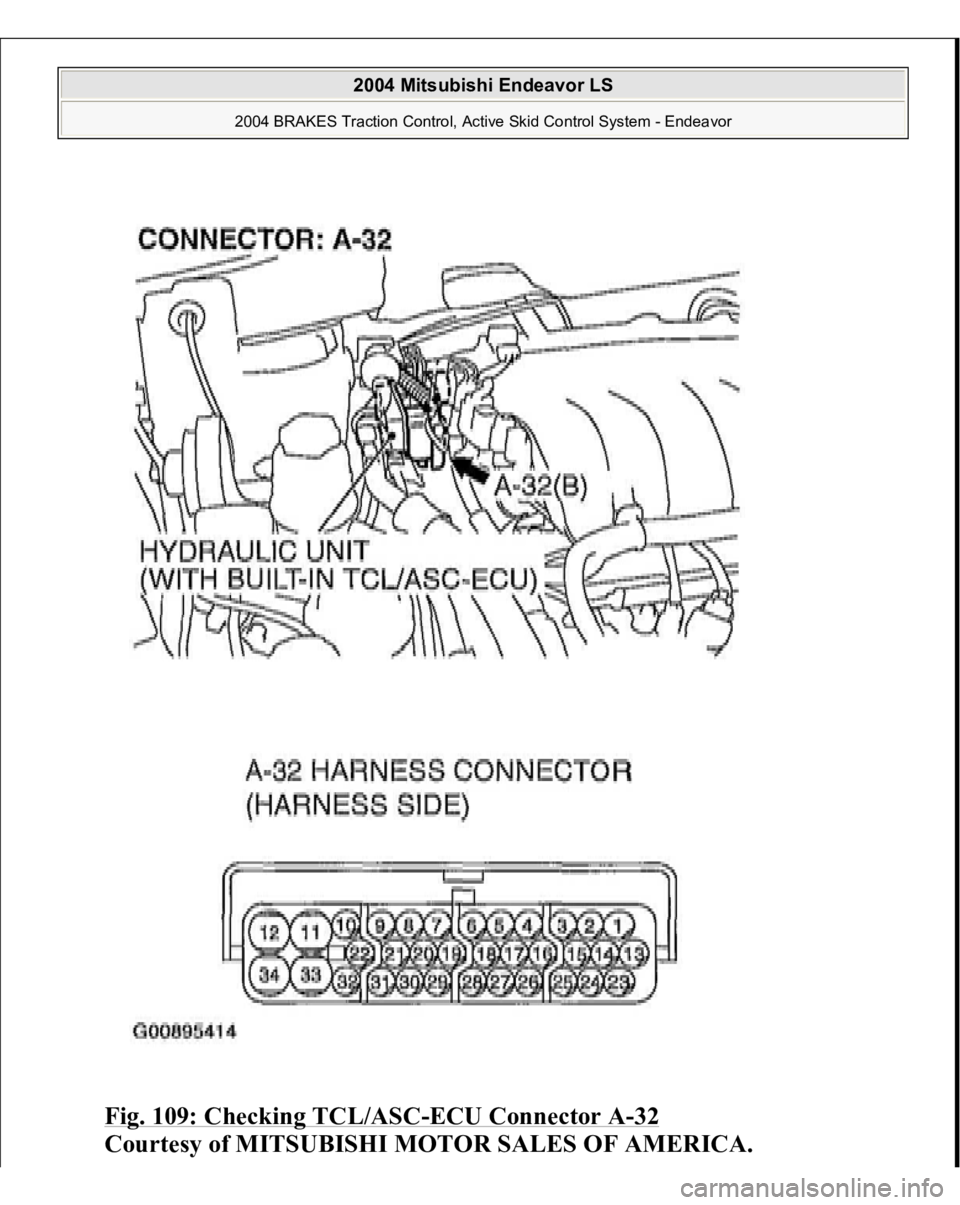

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 109: Checking TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
