Page 217 of 3870
Fig. 126: Identifying Connectors: C
-214, C
-215
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The ABS-ECU is energized by the ignition switch (IG2) through multi-purpose
fuse 13 and the ABS-ECU terminal 20. If the power supply to the ABS-ECU has failed, scan tool (MUT-III Sub
Assembly) will not be able to communicate with it.
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
Damaged wiring harness or connector Defective battery Charging system failed Malfunction of the hydraulic unit (integrated with ABS-ECU)
DIAGNOSIS
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 218 of 3870
Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991970: ABS Check Harness
STEP 1. Measure the voltage at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 20 and ground. It should measure
approximately 12 volts (battery positive voltage). NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 223 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
Joint connector C-04
Fig. 130: Checking Joint Connector C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Ignition switch connector C-308
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 224 of 3870
Fig. 131: Checking Ignition Switch Connector C
-308
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: An open or short circuit may be present in the power supply line to
the ABS-ECU. Repair the wiring harness between ABS-ECU connector
A-02 terminal 20 and ignition switch connector C-308 terminal 4. Then go
to Ste
p 8 .
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 230 of 3870
YES: The procedure is complete.
NO: Go to Step 1 .
INSPECTION PROCEDURE 3: WHEN THE IGNITION KEY IS TURNED TO ON (ENGINE STOPPED), THE
BRAKE/ABS WARNING LIGHT DOES NOT ILLUMINATE, INSPECTION PROCEDURE 4: THE BRAKE/ABS
WARNING LIGHT REMAINS ILLUMINATED AFTER THE ENGINE IS STARTED
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 233 of 3870

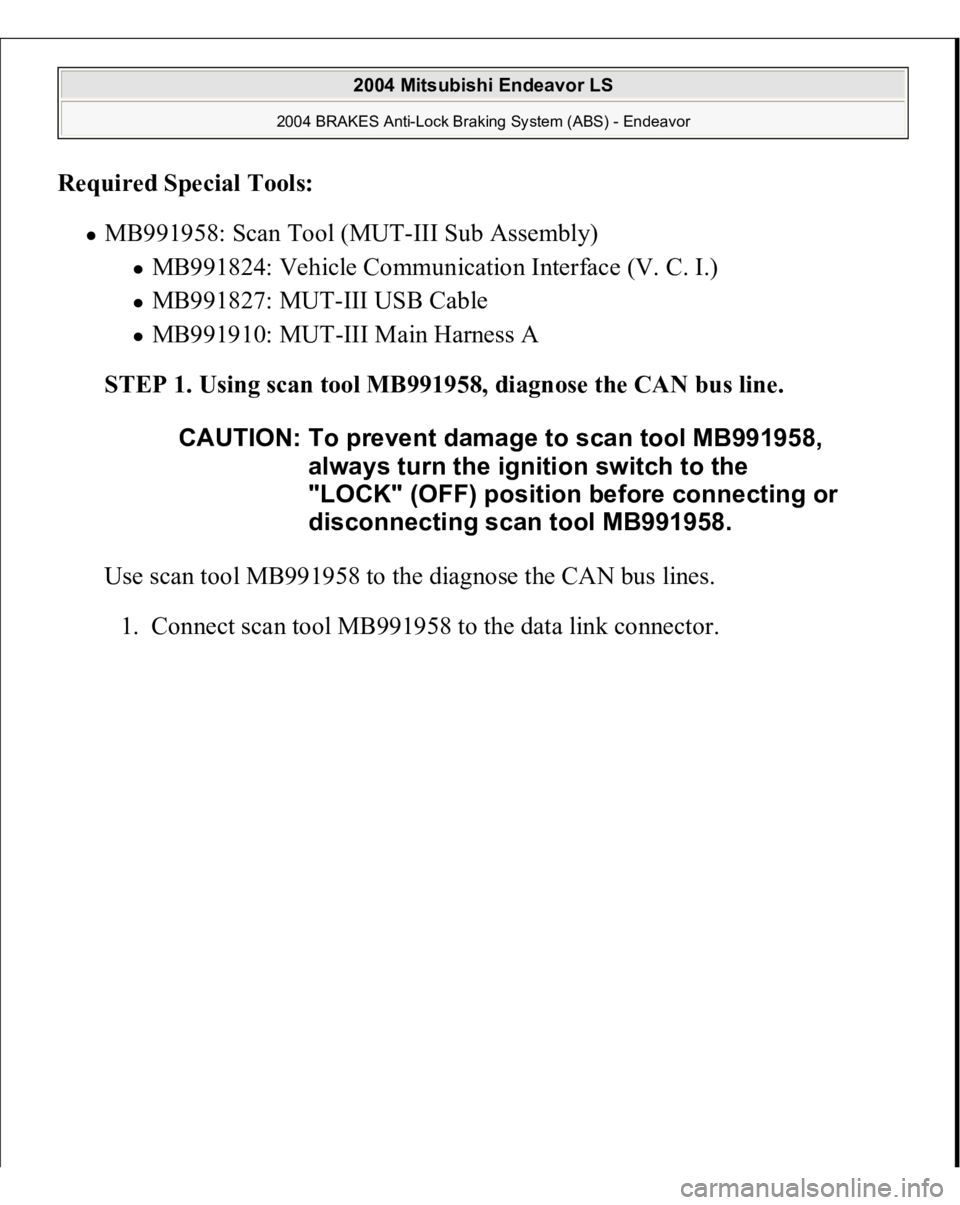

Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V. C. I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to the diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 235 of 3870

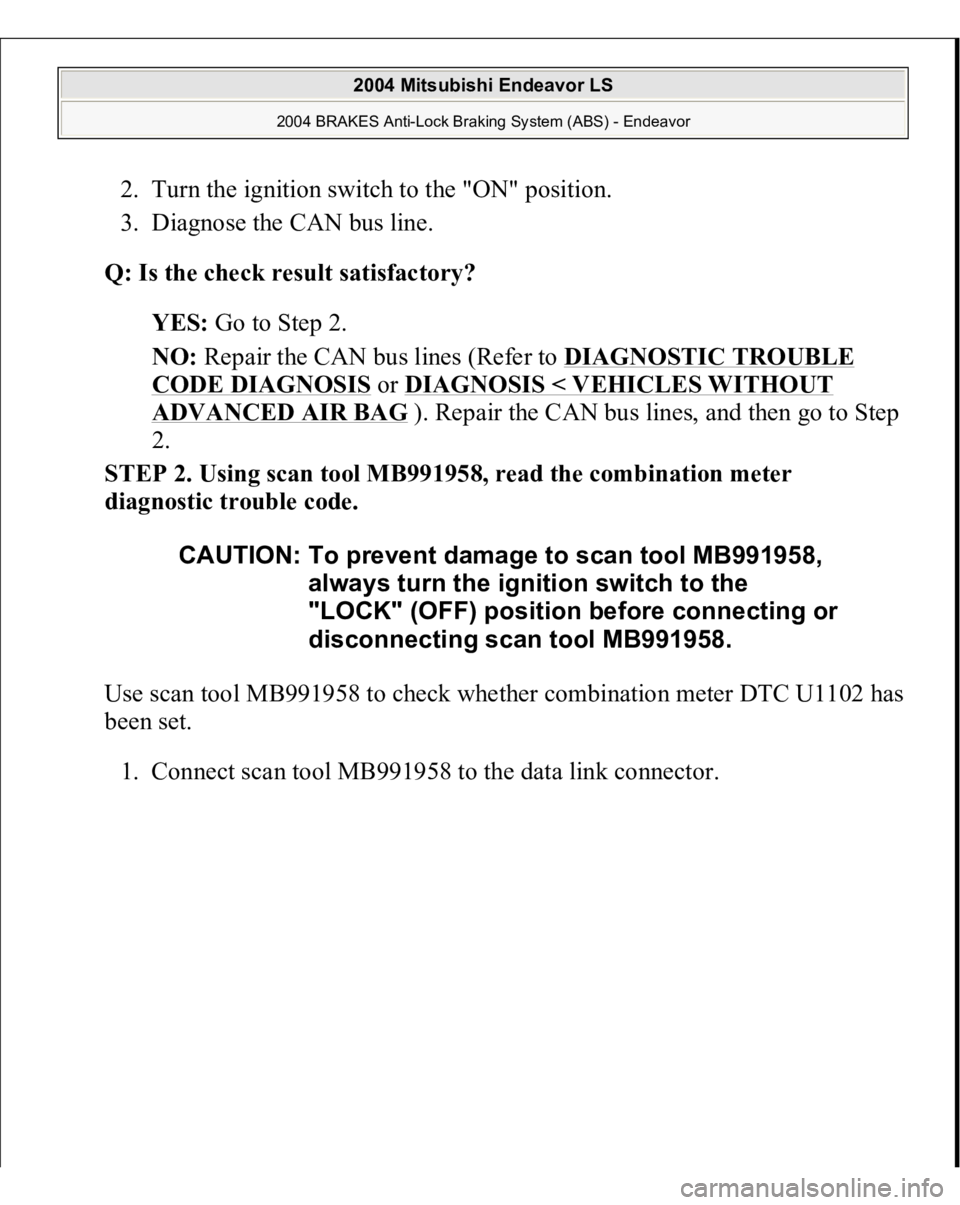

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Go to Step 2.
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Repair the CAN bus lines, and then go to Step
2.
STEP 2. Using scan tool MB991958, read the combination meter
diagnostic trouble code.
Use scan tool MB991958 to check whether combination meter DTC U1102 has
been set.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 237 of 3870

2. Turn the ignition switch to the "ON" position.
3. Check whether combination meter DTC U1102 has been set.
Q: Is combination meter DTC U1102 set?
YES: Replace the hydraulic unit (integrated with ABS-ECU)
NO: Replace the combination meter.
INSPECTION PROCEDURE 5: FAULTY ABS OPERATION TECHNICAL DESCRIPTION (COMMENT) The cause depends on driving and road surface conditions, so diagnosis may be
difficult. However, if no diagnostic trouble code is displayed, carry out the
following inspection. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
Malfunction of the hydraulic unit
DIAGNOSIS Check the hydraulic unit (Refer to POINTS IN WAVEFORM MEASUREMENT
). If the hydraulic unit (integrated with ABS-ECU) is
malfunctioning, replace it. Then check that the malfunction symptom is eliminated.
STEP 1. Hydraulic unit check
Refer to POINTS IN WAVEFORM MEASUREMENT
.
Q: Is the hydraulic unit normal?
YES: Go to Step 2.
NO: Connect the brake pipes correctly, repair the external brake lines, or
replace the hydraulic unit.
STEP 2. Verify that the condition described by the customer exists.
Q: Can any faults be found with the brake operation?
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
