2004 MERCEDES-BENZ CLK-CLASS Owners Manual

217 Controls in detail
Soft top
Ski sack roller blind*
The ski sack roller blind is located in the
trunk.
Closing ski sack roller blind
1Left hinge
2Right hinge
3Pull strap
Pull ski sack roller blind downward us-
ing pull strap3.

Manually fold left1 and right
hinges2 of ski sack roller blind all the
way down.

To snap ski sack roller blind into place,
press left and right hinges where the
word PRESS can be seen.
Opening ski sack roller blind
1Left hinge
2Right hinge
3Pull strap

Pull ski sack roller blind upward using
pull strap3.

Manually fold left1 and right
hinges2 of ski sack roller blind all the
way up.
!Never place anything behind the side
nets when the luggage cover has been
folded back or the ski sack roller blind
is open. You could forget objects
placed there, which could result in
damage when operating the soft top.
ProCarManuals.com

218 Controls in detailSoft topOpening the soft topSoft top switch1Indicator lamp
2Soft top openingBefore pulling on the soft top switch, you
must make sure:


the parking brake is engaged
(page 46)


the luggage cover is latched, see
“Latch luggage cover” (
page 216)


the ski sack roller blind is closed, see
“Closing ski sack roller blind”
(page 217)


the trunk lid is closed


the ignition is switched on (SmartKey in
starter switch position2 or press the
KEYLESS-GO* start/stop button twice)

Pull up on the soft top switch as indi-
cated by the arrow2 until the soft top
is completely lowered into its trunk
storage compartment and the indicator
lamp1 in the soft top switch goes
out.
During the opening procedure the mul-
tifunction display shows the message Top in operation
.
If the opening procedure is finished,
the multifunction display will briefly
show the message Top open
.
If you continuously pull on the soft top
switch, the windows will close.
However, the windows can also be
closed/opened later on, for more informa-
tion see “Opening and closing the windows
with the soft top switch” (
page 212), or
see “Opening and closing the windows”
(
page 210)
ProCarManuals.com

219 Controls in detail
Soft top

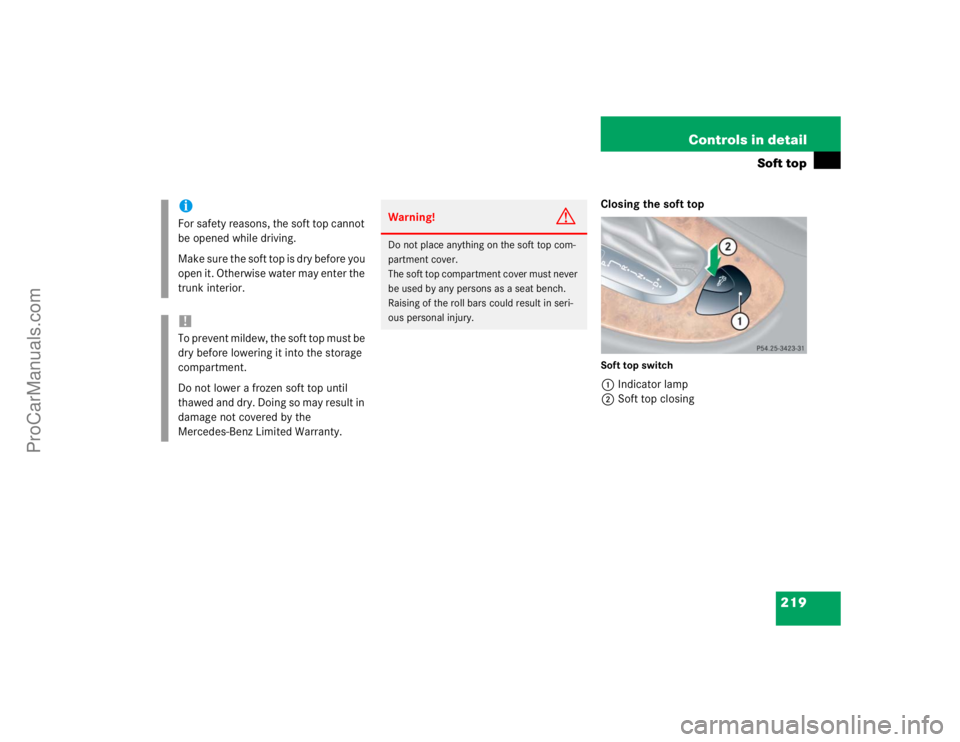

Closing the soft topSoft top switch1Indicator lamp
2Soft top closing
iFor safety reasons, the soft top cannot
be opened while driving.
Make sure the soft top is dry before you
open it. Otherwise water may enter the
trunk interior.!To prevent mildew, the soft top must be
dry before lowering it into the storage
compartment.
Do not lower a frozen soft top until
thawed and dry. Doing so may result in
damage not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Do not place anything on the soft top com-
partment cover.
The soft top compartment cover must never
be used by any persons as a seat bench.
Raising of the roll bars could result in seri-
ous personal injury.
ProCarManuals.com

220 Controls in detailSoft topBefore pressing the soft top switch, you
must make sure:

the parking brake is engaged
(page 46)


the trunk lid is closed


the ignition is switched on (SmartKey in
starter switch position2 or press the
KEYLESS-GO* start/stop button twice)

Press the soft top switch as indicated
by the arrow2 until the soft top is
completely closed and locked.The indi-
cator lamp1 in the soft top switch
goes out.
During the closing procedure the multi-
function display shows the message Top in operation
.
If the soft top is closed and locked, the
multifunction display will briefly show
the message
Top closed
.
If you continuously press on the soft
top switch the windows will close.However, the windows can also be
closed/opened later on, for more informa-
tion see “Opening and closing the windows
with the soft top switch” (
page 212) or
see “Opening and closing the windows”
(
page 210)Locking the soft top after raising/low-
ering
If the soft top is not properly locked, lock it
as described below.iFor safety reasons, the soft top cannot

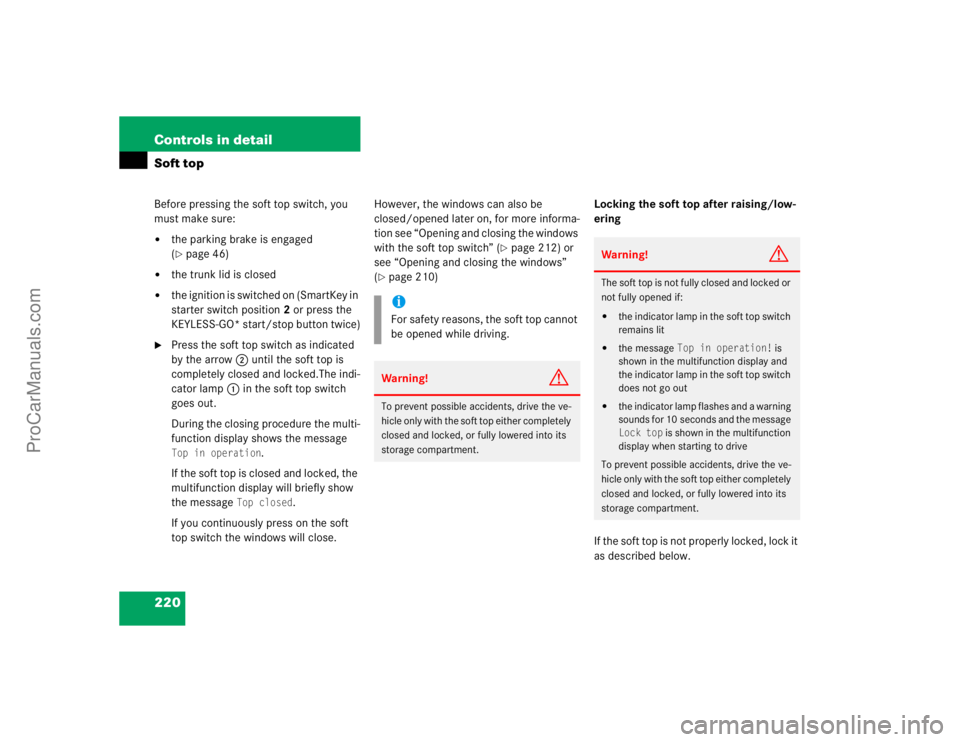

be opened while driving.Warning!
G
To prevent possible accidents, drive the ve-
hicle only with the soft top either completely
closed and locked, or fully lowered into its
storage compartment.
Warning!
G
The soft top is not fully closed and locked or
not fully opened if:

the indicator lamp in the soft top switch
remains lit


the message
Top in operation!
is
shown in the multifunction display and
the indicator lamp in the soft top switch
does not go out


the indicator lamp flashes and a warning
sounds for 10 seconds and the message Lock top
is shown in the multifunction
display when starting to drive
To prevent possible accidents, drive the ve-
hicle only with the soft top either completely
closed and locked, or fully lowered into its
storage compartment.
ProCarManuals.com

221 Controls in detail
Soft top
Unlocked status noticed when stopped
Switch on the ignition.

To lock the soft top in its fully closed
position, press soft top switch.
The message
Top closed
will be shown
in the multifunction display.
or:

To lock the soft top in its fully opened
position, pull up on the soft top switch.
The message
Top open
will be shown in
the multifunction display.Unlocked status noticed while driving

Stop the vehicle.

Leave the ignition switched on.

To lock the soft top in its fully closed
position, press soft top switch.
The message
Top closed
will be shown
in the multifunction display.
or:

To lock the soft top in its fully opened
position, pull up on the soft top switch.
The message
Top open
will be shown in
the multifunction display.
Warning!
G
Stop the vehicle and lock the soft top before
continuing to drive. You could otherwise en-
danger yourself and others.
Warning!
G
If the soft top does not completely open or
close, the roof hydraulics will lose pressure
and the soft top is lowered

after approximately seven minutes
when the ignition is switched on


after approximately 15 seconds when
the ignition is switched off
Shortly before the soft top is lowered, a
warning will sound and the soft top switch
lamp will flash. In the multifunction display
you will see K, and the message
Top
being lowered!
appears


Properly lock the soft top (
page 220)
before continuing to drive
ProCarManuals.com

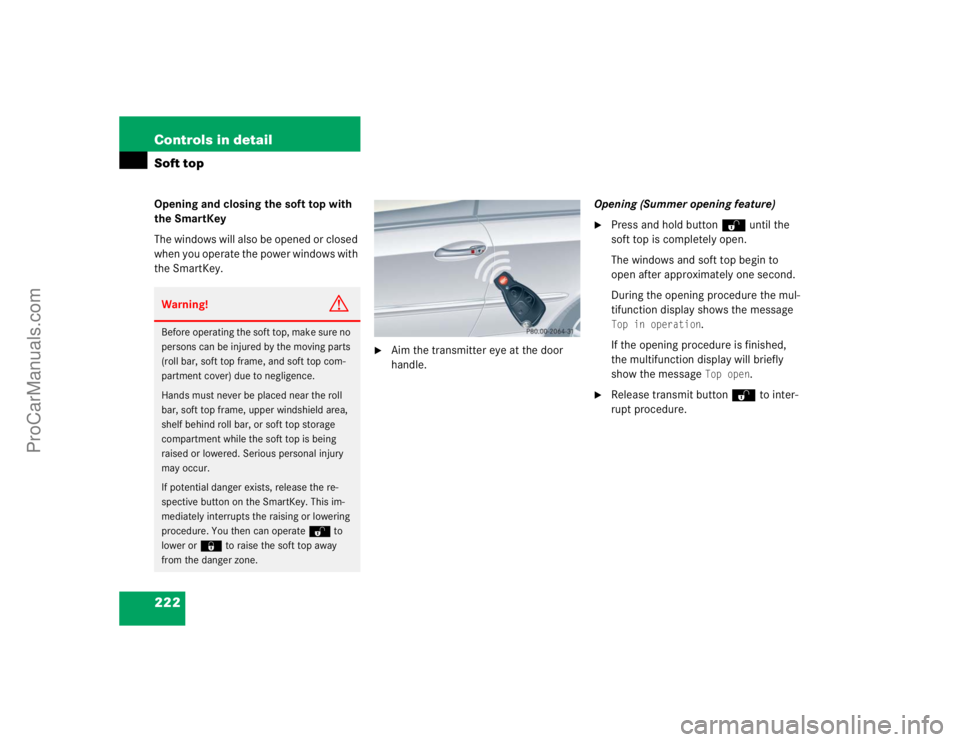

222 Controls in detailSoft topOpening and closing the soft top with
the SmartKey
The windows will also be opened or closed
when you operate the power windows with
the SmartKey.

Aim the transmitter eye at the door
handle.Opening (Summer opening feature)

Press and hold button Πuntil the
soft top is completely open.
The windows and soft top begin to
open after approximately one second.
During the opening procedure the mul-
tifunction display shows the message Top in operation
.
If the opening procedure is finished,
the multifunction display will briefly
show the message Top open
.

Release transmit button Πto inter-
rupt procedure.
Warning!
G
Before operating the soft top, make sure no
persons can be injured by the moving parts
(roll bar, soft top frame, and soft top com-
partment cover) due to negligence.
Hands must never be placed near the roll
bar, soft top frame, upper windshield area,
shelf behind roll bar, or soft top storage
compartment while the soft top is being
raised or lowered. Serious personal injury
may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate Πto
lower or ‹ to raise the soft top away
from the danger zone.
ProCarManuals.com

223 Controls in detail
Soft top
Closing (Convenience feature)
Aim the transmitter eye at the door
handle.

Press and hold button ‹ until the
soft top is completely closed.
The windows and soft top begin to
close after approximately one second.
During the closing procedure the multi-
function display shows the message Top in operation
.
If the soft top is closed and locked, the
multifunction display will briefly show
the message
Top closed
.

Release transmit button ‹ to inter-
rupt procedure.
Ensure that all side windows and the
soft top are properly closed before leaving
the vehicle.Wind screen
The wind screen deflects drafts away from
the driver and passenger when the soft top
is lowered. It is stored in a separate stor-
age bag in the trunk.
Warning!
G
If the soft top does not completely open or
close a warning sounds and the soft top
switch flashes. In the multifunction display
you will see K, and the message
Top
being lowered!
appears. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the soft top (
page 220) be-
fore continuing to drive.
Warning!
G
The wind screen can restrict the driver’s vi-
sion to the rear of the vehicle. To prevent a
possible accident when visibility is limited
(e.g. in darkness), the upper part of the wind
screen should be folded back.
ProCarManuals.com

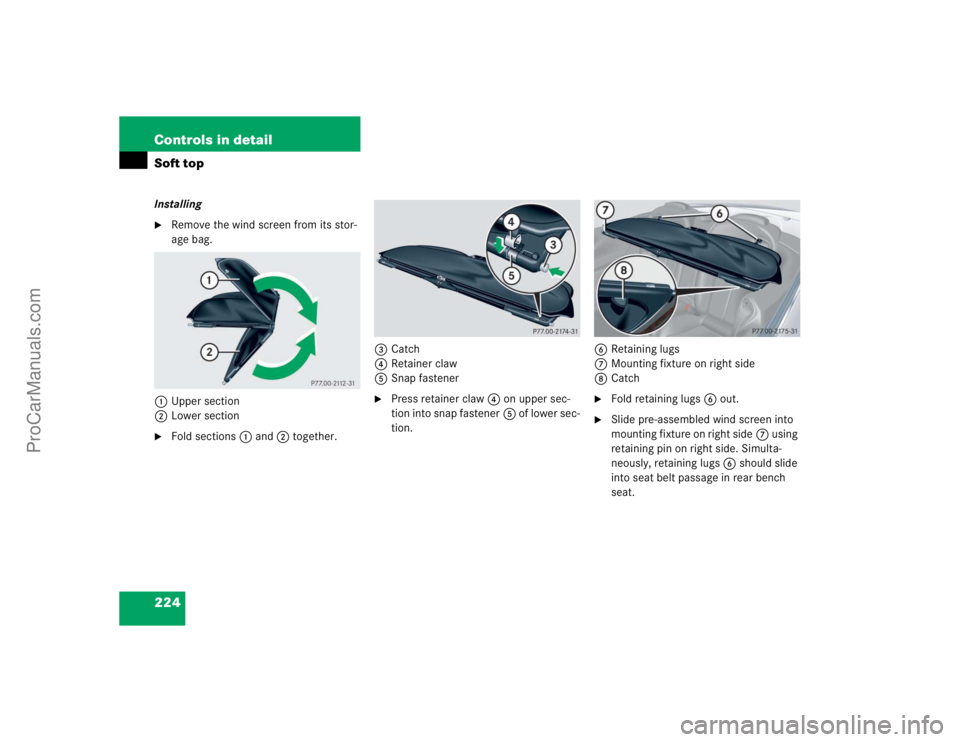

224 Controls in detailSoft topInstalling
Remove the wind screen from its stor-
age bag.
1Upper section
2Lower section

Fold sections1 and2 together.3Catch
4Retainer claw
5Snap fastener

Press retainer claw4 on upper sec-
tion into snap fastener5 of lower sec-
tion.6Retaining lugs
7Mounting fixture on right side
8Catch

Fold retaining lugs6 out.

Slide pre-assembled wind screen into
mounting fixture on right side7 using
retaining pin on right side. Simulta-
neously, retaining lugs6 should slide
into seat belt passage in rear bench
seat.
