2004 MERCEDES-BENZ CLK-CLASS Owners Manual

169 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 118).

Make sure the
Mirror adjustment
parking aid function
in the

Convenience
submenu of the control
system is switched to
on (page 151).

Switch on ignition (if not already on).

Press button2 for the passenger-side
exterior rear view mirror.

Place the gear selector lever in reverse
gear R.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
buttonThe exterior rear view mirror returns to its
previously stored driving position:


ten seconds after you put the gear se-
lector lever out of positionR


immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)


immediately when you press button3
for driver’s side mirror.
ProCarManuals.com

170 Controls in detailGood visibilitySun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.1Mounting
2Sun visor
3Mirror cover
4Mirror lamp

To use mirror, lift up cover3.If sunlight enters through a side window:

disengage sun visor from mounting1.

pivot sun visor to the side.
The sun visors are extendable.

Adjust the sun visors by pushing or
pulling in the direction of the arrows.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf you disengage the sun visor from
mounting1, mirror lamp4 will
switch off.
ProCarManuals.com

171 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of opera-
tion depending on the outside tempera-
ture.
Activating
Press buttonF (
page 173).
The indicator lamp on the button
comes on.
Deactivating

Press buttonF (
page 173) again.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically switches on again.
ProCarManuals.com

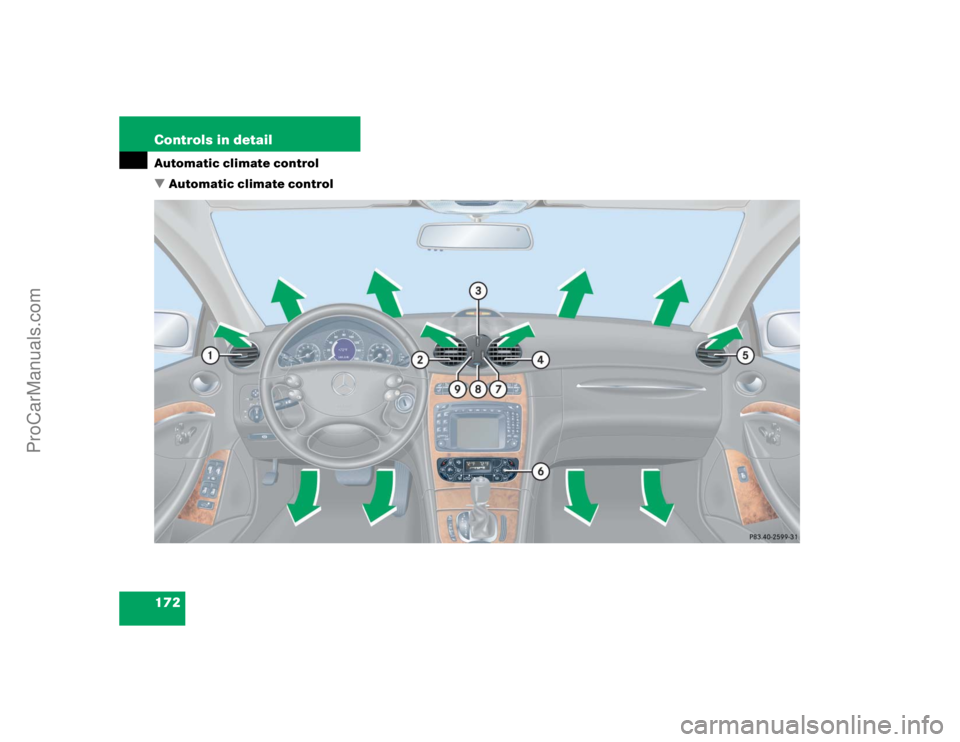

172 Controls in detailAutomatic climate control
Automatic climate control
ProCarManuals.com

173 Controls in detail
Automatic climate control
Automatic climate control panel
Item
1
Left side air vent, adjustable
2
Left center air vent, adjustable
3
Thumbwheel for air volume control
for center air vents
4
Right center air vent, adjustable
5
Right side air vent, adjustable
6
Automatic climate control panel
7
Thumbwheel for air volume control
for right side center air vent
8
Thumbwheel for lowering tempera-
ture, center and side air vents
9
Thumbwheel for air volume control
for left side center air ventiFor draft-free ventilation, move the slid-
ers for the center air vents1, 2, 4,
5 to the middle position.
Item
1
Temperature control, left, lowering
2
Temperature control, left, raising
3
Left-side air distribution
(automatic or manual operation)
4
Activated charcoal filter
5
Display
6
Right-side air distribution
(automatic or manual operation)
7
Temperature control, right, raising
8
Temperature control, right,
lowering
9
Rear window defroster
a
AC cooling on/off °Residual heat/ventilation
b
Air volume control
c
Automatic climate control on/off
(complete system)
d
Air recirculation
e
Defrosting
ProCarManuals.com

174 Controls in detailAutomatic climate controlThe automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the ° mode is selected
(
page 181).
Warning
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burns or frostbite on unprotected skin
in the immediate area of the air vents. Al-
ways keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 176).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.
ProCarManuals.com

175 Controls in detail
Automatic climate control
Setting the temperature
Use temperature controls (
page 173)1
and2 for the left side or7 and8 for
the right side to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).Increasing

Push temperature control2
and/or7.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing

Push temperature control1
and/or8.
The automatic climate control system
will correspondingly adjust the interior
air temperature.Adding outside air

Turn thumbwheel8 in dashboard
(page 172) to increase flow of out-
side air through air vents for center, left
and right sides, as well as dashboard
top center and rear passenger com-
partment.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
ProCarManuals.com

176 Controls in detailAutomatic climate controlAdjusting air distribution
Use the air distribution controls7 and9
(page 172) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually

Press left or right U button.
The U pops out, the a, Z,
X and Y symbols are visible.
Air distribution can be adjusted manu-
ally.
Adjusting automatically

Press left or right U button again.
The a, Z, X and Y sym-
bols are no longer visible.
The air distribution is adjusted auto-
matically.Windshield fogged on the outside

Switch the windshield wipers on, see
“Windshield wipers” (
page 48).

Switch to manual mode.

Close the air vent at dashboard top
center.

Turn the air distribution control
toa orY.
Symbol
Function
a
Directs air through the center,
side and rear passenger com-
partment air vents
Z
Directs air to the windows
X
Directs air into the entire vehi-
cle interior
Y
Directs air to the footwells
