2004 MERCEDES-BENZ CLK-CLASS Owners Manual

209 Controls in detail
Audio system
Accepting an incoming call in cassette,
CD or radio mode
If the telephone is activated in the back-
ground (receiving symbol
S visible on dis-
play), the audio source is muted when a
call is received. The ringing tone is heard
and the caller’s telephone number or the
name under which this telephone number
has been saved in the telephone book ap-
pears on the display. If the caller’s number
is not transmitted,
CALL
appears in the dis-
play.

Press the
SND
key to accept the call.Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.
Mute on

Press the
MUT
key.
Mute off

Press the
MUT
key.
Terminating a call

Press the
END
key.
The current call is terminated.Call waiting
If you receive another call during an al-
ready active call, you can accept the sec-
ond call and switch between the two.
Accepting a second call

Press the
SND
key.
You are connected with the second
caller, the first call is muted.
Switching between the calls

Press the
SND
key.
Terminating the second call

Press the
END
key.
The current call will be terminated. You
are connected with the muted call
again.
ProCarManuals.com

210 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
side trim panels.

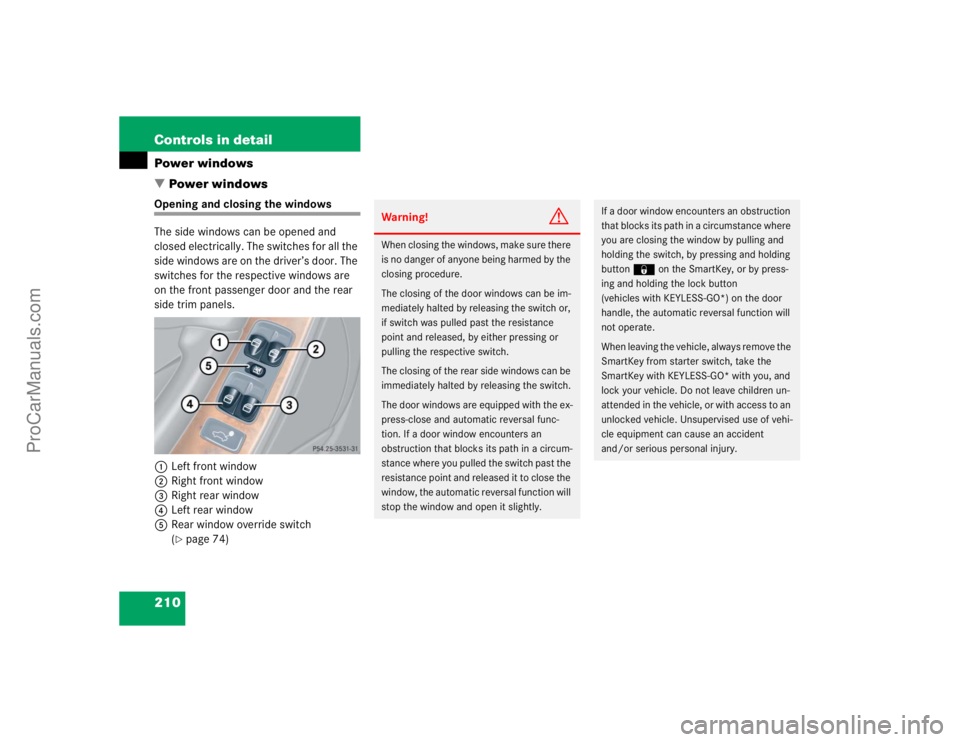

1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 74)
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The closing of the rear side windows can be
immediately halted by releasing the switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pulled the switch past the
resistance point and released it to close the
window, the automatic reversal function will
stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button ‹ on the SmartKey, or by press-
ing and holding the lock button
(vehicles with KEYLESS-GO*) on the door
handle, the automatic reversal function will
not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.
ProCarManuals.com

211 Controls in detail
Power windows

Turn SmartKey in the starter switch to
position1 or2 or press the
KEYLESS-GO* start/stop button.Opening the windows

Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows

Pull on switch1 to4 to the resis-
tance point.
The corresponding window will move
upwards until you release the switch.Fully opening the door windows
(Express-open)

Press switch1 or2 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the door windows
(Express-close)

Pull switch1 or2 past the resis-
tance point and release.
The corresponding window closes com-
pletely.
iYou can also open or close the win-
dows using the:

Soft top switch (
page 212)


SmartKey (summer opening/con-
venience feature) (
page 213)


button, in the control panel of
the automatic climate control
(page 173).


buttone in the control panel of
the automatic climate control
(page 173).
Warning!
G
If you pull and hold the switch up when clos-
ing the window, and upward movement of
the window is blocked by some obstruction
including but not limited to arms, hands, fin-
gers, etc., the automatic reversal will not op-
erate.
ProCarManuals.com

212 Controls in detailPower windows
Stopping windows
Press or pull respective switch again.Opening and closing the windows with
the soft top switch
The soft top switch is located in the center
console.
1Soft top switch
In addition to the power window switches,
the windows can also be opened or closed
with the soft top switch1.
!If the upward movement of a door win-
dow is blocked during the closing pro-
cedure, the door window will stop and
open slightly.
Remove the obstruction, pull the
switch again past the resistance point
and release.
If the door window still does not close
when there is no obstruction, then pull
the switch and hold it. The door window
will then close without the obstruction
sensor function.
Warning!
G
Driver's door only:
If within five seconds you again pull the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.
ProCarManuals.com

213 Controls in detail
Power windows

Turn the SmartKey in the starter switch
to position1or2 or press the
KEYLESS-GO* start/stop button once
or twice.Opening

Press soft top switch1 twice. Press
the switch briefly the first time. Then
press the switch a second time and
hold it until the side windows have
reached the desired position.
Closing

Pull soft top switch1 twice. Pull the
switch briefly the first time. Then pull
the switch a second time and hold it
until the side windows have reached
the desired position.Opening and closing the windows with
the SmartKey
The soft top (
page 215) will also be
opened or closed when the power windows
are operated with the SmartKey.

Aim transmitter eye at the front door
handle.
Warning!
G
Never operate the windows if there is the
possibility of anyone being harmed by the
opening or closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the soft top switch. To
reverse direction of movement press soft
top switch twice for opening or lift soft top
switch twice for closing.
Warning!
G
Never operate the windows or soft top if
there is the possibility of anyone being
harmed by the opening or closing proce-
dure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the button on the
SmartKey. To reverse direction of move-
ment press Œ for opening or ‹ for
closing.
ProCarManuals.com

214 Controls in detailPower windowsOpening (Summer opening feature)
Press and hold button Πafter un-
locking the vehicle.
The windows and soft top begin to
open after approximately one second.

Release the Πbutton to stop proce-
dure.
Closing (Convenience feature)

Press and hold button ‹ after lock-
ing the vehicle.
The windows and soft top begin to
close after approximately one second.

Release the ‹ button to stop proce-
dure.
Make sure all side windows and the
soft top are properly closed before leaving
the vehicle.Closing the side windows with
KEYLESS-GO*

Press and hold lock button at door
(page 56) until the side windows are
closed.
Synchronizing power windows
The power windows must be resynchro-
nized each time

after the battery has been disconnect-
ed.


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Synchronizing the power windows

Switch ignition on.

Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
one second.
The power windows are adjusted.
Warning!
G
When closing the windows make sure there
is no danger of anyone being harmed by the
closing procedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows will open for about
two seconds if the door handle is held
but the door not opened.
ProCarManuals.com

215 Controls in detail
Soft top
Soft top
Opening and closing the soft top
For safety reasons, the soft top can only be
opened and closed when the vehicle is
standing still.Warning!
G
Before operating the switch for the soft top,
make sure no persons can be injured by the
moving parts (roll bar, soft top frame, and
soft top compartment cover).
Hands must never be placed near the roll
bar, soft top frame, upper windshield area,
shelf behind roll bar, or soft top storage
compartment while the soft top is being
raised or lowered. Serious personal injury
may occur.
If potential danger exists, release the soft
top switch. This immediately interrupts the
raising or lowering procedure. You then can
operate the soft top switch to raise or lower
the soft top away from the danger zone.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO
* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.
!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the soft top and the rear shelf.
!When opening and closing the soft top,
make sure:

there is sufficient clearance for the
soft top to move up


the ski sack roller blind is closed


the luggage cover is engaged in
place


the trunk is only loaded to the
height of the luggage cover


the luggage/cargo does not push
the closed luggage cover up


the trunk lid is closed


nothing is placed on the soft top
compartment cover


the outside temperature is above
+5°F (-15°C)
Otherwise the soft top and other parts
of the vehicle could be damaged.
ProCarManuals.com

216 Controls in detailSoft topLuggage cover
The luggage cover is located in the trunk.
1Luggage coverLatch luggage cover

Pull luggage cover1 out in direction
of arrow until it engages in place.
Folding back luggage cover

Press luggage cover in direction of rear
seat.!To prevent damage to the soft top or
luggage/cargo when lowering the roof:

load trunk only to the height of the
luggage cover


do not permit luggage/cargo to
push up the closed luggage cover


do not place anything on the shelf
behind the roll bar


do not place anything on the soft
top compartment cover
!Never place anything behind the side
nets when the luggage cover has been
folded back or the ski sack roller blind
is open. You could forget objects
placed there, which could result in
damage when operating the soft top.
ProCarManuals.com
