2004 MERCEDES-BENZ CLK-CLASS Owners Manual

369 Practical hints
Opening/closing in an emergency
bWindshield frame
Lift soft top out of soft top compart-
ment and pull it forward to windshield
frameb.cOpening
dLocking

Take off protective cap on the inner
side of the soft top.

Insert hex wrench into soft top locking
mechanism screw.

Turn the soft top locking mechanism
screw with hex wrench clockwise in di-
rection of arrowc as far as it will go.
The clasp will open and the soft top will
engage audibly.

Turn the soft top locking mechanism
screw with hex wrench counterclock-
wise in direction of arrowd as far as it
will go.
The clasp will close and the soft top is
now locked onto the windshield frame.!Make sure you turn the hex wrench
counterclockwise as far as it will go.
Otherwise the soft top may not lock
properly.

ProCarManuals.com

370 Practical hintsOpening/closing in an emergencyeMaterial tensioning frame
fSoft top compartment cover
Lift material tensioning framee into a
vertical position.

Lower soft top compartment coverf.gSoft top base

With the palm of your hand, press the
window in material tensioning
framee until it is positioned on the
soft top compartment coverf.

You and your assistant should press
soft top compartment cover f for-
ward and down with the palms of your
hands until it snaps into place in the
guide. Place your hands on the areas
indicated by the arrows.
At the same time, gently press material
tensioning framee down with the
palms of your hands.
!Make sure the soft top compartment
coverf does not collide or make con-
tact with the material tensioning
framee.

ProCarManuals.com

371 Practical hints
Opening/closing in an emergency

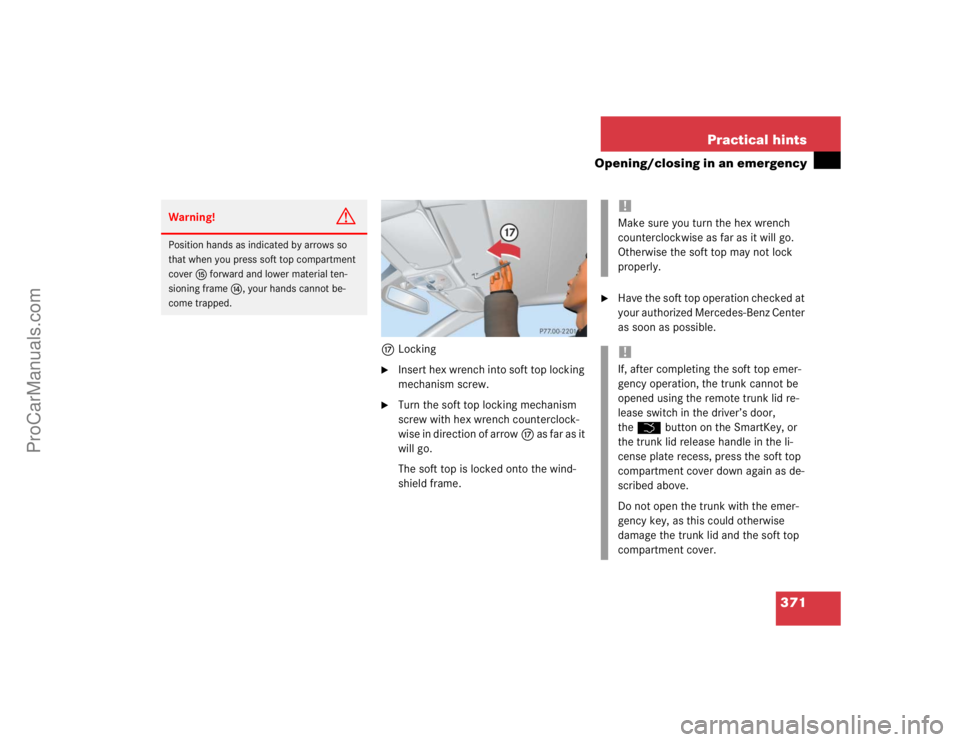

hLocking
Insert hex wrench into soft top locking
mechanism screw.

Turn the soft top locking mechanism
screw with hex wrench counterclock-
wise in direction of arrowh as far as it
will go.
The soft top is locked onto the wind-
shield frame.

Have the soft top operation checked at
your authorized Mercedes-Benz Center
as soon as possible.
Warning!
G
Position hands as indicated by arrows so
that when you press soft top compartment
coverf forward and lower material ten-
sioning framee, your hands cannot be-
come trapped.
!Make sure you turn the hex wrench
counterclockwise as far as it will go.
Otherwise the soft top may not lock
properly.!If, after completing the soft top emer-
gency operation, the trunk cannot be
opened using the remote trunk lid re-
lease switch in the driver’s door,
theŠ button on the SmartKey, or
the trunk lid release handle in the li-
cense plate recess, press the soft top
compartment cover down again as de-
scribed above.
Do not open the trunk with the emer-
gency key, as this could otherwise
damage the trunk lid and the soft top
compartment cover.
ProCarManuals.com

372 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
Bulbs
iIf the headlamps are fogged up on the
inside as a result of high humidity, driv-
ing the vehicle a distance should clear
up the fogging.
iBackup bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps


Brake lamps


Parking lamps


Tail lamps
ProCarManuals.com

373 Practical hints
Replacing bulbs
Front lamps Rear lamps Notes on bulb replacement
Lamp
Type
1
Halogen headlamps:
Low beam
Bi-Xenon* headlamps:
Low and high beam
1
1Vehicles with Bi-Xenon headlamps* do not replace
the Bi-Xenon bulbs yourself.
H7 (55 W)
D2S-35 W
2
Halogen headlamps:
High beam/high beam
flasher
Bi-Xenon* headlamps:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lamps
W 5 W
3
Additional turn signal
lamps
LED
4
Turn signal lamp
1156 NA
5
Side marker lamp
W 5 W
6
Fog lamp
HB4/9006
(55 W)
Lamp
Type
7
Rear fog lamp, driver’s
side
P 21/4 W
Turn signal lamp
P 21 W
Brake lamp
P 21 W
Backup lamp
P 21 W
Tail, parking and stand-
ing lamp, side marker
P 21/4 W
W 5 W
8
High mounted brake
lamp
LED
9
License plate lamps
C 5 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
ProCarManuals.com

374 Practical hintsReplacing bulbs

Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signal lamps in the
exterior rear view mirrors


High mounted brake lamp


Bi-Xenon* lamps


Front fog lamps
Replacing bulbs for front lamps
Front lamps halogen-type
1Housing cover for low beam lamp
2Housing cover for high beam lamp3Bulb socket for turn signal lamp
4Low beam bulb
5High beam bulb
6Parking and standing lamp
ProCarManuals.com

375 Practical hints
Replacing bulbs
Low beam and high beam bulb
Switch off the lights.

Open the hood (
page 287).

Turn housing cover1 or 2 counter-
clockwise and remove.

Turn bulb holder 4 or 5 with the bulb
counterclockwise and remove.

Press the bulb backwards and turn
counterclockwise out of the bulb hold-
er.

Press the new bulb into the holder and
twist it clockwise.

Place the bulb holder back into the
lamp and turn it clockwise.

Place the corresponding housing cov-
ers back on and turn them clockwise.Front turn signal lamp bulb

Switch off the lights.

Open the hood (
page 287).

Twist bulb socket3 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.Parking and standing lamp bulb

Switch off the lights.

Open the hood (
page 287).

Turn housing cover2 counterclock-
wise and remove.

Pull out the bulb socket with the bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align housing cover and click into
place.
ProCarManuals.com

376 Practical hintsReplacing bulbsFront lamps Bi-Xenon*-type
1Bulb socket for turn signal lamp
2Housing cover for high beam flasher
lamp
3Housing cover for Bi-Xenon* lamp4High beam flasher bulb
5Parking and standing lampHigh beam bulb for high beam flasher

Switch off the lights.

Open the hood (
page 287).

Turn housing cover2 counterclock-
wise and remove.

Turn bulb holder 4 with the bulb coun-
terclockwise and remove.

Press the bulb backwards and turn
counterclockwise out of the bulb hold-
er.

Press the new bulb into the holder and
twist it clockwise.

Place the bulb holder back into the
lamp and turn it clockwise.

Place the housing cover 2 back on
and turn them clockwise.
Warning!
G
Do not remove the cover
3
for the Bi-Xe-
non* headlamp. Because of high voltage in
xenon lamps, it is dangerous to replace the
bulb or repair the lamp and its components.
We recommend that you have such work
done by a qualified technician.
