Replacing bulbs
Front turn signal lamp bulb
Switch off the lights.

Open the hood (
page 287).

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.Parking and standing lamp bulb

Switch off the lights.

Open the hood (
page 287).

Turn housing cover2 counterclock-
wise and remove.

Pull out the bulb socket with the bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align housing cover and click into
place.
Side marker lamp bulb
Switch off the lights.

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
ProCarManuals.com

378 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Tail lamp assemblies
1Brake lamp
2Turn signal lamp
3Backup lamp
4Standing and side marker lamp
5Rear fog lamp (driver’s side)/tail
Switch off the lights.

Open trunk.

Swing the trim panel covering the cor-
responding rear lights to the side.

Squeeze tabs together and remove the
bulb holder with the bulb.

Twist bulb counterclockwise and pull
out of bulb holder.

Insert new bulb into the holder and turn
it clockwise.

Reinstall bulb holder. The tabs must au-
dibly click.

Close trim panel.

Place the housing cover back on so
that its tabs click in place. License plate lamp
1Screws

Switch off the lights.

Loosen both screws1 and remove
lamp.

Replace the tubular lamp and reinstall
lamp.

Retighten the screws.
ProCarManuals.com

379 Practical hints

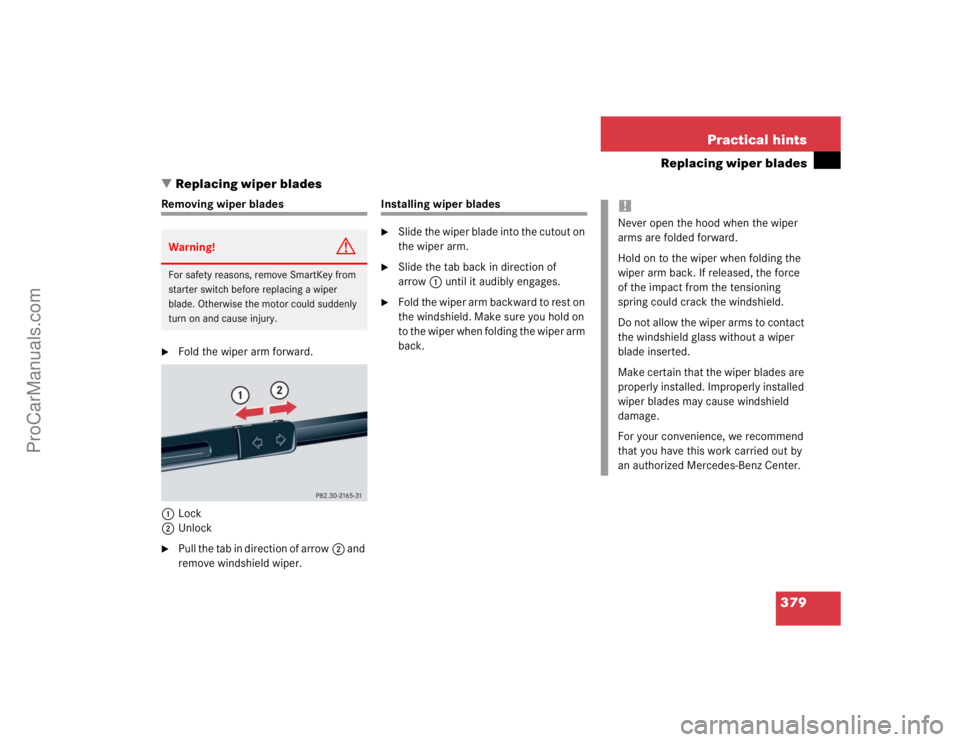

Replacing wiper blades
Replacing wiper blades
Removing wiper blades
Fold the wiper arm forward.
1Lock
2Unlock

Pull the tab in direction of arrow2 and
remove windshield wiper.
Installing wiper blades
Slide the wiper blade into the cutout on
the wiper arm.

Slide the tab back in direction of
arrow1 until it audibly engages.

Fold the wiper arm backward to rest on
the windshield. Make sure you hold on
to the wiper when folding the wiper arm
back.
Warning!
G
For safety reasons, remove SmartKey from
starter switch before replacing a wiper
blade. Otherwise the motor could suddenly
turn on and cause injury.
!Never open the hood when the wiper
arms are folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.
ProCarManuals.com

380 Practical hintsFlat tire
Flat tirePreparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight ahead position and set the
parking brake.

Move the gear selector lever toP.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the Minispare wheelIn case of a flat tire, you may temporarily
use the spare wheel when observing the
following restrictions:


Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate the vehicle with more
than one spare wheel mounted.
Prepare the vehicle as described on
(
page 380).

Take the wheel wrench and the jack
out of the trunk (
page 346).

Take the Minispare wheel and wheel
bolts out of the trunk (
page 346).
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The spare wheel should only be used tempo-
rarily, and should be replaced with a regular
road wheel as quickly as possible.
ProCarManuals.com

381 Practical hints
Flat tire
Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level surface:

Place one chock in front of and one be-
hind the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:

Place chocks on the downhill side
blocking both wheels of the other axle.1Wheel wrench

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.
ProCarManuals.com

382 Practical hintsFlat tire2Jack
3Take-up bracket
Place jack 2 on firm ground.

Position jack2 under take-up
bracket3 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an in-
cline.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while vehi-
cle is raised.Removing the wheel
1Alignment bolt

Unscrew upper-most wheel bolt and re-
move.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.
Warning!
G
The jack is intended only for lifting the vehi-
cle briefly for wheel changes. It is not suited
for performing maintenance work under the
vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
!Do not place wheel bolts in sand or dirt.
This could result in damage to the bolt
and wheel hub threads.
ProCarManuals.com

383 Practical hints
Flat tire
Mounting the new wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in trunk with spare
wheel)
Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten them
slightly.
!Wheel bolts2 must be used when
mounting the Minispare wheel. The use
of any wheel bolts other than wheel
bolts 2 for the Minispare will physical-
ly damage the vehicle's brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while in-
stalling first wheel bolt.Warning!
G
Always replace wheel bolts that are dam-
aged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be re-
paired immediately. Do not continue to drive
under these circumstances! Contact an au-
thorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.
ProCarManuals.com

384 Practical hintsFlat tire
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Lowering the vehicle

Lower vehicle by turning crank coun-
terclockwise until the full weight of the
vehicle is resting on the ground.

Remove the jack.
1 - 5 Wheel bolts

Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1 to 5), until all bolts are tight.
Observe a tightening torque of 80 lb-ft
(110 Nm).

Before storing the jack in the trunk, it
should be fully collapsed, with handle
folded in.
Warning!
G
Only use genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the ve-
hicle is raised. Otherwise the vehicle could
tip over.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
80 lb-ft (110 Nm).
