2004 MERCEDES-BENZ C320 Owner's Manual

49 Getting started
Driving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 257).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.

For safety reasons, withdraw
SmartKey from starter switch
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

50 Getting startedParking and locking
Parking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Release handle
2Parking brake
Step firmly on parking brake2.
When the engine is running, the
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster will be illuminated.
Warning!
G
Wait until the vehicle is stationary before
removing the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP (manual transmission: first or
reverse gear).


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey to starter switch
position0 and remove.


Take the SmartKey and lock vehicle
when leaving.

51 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch
toM(
page 46).
For more information on headlamps, see
“Lighting” (
page 102).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (manual transmission:
first or reverse gear).
When parked on an incline, turn front wheel
towards the road curb.

52 Getting startedParking and lockingTurning off engine
Place the gear selector lever in
positionP (manual transmission: first
or reverse gear).

Turn the SmartKey in the starter switch
to position0 and remove it.
The immobilizer is activated.

Press the seat belt release button
(page 41).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 30).
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 82).
iAlways set the parking brake in addi-
tion to shifting to positionP (manual
transmission: first or reverse gear).
On steep slopes, turn the front wheels
towards the road curb. iVehicles with automatic transmission:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!With the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
your vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

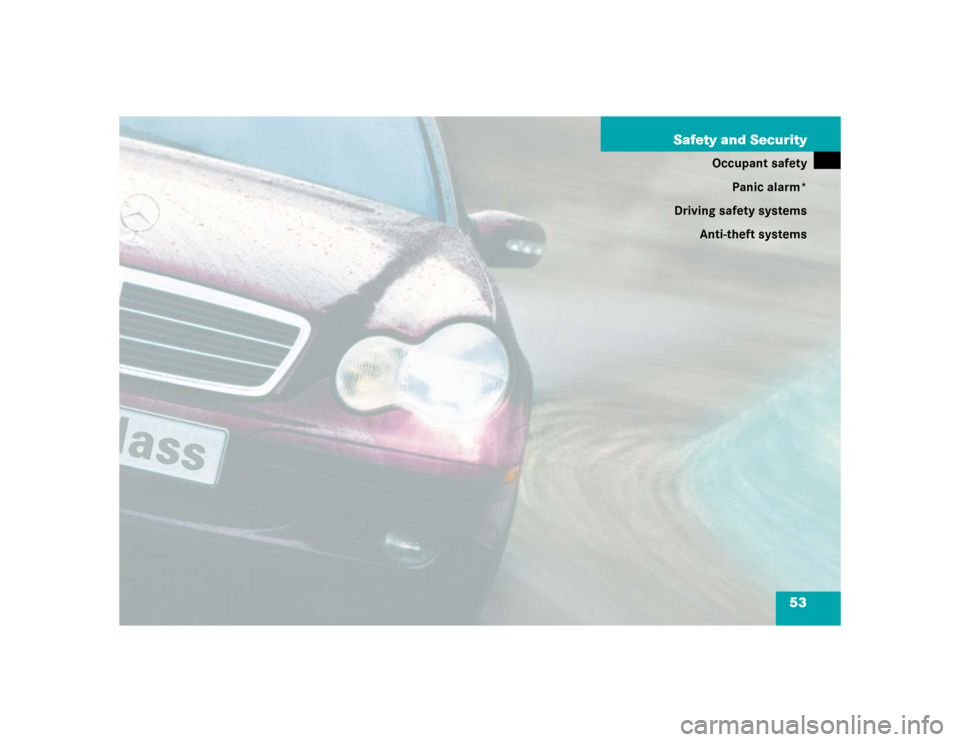

53 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems

54 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each
other.The1 indicator lamp in the instrument
cluster (
page 22) comes on:


for about four seconds when you turn
the SmartKey in the starter switch to
position1.


for about four seconds when you start
the engine by turning the SmartKey.The1 indicator lamp goes out shortly
after you start the engine. This shows that
the restraint systems are operational.
A malfunction in the system has been
detected if the1 indicator lamp:


fails to extinguish after approximately
four seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
For more information, see “Practical hints”
(
page 278).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 63).
iThe1 indicator lamp remains lit if
the SmartKey is turned to position2
and left there. The indicator lamp will
go out when you start the engine.

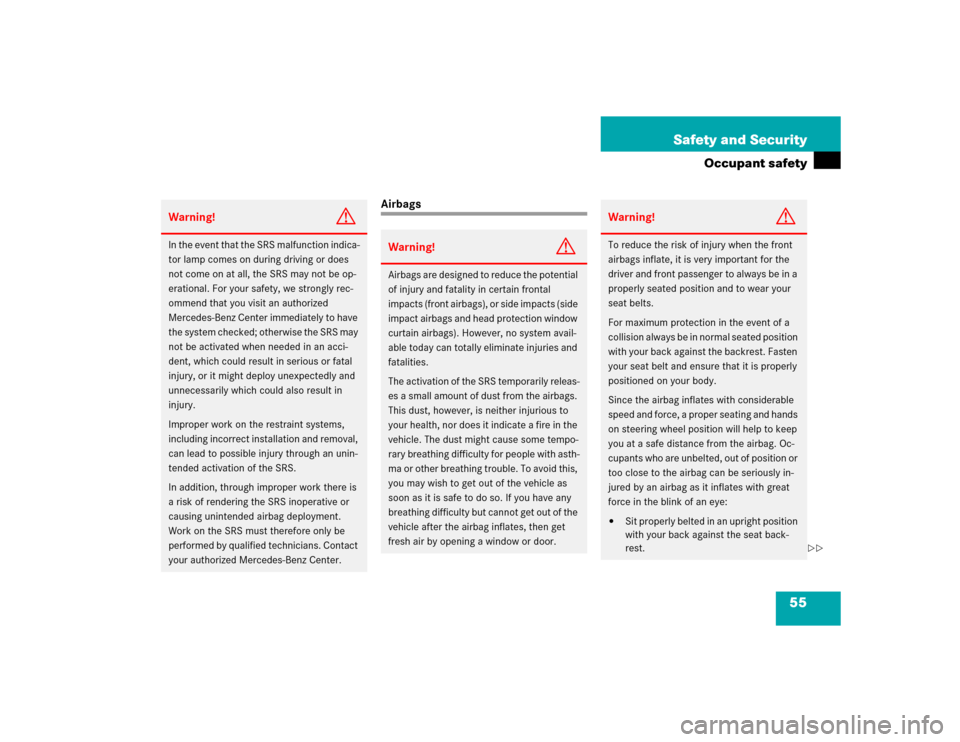

55 Safety and Security
Occupant safety
Airbags
Warning!
G
In the event that the SRS malfunction indica-
tor lamp comes on during driving or does
not come on at all, the SRS may not be op-
erational. For your safety, we strongly rec-
ommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in
injury.
Improper work on the restraint systems,
including incorrect installation and removal,
can lead to possible injury through an unin-
tended activation of the SRS.
In addition, through improper work there is
a risk of rendering the SRS inoperative or
causing unintended airbag deployment.
Work on the SRS must therefore only be
performed by qualified technicians. Contact
your authorized Mercedes-Benz Center.
Warning!
G
Airbags are designed to reduce the potential
of injury and fatality in certain frontal
impacts (front airbags), or side impacts (side
impact airbags and head protection window
curtain airbags). However, no system avail-
able today can totally eliminate injuries and
fatalities.
The activation of the SRS temporarily releas-
es a small amount of dust from the airbags.
This dust, however, is neither injurious to
your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with asth-
ma or other breathing trouble. To avoid this,
you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the airbag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
airbags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear your
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and ensure that it is properly
positioned on your body.
Since the airbag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the airbag. Oc-
cupants who are unbelted, out of position or
too close to the airbag can be seriously in-
jured by an airbag as it inflates with great
force in the blink of an eye:

Sit properly belted in an upright position
with your back against the seat back-
rest.


56 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the side airbag inflates. This
could result in serious injuries or death
should the airbag be triggered. Always
sit upright, properly use the seat belts
and appropriate size infant or child
restraint system.


Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM1
compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front airbag when it
is properly installed. Otherwise they will
be struck by the airbag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle you are responsible
to make the buyer aware of these points.
Make sure to give the buyer this Operator’s
Manual.
