2004 MERCEDES-BENZ C320 Owner's Manual

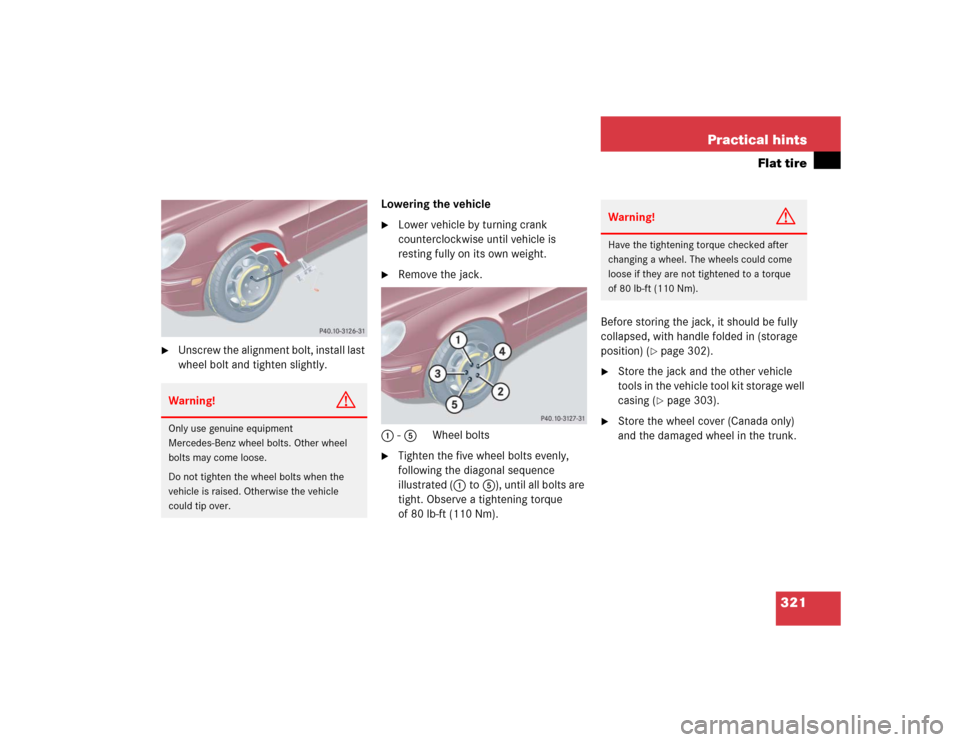

321 Practical hints
Flat tire

Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Lowering the vehicle

Lower vehicle by turning crank
counterclockwise until vehicle is
resting fully on its own weight.

Remove the jack.
1 - 5Wheel bolts

Tighten the five wheel bolts evenly,
following the diagonal sequence
illustrated (1to5), until all bolts are
tight. Observe a tightening torque
of 80 lb-ft (110 Nm).Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 302).

Store the jack and the other vehicle
tools in the vehicle tool kit storage well
casing (
page 303).

Store the wheel cover (Canada only)
and the damaged wheel in the trunk.
Warning!
G
Only use genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could tip over.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).

322 Practical hintsFlat tireMounting wheel cover (Canada only)
Wheel cover on vehicles with steel rims
(Canada only)

Position small wheel cover opening
over tire valve and press wheel cover
against wheel rim.

Now press (do not hit) opposite side of
wheel cover against wheel rim until
seated.
Make certain that the springs of the
wheel cover are firmly seated in the
outer rim of the steel wheel.
!The wheel cover does not fit the
Minispare wheel.

323 Practical hints
Battery
Battery
The battery is located in the engine
compartment on the right hand side.
Removal of filter box:
Release the three clamps1.

Remove filter box.
Installation of filter box:

Insert filter box properly.

Secure it with the three clamps1.
Warning!
G
Failure to follow these instructions can
result in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.

324 Practical hintsBattery1Negative terminal
2Positive terminal cover
Disconnecting the battery
Turn off all electrical consumers.

Open the hood (
page 252).

Remove the filter box (
page 323).

Disconnect battery negative lead1.

Remove cover2 from positive
terminal.

Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.

Remove the battery bracket.

Take out the battery.
Charging and reinstalling the battery
Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in
reverse order.
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch


the gear selector lever will remain
locked in positionP
Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.

325 Practical hints
Battery
Reconnecting the battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover2.

Connect negative lead1.

Reinstall the filter box (
page 323).Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12 volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
!NEVER invert the terminal connections!!The battery, its filler caps and the vent
tube must always be securely installed
when the vehicle is in operation.
iThe following procedures must be
carried out following any interruption of
battery power (e.g. due to reconnec-
tion):

Set the clock (
page 126).
Vehicles with COMAND*:
See COMAND operator’s manual.


Resynchronize the ESP
(page 282).


Resynchronize side windows
(page 202).


Resynchronize sliding/pop-up
roof* (
page 205).

326 Practical hintsJump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the
battery of another vehicle. Observe the
following:

Jump starting should only be performed
when the engine and catalytic con-
verter are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12 V). Jump
starting with a more powerful battery
could damage the vehicle’s electrical
system, which will not be covered by
the Mercedes-Benz Limited Warranty.


Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure the jumper cables
are not on or near pulleys, fans, or oth-
er parts that move when an engine is
started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Jump starting may only be performed
on the battery installed in the engine
compartment.
Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine
using a battery quick charge unit.
If engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

327 Practical hints
Jump starting
The battery is located in the engine
compartment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP
(manual transmission to Neutral).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative terminal of charged battery
4Negative under hood terminal in front
of discharged battery

Connect positive terminal1 of the
charged battery with positive under
hood terminal2 in front of the
discharged battery with the jumper
cables. Clamp cable to charged
battery1 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminal3 of the
charged battery with negative under
hood terminal4 of the discharged
battery with the jumper cables. Clamp
cable to charged battery3 first.

Start the engine of the disabled
vehicle.
You can now again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals1 and2.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 258).
!Vehicles with automatic transmission
and/or 4MATIC:
Do not tow-start the vehicle.

328 Practical hintsTowing the vehicle
Towing the vehicleMercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised (except
vehicles with 4MATIC) only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Use flatbed or wheel lift/dolly equip-
ment with SmartKey in starter switch
turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 79) and deactivate the auto-
matic central locking (
page 133).
!Vehicles with automatic transmission
and/or 4MATIC:
Do not tow-start the vehicle.!Vehicles with 4MATIC:
Do not tow with one axle raised. Doing
so could damage the transfer case,
which is not covered by the
Mercedes-Benz Limited Warranty.
All wheels must be on or off the ground.
Observe instructions for towing the
vehicle with all wheels on the ground.
!If the vehicle is towed with the front
axle raised (not permissible for vehicles
with 4MATIC), the engine must be shut
off (SmartKey in starter switch
position0 or1). Otherwise the ESP will
immediately be engaged and will apply
the rear wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever
must be in positionN (manual trans-
mission: gears disengaged) and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for
distances up to 30 miles (50 km) and
at a speed not to exceed 30 mph
(50 km/h).
