345 Technical data
Rims and Tires
Minispare wheelModel
C240
C 240 4MATIC
C320
C 320 4MATIC
C230KompressorSport
C320Sport
C32AMG
Rim (steel)
3.5 B x 16 H2
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
0.67 in (17 mm)
Tire
T 125/90 R16 98M
1
1Must not be used with snow chains.
T 125/80 R17 99M
1
Page 346 of 400

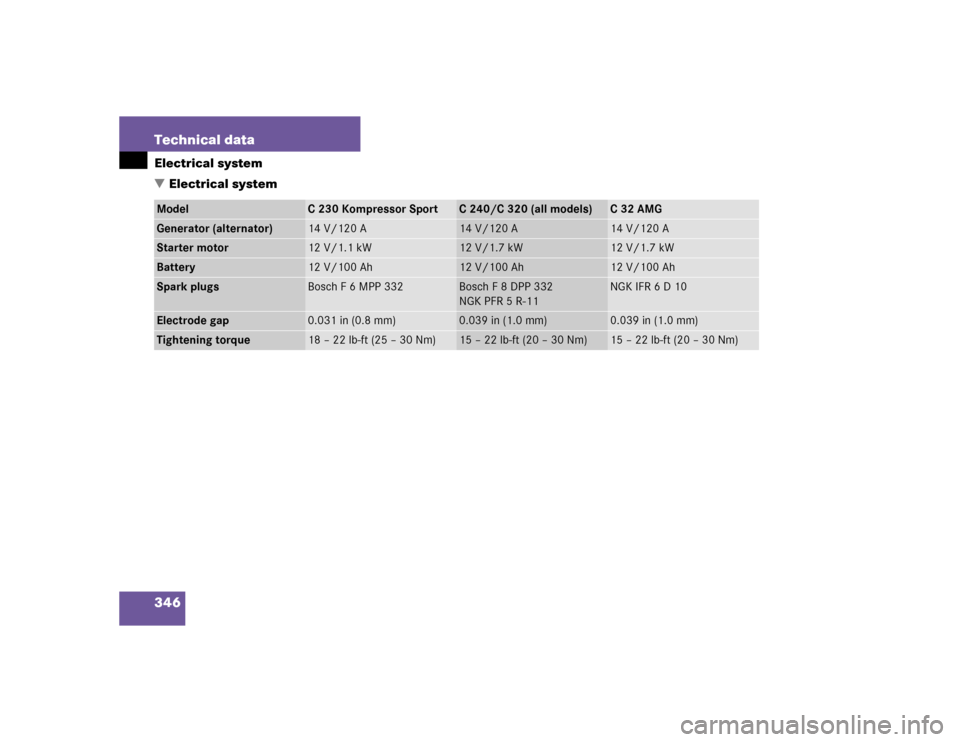

346 Technical dataElectrical system
Electrical systemModel
C230KompressorSport
C 240/C 320 (all models)
C32AMG
Generator (alternator)
14 V/120 A
14 V/120 A
14 V/120 A
Starter motor
12 V/1.1 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F 6 MPP 332
Bosch F 8 DPP 332
NGK PFR 5 R-11
NGK IFR 6 D 10
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
18–22lb-ft (25–30Nm)
15–22lb-ft (20–30Nm)
15 – 22 lb-ft (20 – 30 Nm)
Page 347 of 400
347 Technical data
Main dimensions
Main dimensions
Model
C 230 Kompressor Sport
C240
C320
C320Sport
Overall vehicle length
178.3 in (4 528 mm)
178.3 in (4 528 mm)
178.3 in (4 528 mm)
Overall vehicle width
68.0 in (1 728 mm)
68.0 in (1 728 mm)
68.0 in (1 728 mm)
Overall vehicle height
56.4 in (1 433 mm)
56.3 in (1 429 mm)
55.6 in (1 411 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.8 in (1 493 mm)
58.8 in (1 493 mm)
Track, rear
57.6 in (1 464 mm)
57.6 in (1 464 mm)
57.6 in (1 464 mm)
Model
C 240 4MATIC
C 320 4MATIC
C32AMG
Overall vehicle length
178.3 in (4 528 mm)
178.3 in (4 528 mm)
Overall vehicle width
68.0 in (1 728 mm)
68.0 in (1 728 mm)
Overall vehicle height
56.0 in (1 422 mm)
56.1 in (1 426 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.8 in (1 493 mm)
Track, rear
57.6 in (1 464 mm)
58.0 in (1 474 mm)
Page 348 of 400
348 Technical dataWeights
WeightsRoof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)
Page 349 of 400
349 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respectivelubricants must match. Therefore only use
brands tested and approved by
Mercedes-Benz. Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
C 230 Kompressor Sport
C240
C320
C320Sport
C2404MATIC
C3204MATIC
C32AMG
5.8 US qt (5.5 l)
7.9 US qt (7.5 l)
7.9 US qt (7.5 l)
7.9 US qt (7.5 l)
7.4 US qt (7.0 l)
7.4 US qt (7.0 l)
7.9 US qt (7.5 l)
Approved engine oils
Automatic transmission
8.5 US qt (8.0 l)
MB Automatic Transmission Oil
Manual transmission
1.3 US qt (1.2 l)
MB Manual Transmission Oil
Rear axle
C 230 Kompressor Sport
C 240 (all models)
C 320 (all models)
C32AMG
1.2 US qt (1.1 l)
1.2 US qt (1.1 l)
1.2 US qt (1.1 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90
Page 350 of 400

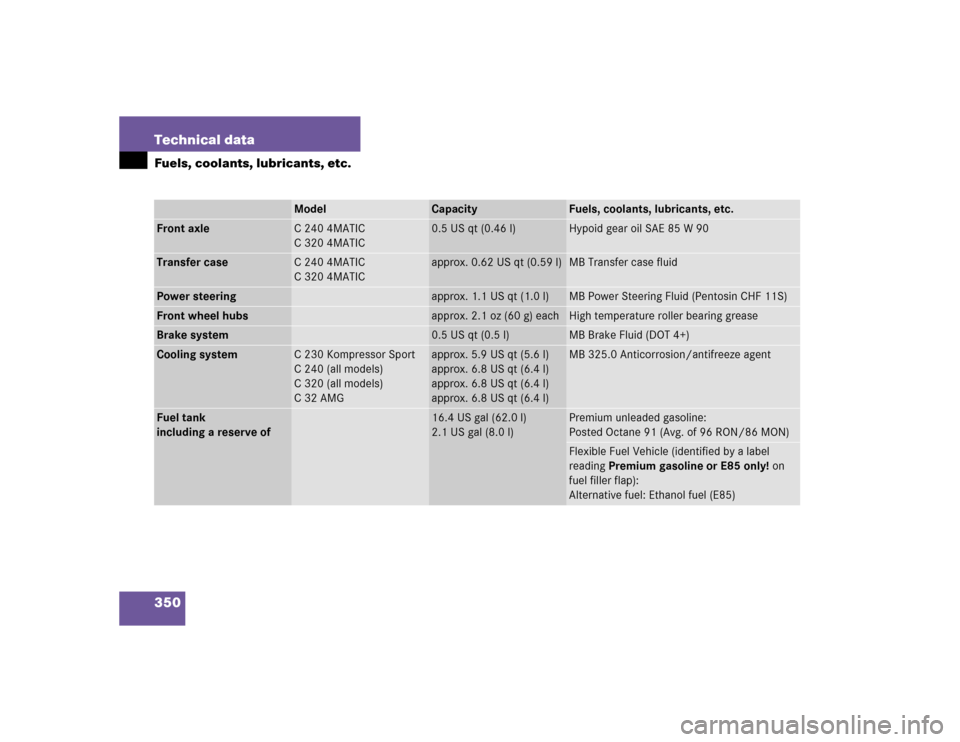

350 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Front axle
C2404MATIC
C3204MATIC
0.5 US qt (0.46 l)
Hypoid gear oil SAE 85 W 90
Transfer case
C2404MATIC
C3204MATIC
approx. 0.62 US qt (0.59 l)
MB Transfer case fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approx. 2.1oz (60g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4+)
Cooling system
C 230 Kompressor Sport
C 240 (all models)
C 320 (all models)
C32AMG
approx. 5.9 US qt (5.6 l)
approx. 6.8 US qt (6.4 l)
approx. 6.8 US qt (6.4 l)
approx. 6.8 US qt (6.4 l)
MB 325.0 Anticorrosion/antifreeze agent
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON/86 MON)Flexible Fuel Vehicle (identified by a label
reading Premium gasoline or E85 only! on
fuel filler flap):
Alternative fuel: Ethanol fuel (E85)
Page 351 of 400
351 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Air conditioning system
R-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer
3.2 US qt (3.0 l)
MB Windshield Washer Concentrate
1
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 358).
Page 352 of 400

352 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, only
use engine oils approved by
Mercedes-Benz. Information on approved
engine oils is available in the Factory
Approved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air
conditioning system.Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of
bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be
replaced every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Center will
provide you with additional information.
!Always check the oil filler cap
(page 255) for important information
pertaining to the engine oil needing to
meet a specific Mercedes-Benz specifi-
cation (e.g. MB 229.5). If such informa-
tion is printed on the oil filler cap, only
use an engine oil from the list of ap-
proved engine oils in the Factory Ap-
proved Service Products pamphlet that
meets the specification indicated on
the oil filler cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.
