2004 ISUZU TF SERIES Transmission

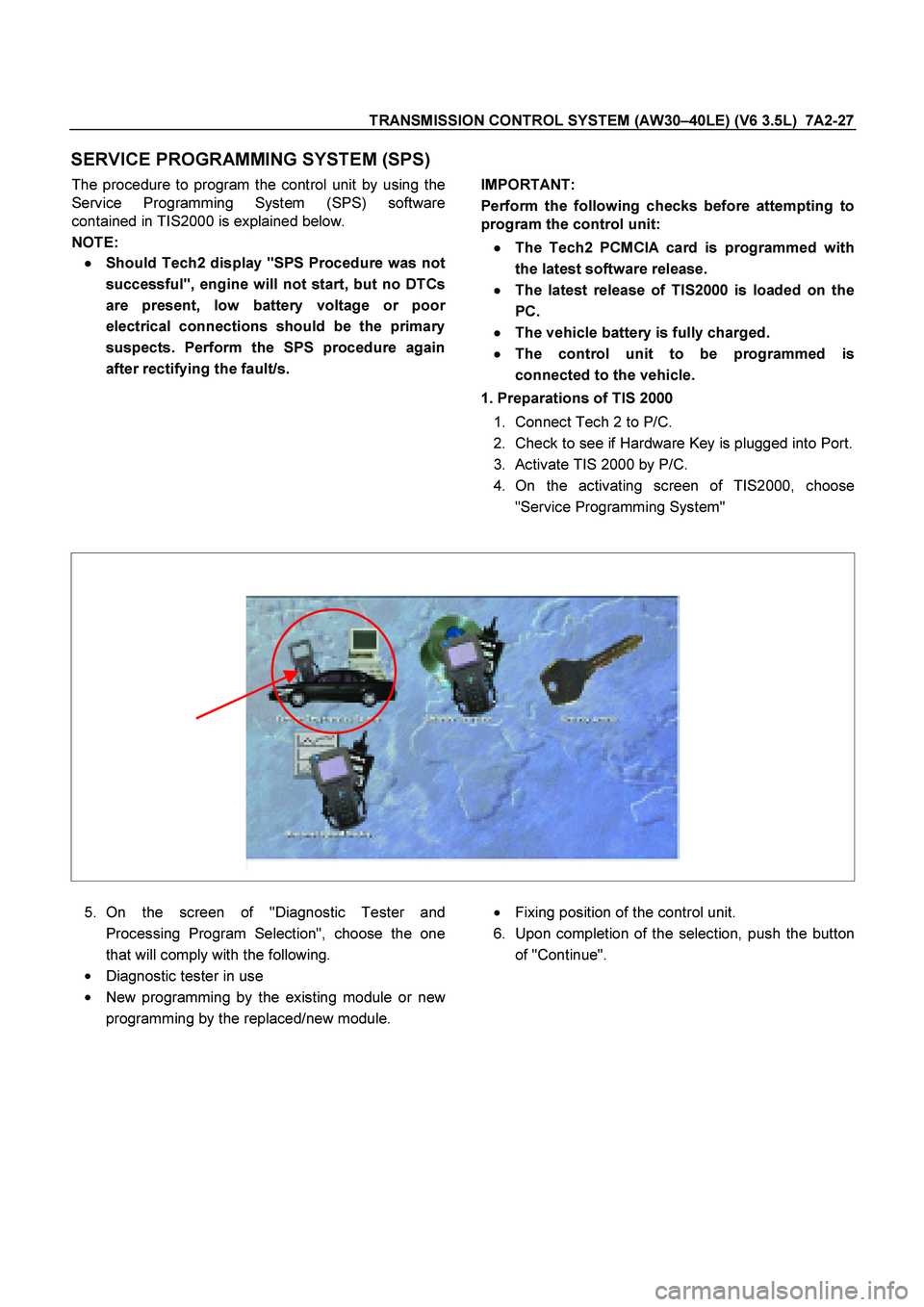

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-27

SERVICE PROGRAMMING SYSTEM (SPS)
The procedure to program the control unit by using the
Service Programming System (SPS) software
contained in TIS2000 is explained below.
NOTE:






Should Tech2 display "SPS Procedure was not
successful", engine will not start, but no DTCs
are present, low battery voltage or poo
r
electrical connections should be the primary
suspects. Perform the SPS procedure again
after rectifying the fault/s.


IMPORTANT:
Perform the following checks before attempting to
program the control unit:







The Tech2 PCMCIA card is programmed with
the latest software release.







The latest release of TIS2000 is loaded on the
PC.







The vehicle battery is fully charged.







The control unit to be programmed is
connected to the vehicle.
1. Preparations of TIS 2000
1.
Connect Tech 2 to P/C.
2.
Check to see if Hardware Key is plugged into Port.
3.
Activate TIS 2000 by P/C.
4.
On the activating screen of TIS2000, choose
"Service Programming System"





5.
On the screen of "Diagnostic Tester and
Processing Program Selection", choose the one
that will comply with the following.

Diagnostic tester in use

New programming by the existing module or new
programming by the replaced/new module.

Fixing position of the control unit.
6.
Upon completion of the selection, push the button
of "Continue".

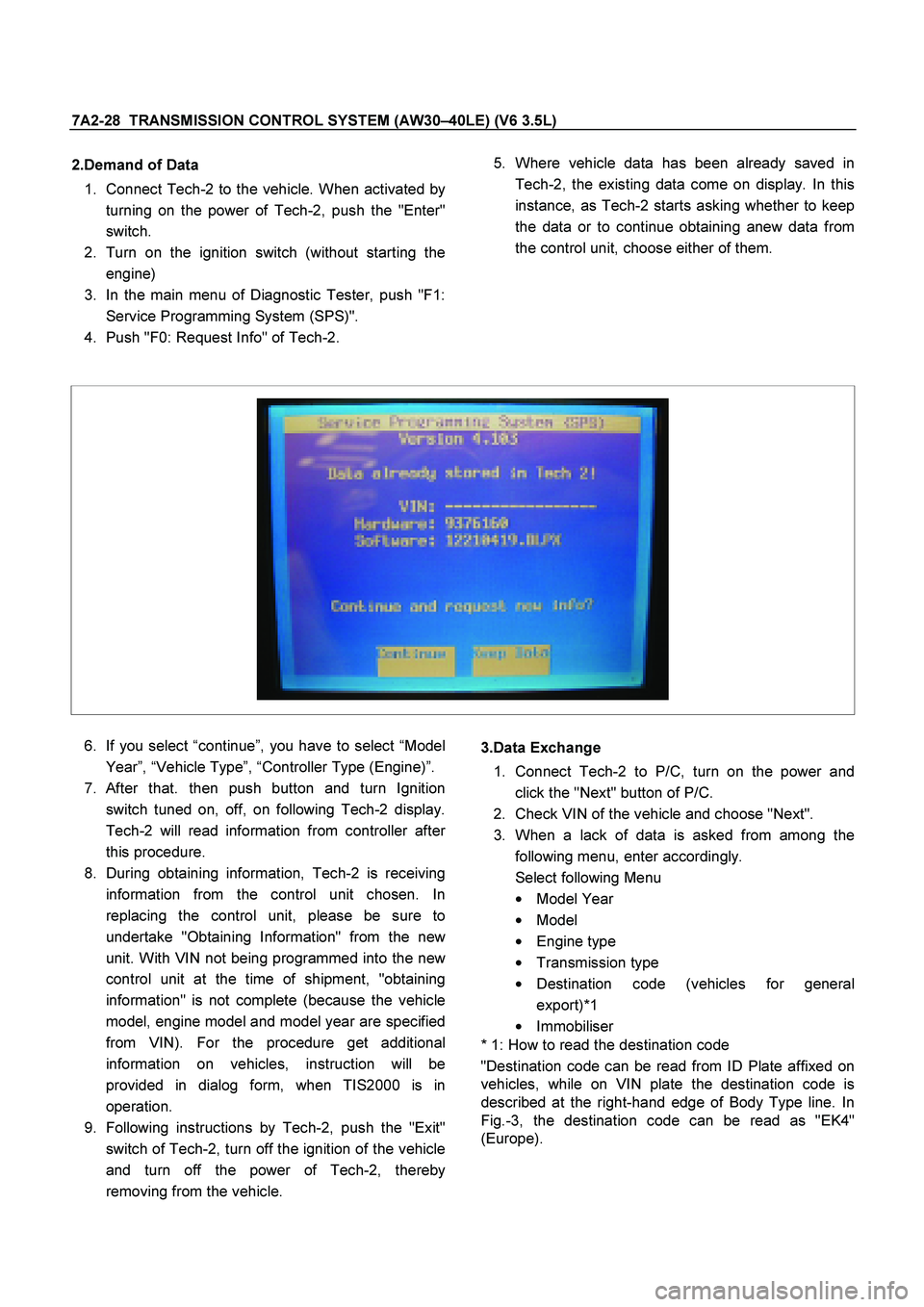

7A2-28 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

2.Demand of Data
1.
Connect Tech-2 to the vehicle. When activated by
turning on the power of Tech-2, push the "Enter"
switch.
2.
Turn on the ignition switch (without starting the
engine)
3.
In the main menu of Diagnostic Tester, push "F1:
Service Programming System (SPS)".
4.
Push "F0: Request Info" of Tech-2.

5.
Where vehicle data has been already saved in
Tech-2, the existing data come on display. In this
instance, as Tech-2 starts asking whether to keep
the data or to continue obtaining anew data from
the control unit, choose either of them.





6.
If you select “continue ”, you have to select “Model
Year ”, “Vehicle Type ”, “Controller Type (Engine) ”.
7.
After that. then push button and turn Ignition
switch tuned on, off, on following Tech-2 display.
Tech-2 will read information from controller afte
r
this procedure.
8.
During obtaining information, Tech-2 is receiving
information from the control unit chosen. In
replacing the control unit, please be sure to
undertake "Obtaining Information" from the new
unit. With VIN not being programmed into the new
control unit at the time of shipment, "obtaining
information" is not complete (because the vehicle
model, engine model and model year are specified
from VIN). For the procedure get additional
information on vehicles, instruction will be
provided in dialog form, when TIS2000 is in
operation.
9.
Following instructions by Tech-2, push the "Exit"
switch of Tech-2, turn off the ignition of the vehicle
and turn off the power of Tech-2, thereby
removing from the vehicle.

3.Data Exchange
1.
Connect Tech-2 to P/C, turn on the power and
click the "Next" button of P/C.
2.
Check VIN of the vehicle and choose "Next".
3.
When a lack of data is asked from among the
following menu, enter accordingly.
Select following Menu

Model Year

Model

Engine type

Transmission type

Destination code (vehicles for general
export)*1

Immobiliser
* 1: How to read the destination code
"Destination code can be read from ID Plate affixed on
vehicles, while on VIN plate the destination code is
described at the right-hand edge of Body Type line. In
Fig.-3, the destination code can be read as "EK4"
(Europe).

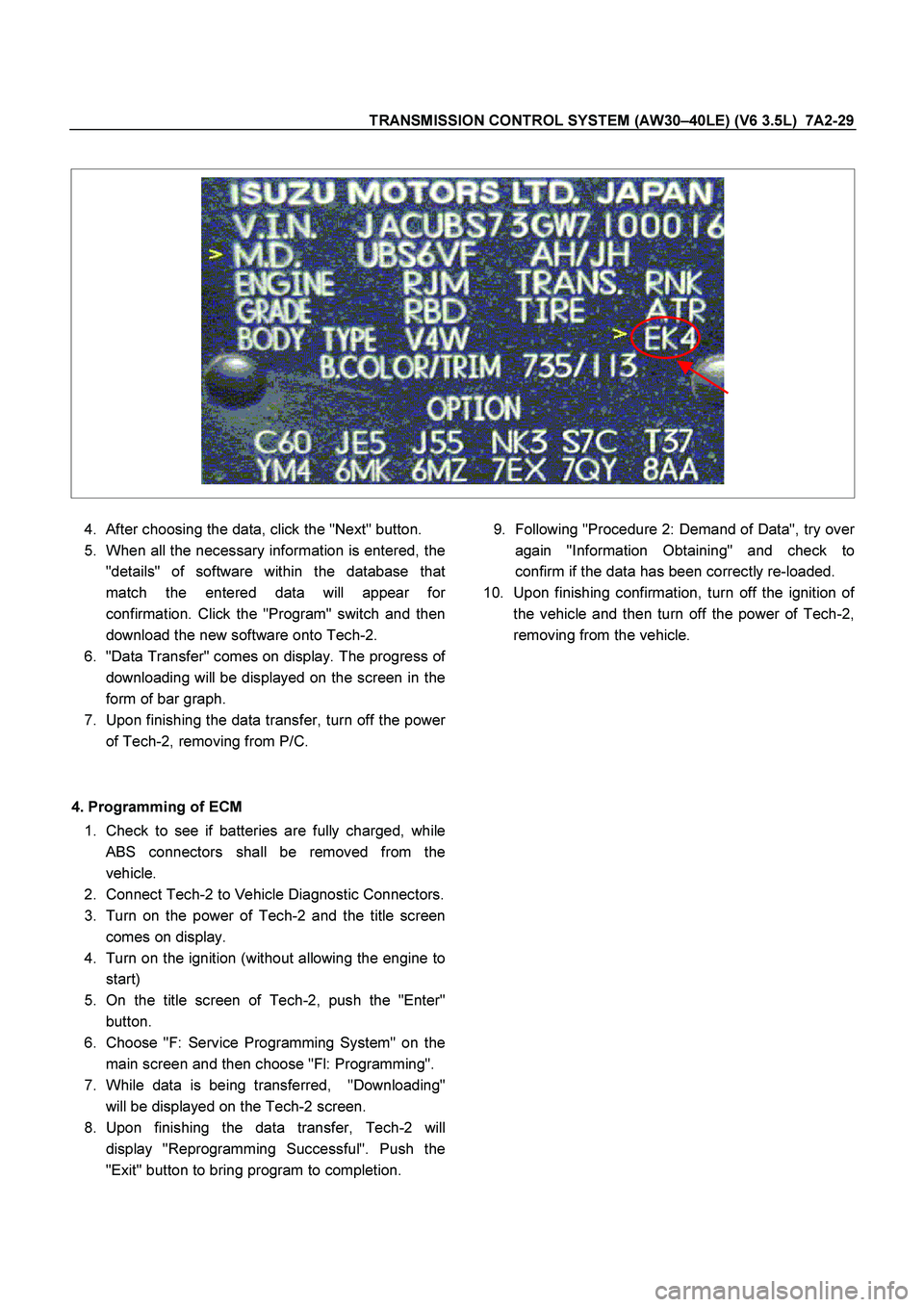

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-29





4.
After choosing the data, click the "Next" button.
5.
When all the necessary information is entered, the
"details" of software within the database that
match the entered data will appear fo
r
confirmation. Click the "Program" switch and then
download the new software onto Tech-2.
6. "Data Transfer" comes on display. The progress o
f
downloading will be displayed on the screen in the
form of bar graph.
7.
Upon finishing the data transfer, turn off the powe
r
of Tech-2, removing from P/C.


4. Programming of ECM 1.
Check to see if batteries are fully charged, while
ABS connectors shall be removed from the
vehicle.
2.
Connect Tech-2 to Vehicle Diagnostic Connectors.
3.
Turn on the power of Tech-2 and the title screen
comes on display.
4.
Turn on the ignition (without allowing the engine to
start)
5.
On the title screen of Tech-2, push the "Enter"
button.
6.
Choose "F: Service Programming System" on the
main screen and then choose "Fl: Programming".
7.
While data is being transferred, "Downloading"
will be displayed on the Tech-2 screen.
8.
Upon finishing the data transfer, Tech-2 will
display "Reprogramming Successful". Push the
"Exit" button to bring program to completion.

9.
Following "Procedure 2: Demand of Data", try ove
r
again "Information Obtaining" and check to
confirm if the data has been correctly re-loaded.
10. Upon finishing confirmation, turn off the ignition o
f
the vehicle and then turn off the power of Tech-2,
removing from the vehicle.

7A2-30 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

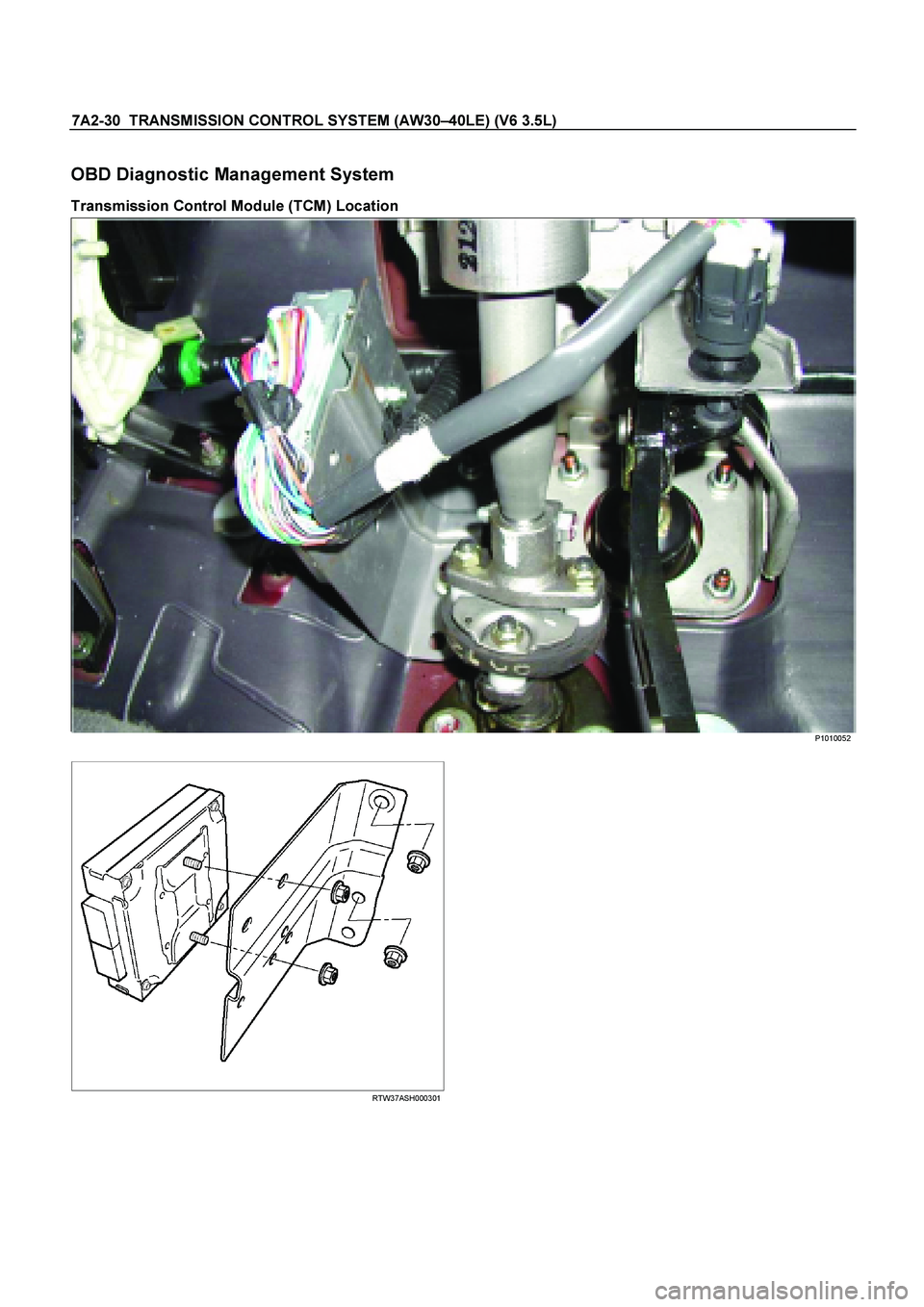

OBD Diagnostic Management System
Transmission Control Module (TCM) Location

P1010052



RTW37ASH000301

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-31

16 – Terminal Data Link Connector (DLC)
OBD standardizes Data Link Connector (DLC)
configurations. The DLC, formerly referred to as the
ALDL, will be a 16 –terminal connector found on the
lower right side of the driver's side instrument panel. All
manufacturers must conform to this 16 –terminal
standard.






060R300015






810RT022




PIN 1 – uart
PIN 2 – J1850 Bus + L line on 2–wire systems, or single wire (ECM)
PIN 3 – (Not used)
PIN 4 – Chassis ground pin
PIN 5 – Chassis ground pin
PIN 6 – ECM diagnostic enable
PIN 7 – KW2000
PIN 8 – (Not used)
PIN 9 – Primary UART
PIN 10 – (Not used)
PIN 11 – TCM diagnostic enable
PIN 12 – ABS diagnostic or CCM diagnostic enable
PIN 13 – SIR diagnostic enable
PIN 14 – (Not used)
PIN 15 – (Not used)
PIN 16 – Battery power from vehicle unswitched (4 AMP MAX.)

7A2-32 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

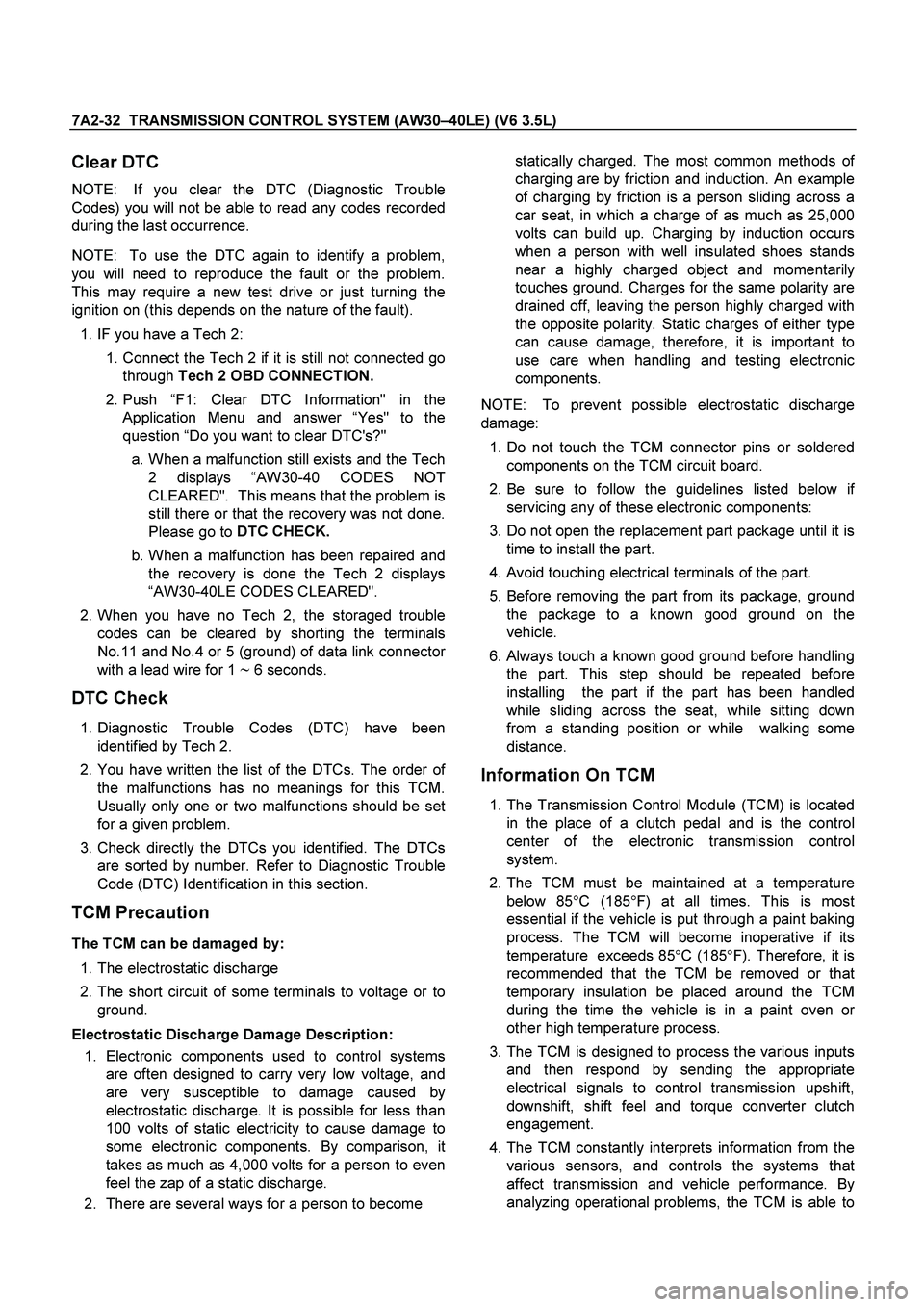

Clear DTC
NOTE: If you clear the DTC (Diagnostic Trouble
Codes) you will not be able to read any codes recorded
during the last occurrence.
NOTE: To use the DTC again to identify a problem,
you will need to reproduce the fault or the problem.
This may require a new test drive or just turning the
ignition on (this depends on the nature of the fault).
1. IF you have a Tech 2:
1. Connect the Tech 2 if it is still not connected go
through Tech 2 OBD CONNECTION.
2. Push “F1: Clear DTC Information" in the
Application Menu and answer “Yes" to the
question “Do you want to clear DTC's?"
a. When a malfunction still exists and the Tech 2 displays “AW30-40 CODES NOT
CLEARED". This means that the problem is
still there or that the recovery was not done.
Please go to DTC CHECK.
b. When a malfunction has been repaired and the recovery is done the Tech 2 displays
“ AW30-40LE CODES CLEARED".
2. When you have no Tech 2, the storaged trouble
codes can be cleared by shorting the terminals
No.11 and No.4 or 5 (ground) of data link connecto
r
with a lead wire for 1  6 seconds.
DTC Check
1. Diagnostic Trouble Codes (DTC) have been
identified by Tech 2.
2. You have written the list of the DTCs. The order o
f
the malfunctions has no meanings for this TCM.
Usually only one or two malfunctions should be set
for a given problem.
3. Check directly the DTCs you identified. The DTCs
are sorted by number. Refer to Diagnostic Trouble
Code (DTC) Identification in this section.
TCM Precaution
The TCM can be damaged by:
1. The electrostatic discharge
2. The short circuit of some terminals to voltage or to
ground.
Electrostatic Discharge Damage Description: 1. Electronic components used to control systems are often designed to carry very low voltage, and
are very susceptible to damage caused by
electrostatic discharge. It is possible for less than
100 volts of static electricity to cause damage to
some electronic components. By comparison, it
takes as much as 4,000 volts for a person to even
feel the zap of a static discharge.
2. There are several ways for a person to become
statically charged. The most common methods o
f
charging are by friction and induction. An example
of charging by friction is a person sliding across a
car seat, in which a charge of as much as 25,000
volts can build up. Charging by induction occurs
when a person with well insulated shoes stands
near a highly charged object and momentarily
touches ground. Charges for the same polarity are
drained off, leaving the person highly charged with
the opposite polarity. Static charges of either type
can cause damage, therefore, it is important to
use care when handling and testing electronic
components.
NOTE: To prevent possible electrostatic discharge
damage:
1. Do not touch the TCM connector pins or soldered
components on the TCM circuit board.
2. Be sure to follow the guidelines listed below i
f
servicing any of these electronic components:
3. Do not open the replacement part package until it is time to install the part.
4. Avoid touching electrical terminals of the part.
5. Before removing the part from its package, ground
the package to a known good ground on the
vehicle.
6.
Always touch a known good ground before handling
the part. This step should be repeated before
installing the part if the part has been handled
while sliding across the seat, while sitting down
from a standing position or while walking some
distance.
Information On TCM
1. The Transmission Control Module (TCM) is located
in the place of a clutch pedal and is the control
center of the electronic transmission control
system.
2. The TCM must be maintained at a temperature below 85

C (185

F) at all times. This is most
essential if the vehicle is put through a paint baking
process. The TCM will become inoperative if its
temperature exceeds 85

C (185

F). Therefore, it is
recommended that the TCM be removed or that
temporary insulation be placed around the TCM
during the time the vehicle is in a paint oven o
r
other high temperature process.
3. The TCM is designed to process the various inputs and then respond by sending the appropriate
electrical signals to control transmission upshift,
downshift, shift feel and torque converter clutch
engagement.
4. The TCM constantly interprets information from the
various sensors, and controls the systems that
affect transmission and vehicle performance. By
analyzing operational problems, the TCM is able to

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-33

perform a diagnostic function by displaying DTC(s)
and aid the technician in making repairs.

7A2-34 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

TCM Diagnostic Trouble Codes
The following table lists the diagnostic trouble codes supported by this vehicle application. If any DTCs not listed here
are displayed by a scan tool, the scan tool data may by faulty; notify the scan tool manufacture of any DTCs
displayed that are not included in the following table.
DTC
NUMBER FLASH
CODE DTC NAME
“CHECK
TRANS"
P0560 25 System Voltage Error —
P0602 63 Transmission Control Module (TCM) Programming Error —
P0705 17 Transmission Range Sensor Circuit Malfunction ON
P0712 15 Transmission Oil Temperature Sensor Circuit Low Input ON
P0713 16 Transmission Oil Temperature Sensor Circuit Hight Input ON
P0717 14 Input Speed Sensor Signal Error ON
P0722 11 Output Speed Sensor Signal Error ON
P0743 33 Torque Converter Clutch Electrical ON
P0748 35 Pressure Control Solenoid Electrical ON
P0753 31 Shift Solenoid S1 Electrical ON
P0758 32 Shift Solenoid S2 Electrical ON
P1767 67 ECM CAN (Control Area Network) Invalid ON
P1790 61 Transmission Control Module ROM Checksum Error ON
P1791 62 Transmission Control Module RAM Error ON
U2104 65 CAN (Control Area Network) BUSS OFF ON
