TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-3

Electronic Control Diagram



RTW37AXF000101

7A2-4 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

Transmission Control Module (TCM) (1/2)




RTW48AXF028101

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-5

Transmission Control Module (TCM) (2/2)








RTW48AXF003101

7A2-6 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

TCM Point Table



RTW37ASF000101-1


PIN No. SIGNAL NAME
A1 GND
A2 PRESSURE CONTROL SOLENOID GND
A3 —
A4 PRESSURE CONTROL SOLENOID
A5 L-up SOLENOID
A6 STARTER SW(IG1)
A7 CAN COMMUNICATION (-)
A8 —
A9 —
A10 —
A11 T/M OIL TEMPERATURE SENSOR
A12 T/M OIL TEMPERATURE SENSOR GND
A13 —
A14 —
A15 SHIFT SOLENOID (S2)
A16 SHIFT SOLENOID (S1)
A17 CAN COMMUNICATION (+)
A18 —
A19 —
A20 —
A21 —
A22 —
A23 GND
A24 BATTERY

PIN No. SIGNAL NAME
B1 NEUTRAL START SW (R)
B2 POWER LAMP
B3 CHECK TRANS LAMP
B4 PATTERN SELECT SW (3rd START)
B5 SPEED SENSOR (+)
B6 INPUT REVOLUTION SENSOR (+)
B7 NEUTRAL START SW (D)
B8 NEUTRAL START SW (N)
B9 NEUTRAL START SW (3)
B10 3rd START LAMP
B11 OIL TEMPERATURE WARNING LAMP
B12 DIAGNOSIS TERMINAL
B13 PATTERN SELECT SW (POWER)
B14 SPEED SENSOR (-)
B15 —
B16 INPUT REVOLUTION SENSOR (+)
B17 —
B18 NEUTRAL START SW (L)
B19 NEUTRAL START SW (2)
B20 NEUTRAL START SW (P)
B21 TRANSMISFER LOW 4 SW
B22 BRAKE LAMP SW
B23 DIAGNOSIS OUT PUT
B24 —
B25 —
B26 CRUISE CONTROL UNIT

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-7

TCM Voltage & Resistance Check Sheet
CHECK ITEM PIN No. VALUE NOTE
VIGN A6 –A1 VIGN
Key “ON ”

A6 –A23 VIGN
Key “ON ”
Backup Power Supply A24 –A1 +B (Always)
Key “ON ”
Inhibitor (Select) SW P B20 –A1 “P ” Range VIGN Key “ON ”

Except “P ” 0V
Inhibitor (Select) SW R B1
–A1 “R ” Range VIGN Key “ON ”

Except “R ” 0V
Inhibitor (Select) SW N B8
–A1 “N ” Range VIGN Key “ON ”

Except “N ” 0V
Inhibitor (Select) SW D B7
–A1 “D ” Range VIGN Key “ON ”

Except “D ” 0V
Inhibitor (Select) SW 2 B19
–A1 “2 ” Range VIGN Key “ON ”

Except “2 ” 0V
Inhibitor (Select)SW 1 B18
–A1 “1 ” Range VIGN Key “ON ”

Except “1 ” 0V
Inhibitor (Select) SW 3 B9
–A1 “3 ” Range VIGN Key “ON ”

Except “3 ” 0V
Power SW B13
–A1 ON 0V Key “ON ”

OFF VIGN
3rd Start SW B4
–A1 ON 0V Key “ON ”

OFF VIGN
Brake SW B22
–A1 ON VIGN Key “ON ”

OFF 0V
AT Oil Temperature
Sensor A11
–A12 20
C 4.6V Engine run.

155

C 1.1V
4L Signal B21
–A1 4L 0V Key “ON ”

2H/4H VIGN
Diag SW B12
–A1 ON VIGN Key “ON ”

OFF 0V
Shift Solenoid A (S1) A16
–A1 P VIGN Engine run.

R VIGN

N VIGN

D –1 VIGN

D –2 VIGN

D –3 0V

D –4 0V

7A2-8 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

CHECK ITEM PIN No. VALUE NOTE
Shift Solenoid B (S2) A15 –A1 P 0V Engine run.

R 0V Engine run. (Without the
Reverse range lock out)
N 0V Engine run.
D –1 0V

D –2 VIGN

D –3 VIGN

D –4 0V
Lock-up Solenoid A5
–A1 ON VIGN (ex.) It is “ON ” when the
vehicle speed is more than
65km/h.
OFF 0V
Check Trans Lamp B3
–A1 ON 0V Key “ON ”
(The lamp is “ON ” for 3
second after key “ON ”)

OFF VIGN
AT Oil Temperature Lamp B11
–A1 ON 0V Key “ON ”
(The lamp is “ON ” for 3
second after key “ON ”)

OFF VIGN
Power Lamp B2
–A1 ON 0V Key “ON ”
(The lamp is “ON ” when the
Power switch is “ON ”)

OFF VIGN
3 rd Start Lamp B10
–A1 ON 0V Key “ON ”
(The lamp is “ON ” when the
3rd Start switch is “ON ”)

OFF VIGN
AT Oil Temp Sensor
Resistance A11
–A12 20

C
12k
Key “OFF ”

50

C 1.5k

155

C 293

Pressure Control Solenoid
Resistance A4
–A2 About
4 –7

(20

C)
Key “OFF ”
Speed Sensor Resistance B5 –B14 About
560

– 120
(20

C)
Key “OFF ”
Input Revolution Sensor
Resistance B6
–B16 About
560

– 120
(20

C)
Key “OFF ”
Lock-up Solenoid
Resistance A5
–A1 About
10

– 15
(20

C)
Key “OFF ”
Shift Solenoid A (S1)
Resistance A16
–A1 About
10

– 15
(20
C)
Key “OFF ”
Shift Solenoid B (S2)
Resistance A15
–A1 About
10

– 15
(20

C)
Key “OFF ”

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-9

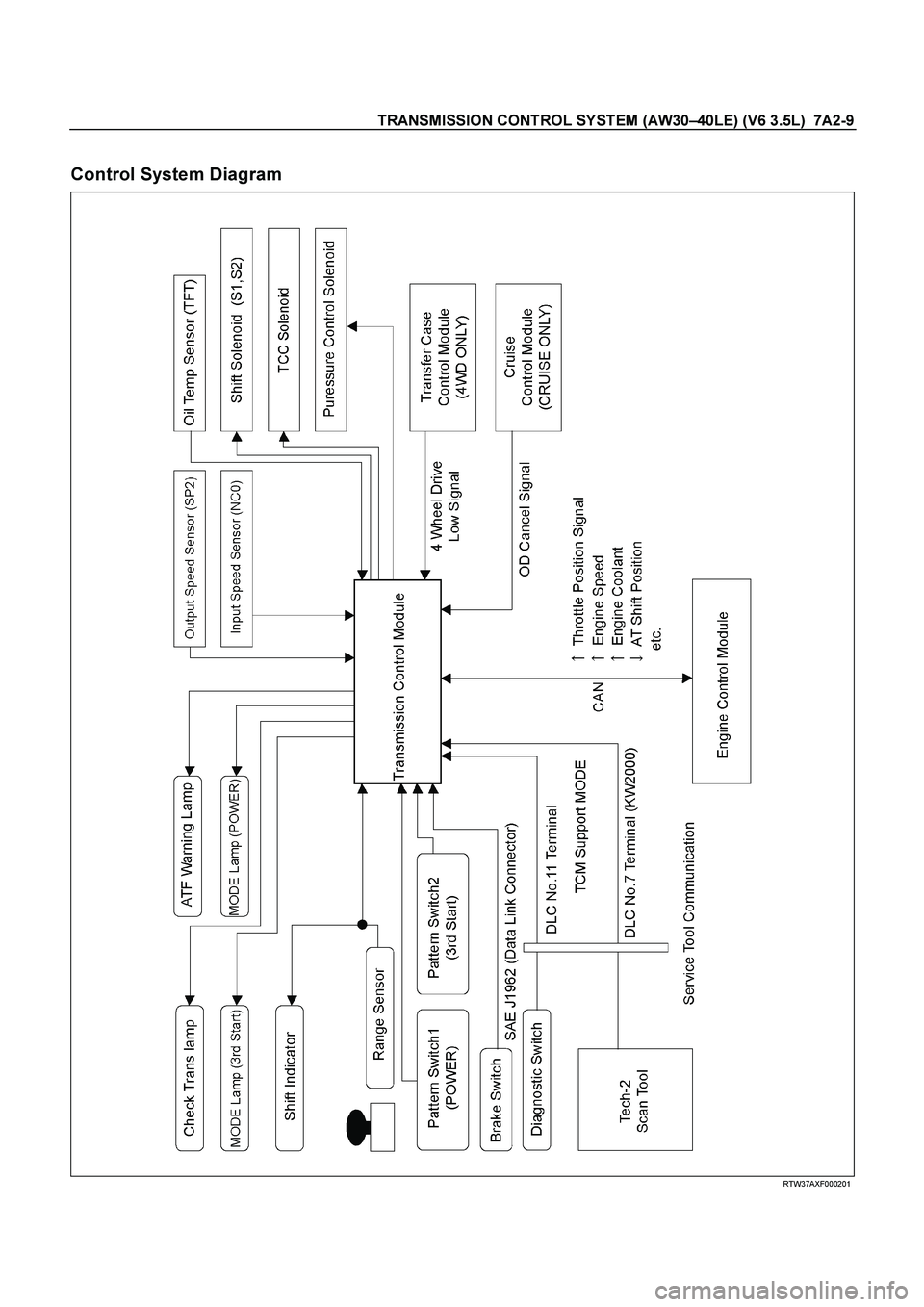

Control System Diagram



RTW37AXF000201

7A2-10 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

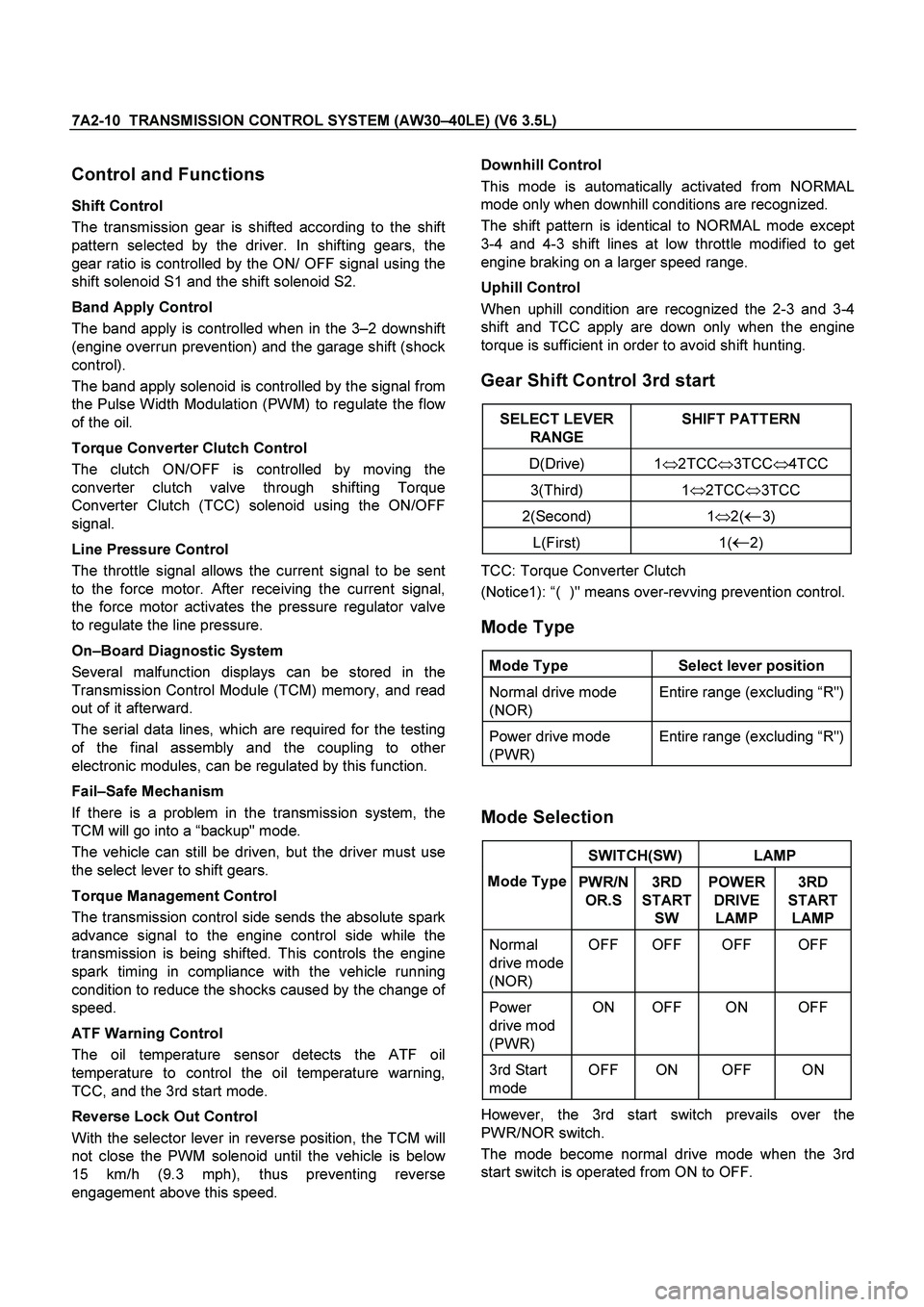

Control and Functions
Shift Control
The transmission gear is shifted according to the shift
pattern selected by the driver. In shifting gears, the
gear ratio is controlled by the ON/ OFF signal using the
shift solenoid S1 and the shift solenoid S2.
Band Apply Control
The band apply is controlled when in the 3 –2 downshift
(engine overrun prevention) and the garage shift (shock
control).
The band apply solenoid is controlled by the signal from
the Pulse Width Modulation (PWM) to regulate the flow
of the oil.
Torque Converter Clutch Control
The clutch ON/OFF is controlled by moving the
converter clutch valve through shifting Torque
Converter Clutch (TCC) solenoid using the ON/OFF
signal.
Line Pressure Control
The throttle signal allows the current signal to be sent
to the force motor. After receiving the current signal,
the force motor activates the pressure regulator valve
to regulate the line pressure.
On –Board Diagnostic System
Several malfunction displays can be stored in the
Transmission Control Module (TCM) memory, and read
out of it afterward.
The serial data lines, which are required for the testing
of the final assembly and the coupling to othe
r
electronic modules, can be regulated by this function.
Fail –Safe Mechanism
If there is a problem in the transmission system, the
TCM will go into a “backup" mode.
The vehicle can still be driven, but the driver must use
the select lever to shift gears.
Torque Management Control
The transmission control side sends the absolute spark
advance signal to the engine control side while the
transmission is being shifted. This controls the engine
spark timing in compliance with the vehicle running
condition to reduce the shocks caused by the change o
f
speed.
ATF Warning Control
The oil temperature sensor detects the ATF oil
temperature to control the oil temperature warning,
TCC, and the 3rd start mode.
Reverse Lock Out Control
With the selector lever in reverse position, the TCM will
not close the PWM solenoid until the vehicle is below
15 km/h (9.3 mph), thus preventing reverse
engagement above this speed.

Downhill Control
This mode is automatically activated from NORMAL
mode only when downhill conditions are recognized.
The shift pattern is identical to NORMAL mode except
3-4 and 4-3 shift lines at low throttle modified to get
engine braking on a larger speed range.
Uphill Control
When uphill condition are recognized the 2-3 and 3-4
shift and TCC apply are down only when the engine
torque is sufficient in order to avoid shift hunting.
Gear Shift Control 3rd start


SELECT LEVER RANGE SHIFT PATTERN
D(Drive) 1


2TCC

3TCC

4TCC
3(Third) 1

2TCC

3TCC
2(Second) 1

2(
3)
L(First) 1(
2)
TCC: Torque Converter Clutch
(Notice1): “( )" means over-revving prevention control.
Mode Type


Mode Type Select lever position
Normal drive mode
(NOR) Entire range (excluding “R")
Power drive mode
(PWR) Entire range (excluding “R")

Mode Selection



SWITCH(SW) LAMP
Mode Type PWR/N
OR.S 3RD
START SW POWER
DRIVE LAMP 3RD
START LAMP
Normal
drive mode
(NOR) OFF OFF OFF OFF
Power
drive mod
(PWR) ON OFF ON OFF
3rd Start
mode OFF ON OFF ON
However, the 3rd start switch prevails over the
PWR/NOR switch.
The mode become normal drive mode when the 3rd
start switch is operated from ON to OFF.
