2004 ISUZU TF SERIES Transmission

7B1-118 MANUAL TRANSMISSION

Special Tools (4





4)

ILLUSTRATION TOOL NO.
TOOL NAME ILLUSTRATION TOOL NO.
TOOL NAME
5-8840-2158-0
Mainshaft collar remover 5-8840-2159-0
Mainshaft end bearing
installer
5-8840-2027-0
Puller 5-8840-0015-0
Bearing
remover/installer
5-8840-2160-0
Holding fixture 5-8840-2797-0
Rear case oil seal
installer
5-8840-0003-0
Holding fixture base 5-8840-0026-0
Front cover oil seal
installer
5-8840-2156-0
Wrench 9-8522-1165-0
Mainshaft collar remover
5-8840-0047-0
Tork bit wrench
(T–45) 5-8840-0007-0
Driver handle

TRANSFER CASE 7D-7

Removal
NOTE: Before removing transmission and transfer
assembly from vehicle, change the transfer mode to
2WD using the 4WD push button switch on dash panel.
1.
Disconnect battery ground cable.
2.
Raise and support vehicle with suitable stands. Drain
transfer case fluid.
3. Remove the center exhaust pipe(5). (6VE1 only)
4.
Remove rear propeller shaft (1) and front propelle
r
shaft (2)(3).
NOTE: Apply alignment marks on the flange at both
front and rear sides.
5.
Disconnect harness connectors and clip.

Connector: transfer switch, 2WD-4WD actuator,
speed sensor.
NOTE: Avoid turning the vehicle ignition switch to the
ON position when the 2WD-4WD connector is removed
(battery connected).
If the ignition switch must be turned to the ON position,
the controller must first be removed (memory must be
cleared because the CHECK 4WD INDICATOR will
light).
6.
Remove transfer case (4) from the vehicle.
Installation
1.
Apply a thin coat of molybdenum disulfide grease to
the input shaft spline as shown in the figure.

260R300001

7D-8 TRANSFER CASE

2.
Install transfer case (4) to the transmission. Tighten
transfer bolts as shown in the figure.

For M/T
261R300001

7D1-4 TRANSFER CONTROL SYSTEM
Summary of transfer control system
The transfer control system switches between the 2-wheel
drive (2H), 4-wheel drive high-speed (4H), 4-wheel drive low-
speed (4L), and neutral positions electrically when the driver
operate the switches.
This system has following functions.
1. Connection or disconnection of drive force distribution to
the front wheel front shaft (axle shaft) (The drive force
distribution to the front propeller is connected o
r
disconnected with the motor actuator.)
2. Try to repeat the connection or disconnection of the front
wheel drive function as described above.
3. Option: Shift on the fly type only.
Instruction of connection or disconnection of the drive force
transmission between the front wheel axle (axle shaft) and
front wheel
(The motor actuator connects or disconnects the left front
wheel ad front wheel axle (axle shaft).).
4. Shifting of auxiliary transmission gears, connection o
r
disconnection of wheel and engine drive force (4H, 4L,
neutral).
5. Operation of indicator on the instrument panel.
6. Transmission of position signal to other controllers.

7D1-14 TRANSFER CONTROL SYSTEM
Operational limits (4H




4L) (Vehicle speed, engine speed, and transmission position not specified)

Item 4WD
lamp 4L lampNeutral
lamp Check
4WD
warning
light 4WD
switch Actuator
detection
(limit)
switches
LS1, LS2,
LS3. and
LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral
switch SOF
actuator
switch
Or
Axle
dummyRemarks
4H On Off Off Off Open 0,0,1,1 Closed Open Closed -----
4H start
of
operation On Off Off Off 4L
position
for 0.1
second 0,0,1,1 Closed Open Closed -----
10
second
display
during
limitation On Blinking
(4HZ) Off Off Open 0,0,1,1 Closed Open Closed No
operation
during
limitation
Go to 4H
after 10
seconds
On Off Off Off Open 0,0,1,1 Closed Open Closed -----

Operational limits (4L





4H) (Vehicle speed, engine speed, and transmission position not specified)

Item 4WD
lamp 4L lampNeutral
lamp Check
4WD
warning
light 4WD
switch Actuator
detection
(limit)
switches
LS1, LS2,
LS3. and
LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral
switch SOF
actuator
switch
Or
Axle
dummyRemarks
4L On On Off Off No
operation1,1,0,1 Closed Open Closed -----
4L start of
operation On On Off Off 4H
position
for 0.1
second 1,1,0,1 Closed Open Closed -----
10
second
display
during
limitation On Blinking
(4HZ) Off Off Open 1,1,0,1 Closed Open Closed No
operation
during
limitation
Go to 4L
after 10
seconds
On On Off Off No
operation1,1,0,1 Closed Open Closed -----


Under some conditions, a secondary operational indication may be received when the 4Hz operational indication
is present.

TRANSFER CONTROL SYSTEM 7D1-17

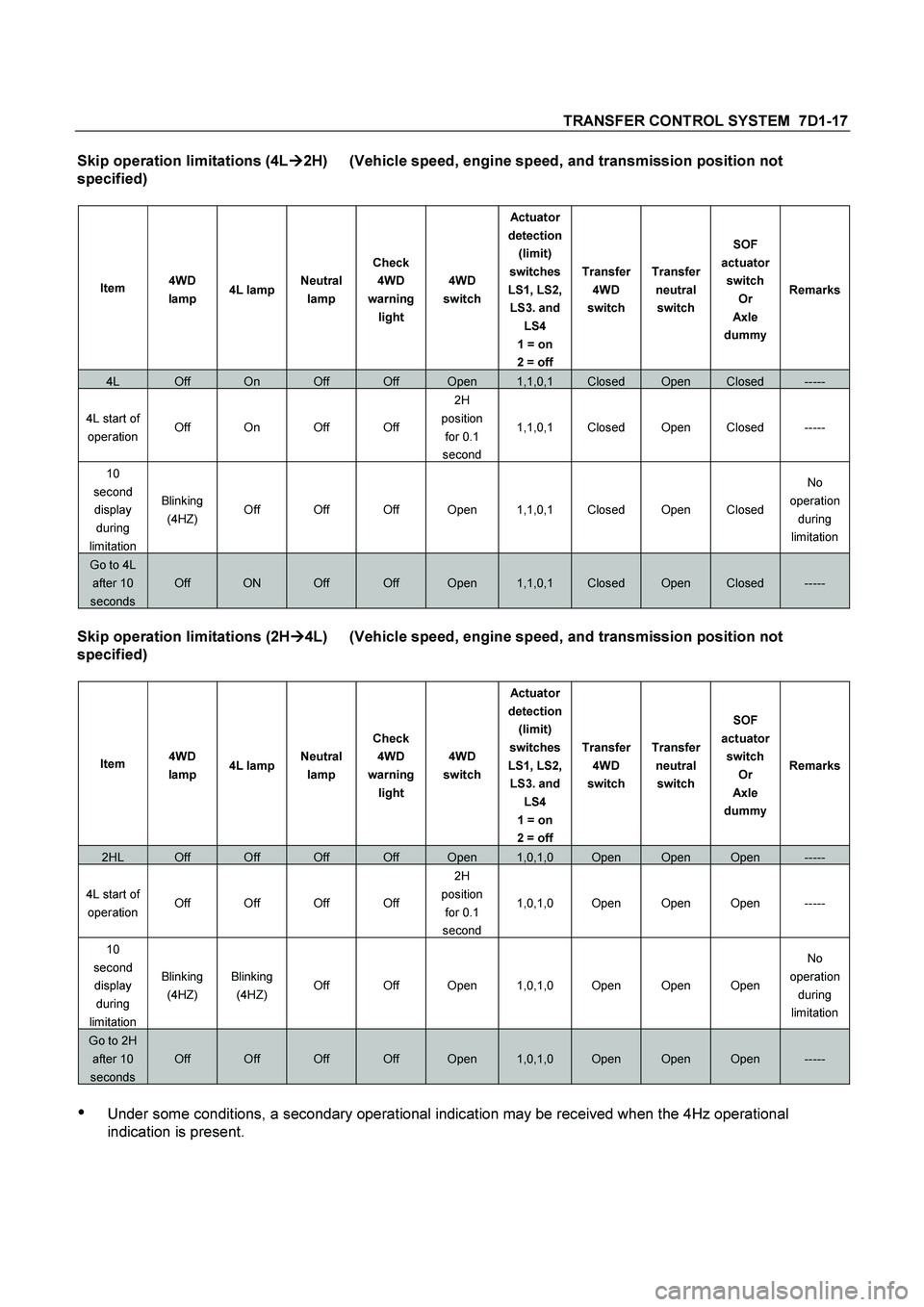

Skip operation limitations (4L




2H) (Vehicle speed, engine speed, and transmission position not
specified)

Item 4WD
lamp 4L lampNeutral
lamp Check
4WD
warning
light 4WD
switch Actuator
detection
(limit)
switches
LS1, LS2,
LS3. and
LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral
switch SOF
actuator
switch
Or
Axle
dummyRemarks
4L Off On Off Off Open 1,1,0,1 Closed Open Closed -----
4L start of
operation Off On Off Off 2H
position
for 0.1
second 1,1,0,1 Closed Open Closed -----
10
second
display
during
limitation Blinking
(4HZ) Off Off Off Open 1,1,0,1 Closed Open Closed No
operation
during
limitation
Go to 4L
after 10
seconds
Off ON Off Off Open 1,1,0,1 Closed Open Closed -----

Skip operation limitations (2H




4L) (Vehicle speed, engine speed, and transmission position not
specified)

Item 4WD
lamp 4L lampNeutral
lamp Check
4WD
warning
light 4WD
switch Actuator
detection
(limit)
switches
LS1, LS2,
LS3. and
LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral
switch SOF
actuator
switch
Or
Axle
dummyRemarks
2HL Off Off Off Off Open 1,0,1,0 Open Open Open -----
4L start of
operation Off Off Off Off 2H
position
for 0.1
second 1,0,1,0 Open Open Open -----
10
second
display
during
limitation Blinking
(4HZ) Blinking
(4HZ) Off Off Open 1,0,1,0 Open Open Open No
operation
during
limitation
Go to 2H
after 10
seconds
Off Off Off Off Open 1,0,1,0 Open Open Open -----


Under some conditions, a secondary operational indication may be received when the 4Hz operational
indication is present.

TRANSFER CONTROL SYSTEM 7D1-19

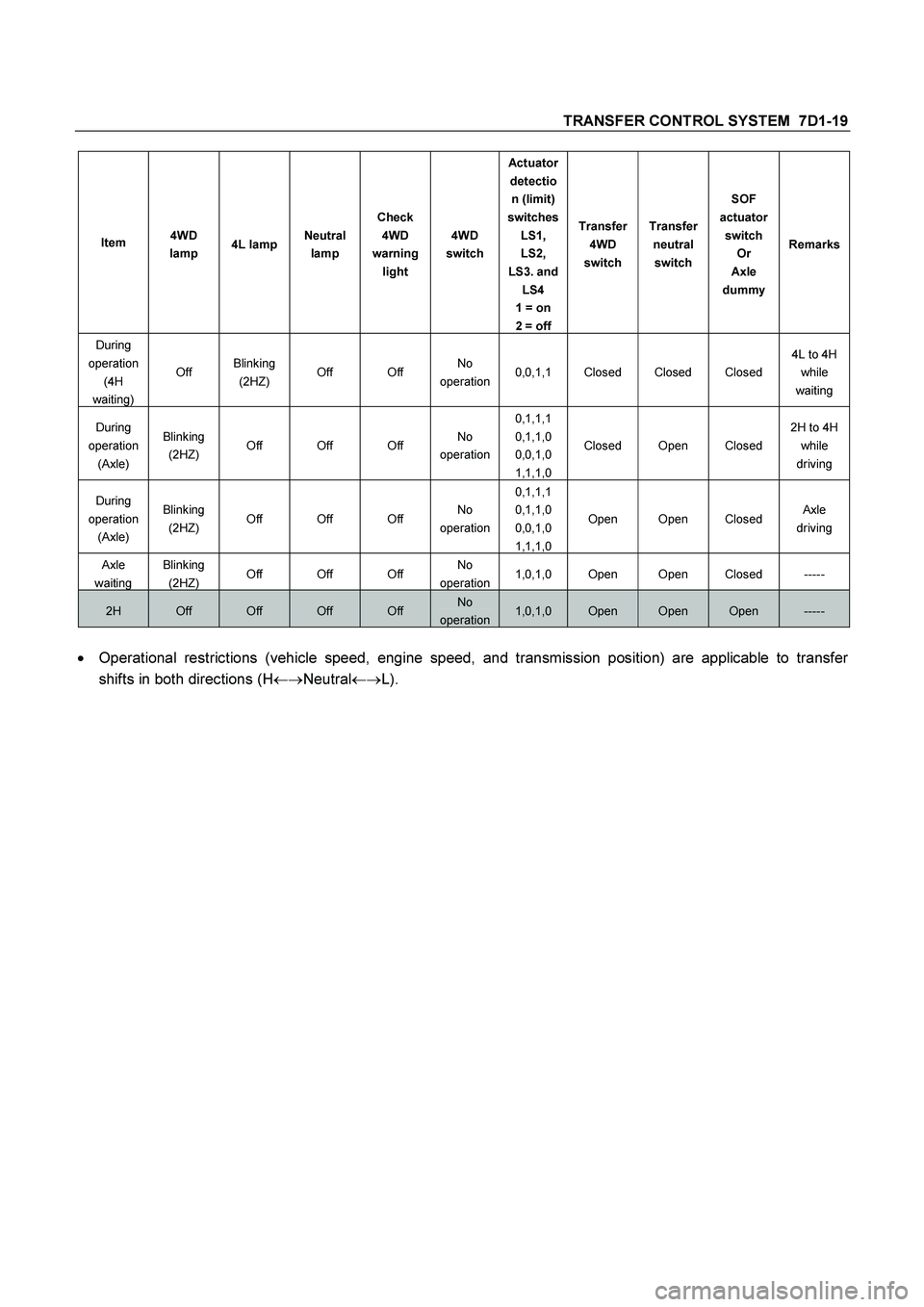

Item 4WD
lamp 4L lampNeutral
lamp Check
4WD
warning
light 4WD
switch Actuator
detectio
n (limit)
switches
LS1,
LS2,
LS3. and
LS4
1 = on
2 = off Transfer
4WD
switch Transfer
neutral
switch SOF
actuator
switch
Or
Axle
dummy Remarks
During
operation
(4H
waiting) Off Blinking
(2HZ) Off Off No
operation0,0,1,1 Closed Closed Closed 4L to 4H
while
waiting
During
operation
(Axle) Blinking
(2HZ) Off Off Off No
operation0,1,1,1
0,1,1,0
0,0,1,0
1,1,1,0 Closed Open Closed 2H to 4H
while
driving
During
operation
(Axle) Blinking
(2HZ) Off Off Off No
operation0,1,1,1
0,1,1,0
0,0,1,0
1,1,1,0 Open Open Closed Axle
driving
Axle
waiting
Blinking
(2HZ) Off Off Off No
operation1,0,1,0 Open Open Closed -----
2H Off Off Off Off No
operation1,0,1,0 Open Open Open -----


Operational restrictions (vehicle speed, engine speed, and transmission position) are applicable to transfer
shifts in both directions (H
Neutral
L).

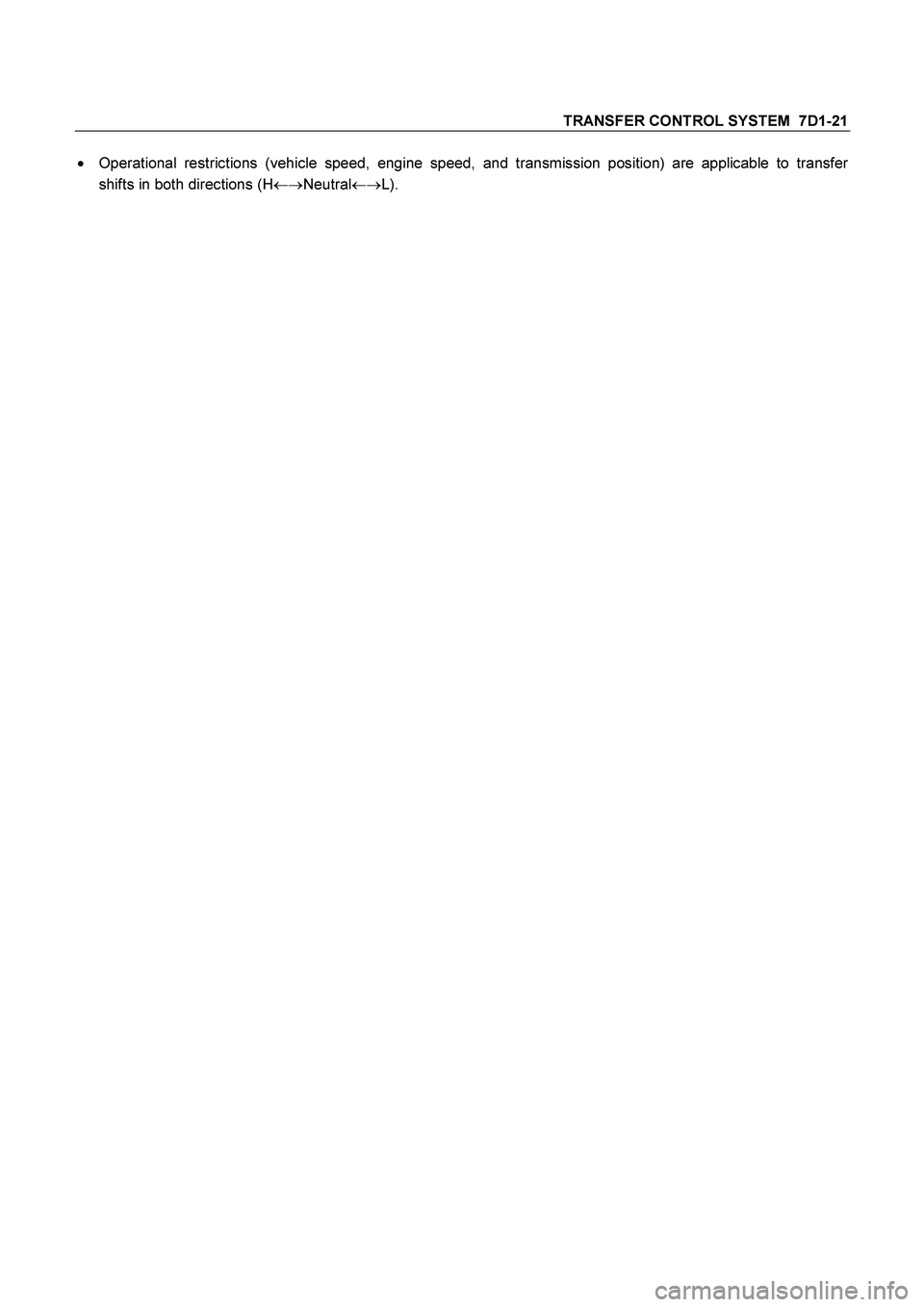

TRANSFER CONTROL SYSTEM 7D1-21
 Operational restrictions (vehicle speed, engine speed, and transmission position) are applicable to transfer
shifts in both directions (HNeutralL).
