2004 ISUZU TF SERIES Camshaft

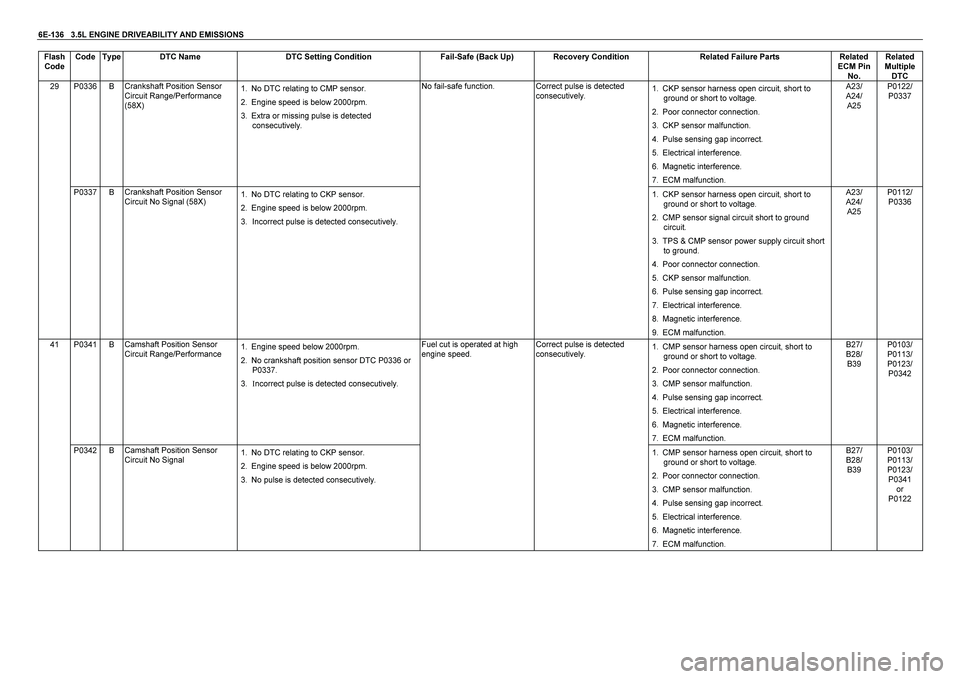

6E-136 3.5L ENGINE DRIVEABILITY AND EMISSIONS Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up) Recovery Condition Related Failure Parts Related
ECM Pin
No. Related
Multiple
DTC
P0336 B Crankshaft Position Sensor
Circuit Range/Performance
(58X) 1. No DTC relating to CMP sensor.
2. Engine speed is below 2000rpm.
3. Extra or missing pulse is detected
consecutively. 1. CKP sensor harness open circuit, short to
ground or short to voltage.
2. Poor connector connection.
3. CKP sensor malfunction.
4. Pulse sensing gap incorrect.
5. Electrical interference.
6. Magnetic interference.
7. ECM malfunction. A23/
A24/
A25 P0122/
P0337
29
P0337 B Crankshaft Position Sensor
Circuit No Signal (58X) 1. No DTC relating to CKP sensor.
2. Engine speed is below 2000rpm.
3. Incorrect pulse is detected consecutively. No fail-safe function.
Correct pulse is detected
consecutively.

1. CKP sensor harness open circuit, short to
ground or short to voltage.
2. CMP sensor signal circuit short to ground
circuit.
3. TPS & CMP sensor power supply circuit short
to ground.
4. Poor connector connection.
5. CKP sensor malfunction.
6. Pulse sensing gap incorrect.
7. Electrical interference.
8. Magnetic interference.
9. ECM malfunction. A23/
A24/
A25 P0112/
P0336
P0341 B Camshaft Position Sensor
Circuit Range/Performance 1. Engine speed below 2000rpm.
2. No crankshaft position sensor DTC P0336 or
P0337.
3. Incorrect pulse is detected consecutively. 1. CMP sensor harness open circuit, short to
ground or short to voltage.
2. Poor connector connection.
3. CMP sensor malfunction.
4. Pulse sensing gap incorrect.
5. Electrical interference.
6. Magnetic interference.
7. ECM malfunction. B27/
B28/
B39 P0103/
P0113/
P0123/
P0342
41
P0342 B Camshaft Position Sensor
Circuit No Signal 1. No DTC relating to CKP sensor.
2. Engine speed is below 2000rpm.
3. No pulse is detected consecutively. Fuel cut is operated at high
engine speed.
Correct pulse is detected
consecutively.

1. CMP sensor harness open circuit, short to
ground or short to voltage.
2. Poor connector connection.
3. CMP sensor malfunction.
4. Pulse sensing gap incorrect.
5. Electrical interference.
6. Magnetic interference.
7. ECM malfunction. B27/
B28/
B39 P0103/
P0113/
P0123/
P0341
or
P0122

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-143
An open or short to voltage circuit in the sensor ground circuit between the ECM terminal B39 and splice will cause
one or more of following DTCs to be set:





P0103 (Flash Code 61): Mass Air Flow Sensor Circuit High Input





P0113 (Flash Code 23): Intake Air Temperature Sensor High Input





P0123 (Flash Code 21): Throttle Position Sensor High Input





P0341(Flash Code 41): Camshaft Position Sensor Circuit Range/Performance





P0342 (Flash Code 41): Camshaft Position Sensor Circuit No Signal

An open circuit in the sensor power supply circuit between the ECM terminal B27 and splice will cause one or more of
following DTCs to be set:





P0122 (Flash Code 21): Throttle Position Sensor Low Input





P0342 (Flash Code 41): Camshaft Position Sensor Circuit No Signal

A short to ground circuit in the sensor power supply circuit between the ECM terminal B27 and splice will cause one
or more of following DTCs to be set:





P0122 (Flash Code 21): Throttle Position Sensor Low Input





P0336 (Flash Code 29): Crankshaft Position Sensor Circuit Range/Performance (58X)





P0337 (Flash Code 29): Crankshaft Position Sensor Circuit No Signal (58X)

A short to ground circuit in the sensor signal circuit between the ECM terminal B28 and sensor will cause one of
following DTC to be set:





P0337 (Flash Code 29): Crankshaft Position Sensor Circuit No Signal (58X)


RUW46EMF000101

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-235
CIRCUIT DESCRIPTION
The CKP reference signal is produced by the crankshaft
position (CKP) sensor. During one crankshaft
revolution, crankshaft pulses will be produced. The
Engine Control Module (ECM) uses the CKP reference
signal to calculate engine RPM and crankshaft position.
The ECM constantly monitors the number of pulses on
the CKP reference circuit and compares them to the
number of camshaft position (CMP) signal pulses being
received. If the ECM receives an incorrect number o
f
pulses on the CKP reference circuit, DTC P0336 will
set.

DIAGNOSTIC AIDS
An intermittent may be caused by a poor connection,
rubbed–through wire insulation or a wire broken inside
the insulation. Check for:
 Poor connection –Inspect the ECM harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poo
r
terminal-to-wire connection.
 Damaged harness – Inspect the wiring harness fo
r
damage.
Reviewing the Failure Records vehicle mileage since
the diagnostic test last failed may help determine ho
w
often the condition that caused the DTC to be set
occurs. This may assist in diagnosing the condition.

Diagnostic Trouble Code (DTC) P0336 (Flash Code 29) Crankshaft Position
Sensor Circuit Range/Performance (58X)
Diagnostic Trouble Code (DTC) P0337 (Flash Code 29) Crankshaft Position
Sensor Circuit No Signal (58X)

Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0336 or P0337 stored as "Present
Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0336 or P0337 stored in this ignition
cycle?
- Go to Step 4 Refer to
Diagnostic Aids
and Go to Step 4
4
Check any accessory parts which may cause electric
interference or magnetic interference.
Was the problem found?
- Remove the
accessory parts
and verify repair Go to Step 5
5
Attempt to start the engine.
Does the engine start and continue to "Run"?
- Go to Step 6 Go to Step 7

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-243
DIAGNOSTIC TROUBLE CODE (DTC) P0341(FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT RANGE/PERFORMANCE
DIAGNOSTIC TROUBLE CODE (DTC) P0342 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL



RUW46EMF000101

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0341 B Camshaft Position
Sensor Circuit
Range/Performance 1. Engine speed below 2000rpm.
2. No crankshaft position sensor DTC P0336 or P0337.
3. Incorrect pulse is detected consecutively. 41

P0342 B Camshaft Position
Sensor Circuit No
Signal 1. No DTC relating to CKP sensor.
2. Engine speed is below 2000rpm.
3. No pulse is detected consecutively. Fuel cut is operated at high engine
speed.

6E-244 3.5L ENGINE DRIVEABILITY AND EMISSIONS
CIRCUIT DESCRIPTION
If the ECM receives an incorrect number of pulses on
the CMP reference circuit, DTC P0341 will set.
If the ECM does not receive pulses on the CMP
reference circuit, DTC P0342 will set.

DIAGNOSTIC AIDS
An intermittent may be caused by a poor connection,
rubbed–through wire insulation or a wire broken inside
the insulation. Check for:
 Poor connection —Inspect the ECM harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poo
r
terminal-to-wire connection.
 Damaged harness —Inspect the wiring harness fo
r
damage.
Reviewing the Failure Records vehicle mileage since
the diagnostic test last failed may help determine ho
w
often the condition that caused the DTC to be se
t
occurs. This may assist in diagnosing the condition.


Diagnostic Trouble Code (DTC) P0341(Flash Code 41) Camshaft
Position Sensor Circuit Range/Performance
Diagnostic Trouble Code (DTC) P0342 (Flash Code 41) Camshaft
Position Sensor Circuit No Signal
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0341 or P0342 stored as "Present
Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0341 or P0342 stored in this ignition
cycle?
- Go to Step 4 Refer to
Diagnostic Aids
and Go to Step 4
4
Check any accessory parts which may cause electric
interference or magnetic interference.
Was the problem found?
- Remove the
accessory parts
and verify repair Go to Step 5

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-245
Step Action Value (s) Yes No
5

If a oscilloscope is available, monitor the CMP sensor
signal. Does the oscilloscope indicate correct wave
form?
Camshaft Position (CMP) Sensor Reference Wave Form
0V


Measurement Terminal: B28(+) B39(-)
Measurement Scale: 5V/div 10ms/div
Measurement Condition: Approximately 2000rpm




Refer to
Diagnostic Aids
and Go to Step
17 Not available:
Go to Step 6
Fixed at low:
Go to Step 6
Fixed at High:
Go to Step 12
6
Check for poor/faulty connection at the TPS, CMP
sensor or ECM connector. If a poor/faulty connection is
found, repair the faulty terminal.
Was the problem found?
E-61(B)

E-68




E-62




- Verify repair Go to Step 7
7
Remove the CMP sensor from the cylinder head and
visually check.

Objects sticking the CMP sensor.
Was the problem found?
- Verify repair Go to Step 8

6E-332 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
8
1. Using a Tech 2, display the IAC value.
2. Check for a faulty, plugged, or sticking IAC
operation.
Was the problem found?
- Verify repair Go to Step 9
9
Check the CKP sensor signal or installation condition.
Refer to DTC P0336 "Crankshaft Position Sensor
Circuit Range/Performance" and DTC P0337
"Crankshaft Position Sensor Circuit No Signal".
Was a problem found?
- Verify repair Go to Step 10
10
Check for proper ignition voltage output with the spark
tester.
Was a problem found?
- Verify repair Go to Step 11

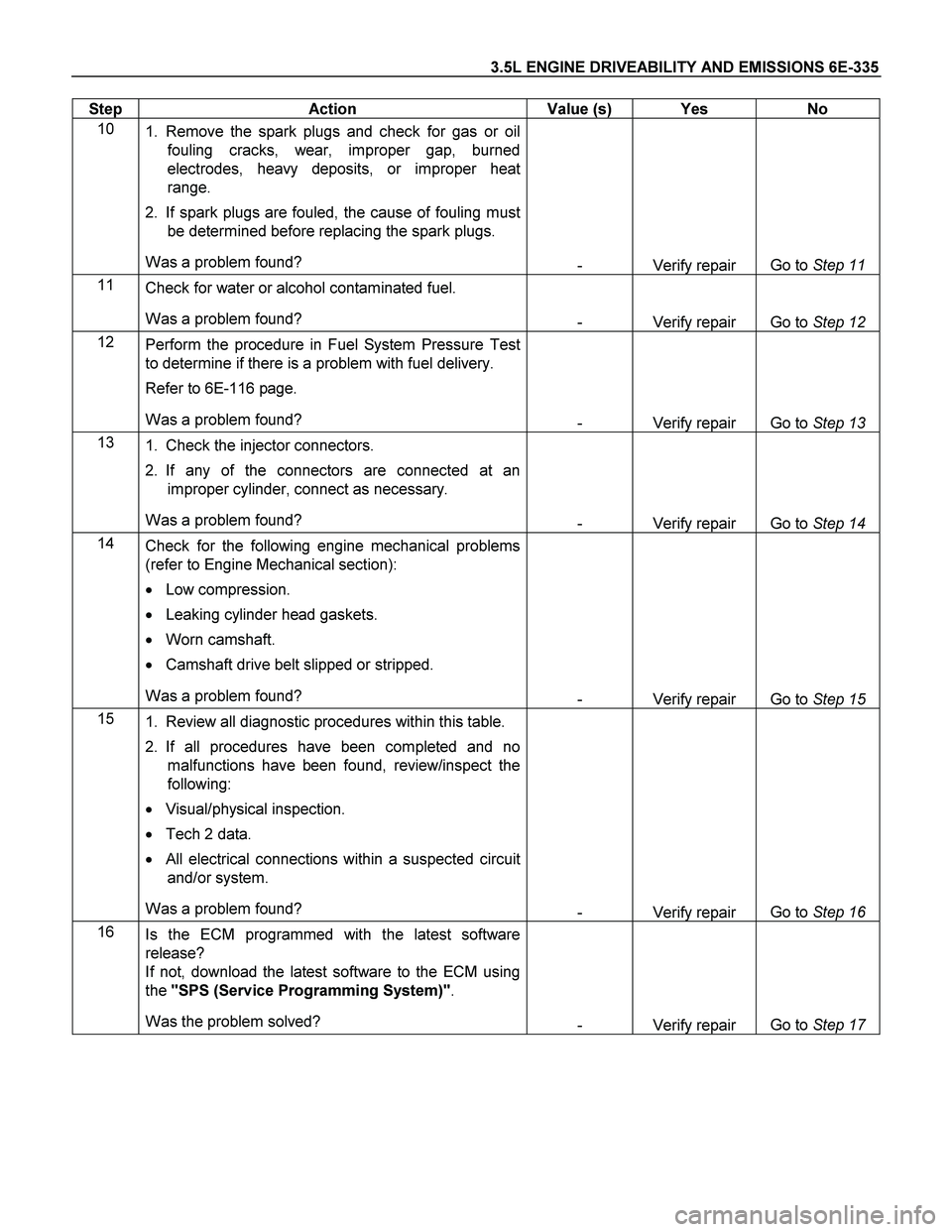

11
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 12
12
Check the fuel pressure. Refer to Fuel System
Diagnosis.
Was a problem found?
- Verify repair Go to Step 13
13
Perform the procedure in Fuel System Pressure Test
to determine if there is a problem with fuel delivery.
Was a problem found?
- Verify repair Go to Step 14
14
Visually/physically check the vacuum hose for splits,
kinks and proper connections and routing.
Was a problem found?
- Verify repair Go to Step 15
15
Check the exhaust system for a possible restriction:

Damaged or collapsed pipes.

Internal muffler failure.
Was a problem found?
- Verify repair Go to Step 16
16
Check for the following engine mechanical problems
(refer to Engine Mechanical section):

Low compression.

Leaking cylinder head gaskets.

Worn camshaft.

Camshaft drive belt slipped or stripped.
Was a problem found?
- Verify repair Go to Step 17

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-335
Step Action Value (s) Yes No
10
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 11
11
Check for water or alcohol contaminated fuel.
Was a problem found?
- Verify repair Go to Step 12
12
Perform the procedure in Fuel System Pressure Test
to determine if there is a problem with fuel delivery.
Refer to 6E-116 page.
Was a problem found?
- Verify repair Go to Step 13
13
1. Check the injector connectors.
2. If any of the connectors are connected at an
improper cylinder, connect as necessary.
Was a problem found?
- Verify repair Go to Step 14
14
Check for the following engine mechanical problems
(refer to Engine Mechanical section):

Low compression.

Leaking cylinder head gaskets.

Worn camshaft.

Camshaft drive belt slipped or stripped.
Was a problem found?
- Verify repair Go to Step 15
15
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:

Visual/physical inspection.

Tech 2 data.

All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 16
16
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 17
