2004 ISUZU TF SERIES Camshaft

6A-70 ENGINE MECHANICAL (6VE1 3.5L)
5. Tighten bolt for camshaft drive gear assembly
pulley to the specified torque using the
5
8840
2447
0 universal holder.
Torque: 98 N
 m (10.0 kg
 m/72 lb ft)




014RW060

ENGINE MECHANICAL (6VE1 3.5L) 6A-95
Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, ECM
N
 m (kg
 m/ lb ft)





RTW46ALF000601

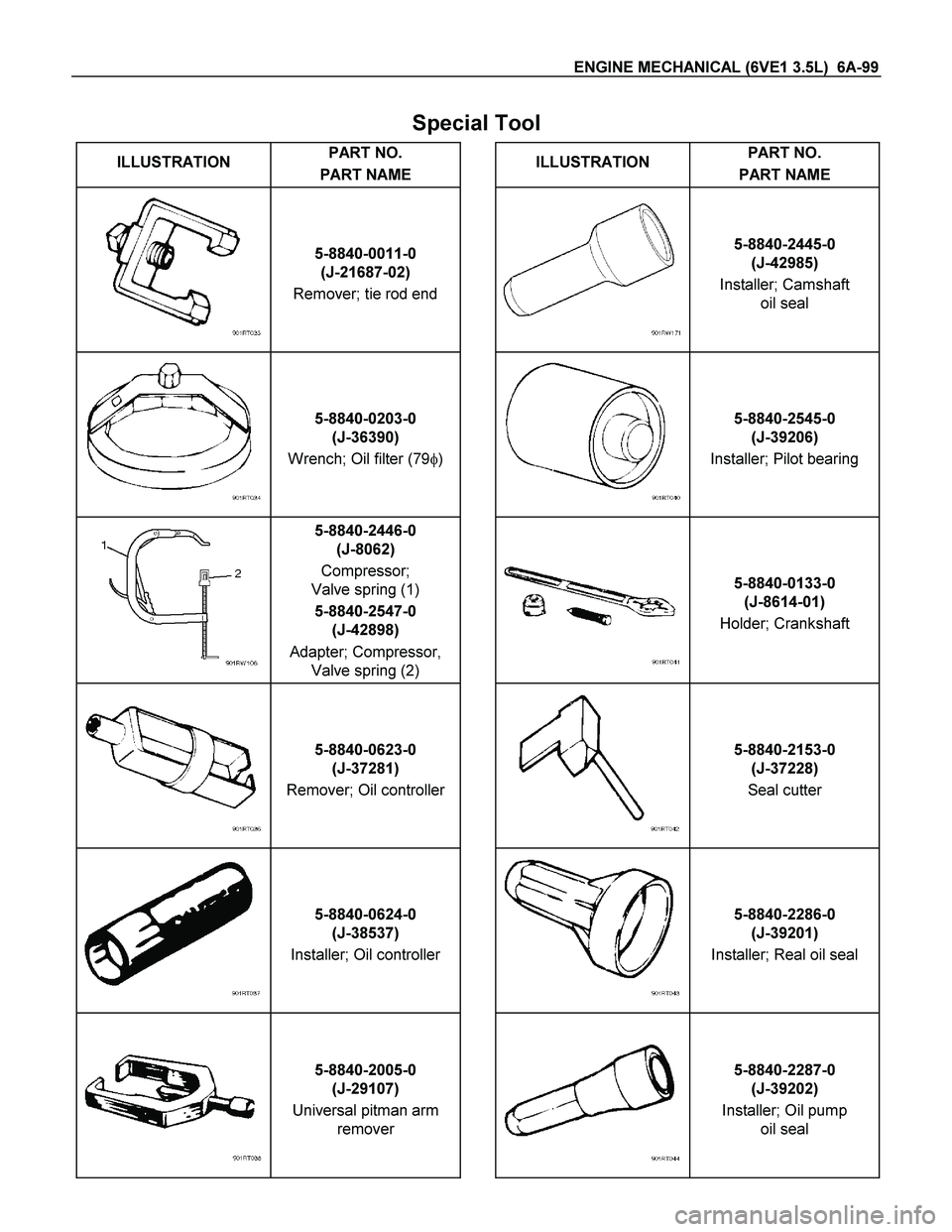

ENGINE MECHANICAL (6VE1 3.5L) 6A-99
Special Tool
ILLUSTRATION PART NO.
PART NAME
ILLUSTRATION PART NO.
PART NAME

5-8840-0011-0
(J-21687-02)
Remover; tie rod end 5-8840-2445-0
(J-42985)
Installer; Camshaft
oil seal

5-8840-0203-0
(J-36390)
Wrench; Oil filter (79) 5-8840-2545-0
(J-39206)
Installer; Pilot bearing

5-8840-2446-0
(J-8062)
Compressor;
Valve spring (1)
5-8840-2547-0
(J-42898)
Adapter; Compressor,
Valve spring (2) 5-8840-0133-0
(J-8614-01)
Holder; Crankshaft

5-8840-0623-0
(J-37281)
Remover; Oil controller 5-8840-2153-0
(J-37228)
Seal cutter

5-8840-0624-0
(J-38537)
Installer; Oil controller 5-8840-2286-0
(J-39201)
Installer; Real oil seal

5-8840-2005-0
(J-29107)
Universal pitman arm
remover 5-8840-2287-0
(J-39202)
Installer; Oil pump
oil seal

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-1
ENGINE
3.5L ENGINE DRIVEABILITY AND EMISSIONS
CONTENTS


ABBREVIATION CHARTS ................................ 6E-5
COMPONENT LOCATOR ................................. 6E-6
ENGINE COMPONENT LOCATOR TABLE .. 6E-6
ECM CIRCUIT DIAGRAM ................................. 6E-10
GROUND POINT CHART G.EXP (LHD)
WITHOUT EUROPE, ISRAEL, TURKEY (1/4). 6E-13
GROUND POINT CHART G.EXP (LHD) (2/4) .. 6E-14
GROUND POINT CHART G.EXP (LHD) (3/4) .. 6E-15
GROUND POINT CHART G.EXP (LHD) (4/4) .. 6E-16
GROUND POINT CHART G.EXP (RHD) (1/4) . 6E-17
GROUND POINT CHART G.EXP (RHD) (2/4) . 6E-18
GROUND POINT CHART G.EXP (RHD) (3/4) . 6E-19
GROUND POINT CHART G.EXP (RHD) (4/4) . 6E-20
LOCATION ........................................................ 6E-21
CABLE HARNESS & CONNECTOR
LOCATION ....................................................... 6E-22
CONNECTOR LIST ........................................... 6E-27
RELAY AND FUSE ............................................ 6E-30
RELAY AND FUSE BOX LOCATION
(LHD&RHD) ................................................... 6E-30
RELAY AND FUSE BOX LOCATION
(LHD&RHD) ................................................... 6E-31
FUSE AND RELAY LOCATION
(LHD&RHD) ................................................... 6E-32
ECM WIRING DIAGRAM (1/10) ........................ 6E-33
ECM WIRING DIAGRAM (2/10) ........................ 6E-34
ECM WIRING DIAGRAM (3/10) ........................ 6E-35
ECM WIRING DIAGRAM (4/10) ........................ 6E-36
ECM WIRING DIAGRAM (5/10) ........................ 6E-37
ECM WIRING DIAGRAM (6/10) ........................ 6E-38
ECM WIRING DIAGRAM (7/10) ........................ 6E-39
ECM WIRING DIAGRAM (8/10) ........................ 6E-40
ECM WIRING DIAGRAM (9/10) ........................ 6E-41
ECM WIRING DIAGRAM (10/10) ...................... 6E-42
ECM CONNECTOR PIN ASSIGNMENT
& OUTPUT SIGNAL ......................................... 6E-43
GENERAL DESCRIPTION FOR ECM AND
SENSORS ........................................................ 6E-51

Mass Air Flow (MAF) Sensor & Intake Air
Temperature (IAT) Sensor ............................. 6E-52
Throttle Position Sensor (TPS)....................... 6E-52
Idle Air Control (IAC) Valve ............................ 6E-53
Camshaft Position (CMP) Sensor .................. 6E-53
Crankshaft Position (CKP) Sensor ................. 6E-54
Engine Coolant Temperature (ECT) Sensor .. 6E-54
Vehicle Speed Sensor (VSS) ......................... 6E-55
Heated Oxygen (O
2) Sensor........................... 6E-55
GENERAL DESCRIPTION FOR FUEL
METERING....................................................... 6E-56
GENERAL DESCRIPTION FOR ELECTRONIC
IGNITION SYSTEM IGNITION
COILS & CONTROL ......................................... 6E-58
GENERAL DESCRIPTION FOR EVAPORATIVE
EMISSION SYSTEM ........................................ 6E-61
GENERAL DESCRIPRION FOR EXHAUST
GAS RECIRCULATION (EGR) SYSTEM......... 6E-62
ISUZU STRATEGY BASED DIAGNOSTICS .... 6E-63
Diagnostic Thought Process .......................... 6E-64
1. Verify the Complaint ................................... 6E-64
2. Perform Preliminary Checks....................... 6E-64
3. Check Bulletins and Troubleshooting
Hints ........................................................... 6E-65
4. Perform Service Manual Diagnostic
Checks ....................................................... 6E-65
5a and 5b. Perform Service Manual
Diagnostic Procedures ............................... 6E-65
5c. Technician Self Diagnoses ....................... 6E-65
5d. Intermittent Diagnosis............................ 6E-66
Symptom Simulation Tests.......................... 6E-67
5e. Vehicle Operates as Designed ................. 6E-68
6. Re-Examine the Complaint ........................ 6E-68
7. Repair and Verify Fix .................................. 6E-68
GENERAL SERVICE INFORMATION .............. 6E-69
Aftermarket Electrical and Vacuum
Equipment ..................................................... 6E-69
Electrostatic Discharge Damage .................... 6E-69

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-3
DTC P0201 (FLASH CODE 31) INJECTOR 1
CONTROL CIRCUIT ........................................ 6E-226
DTC P0202 (FLASH CODE 31) INJECTOR 2
CONTROL CIRCUIT ........................................ 6E-226
DTC P0203 (FLASH CODE 31) INJECTOR 3
CONTROL CIRCUIT ........................................ 6E-226
DTC P0204 (FLASH CODE 31) INJECTOR 4
CONTROL CIRCUIT ........................................ 6E-226
DTC P0205 (FLASH CODE 31) INJECTOR 5
CONTROL CIRCUIT ........................................ 6E-226
DTC P0206 (FLASH CODE 31) INJECTOR 6
CONTROL CIRCUIT ........................................ 6E-226
DTC P0336 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE (58X) ...................... 6E-234
DTC P0337 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL
(58X) ................................................................. 6E-234
DTC P0341 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE ............................... 6E-243
DTC P0342 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL .... 6E-243
DTC P0351 (FLASH CODE 42) IGNITION 1
CONTROL CIRCUIT ........................................ 6E-249
DTC P0352 (FLASH CODE 42) IGNITION 2
CONTROL CIRCUIT ........................................ 6E-249
DTC P0353 (FLASH CODE 42) IGNITION 3
CONTROL CIRCUIT ........................................ 6E-249
DTC P0354 (FLASH CODE 42) IGNITION 4
CONTROL CIRCUIT ........................................ 6E-249
DTC P0355 (FLASH CODE 42) IGNITION 5
CONTROL CIRCUIT ........................................ 6E-249
DTC P0356 (FLASH CODE 42) IGNITION 6
CONTROL CIRCUIT ........................................ 6E-249
DTC P0404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (OPEN VALVE)....... 6E-258
DTC P1404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (CLOSED VALVE) .. 6E-258
DTC P0405 (FLASH CODE 32) EGR
CIRCUIT LOW.................................................. 6E-263
DTC P0406 (FLASH CODE 32) EGR
CIRCUIT HIGH ................................................. 6E-268
DTC P0444 EVAP PURGE SOLENOID
VALVE CIRCUIT LOW VOLTAGE ................... 6E-274
DTC P0445 EVAP PURGE SOLENOID
VALVE CIRCUIT HIGH VOLTAGE .................. 6E-274
DTC P0500 (FLASH CODE 24) VEHICLE
SPEED SENSOR (VSS) CIRCUIT
RANGE/PERFORMANCE ................................ 6E-279 DTC P0562 (FLASH CODE 66) SYSTEM
VOLTAGE LOW .............................................. 6E-288
DTC P0563 (FLASH CODE 66) SYSTEM
VOLTAGE HIGH .............................................. 6E-321
DTC P0601 (FLASH CODE 51) ENGINE
CONTROL MODULE (ECM) MEMORY
CHECKSUM ..................................................... 6E-293
DTC P0602 PROGRAMMING ERROR............. 6E-295
DTC P1508 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM LOW/CLOSED ............... 6E-296
DTC P1509 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM HIGH/OPEN ................... 6E-296
DTC P1601 (FLASH CODE 65) CAN BUS
OFF .................................................................. 6E-304
DTC U2104 (FLASH CODE 67) CAN BUS
RESET COUNTER OVER-RUN ...................... 6E-310
DTC P1626 IMMOBILIZER NO SIGNAL ........... 6E-317
DTC P1631 IMMOBILIZER WRONG
SIGNAL ............................................................ 6E-323
DTC P1648 IMMOBILIZER WRONG
SECURITY CODE ENTERED .......................... 6E-325
DTC P1649 IMMOBILIZER FUNCTION NOT
PROGRAMMED ................................................ 6E-327
SYMPTOM DIAGNOSIS ................................... 6E-329
PRELIMINARY CHECKS .............................. 6E-329
VISUAL/PHYSICAL CHECK .......................... 6E-329
INTERMITTENT ............................................. 6E-329
ENGINE CRANKS BUT WILL NOT RUN ......... 6E-331
HARD START SYMPTOM ................................ 6E-334
ROUGH, UNSTABLE, OR INCORRECT
IDLE, STALLING SYMPTOM ........................... 6E-337
SURGES AND/OR CHUGS SYMPTOM ........... 6E-341
HESITATION, SAG, STUMBLE SYMPTOM ..... 6E-345
CUTS OUT, MISSES SYMPTOM ..................... 6E-347
LACK OF POWER, SLUGGISH OR SPONGY
SYMPTOM ....................................................... 6E-352
DETONATION/SPARK KNOCK SYMPTOM..... 6E-356
POOR FUEL ECONOMY SYMPTOM ............... 6E-359
EXCESSIVE EXHAUST EMISSIONS OR
ODORS SYMPTOM ......................................... 6E-362
DIESELING, RUN-ON SYMPTOM .................... 6E-365
BACKFIRE SYMPTOM ..................................... 6E-366
ON-VEHICLE SERVICE PROCEDURE ........... 6E-368
ENGINE CONTROL MODULE (ECM) .............. 6E-368
CRANKSHAFT POSITION (CKP) SENSOR ..... 6E-369
CAMSHAFT POSITION (CMP) SENSOR ......... 6E-369
ENGINE COOLANT TEMPERATURE (ECT)
SENSOR .......................................................... 6E-370
MASS AIR FLOW (MAF) SENSOR & INTAKE AIR
TEMPERATURE (IAT) SENSOR ...................... 6E-370

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-5
ABBREVIATION CHARTS

Abbreviations Appellation
A/C Air conditioner
A/T Automatic transmission
ACC Accessory
BLK Black
BLU Blue
BRN Brown
CAN Controller Area Network
CEL Check engine lamp
CKP Crankshaft position
CMP Camshaft position
DLC Data link connector
DTC Diagnosis trouble code
DVM Digital voltage meter
ECM Engine control module
ECT Engine coolant temperature
EEPROM Electrically erasable & programmable read only memory
EGR Exhaust gas recalculation
GND Ground
GRY Gray
HO2S Heated Oxygen Sensor
IAT Intake air temperature
IAC Idle air control
IG Ignition
M/T Manual transmission
MAF Mass air flow
MIL Malfunction indicator lamp
OBD On-board diagnostic
ORN Orange
PNK Pink
PROM Programmable read only memory
RED Red
SW Switch
TPS Throttle position sensor
TCM Transmission control module
VCC Voltage Constant Control
VIO Violet
VSS Vehicle speed sensor
WHT White
WOT Wide open throttle
YEL Yellow

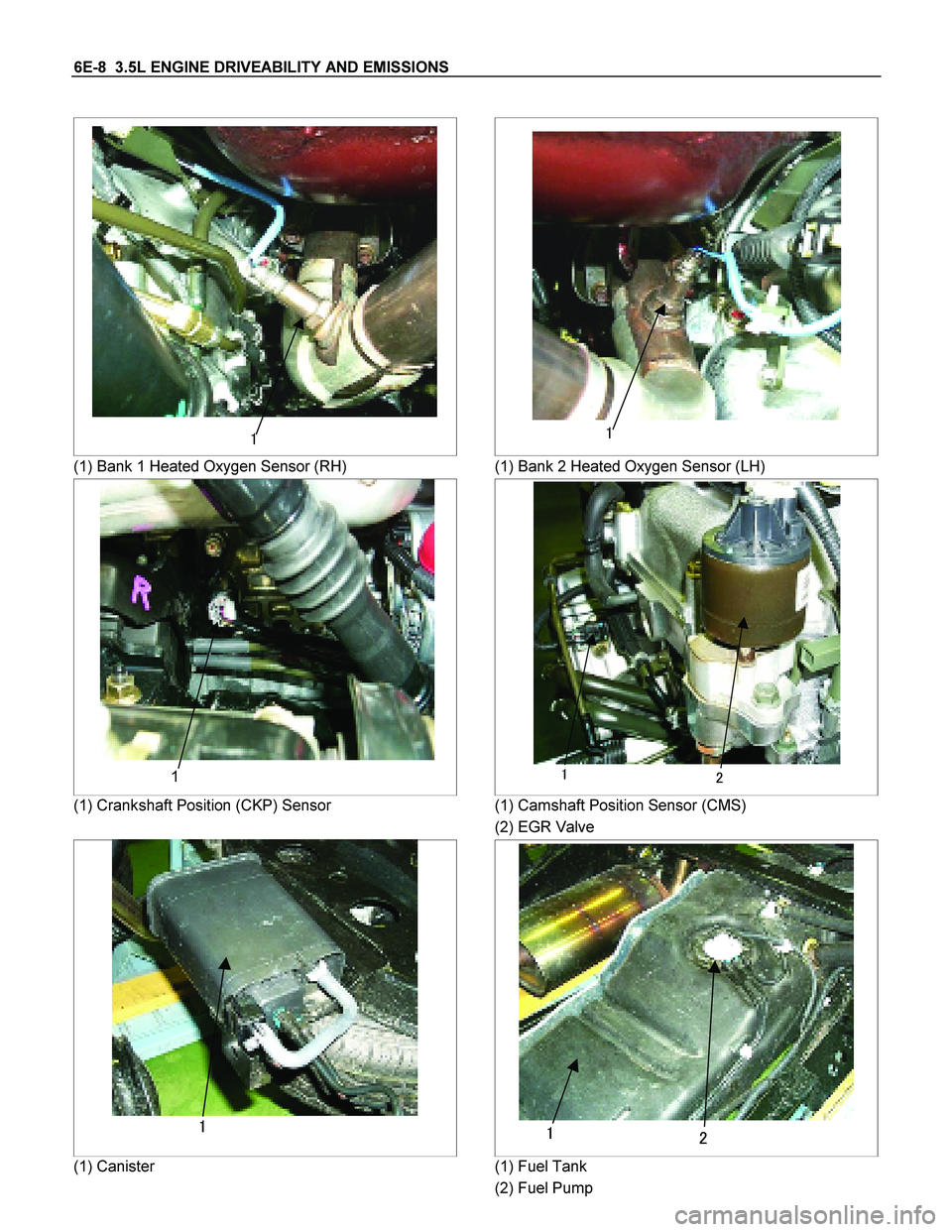

6E-8 3.5L ENGINE DRIVEABILITY AND EMISSIONS





(1) Bank 1 Heated Oxygen Sensor (RH)



(1) Bank 2 Heated Oxygen Sensor (LH)





1
(1) Crankshaft Position (CKP) Sensor



(1) Camshaft Position Sensor (CMS)
(2) EGR Valve





(1) Canister



(1) Fuel Tank
(2) Fuel Pump

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-47
Signal or Continuity Tester Position Pin
No. B/Box
No. Pin Function Wire
Color
Key SW Off Key SW On Engine IdleEngine
2000rpm ECM
Connection Range (+) (-)
B16 B16 Idle Air Control
(IAC) Valve
Coil A Low BLU/
RED Less than 1V Less than 1V / 10-14V Connect DC V B16 GND
B17 B17 Idle Air Control
(IAC) Valve
Coil B Low BLU/
BLKLess than 1V Less than 1V / 10-14V Connect DC V B17 GND
B18 B18 Check Engine
Lamp
(Immobilizer
Control Unit
Terminal B7) BRN/
YELLess than 1V Less than 1VLamp is turned on:
Less than 1V
Lamp is turned off: 10-14VConnect DC V B18 GND
B19 B19 Fuel Pump
Relay GRN/
WHT Less than 1V While relay is
activated:
10-14V
Relay is not
activated:
Less than 1V10-14V Connect DC V B19 GND
B20 B20 Mass Air Flow
(MAF) Sensor BLK/
YELLess than 1V Approx. 0.47VApprox. 1.5V
at 750 rpmApprox. 2V Connect DC V B20 GND
B21 B21 Bank 1 Oxygen
Sensor Signal PNK Less than 1V Approx. 0.4V 0.1 - 0.9V Connect DC V B21 B22
B22 B22 Bank 1 Oxygen
Sensor Ground BLU/
YELContinuity
with ground - - - Connect Ohm B22 GND
B23 B23 Bank 2 Oxygen
Sensor Signal RED Less than 1V Approx. 0.4V 0.1 - 0.9V Connect DC V B23 B24
B24 B24 Bank 2 Oxygen
Sensor Ground BLU/
BLKContinuity
with ground - - - Connect Ohm B24 GND
B25 B25 To Data Link
Connector
No.6 BLK/
GRN - - - - - - - -
B26 B26 Throttle
Position
Sensor (TPS)
Signal BLU Less than 1V Approx. 0.5V Approx. 0.6V Connect DC V B26 B39
B27 B27 TPS & Cam
Position
Sensor +5V
Supply GRN Less than 1V Approx. 5V Connect DC V B27 B39
B28 B28 Camshaft
Position (CMP)
Sensor Signal BLU - - Wave form - - - -
B29 B29 Inhibitor Switch
(AT Only) BLK Less than 1V P or N range: Less than 1V
Other than P or N range: 10-14V Connect DC V B29 GND
B30 B30 Power Steering
Pressure
Switch GRN/
YELLess than 1V Pressure switch is turned on: Less than 1V
Pressure Switch is turned off: 10-14V Connect DC V B30 GND
B31 B31 A/C Thermo
Relay GRN/
BLKLess than 1V A/C request is activated: 10-14V
A/C request is not activated: Less than 1VConnect DC V B31 GND
